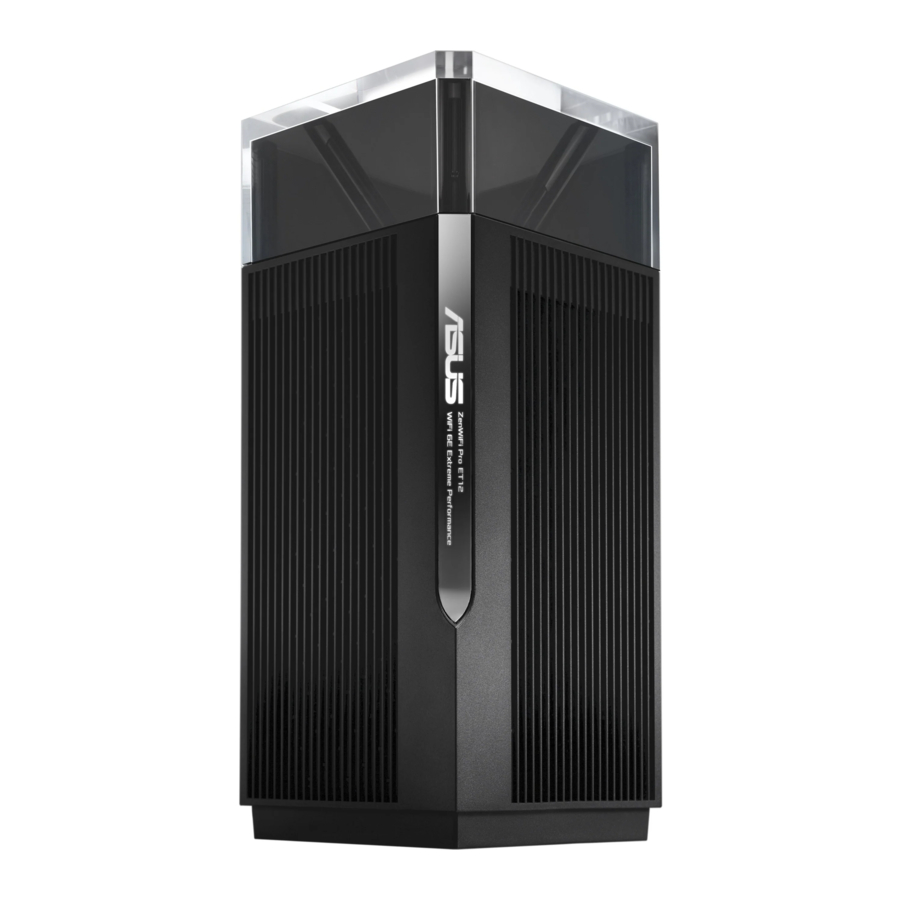

Asus ZenWiFi Pro ET12 Manual

Hardware Explanations

1. Plug the adapter into the DCIN port, and press the power switch.
2. The power LED will light up when your hardware is ready.

Button and Port Explanations

2.5G / 1G WAN port
Connect your optical modem to this port with a network cable.

LAN ports 1-2
Connect your PC to a LAN port with a network cable.

2.5G / 1G LAN port
Connect your PC to a 2.5G / 1G LAN port with a network cable.

Specifications

Before Setup

Setting up a standalone router
One Router Setup

1. Go to ONE ROUTER SETUP STEPS.

Setting up an AiMesh WiFi system
AiMesh Setup Steps

1. Prepare two or more ASUS routers supporting AiMesh.
2. Assign one as AiMesh router, and another one as AiMesh node. ** If you have multiple AiMesh routers, we recommend using the router with the highest specifications as your AiMesh router and the others as AiMesh nodes.
3. Go to AiMesh SETUP STEPS.

One Router Setup Steps

Prepare your Modem

1. Unplug the power of cable / DSL modem. If it has a battery backup, remove the battery.
   1. If you are using DSL for internet, you will need your username / password from your Internet service provider (ISP) to properly configure your router.

2. Connect your modem to the router with the network cable provided.

3. Power on the modem. Plug modem to the power outlet and power on.
4. Check the modem LED lights to ensure the connection is active.


Connect your Device

1. Power on the router. Plug in and press the Power On/Off switch at the back of your router.
2. Check that the LED turns solid blue to indicate that the hardware connection is ready for setup.
3. [Web] Connect your PC to the router using an additional network cable. [App] Or you can use a phone or pad to complete the setup via ASUS Router App.

Login and Connect

1. [Web] Open a web browser.

You will be redirected to the ASUS Setup Wizard. If not, navigate to http://router.asus.com.

[App] Launch ASUS Router App and follow the instructions to complete the setup.

AiMesh Setup Steps

Prepare
Place your AiMesh router and node within 3 meters of each other during the setup process.

AiMesh node
Keep your AiMesh node powered on and standby for AiMesh system settings.

AiMesh router

1. [Web] Refer to ONE ROUTER SETUP STEPS to connect your AiMesh router to your PC and modem, and then log in into the web GUI.

2. Go to Network Map page, click AiMesh icon and then Search for your extending AiMesh node.

3. Click Search, it will automatically search for your AiMesh node nearby. When the AiMesh node shows on this page, click it to add it into the AiMesh system.
   ** If you cannot find any AiMesh node, please go to TROUBLE SHOOTING.


4. A message is displayed when synchronization is completed.

5. Congratulations! You will find the pages below show up when an AiMesh node has been successfully added to the AiMesh network.


[App] Log in to your existing router via ASUS Router App and choose "Add AiMesh Node" to complete the setup.

ASUS Router App

Download free ASUS Router APP to set up and manage your router(s).

Troubleshooting

If your AiMesh router cannot find any AiMesh node nearby or synchronization fails, please check the following and try again.

1. Move your AiMesh node closer to the AiMesh router ideally. Ensure that it is within 3 meters.
2. Your AiMesh node is powered on.

Relocation

THE BEST PERFORMANCE
Locate the AiMesh router and node at the best place.

NOTES: To minimize interference, keep the routers away from devices like cordless phones, Bluetooth devices and microwave ovens.
We recommend that you place the routers in an open or spacious location.

ZenWiFi Pro ET12 LED indications

	Solid white: Good signal
	Solid yellow: Weak signal
	Solid red: No signal

FAQ FREQUENTLY ASKED QUESTIONS

Does the AiMesh router support Access Point mode

1. Yes. You can choose to set the AiMesh router as router mode or access point mode. Please go to web GUI (http://router.asus.com), and go to the page Administration > Operation Mode.


Networks Global Hotline Information

NOTES:

• UK support e-mail: network_support_uk@asus.com
• For more information, visit the ASUS support site at: https://www.asus.com/support

Safety Notices

• Use this product in environments with ambient temperatures between 0°C(32°F) and 40°C(104°F).
• Refer to the rating label on the bottom of your product and ensure your power adapter complies with this rating.
• DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.
• DO NOT place or drop objects on top and do not shove any foreign objects into the product.
• DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
• DO NOT cover the vents on the product to prevent the system from getting overheated.
• DO NOT use damaged power cords, accessories, or other peripherals.
• If the Adapter is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
