Asus RT-AC1200 Manual

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions.

Package Contents

• RT-AC1200 Wireless Router
• Network cable (RJ-45)
• Warranty card
• AC adapter
• Quick Start Guide

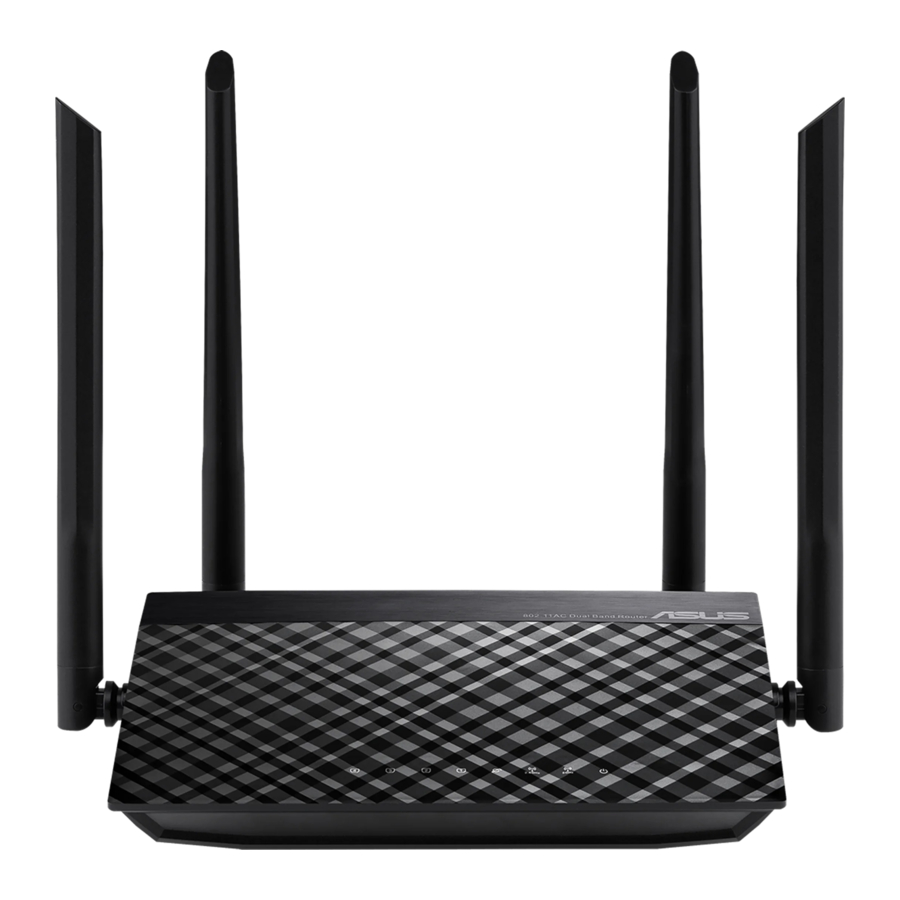

A quick look at your RT-AC1200

DO NOT throw this product in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

1. Insert your wireless router's AC adapter to the DC-IN port and plug it to a power outlet.
2. Using the bundled network cable, connect your computer to your wireless router's LAN port.

   Ensure that the WAN and LAN LEDs are blinking.
3. Using another network cable, connect your modem to your wireless router's WAN port.
4. Insert your modem's AC adapter to the the DC-IN port and plug it to a power outlet.
   NOTE: Before you proceed, disconnect the wires/cables from your existing modem setup. After two minutes, reconnect the wires/cables.

2. If QIS does not launch automatically, follow these steps to manually launch QIS:

• On your web browser, key in http://router.asus.com. Use the default username admin and password admin to log into the user interface.
• Click Quick Internet Setup on the left panel on the Network Map page.
• The auto-detection of your ISP connection type takes place when you configure the wireless router for the first time or when your wireless router is reset to its default settings.

Obtain the necessary information from your ISP about the Internet connection type.

Frequently Asked Questions (FAQs)

The client cannot establish a wireless connection with the router.

Out of Range:

• Put the router closer to the wireless client.
• Try to change the channel settings.

Authentication:

• Use wired connection to connect to the router.
• Check the wireless security settings.
• Press the Reset button at the rear panel for more than five seconds.

Cannot find the router:

• Press the Reset button at the rear panel for more than five seconds.
• Check the setting in the wireless adapter such as SSID and encryption settings.

You can find SSID and Password in the first page of this QSG or in the label at the bottom of the router.

Cannot access the Internet via wireless LAN adapter.

• Move the router closer to the wireless client.
• Check whether the wireless adapter is connected to the correct wireless router.
• Check whether the wireless channel in use conforms to the channels available in your country/area.
• Check the encryption settings.
• Check if the ADSL or Cable connection is correct.
• Retry using another Ethernet cable.

Network name or encryption keys are forgotten.

• Try setting up the wired connection and configuring the wireless encryption again.
• Press the Reset button of the wireless router for more than five seconds.
• Factory default settings:

Where can I find more information about the wireless router?

• Online FAQ site:http://support.asus.com/faq
• Technical Support site:http://support.asus.com
• Customer Hotline: Refer to the Support Hotline in this Quick Start Guide

Precautions for the use of the device

1. Pay particular attention to the personal safety when use this device in airports, hospitals, gas stations and professional garages.
2. M edical device interference: Maintain a minimum distance of at least 15 cm (6 inches) between implanted medical devices and ASUS products in order to reduce the risk of interference.
3. Kindly use ASUS products in good reception conditions in order to minimize the radiation's level.
4. Keep the device away from pregnant women and the lower abdomen of the teenager.

Networks Global Hotline Infomation

Support Hotline

Safety Notices

• Use this product in environments with ambient temperatures between 0°C(32°F) and 40°C(104°F).
• Refer to the rating label on the bottom of your product and ensure your power adapter complies with this rating.
• DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.
• DO NOT place or drop objects on top and do not shove any foreign objects into the product.
• DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
• DO NOT cover the vents on the product to prevent the syste m from getting overheated.
• DO NOT use damaged power cords, accessories, or other peripherals.
• If the Adapter is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
