Asus BLUE CAVE Manual

Package contents

• Network cable (RJ-45)
• Quick Start Guide

NOTE: If any of the items is damaged or missing, contact your retailer.

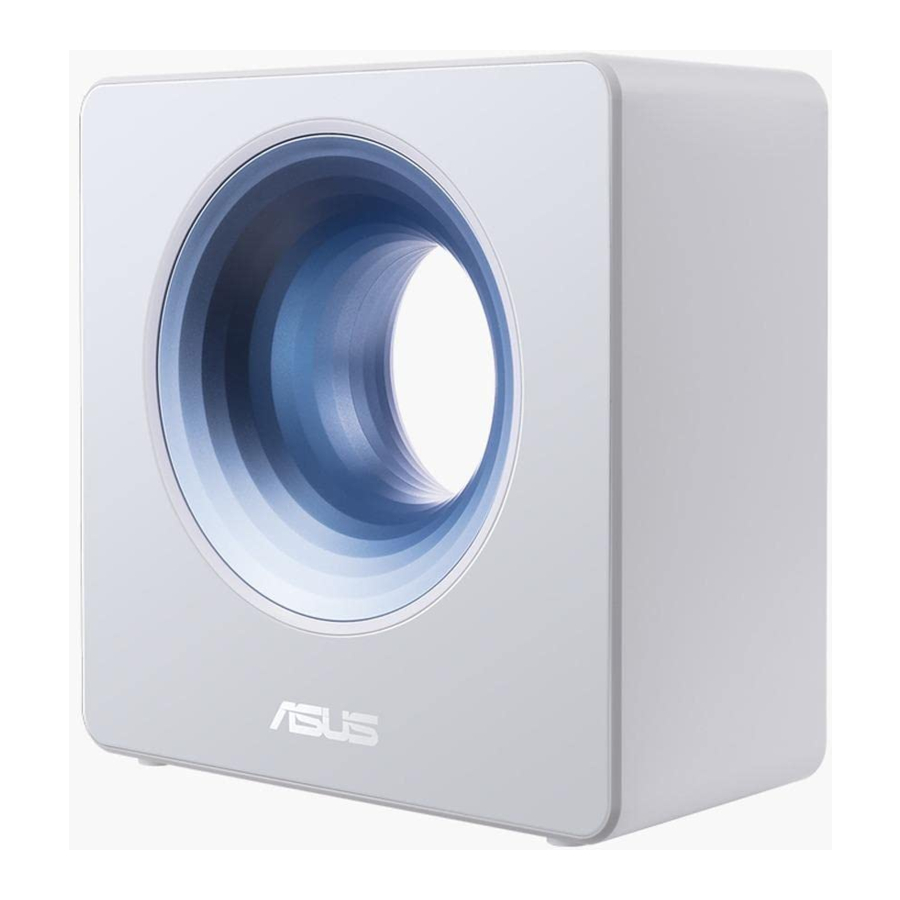

A quick look at your Blue Cave

1. Power button
2. Power (DC-IN) port
3. Reset button
4. USB3.0 port

5. LAN ports
6. WAN (Internet) port
7. WPS button

Positioning your Blue Cave

For the best wireless signal transmission between the wireless router and the network devices connected to it, ensure that you:

• Place the wireless router in a centralized area for a maximum wireless coverage for the network devices.
• Keep the device away from metal obstructions and away from direct sunlight.
• Keep the device away from 802.11b/g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss.
• Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates.

Preparing your modem

1. Unplug the power cable/DSL modem. If it has a battery backup, remove the battery.
   NOTE: If you are using DSL for Internet, you will need your username/password from your Internet Service Provider (ISP) to properly configure the router.

2. Connect your modem to the router with the bundled network cable.

3. Power on your cable/DSL modem.
4. Check your cable/DSL modem LED lights to ensure the connection is active.


2. Wireless connection
   1. Plug your router into a power outlet and power it on.

   2. Connect to the network with SSID shown on the product label on the back side of the router. For better network security, change to a unique SSID and assign a password.
      2.4G Wi-Fi Name (SSID): ASUS_XX_2G
      5G Wi-Fi Name (SSID): ASUS_XX_5G
      * XX refers to the last two digits of 2.4GHz MAC address. You can find it on the label on the back of your Blue Cave.


3. You can choose either the web GUI or ASUS Router app to set up your router.
   1. Web GUI Setup
      • Once connected, the web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.
      • Set up a password for your router to prevent unauthorized access.

   2. App Setup
      Download ASUS Router App to set up your router via your mobile devices.
      • T urn on Wi-Fi on your mobile devices and connect to your Blue Cave's network.
      • Follow ASUS Router App setup instructions to complete the setup.







Remembering your wireless router settings

• Remember your wireless settings as you complete the router setup.

FAQ

1. Where can I find more information about the wireless router?
   • Online FAQ site: http://support.asus.com/faq
   • Technical support site: http://support.asus.com
   • Customer hotline: refer to the Support Hotline section in this Quick Start Guide
