Note: Your computer might look different from the illustrations in this chapter.
* For selected models
Dimensions | Approximately 324 mm x 221 mm x 16.6 mm (12.8 inches x 8.7 inches x 0.7 inches) |
Weight | Approximately 1.49 kg (3.28 lb) |
Screen |
|
Memory |
|
Storage device |
|
Connectors and slots |
|
Wireless features |
|
Others |
|
Battery pack |
|
ac power adapter |
|
Note: Specifications might change without notice. Some specifications are model-specific and might not apply to the computer model that you purchased.
* For selected models
Depending on many factors such as the processing capability of the host and peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual transfer rate using the various USB connectors on this device will vary and will be slower than the data rate listed below for each corresponding device.
USB device | Data rate (Gbit/s) |
3.2 Gen 1 | 5 |
Maximum altitude
3048 m (10 000 ft) (without pressurization)
Temperature
Note: When charging the battery pack, the environment temperature must be no lower than 10 ℃ (50 ℉).
Relative humidity
If possible, place your computer in a well-ventilated and dry area without direct exposure to sunshine.
The USB-C connector on your Chromebook works as the power connector. Plug in the ac power adapter to charge the built-in battery pack and provide power to the Chromebook.
All plugs must be firmly and securely inserted into receptacles.
The ac power status indicator is next to the USB-C connector. The following table shows the indicator behaviors and the indicated power and battery status.
AC power status indicator | Power status | Battery status |
on (red) | plugged in | being charged, remaining power is less than 5% |
on (amber) | plugged in | being charged, remaining power is between 5% and 97% |
on (green) | plugged in | fully charged (97% to 100%) |
off | unplugged | discharging |
1 | The Launcher button | Open the search box and App Launcher. |
2 | App shelf | Pin your frequently-used app or Web page to the app shelf for easy access. |
3 | Search box and App Launcher |
|
4 | Status tray | Manage connections, updates, and settings. By default, the time, network connection status, battery status, and your account picture are displayed. |
5 | Wallpaper | Your wallpaper might look different. To change the wallpaper, right-click a blank area of your desktop and select Set Wallpaper. |
To discover more features and get help, click your account picture and select the question mark?
To connect your Chromebook to Wi-Fi:
Your computer display can be rotated to any angle up to 180 degrees.
Attention:
Your Chromebook features the following four YOGA modes. You can switch among different modes according to your preference.
When you open the computer screen, the Chromebook automatically starts. If it doesn't, press the power button. You also can use the power button to put your Chromebook to sleep or wake your Chromebook.
The power button is on the keyboard. For details, see "Use the special keys". The power button has an integrated LED to show the power status.
Table 1. Power button LED behavior
LED status | Power status |
on (white) | powered on |
blink (white) | plugged in and in sleep mode |
off | powered off |
Your Chromebook supports Bluetooth feature. You can connect your Chromebook to a Bluetooth keyboard, mouse, speakers, or other Bluetooth devices.
Note: The Bluetooth devices must be within a short distance, usually 10 meters (33 feet), from the Chromebook.
For ENERGY STAR® compliant computers, the following power plan takes effect when your computers have been idle for a specified duration:
Table 2. Default power plan (when plugged into ac power)
|
To change the power plan settings:
To wake your Chromebook from sleep mode, press the power button or any key on the keyboard.
Note: Some gestures might not be available depending on the app you use.
Tap
Open an app or perform an Open a shortcut menu. action on an open app, such as Copy, Save, and Delete, depending on the app.
Slide
Scroll through items, such as lists, pages, and photos.
Move two fingers closer together
Zoom out.
Swipe up from the bottom
Show or hide the app shelf.
Tap and hold
Open a shortcut menu.
Drag an item to the location you want
Move an object.
Move two fingers farther apart
Zoom in.
Tap with two fingers
Open a shortcut menu.
Tips
Your Chromebook keyboard works just like a conventional keyboard but with a few special keys.
* For selected models
To change the keyboard settings:
You can use the touchpad to perform various touch gestures. The following section introduces some frequently used touch gestures, such as tapping, dragging, and scrolling.
Notes:
Tap
Tap anywhere on the touchpad with one finger to select or open an item.
Two-finger scroll
Put two fingers on the touchpad and move them in the vertical or horizontal direction. This action enables you to scroll through the document, Website, or apps.
Two-finger tap
Tap anywhere on the touchpad with two fingers to display a shortcut menu.
Swipe three fingers up or down
Put three fingers on the touchpad and move them up or down to see all your open windows.
To change the settings:
The built-in camera can be used for video calling or video conferencing. The indicator next to the camera turns on when the camera is activated.
To take photos with the camera:
You can connect headphones or a headset with a 3.5-mm (0.14-inch), 4-pole plug to the audio connector to listen to the sound from your Chromebook.
To play a saved audio or video:
To adjust the volume, click the account picture, and then adjust the volume as you prefer.
You can use the Chromebook's USB-C connectors to connect a projector or an external display.
To change display settings:
There are three types of user accounts you may use to log into the Chromebook.
Types of user account | Description |
Google® Account | A user account that has access to a variety of Google Web services, including Gmail™, Google Drive, and Google Docs. Typically a Google Account is created when you apply for a Gmail account. A Google Account can be used to log into any Chrome-based device unless the account is restricted by the device's owner. For details, refer to "Control who can use your Chromebook". The first Google Account logged into a Chrome- based device becomes the owner account. If you do not have a Google Account, you can create one at http://www.google.com/accounts/NewAccount. |
Guest account | A special account for logging into Chrome. A Guest user has limited privilege and may only be used for temporary sharing of a Chrome-based device.
|
Supervised account | A special account created by a Google Account (manager) logged into a Chrome-based device. A supervised account is device-specific and cannot be used to log into other Chrome-based device. The manager of a supervised user can review and control a supervised user's use of the Internet. |
When starting your Chromebook for the first time, you need to set the operating system language and keyboard, the Internet connection, and sign in with your Google Account. The user of the first Google Account signed into a Chromebook becomes the device's owner.
Note: The owner of a Chromebook has permissions to enable (or disable) Guest account login and restrict login of certain Google Accounts.
You're now your Chromebook's owner. To verify this, refer to "Check a Chromebook's owner".
As the device owner, you may share your Chromebook with other people. They can use their Google Accounts to sign in and use your Chromebook.
Note: An Internet connection is required when signing in for the first time.
If you cannot sign in with your Google Account, your account may be restricted by the Chromebook owner. For details, refer to "Control who can use your Chromebook".
You may share your Chromebook with people who do not have a Google Account. They can use your Chromebook with a special guest account.
Note: Some operations such as installing apps are disabled if you log in as a guest.
Note: If you cannot sign in, guest browsing may be disabled by the Chromebook owner.
You may need to create a supervised account for your child to use your Chromebook. As the manager of a supervised account, you have the ability to review and control their use of the Internet.
To change restriction settings for the supervised user, go to www.chrome.com/manage.
If you or others need to sign in with another account, sign out of current login session.
By default, anyone with a valid Google Account can sign in to a Chromebook. However, as a Chromebook owner, you can set up permissions to only allow people with certain accounts to sign in.
Typically, the user of the first Google Account signed in is set as a Chromebook's owner. However, if you're not sure whether you're the owner, you can follow the steps below to check a Chromebook's owner.
If you're not the owner of the Chromebook, you will get a warning message that the settings may only be modified by the device owner. The user name of the owner is also displayed.
As a Chromebook's owner, you can disable guest login for security concerns.
If you need to leave your Chromebook temporarily, lock it so others cannot tamper with your settings or files.
Note: As a shortcut, you can also press and hold the lock key on your keyboard to lock your Chromebook.
When you finish working with your Chromebook, shut it down to save power.
If you need to transfer ownership of your Chromebook or if you experience problems with the operating system, you might need to reset your Chromebook.
After resetting your Chromebook, user data for all accounts stored locally will be deleted. Back up important data to Google Drive or external storage devices before resetting your Chromebook.
After signing in to your Chromebook, click Get Help from the App Launcher. The Get Help app provides comprehensive instructions on using a Chromebook.
In addition, Google provides an online community for Chromebook users. If you are interested, go to http://chromebook.com/community.
Google Drive is a server-based file storage and sharing service provided by Google. By creating a Google
Account, you get an initial free storage space where you can save files of various formats. From your Chromebook, you can use the Google Drive app or the Files app to create and manage files on your online storage space.
Note: The Google Drive client software is available for Windows®, Android™, OSX and iOS. If you have devices running those operating systems, you can download and install Google Drive on these devices. Google Drive provides a convenient way of sharing files between devices. You can also find your files online by visiting: http://drive.google.com.
Each Google Account signed in to a Chromebook is assigned a local storage space, in a folder named Downloads.
Each Google Account has its own Downloads
. You can only view and edit files in your own Downloads folder.
Your Chromebook has a Files app for you to manage files and folders on your local storage device, a connected external storage device, or Google Drive. The Files app can be started from the App Launcher.
You can create folders and subfolders for better management of files.
In some cases, you may need to delete unused files to free storage space.
If you have failed saving a large-size file, you may need to check the amount of available storage and then decide if you need to delete unused files to free more storage.
You can insert a microSD card into the microSD card slot to expand the Chromebook's local storage capacity.
When starting your Chromebook for the first time, you're prompted to select the display language. This setting can be changed at a later time if you need to use a different language.
You need to sign out and then sign in for the changes to take effect.
Note: Each signed-in user may set their own display language.
You may need to add an input method to type text in a particular language.
If you have added input methods, you may need to switch among them.
Notes: As a shortcut, use key combinations to switch among input methods.
You can add features and functions to your Chromebooks by downloading apps from the Web Store or the Play Store.
Table 3. Comparison of available resources between the Web Store and the Play Store
Web Store | Play Store |
Apps Extensions Themes Games | Apps Music Movies Games |
Note: You cannot download and install apps if you're signing in as Guest.
Chrome™ Web Store is a Web resource that provides apps and extensions dedicated for your Chromebook and the Chrome browser.
Note: Extensions are add-on features for the Chrome browser. Most of the apps and extension available on the Chrome Web Store are free but some may require payment.
You can access the Chrome Web Store by either of the following ways:
Apps and extensions the Web Store run completely within the Chrome browser.
Most of the apps from the Web Store are Web-based and do not require installation. The added apps are pinned to the App Launcher and extensions to the right of the Chrome's address bar.
Note: If you sign in to different Chromebooks with the same Google Account, apps you added on one Chromebook are synchronized on other Chromebooks.
You can download and install Android apps on your Chromebook using the Google Play™ Store.
Note: Not all apps in the Play Store are free of charge. Some apps require purchase for downloading or full-function using.
The installed Android apps are accessible from the App Launcher.
Apps pinned to shelf are accessible from the lower-left corner of the Chrome desktop.
To unpin an app, press and hold the app icon on the shelf, then select Unpin on the context menu.
If you find yourself visiting a web page frequently, you may pin it to shelf for easy access.
Note: You may choose to select the Open as window check box here. If you've selected this option, the Web page will start in a dedicated window, instead of in a tabbed window of the Chrome browser.
To unpin an app, press and hold the app icon on the shelf, then select Unpin on the context menu.
Technical support information is available on the Lenovo support Web site at https://support.lenovo.com.
If you have tried to correct the problem yourself but still need help, during the warranty period, you can get help and information by telephone through the customer support center.
Ensure that you have downloaded the most current drivers and system updates and recorded information about your computer before you call. When calling for technical assistance, have the following information available.
The following services are available during the warranty period.
For the Lenovo support phone number for your country or region, go to https://pcsupport.lenovo.com/supportphonelist.
Note: Phone numbers are subject to change without notice. If the number for your country or region is not provided, contact your Lenovo reseller or Lenovo marketing representative.
Lenovo is committed to providing users who have hearing, vision, and mobility limitations with greater access to information and technology. This section provides information about the ways these users can get the most out of their computer experience. You also can get the most up-to-date accessibility information from the following Web site: https://www.lenovo.com/accessibility
Keyboard shortcuts
The following list contains keyboard shortcuts that can help make your computer easier to use.
Note: Depending on your keyboard, some of the following keyboard shortcuts might not be available.
For more information, go to https://windows.microsoft.com/, and then search using any of the following keywords: keyboard shortcuts, key combinations, shortcut keys.
Ease of Access Center
Ease of Access Center on the Windows operating system enables you to configure your computers to suit their physical and cognitive needs.
To access Ease of Access Center:
Ease of Access Center mainly includes the following tools:
Speech Recognition
Speech Recognition enables you to control your computer by voice.
You can use verbal instructions to control the keyboard and mouse. With verbal instructions, you can start programs, open menus, click objects on the screen, dictate text into documents, and write and send e-mails.
To use Speech Recognition:
Screen-reader technologies
Screen-reader technologies are primarily focused on software program interfaces, help systems, and various online documents. For additional information about screen readers, see the following:
Screen resolution
You can make the text and images on your screen easier to read by adjusting the screen resolution of your computer.
To adjust the screen resolution:
Note: Setting a resolution too low might prevent some items from fitting on the screen.
Customizable item size
You can make the items on your screen easier to read by changing the item size.
Industry-standard connectors
Your computer provides industry-standard connectors that enable you to connect assistive devices.
Documentation in accessible formats
Lenovo provides electronic documentation in accessible formats, such as properly tagged PDF files or HyperText Markup Language (HTML) files. Lenovo electronic documentation is developed to ensure that visually impaired users can read the documentation through a screen reader. Each image in the documentation also includes adequate alternative text so that visually impaired users can understand the image when they use a screen reader.
Good ergonomic practice is important to get the most from your personal computer and to avoid discomfort. Arrange your workplace and the equipment you use to suit your individual needs and the kind of work that you perform. In addition, use healthy work habits to maximize your performance and comfort when using your computer.
Working in the virtual office might mean adapting to frequent changes in your environment. Adapting to the surrounding light sources, active seating, and the placement of your computer hardware, can help you improve your performance and achieve greater comfort.
This example shows someone in a conventional setting. Even when not in such a setting, you can follow many of these tips. Develop good habits, and they will serve you well.
Figure 1. Illustration of proper seating and computer positioning
General posture: Make minor modifications in your working posture to deter the onset of discomfort caused by long periods of working in the same position. Frequent short breaks from your work also help to prevent minor discomfort associated with your working posture.
Display: Position the display to maintain a comfortable viewing distance of 510 mm to 760 mm (20 inches to 30 inches). Avoid glare or reflections on the display from overhead lighting or outside sources of light. Keep the display screen clean and set the brightness to levels that enable you to see the screen clearly. Press the brightness control keys to adjust display brightness.
Head position: Keep your head and neck in a comfortable and neutral (vertical, or upright) position.
Chair: Use a chair that gives you good back support and seat height adjustment. Use chair adjustments to best suit your comfort posture.
Arm and hand position: If available, use chair arm rests or an area on your working surface to provide weight support for your arms. Keep your forearms, wrists, and hands in a relaxed and neutral (horizontal) position. Type with a soft touch without pounding the keys.
Leg position: Keep your thighs parallel to the floor and your feet flat on the floor or on a footrest.
What if you are traveling?
It might not be possible to observe the best ergonomic practices when you are using your computer while on the move or in a casual setting. Regardless of the setting, try to observe as many of the tips as possible. Sitting properly and using adequate lighting, for example, helps you maintain desirable levels of comfort and performance. If your work area is not in an office setting, ensure to take special note of employing active sitting and taking work breaks. Many product solutions are available to help you modify and expand your computer to best suit your needs. You can find some of these options at https://www.lenovo.com/accessories. Explore your options for docking solutions and external products that provide the adjustability and features that you want.
Questions about vision?
The visual display screens of notebook computers are designed to meet the highest standards. These visual display screens provide you with clear, crisp images and large, bright displays that are easy to see, yet easy on the eyes. Any concentrated and sustained visual activity can be tiring. If you have questions on eye fatigue or visual discomfort, consult a vision-care specialist for advice.
It is a good practice to clean your computer periodically to protect the surfaces and ensure trouble-free operation.
Cleaning the computer cover
Wipe it with a lint-free cloth dampened in mild soap and water. Avoid applying liquids directly to the cover.
Cleaning the keyboard
Wipe the keys one by one with a lint-free cloth dampened in mild soap and water. If you wipe several keys at a time, the cloth might hook onto an adjacent key and possibly damage it. Avoid spraying cleaner directly onto the keyboard. To remove any crumbs or dust from beneath the keys, you can use a camera blower with a brush or use cool air from a hair dryer.
Cleaning the computer screen
Scratches, oil, dust, chemicals, and ultraviolet light can affect the performance of your computer screen. Use a dry, soft lint-free cloth to wipe the screen gently. If you see a scratch-like mark on your screen, it might be a stain. Wipe or dust the stain gently with a soft, dry cloth. If the stain remains, moisten a soft, lint-free cloth with water or eyeglass cleaner, but do not apply liquids directly to your computer screen. Ensure that the computer screen is dry before closing it.
Non-rechargeable coin-cell battery notice
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

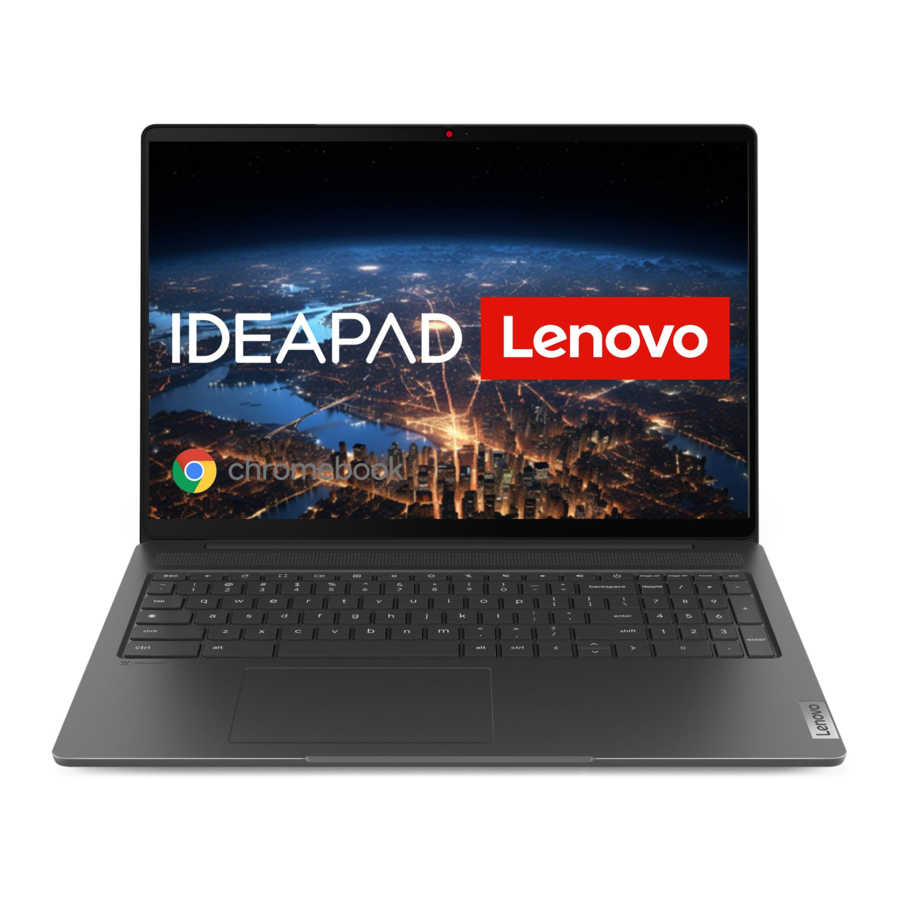

Download Lenovo IdeaPad 5i Chromebook, IdeaPad 5 Chrome 14ITL6 Manual
Advertisement
Need help?
Do you have a question about the IdeaPad 5i Chromebook and is the answer not in the manual?
Questions and answers
