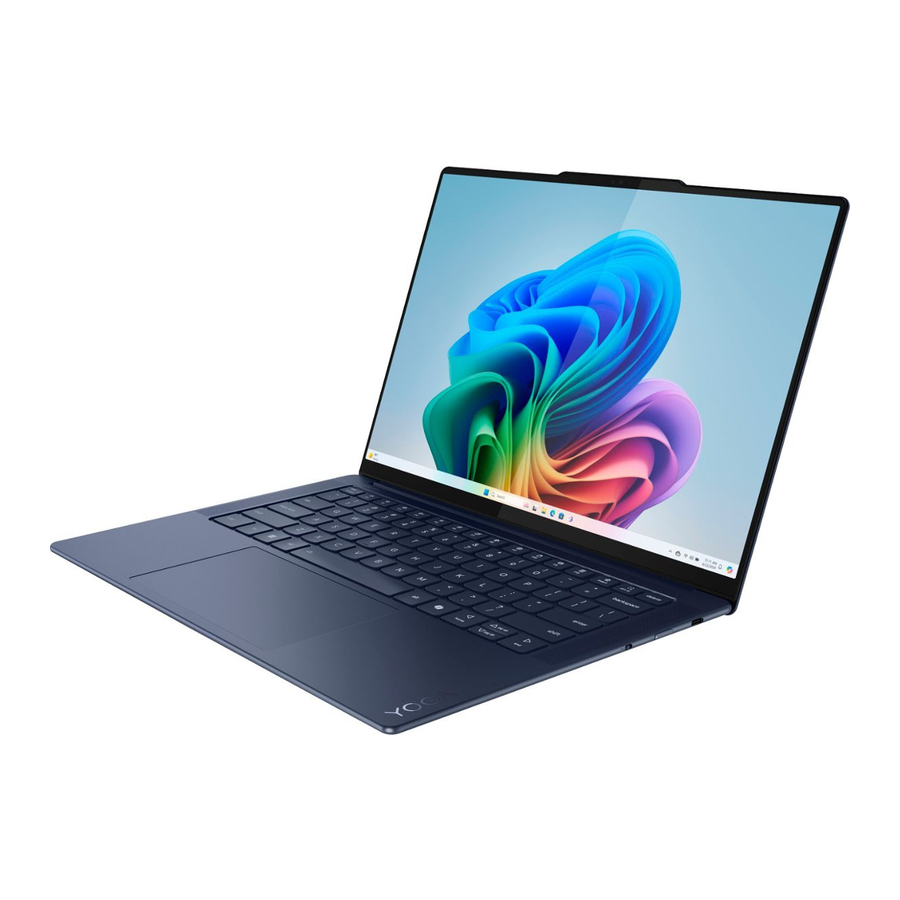

Lenovo Yoga Slim 7 14Q8X9, 14Q8X9 1 Manual

About this guide

• This guide applies to Lenovo product model(s) listed below. Illustrations in this guide may look slightly different from your product model.

  Model name	Machine type (MT)
  Yoga Slim 7 14Q8X9 Yoga Slim 7 14Q8X9 1	83ED

• For further compliance information, refer to the Generic Safety and Compliance Notices at https://pcsupport.lenovo.com/docs/generic_notices.
• This guide may contain information about accessories, features, and software that are not available on all models.
• This guide contains instructions that are based on the Windows operating system. These instructions are not applicable if you install and use other operating systems.
• Microsoft^® makes periodic feature changes to the Windows^® operating system through Windows Update. As a result, the operating system related instructions may become outdated. Refer to Microsoft resources for the latest information.
• The content of the guide is subject to change without notice. To obtain the latest version, go to https://support.lenovo.com.

Meet your PC

Top view

Antennas
The antennas transmit and receive radio waves to allow data to be transferred between your PC and a Wi-Fi network device or a Bluetooth device.
Note: The antennas are hidden inside the PC.

Keyboard
The keyboard is the PC's built-in input device for typing characters. It also includes keys that can make you more productive when interacting with the PC, apps, and the Windows operating system.
Note: Keyboard layouts vary by language and geographical location. The keyboard on your PC may look slightly different from those depicted in the product illustrations in this publication.

Related topics
"Shortcut keys".

Speakers
The speakers are the PC's built-in sound output devices.

Touchpad
The touchpad is the PC's built-in pointing device. Slide your finger on the touchpad to move the pointer on the screen and tap or double-tap to select or execute a screen item.
The touchpad also supports Windows multi-finger gestures, providing a convenient alternative for switching between app windows and the desktop, activating the search box, or adjusting volumes.

Related topics
"Touchpad gestures".

Front view

Infrared camera
The infrared camera receives near-infrared waves emitted by an infrared LED and reflected by a human face. It is used for facial recognition.
Related tasks
"Set up facial recognition".

Camera
The built-in camera captures visible light and converts it to digital signals. It is used for video recordings and video conferencing.

Infrared LED
The infrared LED generates and emits near-infrared waves that are received and used by a camera (or a dedicated infrared camera) for facial recognition.

Color sensor
The color sensor detects and measures the intensity of light in the user's environment. The data collected by this sensor can be used to enable adaptive brightness for the screen of the built-in display.
The color sensor can also detect and measure the RGB values of the environmental lighting. The measured data can be used to enable adaptive color for the screen of the built-in display.
Related tasks
"Enable adaptive color and brightness".

Camera light
The camera light indicates whether the camera is activated.
Table 1. Camera light status and description

Microphones
The microphones are the PC's built-in sound input devices. They capture your voice and ambient sound and convert them into digital form. Microphones are essential components when you use your PC for video conferencing or voice recording.

Screen
The screen of the built-in display is where text, graphics, and videos are displayed.
The screen is touch-enabled, allowing you to interact with your PC by intuitively touching buttons, icons, and menu items displayed on the screen. Touch-enabled screens also support multi-finger gestures.
Related topics
"The display device".

Left view

Multi-purpose USB Type-C connector
This USB Type-C^® connector is the PC's power input connector. Use the included power adapter and this connector to supply power to the PC.
When this connector is not used by the included power adapter, it can also be used to connect:

• Storage or peripheral devices that follow the universal serial bus (USB) specification for data transfer and device interconnection
• Display devices
  Note: When connecting display devices, you need to use appropriate cables and adapters (if needed) according to the connection capabilities of the display device.
• Thunderbolt^™- or USB4^®-enabled docks or devices

Related topics
"Connecting external displays".

Charging light
The charging light indicates whether the PC is plugged into an electrical outlet. When the PC is plugged into an electrical outlet, the color of the light indicates whether the battery is fully charged (or will shortly be fully charged).
Table 2. Charging light statuses and descriptions

Right view

Power button
Press the power button to turn on your PC.
Note: By default, on a Windows PC, pressing the power button when the PC is turned on will put the PC into sleep mode.

Power light
The power light indicates the current power state of the PC: whether it is powered on, powered off, in sleep mode, or in hibernation mode.
When the PC is powered on, this light can also indicate low battery by blinking rapidly.
Table 3. Power light status and description

Camera switch
This toggle switch is used to enable or disable the built-in camera.
Note: This switch is designed for privacy protection. If you don't need to use the camera, slide the switch to the off position to prevent any apps from using the camera.

Multi-purpose USB Type-C connector
This USB Type-C^® connector is the PC's power input connector. Use the included power adapter and this connector to supply power to the PC.
When this connector is not used by the included power adapter, it can also be used to connect:

• Storage or peripheral devices that follow the universal serial bus (USB) specification for data transfer and device interconnection
• Display devices
  Note: When connecting display devices, you need to use appropriate cables and adapters (if needed) according to the connection capabilities of the display device.
• Thunderbolt^™- or USB4^®-enabled docks or devices

Related topics
"Connecting external displays".

Bottom view

Air vents (intake)
The air vents allow air to be sucked inside of the PC to cool the internal components.

When the PC is operating, do not place it on a bed, sofa, carpet, or other flexible surfaces. Otherwise, the air vents will be blocked and the PC may overheat, reducing performance or causing the PC to be unresponsive or even shut down.

Novo button hole
When the PC is powered off, you can press the Novo button to display the Novo button menu. From the menu, you can then choose to:

• Open the firmware setup utility
• Display the boot device selection menu
• Display the Windows advanced startup options page

Note: The Novo button is rarely used during normal PC operations. To prevent users from accidentally pressing it, the Novo button is placed in a recessed hole. You can use a straightened paper clip to press this button.

Speakers
The speakers are the PC's built-in sound output devices.

Specifications
Dimensions

ac power adapter

Rechargeable battery pack

Memory

Mass storage device

Display

Connectors

Note: Data transmission rates are presented as maximum theoretical values in compliance with applicable specifications. The actual data transmission rates depend on various factors, including the performance of the connected devices and the quality of the cables being used. These rates are typically slower than the maximum theoretical values listed.

Networking

Statement on USB transfer rate
Depending on many factors such as the processing capability of the host and peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual transfer rate using the various USB connectors on this device will vary and will be slower than the data rate listed below for each corresponding device.

Operating environment
Maximum altitude (without pressurization)
3048 m (10 000 ft)

Temperature

• At altitudes up to 2438 m (8000 ft)
  • Operating: 5°C to 35°C (41°F to 95°F)
  • Storage: 5°C to 43°C (41°F to 109°F)
• At altitudes above 2438 m (8000 ft)
  • Maximum temperature when operating under the unpressurized condition: 31.3°C (88°F)
    Note: When you charge the battery, its temperature must be no lower than 10°C (50°F).

Relative humidity

• Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
• Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)

Explore your PC

Your PC and its operating system
The operating system is the most important software installed on a PC. The operating system manages the PC's hardware devices, provides utility apps and user interfaces, and allows various apps to be installed so that a PC can be used for different purposes.
Your PC is pre-installed with the Windows 11 operating system.

Initial setup of the Windows operating system
When you turn on your PC for the first time, the Windows operating system will guide you through the initial setup process. Most importantly, you will:

• Create a user account
• Connect to a wireless network that has Internet access
• Select language-related settings

Note: If you choose to set up Windows for personal use, you are required to either use an existing Microsoft account or create a new one as your user account. After the initial setup, you have the option to switch to a local account.

Set up facial recognition
Apart from text-based passwords, Windows 11 supports additional user authentication mechanisms for PCs with the necessary hardware devices. For PCs equipped with a built-in infrared LED and infrared camera, you can enable facial recognition to sign into Windows using your face.

1. Select Settings ➙ Accounts ➙ Sign-in options ➙ Facial recognition.
2. Select Set up ➙ Get started and follow on-screen instructions to enroll your face.

Note: If you are using a local account to sign in to Windows, you must set a password for the account before you can enable facial recognition for this account.

Windows Update
From time to time, your PC receives update notifications. These may include new features, security updates, and new device drivers. While security-related updates are typically downloaded and installed automatically, you can manually control the installation of other available updates.
In Windows Update, you can view available updates, manually check for updates, and configure update- related settings. To navigate to Windows Update, select Settings ➙ Windows Update.

Windows recovery options
When using your PC and the operating system, you may encounter problems. Windows provides several recovery options for you to restore it back to normal. The following table will help you decide which option to use for various circumstances.

Table 4. Windows recovery options

Reset Windows
Resetting Windows allows you to reinstall the operating system while retaining your personal files. This gives the operating system a fresh start and, in some cases, restores the PC's original performance.

1. Select Settings ➙ System ➙ Recovery.
2. Under recovery options, select Reset PC.
   When prompted, choose between Keep my files and Remove everything.
3. Follow the on-screen instructions to complete the reset process.

Create a recovery drive
It is a good idea to create a recovery drive when you have finished setting up Windows for the first time. If you experience a major issue and your Windows cannot start, you can use the recovery drive to restore Windows onto your PC.

1. Prepare an empty USB drive with a storage capacity of 32 GB or more.
2. In the search box on the taskbar, type Create a recovery drive and select the matched app.
3. Make sure Back up system files to the recovery drive checkbox is selected and select Next.
4. When prompted, connect the USB drive to your PC, select it, and then select Next.
5. Select Create.

Restore Windows using a recovery drive
If your Windows won't start, you can use a previously created recovery drive to restore Windows onto your PC.

1. Shut down your PC.
2. Connect the recovery drive to your PC.
3. Press the Novo button or the Lenovo Smart Key to open the Novo button menu.
4. Select Boot Menu.
5. Select the USB drive as the boot device. The PC will start to the Windows Recovery Environment.
6. Follow the on-screen instructions to restore Windows on your PC.

Use power efficiently
As an electronic device, your PC requires electricity to operate. The Windows operating system provides advanced power management features for the devices included in your PC. You can take advantage of these features to use your PC in an energy-efficient manner.

Shut down your PC
When you have finished using your PC and do not plan to resume using it in a short while, shut it down.

1. Select Start ➙ Power.
2. Select Shut down.

Put your PC into sleep mode
If you need to stop using your PC but plan to resume using it shortly, you can put it into sleep mode. Your PC resumes faster from sleep mode and you can return to where you left off with your work.

1. Select Start ➙ Power.
2. Select Sleep.

Adjust timeouts for sleep and the built-in screen
Setting appropriate timeouts for sleep and the built-in screen is an effective way to save energy. This feature enables the screen and other devices to enter power-saving mode when the PC is left inactive for a specified period of time. The Windows operating system has default timeout settings enabled. You can adjust the settings to suit your preference.

1. Select Settings ➙ System ➙ Power & battery ➙ Screen, sleep, & hibernation timeouts.
2. Adjust the settings.
3. For notebook PCs, you can set separate timeouts for two usage scenarios: when the PC is plugged in and when it is running on battery.

The default timeouts for sleep and the built-in screen
The operating system of your PC has the following timeouts enabled by default. You can adjust them to suit your preference.
Note: Setting appropriate timeouts is an effective way to save energy. Avoid setting excessively long timeouts to effectively disable this power-saving feature.

Table 5. Default timeouts

Note: To wake the PC from sleep mode, press the power button or any key on the keyboard.

Switch the PC's active power mode
The Windows operating system provides three preset power modes for easy management of the PC's power usage. You can switch the PC's active power mode according to your preferences for using your PC.

1. Select Settings ➙ System ➙ Power & battery.
2. Under Power mode, choose a power mode that best match your current pattern of PC usage.
   If your PC is plugged in and you want the best performance, select Best Performance. If your PC is running on battery power and you want it to last as long as possible, select Best Power efficiency.

Note: You can also use the keyboard shortcut fn + Q to quickly and easily switch the active power mode.

Enable presence sensing
For PCs equipped with the necessary hardware, you can activate the presence sensing feature of the Windows operating system. This feature allows the screen to automatically turn off when you leave your PC for other tasks or activities.

1. Select Settings ➙ System ➙ Power & battery.
2. Select Screen, sleep, & hibernate timeouts, switch on the toggle buttons for Turn off my screen when I leave and Wake my device when I approach.

Note: You can adjust the distance value that the PC uses to determine your proximity, as well as the delay for the screen to turn off.

Set up Internet access
In your home or office, Internet access is typically provided through Wi-Fi-enabled networks. You can connect to such a network to access the Internet. The Windows operating system provides utilities that assist in searching, connecting to, and managing wireless networks within range.

1. Select the Network, Sound, and Battery icons ( ) on the right side of the taskbar to open quick settings.
2. On the quick settings pane, select the > symbol next to the network icon. Wireless networks within range should be displayed.
3. Select the network you want to connect to and then select Connect.
4. Enter the network security key when prompted.

Interact effectively with your PC
You interact with your PC through its input and output devices. You spend a significant amount of time looking at the screen, where the user interface and content are displayed. The speakers produce sound, allowing you to listen to music or a voice recording. You type with the keyboard and navigate with the touchpad. You can join and participate in a web conference using the built-in camera and microphone.
Apart from the built-in devices, you can connect both wired and wireless external devices to enhance your interaction with your PC.

The display device
The built-in display is your PC's primary visual output device. Your PC is equipped with three USB Type-C connectors, all of which support visual output. You can connect up to three external display devices to your PC to enhance productivity.
The built-in display of your PC is touch-enabled. You can tap and swipe directly on the screen. You can also use multi-touch gestures on the screen to navigate within Windows more efficiently.

Touch screen gestures
The screen of your PC's built-in display is touch-enabled. You can tap or swipe on the screen to interact with your PC. In addition, the Windows operating system also supports multi-finger gestures on the touch screen to enhance productivity while interacting with the operating system.

Table 6. Touch screen gestures

Enable adaptive color and brightness
For PCs equipped with a color sensor, you can enable adaptive color and brightness in the Windows operating system so that they adjust according to ambient lighting conditions.

1. Select Settings ➙ System ➙ Display.
2. Under Brightness, select the switch for adaptive brightness to turn it on.
3. Under Adaptive color, select the toggle button for adaptive color to turn it on.

Adjustable display refresh rate
Your eyes might not notice it but the content displayed on the computer screen refreshes constantly. Display refresh rate refers to the number of times per second the screen content refreshes itself and is measured in hertz (Hz).
A refresh rate of 60 Hz is adequate for most situations and is energy efficient. However, when viewing videos or playing video games, a higher refresh rate usually provides a smoother viewing experience.
The displays of some Lenovo computers support dual refresh rates. For such a computer, you can manually switch its display to work at either the higher or lower refresh rate. For Windows operation systems, the manual settings are usually found in Settings ➙ System ➙ Display. As a shortcut, you can also use the key combination Fn + R to switch the display refresh rate.
Note: Not all displays support dual refresh rates. If you cannot find settings to change the display refresh rate, the refresh rate of the display might be fixed or cannot be manually changed.

Turn on night light
Night light is a switch in Windows that you can turn on and off. When it is turned on, your screen shows warmer colors and the amount of emitted blue light is reduced. Enabling night light reduces the chances of developing eye fatigue or eye strain.

1. Click the notification icon in the Windows notification area.
2. Click the Night light icon to turn it on or off.
   Note: Click Expand if you cannot find the night light icon.

For more guidance on reducing eye fatigue or eye strain, go to https://www.lenovo.com/us/en/compliance/visual-fatigue.

Adjust color temperature
If Windows 11 night light mode is turned on, you can adjust the color temperature of the screen.

1. Select Start ➙ Settings.
2. Select System ➙ Display ➙ Night light settings.
3. Move the slider to adjust the color temperature.

Note: Selected Lenovo computers are low blue-light certified. These computers are tested with night light turned on and color temperature value set at 48 or above.

Connecting external displays
You can use one, two, or all three of the USB Type-C connectors on your PC to connect external display devices. Depending on the connection capability of the display device, you have several options for connecting displays.

Direct connection
If the external display is equipped with a USB Type-C connector that is Thunderbolt-enabled or supports DisplayPort^™ Alt Mode, you can use a double-sided USB Type-C cable to connect the display to any of the USB Type-C connectors on your PC.

Connection using an adapter
If the display is equipped with a DisplayPort or an HDMI connector, you can use an adapter to connect the display to your PC. The adapter features a USB Type-C connector (plug) on one end and a DisplayPort or an HDMI connector (socket) on the other. Connect the adapter to your PC and then connect the display to the adapter.

Connection using a docking station
A USB4 or Thunderbolt certified docking station can be connected to expand your PC's connectivity capabilities. Use a double-sided USB Type-C cable to connect the PC to the downstream USB Type-C connector on the docking station. You can then connect the display to the DisplayPort or HDMI connector on the docking station.

Keyboard
Shortcut keys
A Lenovo keyboard usually includes the following shortcut keys that you can use to quickly access apps or adjust settings.

• Functions keys (F1–F12)
• Hotkeys
• Combination keys using the fn key
• Combination keys using the Windows logo key
• The Copilot key

Hotkeys
Hotkeys provide quick access to settings and apps that you may frequently use. They are located in the top row of the keyboard and usually share keys with function keys (F1–F12) and other keys. The function that each hotkey provides is denoted by the icon printed on the key.
Table 7. Hotkey functions

Hotkey icon	Function description
	Mutes/Unmutes sound.
	Decreases volume.
	Increases volume.
	Enables/Disables the microphone.
	Decreases screen brightness.
	Increases screen brightness.
	Selects and sets up display devices.
	Enables/Disables airplane mode.
	Opens the Settings app.
	Locks the screen.
	Opens the emoji panel.
	Opens the Calculator app.
	Opens Lenovo Vantage or Lenovo PC Manger.

Note: To use the function keys, hold down the fn key and press the corresponding hotkeys. If you need to use function keys regularly, you may consider turning on the fn lock to set the function keys as the primary function of these dual-function keys.

The FnLock switch
The FnLock is an electronic switch that affects how you use hotkey functions. To turn it on and off, press Fn + Esc.
Note: The Esc key is in the upper left corner of the keyboard. It has an LED that indicates the status of the FnLock switch.

A Lenovo keyboard usually contains hotkeys in the top row. These hotkeys share keys with the function keys (F1–F12) and other keys. For these dual-function keys, the icons or characters denoting the primary functions are printed on top of the icons and characters denoting the secondary functions.

Figure 2. The layout of a dual-function key

• A: an icon or character denoting the primary function
• B: an icon or character denoting the secondary function

Table 8. FnLock and dual-function keys

Combination keys using the fn key
The fn key can be used in combination with certain keys to adjust device settings or activate additional functions.
Table 9. fn-based key combinations

Combination keys using the Windows logo key
The Windows logo key is located in the lower-left corner of the keyboard. It can be used alone or in combination with certain keys to quickly change settings and access utilities of the Windows operating system. The following table lists frequently used combination keys. For the complete list of all Windows logo key-based key combinations, please refer to Microsoft online documentation.
Table 10. Windows logo key-based key combinations

Key or key combination	Function
Windows logo key	Opens or closes the Start menu
+ A	Opens or closes Quick Settings
+ D	Returns to the desktop
+ E	Opens File Explorer
+ I	Opens Settings
+ L	Locks the screen
+ M	Minimizes all open windows
+ N	Opens or closes the Notification Area
+ P	Switches multi-screen modes
+ W	Opens or closes Widgets
+; (semicolon)	Opens the emoji panel
+ Tab	Opens or closes Task View
+ PrtSc	Takes a full-screen screenshot and saves it to a file

The Copilot key
The era of AI has arrived, and many Lenovo PCs now include a Copilot key on the keyboard. It is located either in the bottom or the top row of the keyboard and is marked with .
For Windows PCs with Copilot in Windows available and enabled, pressing the Copilot key opens Copilot in
Windows. If Copilot in Windows is not available or is disabled, pressing the Copilot key opens the Recall app.
Note: If both Copilot in Windows and Recall are disabled, pressing the Copilot key opens Windows search.

Touchpad gestures
The touchpad is your PC's built-in pointing device. You can tap and swipe on the touchpad to navigate within the operating system and within apps. In addition, the Windows operating system also supports multi- finger gestures on the touchpad to enhance productivity while interacting with the operating system.
Table 11. Multi-finger touchpad gestures

Modify the default functions for touchpad gestures
The functions for three-finger touchpad gestures can be modified in Windows Settings.

1. . Select Settings ➙ Bluetooth & devices ➙ Touchpad.
2. Under Three-finger gestures, use the drop-down lists to modify the functions for the swipe or tap gestures.

Bluetooth connectivity
Bluetooth is a short-range wireless technology commonly used for connections between nearby devices. Your PC is equipped with a built-in Bluetooth adapter. You can connect other Bluetooth-enabled devices to your PC. Bluetooth-enabled headphones, earbuds, loudspeakers, keyboards, and mouses are among the devices you may consider connecting to your PC.

Connect a Bluetooth-enabled device to your PC
Establishing a Bluetooth connection requires actions on both the device and your PC. Turn on the device and make it discoverable before performing any actions on your PC.

1. Select Settings ➙ Bluetooth & devices ➙ Add device ➙ Bluetooth.
2. Select the device you want to connect, and then select Connect.
3. Depending on the type of device, you may need to either confirm the connection on the device side or enter a pairing code on your PC.
   When a Bluetooth-enabled device is connected to your PC, its name and status are displayed under Bluetooth & devices on your PC.

The firmware of your PC
When you turn on the power, a series of instructions are executed inside your PC to initiate devices, locate a boot device, and look for a program called bootloader. The bootloader will then find the operating system installed on your PC and hand over control to it. When the operating system is started, your PC is ready for use.
These instructions are stored on a Flash chip on the PC's system board. The Flash chip and the instructions stored on it are referred to as the PC's firmware.

The utility program for the PC's firmware
Lenovo PCs typically come with a setup utility for their firmware. Within the setup utility, you can:

• View information about your PC and its devices
• Change device settings
• Change the order of boot devices
• Set passwords for the firmware or the mass storage device

Note: You should rarely need to use the setup utility in your daily PC usage. To view device information, you can use the utilities provided by the operating system or apps provided by Lenovo (Lenovo Vantage or Lenovo PC Manager). You can use the Novo button menu to temporarily change the order of boot devices.
There are several ways to open the utility program:

• Utilize the Advanced startup feature of the Windows operating system
• Use the Novo button menu
• Start or restart your PC and press an interrupt key (F1 or F2)

Set passwords in the firmware setup utility
You can set passwords in the firmware setup utility to secure access to the utility program or the mass storage device.

Password types
You can set various types of passwords in the firmware setup utility.

Note: If you start the setup utility using the user password, you can only change a few settings.

Set administrator password
You set the administrator password to prevent unauthorized access to the firmware setup utility.
Attention: If you forget the administrator password, a Lenovo authorized service personnel cannot reset your password. You must take your computer to a Lenovo authorized service personnel to have the system board replaced. Proof of purchase is required and a fee will be charged for parts and service.

1. Open the firmware setup utility.
2. Select Security ➙ Set Administrator Password and press Enter.
3. Enter a password string that contains only letters and numbers and then press Enter
4. Enter the password again and press Enter.
5. Select Exit ➙ Exit Saving Changes.

Next time you start the computer, you must enter the administrator password to open the setup utility. If Power on Password is enabled, you must enter the administrator password or the user password to start the computer.

Change or remove administrator password
Only the administrator can change or remove the administrator password.

1. Open the firmware setup utility using the administrator password.
2. Select Security ➙ Set Administrator Password and press Enter.
3. Enter the current password.
4. In the Enter New Password text box, enter the new password.
5. In the Confirm New Password text box, enter the new password again.
   Note: If you want to remove the password, press Enter in both text boxes without entering any character.
6. Select Exit ➙ Exit Saving Changes.

If you remove the administrator password, the user password is also removed.

Set user password
You must set the administrator password before you can set the user password.
The administrator of the setup utility might need to set a user password for use by others.

1. Open the firmware setup utility using the administrator password.
2. Select Security ➙ Set User Password and press Enter.
3. Enter a password string that contains only letters and numbers and then press Enter. The user password must be different from the administrator password.
4. Enter the password again and press Enter.
5. Select Exit ➙ Exit Saving Changes.

Enable power-on password
If the administrator password has been set, you can enable power-on password to enforce greater security.

1. Open the firmware setup utility.
2. Select Security ➙ Power on Password and press Enter.
   Note: The administrator password must be set in advance.
3. Change the setting to Enabled.
4. Select Exit ➙ Exit Saving Changes.

If power-on password is enabled, a prompt appears on the screen every time you turn on the computer. You must enter the administrator or user password to start the computer.

Set passwords for the mass storage device
You can set a hard disk password in the setup utility to secure access to your data storage on the PC's mass storage device.
Attention: Be extremely careful when setting a hard disk password. If you forget the hard disk password, a Lenovo authorized service personnel cannot reset your password or recover data from the hard disk. You must take your computer to a Lenovo authorized service personnel to have the hard disk drive replaced.
Proof of purchase is required and a fee will be charged for parts and service.

1. Open the firmware setup utility.
2. Select Security ➙ Set Hard Disk Password and press Enter.
   Note: If you start the setup utility using the user password, you cannot set hard disk password.
3. Follow on-screen instructions to set both master and user passwords.
   Note: The master and user hard disk passwords must be set at the same time.
4. Select Exit ➙ Exit Saving Changes.
   If the hard disk password is set, you must provide the correct password to start the operating system.

Change or remove passwords for the mass storage device

1. Open the firmware setup utility.
2. Select Security.
3. Change or remove the hard disk password.
   To change or remove master password, select Change Master Password and press Enter.
   Note: If you remove the master hard disk password, the user hard disk password is also removed.
   To change user password, select Change User Password and press Enter.
   Note: The user hard disk password cannot be removed separately.
4. Select Exit ➙ Exit Saving Changes.

Help and support

Frequently asked questions

What should I do if my computer stops responding
Press and hold the power button until the computer turns off. Then restart the computer.

What should I do if I spill liquid on the computer

1. Carefully unplug the ac power adapter and turn off the computer immediately. The more quickly you stop the current from passing through the computer the more likely you will reduce damage from short circuits.
   Attention: Although you might lose some data or work by turning off the computer immediately, leaving the computer on might make your computer unusable.
2. Wait until you are certain that all the liquid is dry before turning on your computer.

   Do not try to drain out the liquid by turning over the computer. If your computer has keyboard drainage holes on the bottom, the liquid will be drained out through the holes.

Why does my computer start automatically when I open the lid
Your computer may have Flip to Start enabled. Many Lenovo notebook computers include a sensor that can detect the angle at which the lid is opened. When you open the lid, the sensor can detect this behavior. If Flip to Start is enabled, the computer will respond by starting up automatically.
If you don't like this feature, you can disable it. Flip to Start can be enabled or disabled in the setup utility program for the PC's firmware.

Self-help resources
Use the following self-help resources to learn more about the computer and troubleshoot problems.

What is a CRU?
Customer replaceable units (CRUs) are parts that can be upgraded or replaced by the customer. A Lenovo computer may contain the following types of CRUs:

If you intend to install a CRU, Lenovo will ship the CRU to you. You might be required to return the defective part that is replaced by the CRU. When return is required: (1) return instructions, a prepaid shipping label, and a container will be included with the replacement CRU; and (2) you might be charged for the replacement CRU if Lenovo does not receive the defective CRU within thirty (30) days of your receipt of the replacement CRU. For full details, see the Lenovo Limited Warranty at https://www.lenovo.com/warranty/llw_02.

CRUs for your product model
The table below lists the CRUs and CRU types that are defined for your product model.

Notes:

• CRU replacement instruction is provided in one or more of the following publications and are available from Lenovo at any time upon your request.
  the product User Guide
  the printed publications that came with the product
• Replacement of any parts not listed above, including the built-in rechargeable battery, must be done by a Lenovo-authorized repair facility or technician. Go to https://support.lenovo.com/partnerlocation for more information.

Call Lenovo
If you have tried to correct the problem yourself and still need help, you can call Lenovo Customer Support Center.

Before you contact Lenovo
Record product information and problem details before you contact Lenovo.

Note: The product name and serial number can usually be found on the bottom of the computer, either printed on a label or etched on the cover.

Lenovo Customer Support Center
During the warranty period, you can call Lenovo Customer Support Center for help.

Telephone numbers
For a list of the Lenovo Support phone numbers for your country or region, go to https://pcsupport.lenovo.com/supportphonelist.
Note: Phone numbers are subject to change without notice. If the number for your country or region is not provided, contact your Lenovo reseller or Lenovo marketing representative.

Services available during the warranty period

• Problem determination - Trained personnel are available to assist you with determining if you have a hardware problem and deciding what action is necessary to fix the problem.
• Lenovo hardware repair - If the problem is determined to be caused by Lenovo hardware under warranty, trained service personnel are available to provide the applicable level of service.
• Engineering change management - Occasionally, there might be changes that are required after a product has been sold. Lenovo or your reseller, if authorized by Lenovo, will make selected Engineering Changes (ECs) that apply to your hardware available.

Services not covered

• Replacement or use of parts not manufactured for or by Lenovo or nonwarranted parts
• Identification of software problem sources
• Configuration of UEFI/BIOS as part of an installation or upgrade
• Changes, modifications, or upgrades to device drivers
• Installation and maintenance of network operating systems (NOS)
• Installation and maintenance of programs

For the terms and conditions of the Lenovo Limited Warranty that apply to your Lenovo hardware product, see "Warranty information" in the Safety and Warranty Guide that comes with your computer.

Purchase additional services
During and after the warranty period, you can purchase additional services from Lenovo at https://pcsupport.lenovo.com/warrantyupgrade.
Service availability and service name might vary by country or region.
