Lenovo Legion Y530 / Y530-15ICH Manual

Getting to know your computer

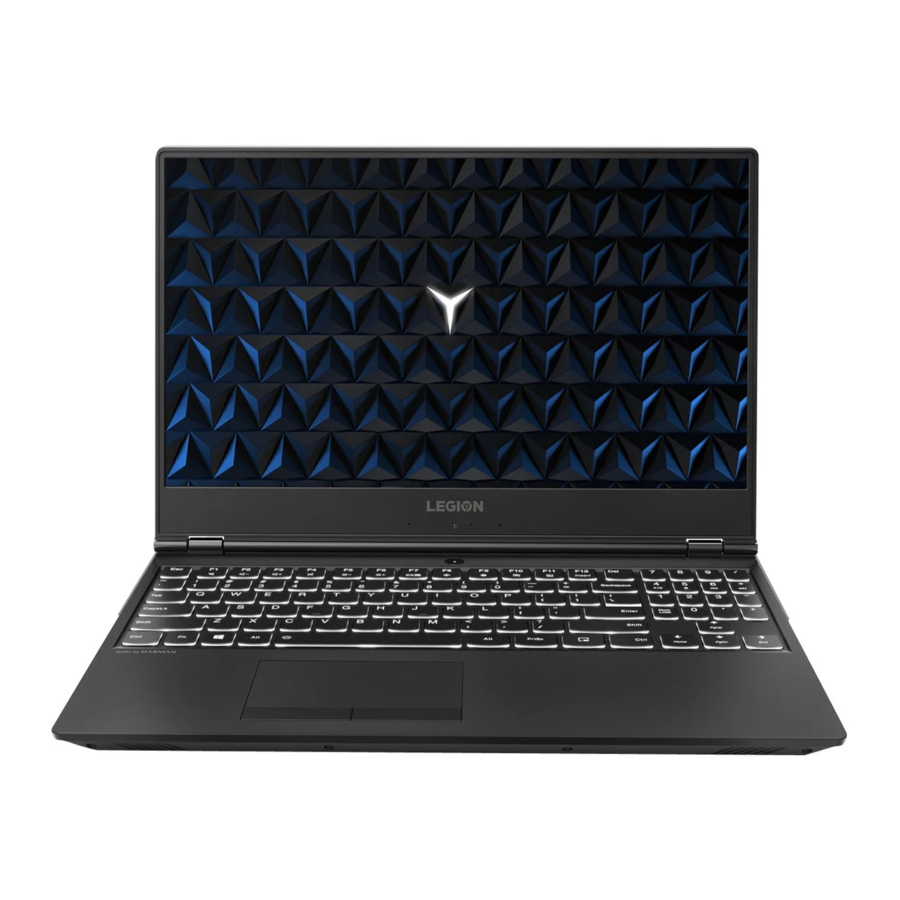

Top view

Note: The dashed areas indicate parts that are not visible externally.
Attention:

• Do not open the display panel beyond 180 degrees. When closing the display panel, be careful not to leave pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel may be damaged.

1. Computer display
   Provides brilliant visual output.
2. Integrated camera
   Use the camera for video communication or taking photos.
3. Built-in microphone
   Captures sound which can be used for video conferencing, voice narration, or audio recording.
4. Power button
   Press this button to turn on the computer.
5. Numeric keypad
   For details, see "Using the keyboard".
6. Wireless LAN antennas
   Connect to a wireless LAN adapter to send and receive wireless radio signals.
7. Touchpad
   The touchpad functions as a conventional mouse.
   Touchpad: To move the pointer on the screen, slide your fingertip over the pad in the direction in which you want the pointer to move.
   Touchpad buttons: The functions of the left/right side correspond to that of the left/right mouse button on a conventional mouse.

Note: You can enable/disable the touchpad by pressing Fn + F11.

Using the keyboard

Numeric keypad
The keyboard has a separate numeric keypad. To enable or disable the numeric keypad, press the Num Lock key.

Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this function, press and hold Fn ; then press one of the function keys .

The following describes the features of each function key.

Left-side view

1. Ventilation slots
   Dissipate internal heat.
   Note: Make sure that the ventilation slots are not blocked or else the computer may overheat.
2. USB 3.1 port
   Connects to USB devices.
   Note: For details, see "Connecting USB device".
3. Combo audio jack
   Connects to headsets.
   Notes:
   • The combo audio jack does not support conventional microphones.
   • The recording function might not be supported if third-party headphones or headsets are connected, due to different industry standards.

Right-side view

1. USB 3.1 port
   Connects to USB devices.
   Note: For details, see "Connecting USB device".
2. Novo button
   When the computer is off, press this button to start the recovery system or the BIOS setup utility, or to enter the boot menu.
   Notes:
   • You can use the tip of an unfolded paper clip (or similar object without a sharp tip) to gently press the Novo button.
   • For details, see "Recovery system".
3. Power status indicator

   Indicator	Indicator status	Meaning
   Power status indicator	On (solid white)	The computer is turned on and the battery has between 20% and 100% charge.
   	Fast blinking white	The computer is turned on and the battery has between 1% and 20% charge.
   	Slow blinking white	The computer is in sleep mode or the computer display lid is closed.
   	Off	The computer is turned off.

4. Ventilation slots
   Dissipate internal heat.
   Note: Make sure that the ventilation slots are not blocked or else the computer may overheat.

Rear view

1. Ventilation slots
   Dissipate internal heat.
   Note: Make sure that the ventilation slots are not blocked or else the computer may overheat.
2. Type-C port
   The Type-C port is compatible with:
   • USB 3.1
   • DisplayPort 1.2 output
3. DisplayPort mini connector
   Connects to external display devices.
4. USB 3.1 port
   Connects to USB devices.
   Note: For details, see "Connecting USB device".
5. HDMI port
   Connects to devices with HDMI input such as a TV or an external display.
6. RJ-45 port
   Connects the computer to an Ethernet network.
   Note: For details, see "Connecting network cables".
7. AC power adapter jack
   Connects to the AC power adapter.
8. Kensington mini security slot
   For attaching a Kensington MiniSaver™ Mobile (or compatible) lock.
   Note: Lock is not supplied. When purchasing a lock, choose one that utilizes the Cleat™ locking mechanism and verify its compatibility with the slot before purchase. A lock utilizing the T-Bar™ locking mechanism is not compatible with the Kensington mini security slot.
9. Charging status indicator

   Indicator	Indicator status	Charge status	Meaning
   Charging status indicator	On (solid white)	Charging	The battery has between 80% and 100% charge.
   	On (solid amber)	Charging	The battery has between 0% and 79% charge.
   	Off	Discharging	Disconnect the AC power adapter from the computer.

Connecting USB device

Your computer comes with three USB ports compatible with USB devices.

The first time you plug a USB device into a particular USB port on your computer, Windows automatically installs a driver for that device. After the driver has been installed, you can disconnect and reconnect the device without performing any additional steps.
Note: Typically, Windows detects a new device after it has been connected, and then installs the driver automatically. However, some devices may require you to install the driver before connecting. Check the documentation provided by the device's manufacturer before connecting the device.
Before disconnecting a USB storage device, make sure your computer has finished transferring data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows notification area to remove the device before disconnecting.
Note: If your USB device uses a power cord, connect the device to a power source before connecting it. Otherwise, the device may not be recognized.

Connecting network cables

Wired connections are a reliable and safe way to connect the computer to the Internet. You can connect a network cable to your computer.

Software configuration
Consult your Internet Service Provider (ISP) for details on how to configure your computer.

Bottom view

1. Louvers
   Allow air to enter the computer for cooling.
2. Speakers
   Provide audio output.

Starting to use Windows 10

Note: Windows^® 10 has an updated version. If you are using the updated version, some operations may be different. Please refer to the actual product.

Configuring the operating system for the first time

You may need to configure the operating system when it is first used.
The configuration process may include the procedures below:

• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account

Operating system interface

Windows 10 comes with a powerful and useful start menu.
To open the start menu, do one of the following:

• Press the Windows key on the keyboard.
• Select Start on the lower-left corner of the desktop.

  1. Settings button
  2. Power button
  3. Start button
  4. Search box
  5. Task view button

Settings

Settings lets you perform basic tasks. You can also search for more settings with the settings search box in the upper-right corner.
To open the settings, do one of the following:

• Press Fn + F9 to open the settings interface.
• Open the start menu, and then select Settings .


Personalize the start menu

You can personalize the start menu with your favorite apps.
To personalize the start menu, do the following:

1. Open the start menu and find the apps list on the left.
2. Right click the app you want to add to the start menu, and then select Pin to Start.

   Note: You can also drag apps from the apps list to add them to the start menu.

Putting the computer to sleep or shutting it down

When you have finished working with your computer, you can put it to sleep or shut it down.

Putting your computer to sleep

If you will be away from your computer for only a short time, put the computer to sleep. When the computer is in sleep mode, you can quickly wake it to resume use, bypassing the startup process.
To put the computer to sleep, do one of the following:

• Close the display lid.
• Press the Power button.
• Open the start menu, and then select Power > Sleep.
  Note: Wait until the power indicator light starts blinking (indicating that the computer is in sleep mode) before you move your computer. Moving your computer while the hard disk is spinning can damage the hard disk, causing loss of data.

To wake the computer, do one of the following:

• Press any key on the keyboard.
• Press the Power button.

Shutting down the computer

If you are not going to use your computer for a long time, shut it down.
To shut down the computer, do one of the following:

• Open the start menu, and then select Power > Shut down.

• Right-click the Start button in the lower-left corner and select Shut down or sign out > Shut down.


Task and desktop management

Task view

To open the task view, do one of the following:

• Select the Task view button on the task bar.
• Press the Windows key + Tab.


Virtual desktop management

Windows 10 supports the ability to create, manage and switch between virtual desktops.
To create a new virtual desktop, do one of the following:

• Open the task view, and then select New desktop.
• Press the Windows key + Ctrl + D.

To switch between different desktops, do one of the following:

• Open the task view and select the desktop you want active.
• Press the Windows key + Ctrl + to scroll through the desktops you've created.

Connecting to a wireless network

Enabling wireless connection
To enable wireless functions, do the following:

1. Press Fn + F8 to disable airplane mode.
2. Click on the lower-right corner of the task bar to open the network configuration page.

Connecting to a wireless network
After wireless has been enabled, the computer will automatically scan for available wireless networks and display them in the wireless network list. To connect to a wireless network, click the network name in the list, and then click Connect.
Note: Some networks require a network security key or passphrase for connection. To connect to one of those networks, ask the network administrator or the Internet service provider (ISP) for the security key or passphrase.

Recovery system

Reset this PC

Introduction

Reset this PC is a built-in recovery tool that enables users to restore their operating system to its original state. This preserves their data and important customizations, without the need to back up their data in advance.
The following Reset this PC features are available to users from multiple locations within Windows:

Keep my files
Fixes software problems by reinstalling the factory default configuration. This preserves personal files, and deletes apps and settings.

Remove everything
Prepares the computer for recycling or transfer of ownership. This reinstalls the factory default configuration and returns all user data and applications to the state of their original Out-of-Box Experience (OOBE).

Using Reset this PC

Reset this PC can be launched using one of the following methods:

• Novo Menu:
  • Shut down the computer and wait at least five seconds. Press the Novo button to open the Novo Menu, then select System Recovery > Troubleshoot > Reset this PC.
• Windows PC settings:
  • Windows PC settings > Update & Security > Recovery > Reset this PC > select Get started.

For more instructions, see the Windows Help and Support file on your computer.

Frequently asked questions

This section lists frequently asked questions by category.

Finding information

What safety precautions should I follow when using my computer?
Read and follow all safety precautions included in Lenovo Safety and General Information Guide.
Note: To view Lenovo Safety and General Information Guide, select the Lenovo Vantage (or Lenovo PC Manager) icon on the taskbar. You can also download it from the Lenovo Support Web site.

What is the address of the Lenovo support Web site?
http://support.lenovo.com

Where can I find warranty information?
Visit the Lenovo Support Web site and type the serial number for your computer to look up warranty information.

Lenovo preinstalled operating system and software

What is the Lenovo preinstalled operating system?
Some Lenovo computers come with copies of the operating system installed at factory. Lenovo provides computers with a preinstalled operating system for your convenience. If you purchased such a computer, you can use your computer out of the box and do not need to install a separate operating system.

What is Lenovo preinstalled software?
This is software (developed by Lenovo or other software vendors) installed and licensed at the factory for your convenience. The license for some preinstalled software may be for trial versions. When the trial period expires, you may need to purchase a license if you want to continue to use the software.
Note: If a license agreement is displayed when you first start the software, read the agreement carefully. If you don't accept the terms of the agreement, do not use the software.

When I purchased my computer, it included a copy of Windows. How can I determine whether the copy of Windows is preinstalled by Lenovo?
On the outside of the sales package of your computer, you should find a label containing configuration information for your computer. Check the printed string next to OS. If it contains Windows or WIN, the copy of Windows was preinstalled by Lenovo.

I uninstalled a preinstalled software, but there is no significant increase in the free drive space.
The copy of Windows running on your computer may be Compact-enabled. For computers with Compact-enabled Windows, the majority of files needed for preinstalled software are installed on the Recovery Partition and won't be deleted through normal uninstallation.

How can I determine whether the Windows running on my computer is Compact enabled?
Compact technology is normally enabled on copies of Windows 10 Update running on SSD (or eMMC) -only computer models. To check your computer,

1. Right-click the Start button in the lower-left corner and select Disk Management.
2. The Disk Management program starts.

If Compact is labeled on the Windows partition, Compact is enabled on your copy of Windows.

Where can I find drivers for the various hardware devices of my computer?
If your computer is preinstalled with a Windows operating system, first check the installation program on the C partition of your hard disk (for select models, on the D partition). If you cannot find the drivers for all the hardware devices that you need there, download the drivers from the Lenovo consumer support web site.
Note: The Lenovo support Web site contains the latest drivers.

BIOS setup utility

What is the BIOS setup utility?
The BIOS setup utility is ROM-based software. It communicates basic computer information and provides options for setting boot devices, security, hardware mode, and other preferences.

How can I start the BIOS setup utility?
To start the BIOS setup utility:

1. Shut down the computer.
2. Press the Novo button and then select BIOS Setup.

How can I change the boot mode? (on select models)
There are two boot modes: UEFI First and Legacy Support. To change the boot mode, start the BIOS setup utility and set boot mode to UEFI First or Legacy Support on the boot menu.

When do I need to change the boot mode? (on select models)
The default boot mode for your computer is UEFI First mode. If you need to install a legacy Windows operating system on your computer, you must change the boot mode to Legacy Support. The legacy Windows operating system cannot be installed if you don't change the boot mode.

Getting help

How can I contact the customer support center?
See "Chapter: Getting help and service" of Lenovo Safety and General Information Guide.

Troubleshooting

Notes

• Before using the product, be sure to read Lenovo Safety and General Information Guide first.
• The latest electronic compliance and environmental information are available from the Lenovo compliance information Web sites.
  • To view compliance information go to: http://www.lenovo.com/compliance
  • To download environmental information go to: http://www.lenovo.com/ecodeclaration
• Some instructions in this guide may assume that you are using Windows^® 10. If you are using another Windows operating system, some operations may be slightly different. If you are using other operating systems, some operations may not apply to you.
• The features described in this guide are common to most models. Some features may not be available on your computer or your computer may include features that are not described in this user guide.
• The illustrations in this manual may differ from the actual product. Please refer to the actual product.
