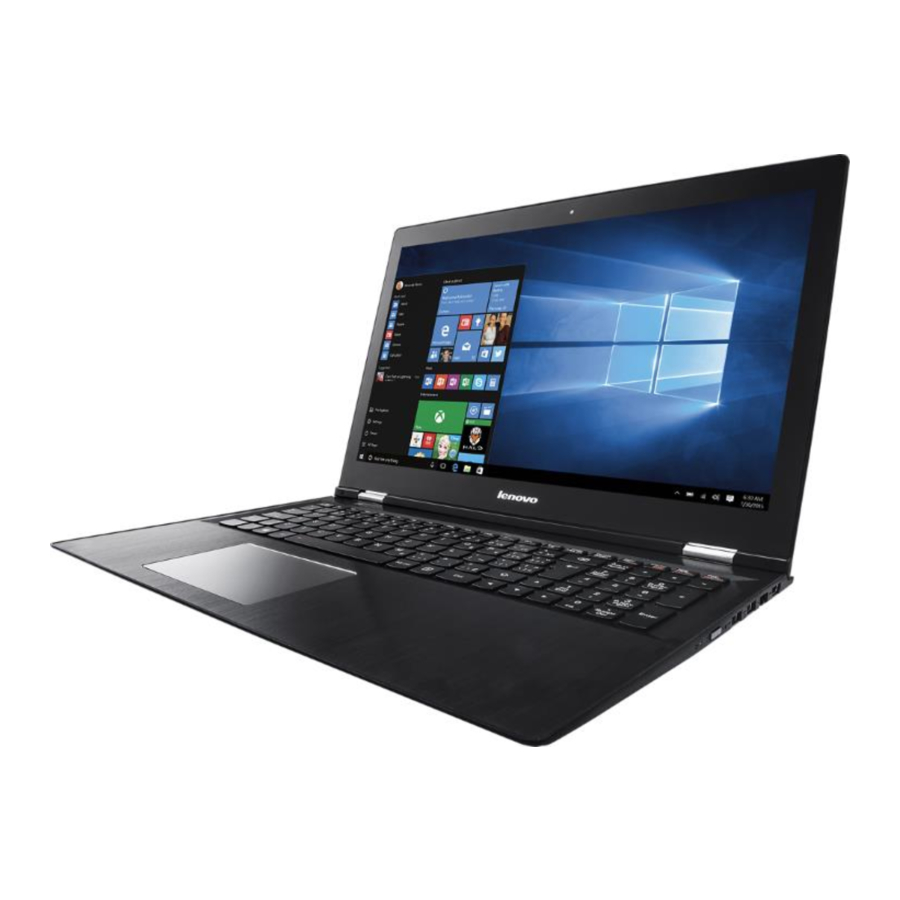

Lenovo Edge 2 15 Manual

Getting to know your product

Top view

Note: The dashed areas indicate parts that are not visible externally.

Attention:

• When closing the display panel, be careful not to leave pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel may be damaged.

	Integrated camera	Use the camera for video communication.
	Wireless LAN antennas	Connect to a wireless LAN adapter to send and receive wireless radio signals.
	Built-in microphone	Captures sound which can be used for video conferencing, voice narration, or audio recording. Note: Select models may have only one microphone, please refer to the actual product.
	Multi-touch screen	The LCD display with LED backlight provides brilliant visual output. Multi-touch function is available on this display.
	Touchpad	The touchpad functions as a conventional mouse. Touchpad: To move the pointer on the screen, slide your fingertip over the pad in the direction in which you want the pointer to move. Touchpad buttons: The functions of the left/right side correspond to that of the left/right mouse button on a conventional mouse. Note: You can enable/disable the touchpad by pressing F6 ( ).

Using the keyboard

Numeric keypad

The keyboard has a separate numeric keypad. To enable or disable the numeric keypad, press the Num Lock key.

Function key combinations

Through the use of the function keys, you can change operational features instantly. To use this function, press and hold Fn ; then press one of the function keys .
The following describes the features of each function key.

Hotkeys

You can access certain system settings quickly by pressing the appropriate hotkeys.

Setting hotkey mode

By default, the hotkey functions are accessible by pressing the appropriate hotkey. However, you can disable the hotkey mode in the BIOS setup utility.
To disable the hotkey mode:

1. Shut down the computer.
2. Press the Novo button and then select BIOS Setup.
3. In the BIOS setup utility, open the Configuration menu, and change the setting of HotKey Mode from Enabled to Disabled.
4. Open the Exit menu, and select Exit Saving Changes.

Note: When hotkey mode is disabled, press the Fn key and the appropriate hotkey to access the corresponding hotkey function.

Left-side view

	Kensington lock slot	Attach a security lock (not supplied) here to help protect your computer from theft and unauthorized use. You can attach a security lock to your computer to help prevent it from being removed without your permission. For details on installing the security lock, please refer to the instructions shipped with the security lock that you have purchased. Notes: Before purchasing any security product, verify that it is compatible with this type of security keyhole. You are responsible for evaluating, selecting, and implementing the locking devices and security features. Lenovo offers no comment, judgment, or warranty regarding the function, quality, or performance of locking devices and security features.
	AC power adapter jack	Connects to the AC power adapter.
	USB 2.0 port	Connects to USB devices. Note: For details, see "Connecting USB device"
	Memory card slot	Insert memory cards (not supplied) here. Note: For details, see "Using memory cards (not supplied)"
	Combo audio jack	Connects to headsets. Notes: The combo audio jack does not support conventional microphones. The recording function might not be supported if third-party headphones or headsets are connected, due to different industry standards.
	Rotation lock button	Keeps the screen locked in portrait or landscape orientation. Locking the screen rotation will disable the gravity sensing function, thereby preventing the screen from changing its orientation automatically depending upon the angle at which it is held. Note: The screen rotation lock button will be disabled in notebook mode.
	Volume down button	Decreases the volume level.
	Volume up button	Increases the volume level.

Using memory cards

(not supplied)
Your computer supports the following types of memory cards:

• Secure Digital (SD) card
• Secure Digital High Capacity (SDHC) card
• Secure Digital eXtended Capacity (SDXC) card
• MultiMediaCard (MMC)

Notes:

• Insert only one card in the slot at a time.
• This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).

Inserting a memory card
Insert the memory card until it touches the bottom of the slot.

Removing a memory card
Gently pull the memory card out of the memory card slot.
Note: Before removing the memory card, disable it by using the Windows safely remove hardware and eject media utility to avoid data corruption.

Right-side view

	Battery status indicator
	Power button	Press this button to turn on the computer.
	Indicator	Indicator status	Meaning
	Battery status indicator	On (solid white)	The battery has more than 20% charge.
		On (solid amber)	The battery has between 5% and 20% charge.
		Blinking quickly (amber)	The battery has less than 5% charge.
		Blinking slowly (amber)	The battery is being charged. When the battery charge reaches 20%, the blinking color will change to white.
		Blinking slowly (white)	The battery has between 20% and 80% charge and is still charging. When the battery reaches 80% charge the light will stop blinking, but charging will continue until the battery is fully charged.
	Power status indicator	On (solid white)	The computer is powered on.
		Blinking	The computer is in sleep mode.
		Off	The computer is powered off.
	Novo button	When the computer is off, press this button to start the Lenovo OneKey Recovery System or the BIOS setup utility, or to enter the boot menu. Notes: You can use the tip of an unfolded paper clip (or similar object without a sharp tip) to gently press the Novo button. For details, see "Lenovo OneKey Recovery System"
	USB 3.0 port	Connects to USB devices. Note: For details, see "Connecting USB device"
	USB 3.0 port	Connects to USB devices. Note: If the battery charge is more than 20%, the USB port with a mark supports charging of an external USB device, even when the computer is turned off.
	RJ-45 port	Connects the computer to an Ethernet network. Note: For details, see "Connecting network cables"
	HDMI port	Connects to devices with HDMI input such as a TV or an external display.

Connecting USB device

Your computer comes with three USB ports compatible with USB devices.

The first time you plug a USB device into a particular USB port on your computer, Windows automatically installs a driver for that device. After the driver has been installed, you can disconnect and reconnect the device without performing any additional steps.
Note: Typically, Windows detects a new device after it has been connected, and then installs the driver automatically. However, some devices may require you to install the driver before connecting. Check the documentation provided by the device's manufacturer before connecting the device.

Before disconnecting a USB storage device, make sure your computer has finished transferring data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows notification area to remove the device before disconnecting.
Note: If your USB device uses a power cord, connect the device to a power source before connecting it. Otherwise, the device may not be recognized.

Connecting network cables

To insert a network cable, do the following:

1. Hold one connector of the network cable to press the RJ-45 cover down gently .
2. Insert the connector into the RJ-45 port .

Software configuration
Consult your Internet Service Provider (ISP) for details on how to configure your computer.

Bottom view

	Ventilation slots	Dissipate internal heat. Note: Make sure that the ventilation slots are not blocked or else the computer may overheat.
	Speakers	Provide audio output.

Starting to use Windows 10

Configuring the operating system for the first time

You may need to configure the operating system when it is first used.
The configuration process may include the procedures below:

• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account

Operating system interfaces

The return of the Start menu
If you click the Start button in the lower-left corner, the Start menu is displayed.

The power button is on the Start menu, click it you can choose to shut down or restart the computer, or put the computer into sleep mode.
Through the Start menu, you can locate all the installed apps or view the frequently used apps.

The ACTION CENTER
Select the ACTION CENTER icon on the taskbar and the ACTION CENTER is displayed.
From the ACTION CENTER, you can examine important notifications from Windows and your apps. Moreover, you can change common settings quickly.

Task view in taskbar
In Windows 10, you can add a new desktop and switch between different desktops.
To add a new desktop, do the following:

• Click the task view icon in the taskbar area.

• Click New desktop.


To switch between desktops, click the task view icon , then select your desired desktop.

Putting the unit to sleep or shutting it down

When you have finished working with your computer, you can put it to sleep or shut it down.

Putting your computer to sleep
If you will be away from your computer for only a short time, put the computer to sleep. When the computer is in sleep mode, you can quickly wake it to resume use, bypassing the startup process.
To put the computer to sleep, do one of the following:

• Close the display lid.
• Press the Power button.
• Move the cursor to the lower-left corner, and then select the Start button. Select Power → Sleep.

Note: Put your computer to sleep before you move it. Moving your computer while the hard disk drive is spinning can damage the hard disk, causing loss of data.

To wake the computer, do one of the following:

• Press any key on the keyboard.
• Press the Power button.
• Press the Windows button.

Shutting down the computer
If you are not going to use your computer for a long time, shut it down. To shut down the computer, do one of the following:

• Move the cursor to the lower-left corner, and then select the Start button. Select Power → Shut down.

• Right-click the Start button in the lower-left corner and select Shut down or sign out → Shut down.


Touch screen operation

The display panel can accept inputs like a tablet, using the multi-touch screen, or like a traditional notebook computer, using the keyboard and touchpad.

Multi-touch gestures
You can touch the screen with one or more fingertips to perform a variety of tasks.

Frequently used gestures	Tasks performed
Tap Tap once on an item.	Performs an action, such as starting an app, opening a link, or performing a command. Similar to left-clicking with a mouse.
Press and hold Press your finger down and leave it there for a moment.	Enables you to see detailed information before selecting an action. Can also open a menu with more options. Similar to rightclicking with a mouse.
Zoom Move two fingers together or apart while touching the screen.	Zooms in and out on visual apps, such as pictures and maps. Can also jump to the beginning or end of a list.
Rotate Place two or more fingers on an item and then turn your hand.	Rotates an object (Note: Not all items can be rotated, depending upon the app.).
Slide Drag your finger across the screen.	Pans or scrolls through lists and pages. Can also move an object or be used to draw or write, depending upon the app. Similar to pressing and holding to pan and to scrolling with a mouse.
Swipe Start from any edge of the screen, then swipe inwards toward the center.	Swiping in from the left edge can: Bring in and open an app currently running in the background. Swipe from the right edge can open the ACTION CENTER.

Connecting to a wireless network

Enabling wireless connection
To enable wireless functions, do one of the following:

• Click the ACTION CENTER icon in the notification area, and then deselect Airplane mode.
• Press to disable airplane mode.
• Click Settings → Network & Internet → Airplane mode to open the network configuration page. Then toggle the airplane mode switch to Off.

Connecting to a wireless network
After wireless has been enabled, the computer will automatically scan for available wireless networks and display them in the wireless network list. To connect to a wireless network, click the network name in the list, and then click Connect.
Note: Some networks require a network security key or passphrase for connection. To connect to one of those networks, ask the network administrator or the Internet service provider (ISP) for the security key or passphrase

Get help from Windows

If you have a problem with the operating system, see the Windows Get Started app. To open it, do the following:

• Move the cursor to the lower-left corner, and then select the Start button. Select Get Started from All apps.

Lenovo OneKey Recovery System

The Lenovo OneKey Recovery System is software designed to back up and restore your computer. You can use it to restore the system partition to its original status in case of a system failure. You can also create user backups for easy restoration as required.

Notes:

• If your computer is preinstalled with a GNU/Linux operating system, OneKey Recovery System is not available.
• To utilize the features of the OneKey Recovery System, your hard disk already includes a hidden partition by default to store the system image file and the OneKey Recovery System program files. This default partition is hidden for security reasons, which explains why the available disk space is less than the stated capacity.

Backing up the system partition

You can back up the system partition to an image file. This image file can be used to restore the system partition. To back up the system partition:

1. In Windows, press the Novo button or double-click OneKey Recovery icon to start the Lenovo OneKey Recovery System.
2. Click System Backup.
3. Select a back-up location and click Next to start the backup.

Notes:

• You can choose a back-up location on the local hard disk drive or an external storage device.
• Remove the removable hard disk drive before starting the Lenovo OneKey Recovery System. Otherwise, data from the removable hard disk drive might be lost.
• The back-up process may take a while.
• The back-up process is only available when Windows can be started normally.

Restoring

You can choose to restore the system partition to its original status or to a previously created back-up point. To restore the system partition:

1. In Windows, press the Novo button or double-click OneKey Recovery icon to start the Lenovo OneKey Recovery System.
2. Click System Recovery. The computer will restart to the recovery environment.
3. Follow the on-screen instructions to restore the system partition to its original status or to a previously created back-up point.

Notes:

• The recovery process is irreversible. Make sure to back up any data you wish to save on the system partition before starting the recovery process.
• The recovery process may take a while. So be sure to connect the AC power adapter to your computer during the recovery process.
• The above instructions should be followed when Windows can be started normally.

If Windows cannot be started, then follow the steps below to start the Lenovo OneKey Recovery System:

1. Shut down the computer.
2. Press the Novo button. From Novo Button Menu, select System Recovery and press Enter.

Frequently asked questions

This section lists frequently asked questions by category.

• Finding information

What safety precautions should I follow when using my computer?
The Lenovo Safety and General Information Guide which came with your computer contains safety precautions for using your computer. Read and follow all the precautions when using your computer.

Where can I find the hardware specifications for my computer?
You can find the hardware specification for your computer on the printed flyers which came with your computer.

Where can I find warranty information?
For detailed warranty information on this machine, please visit below website to check out:
http://support.lenovo.com/warrantystatus.

• Drivers and preinstalled software

Where are the installation discs for Lenovo preinstalled software (desktop software)?
Your computer did not come with installation discs for Lenovo preinstalled software. If you need to reinstall any preinstalled software, you can find the installation program on the C or D partition of your hard disk. If you cannot find the installation program there, you can also download it from the Lenovo consumer support website.

Where can I find drivers for the various hardware devices of my computer?
If your computer is preinstalled with a Windows operating system, Lenovo provides drivers for all the hardware devices that you need on the C or D partition of your hard disk. You can also download the latest device drivers from the Lenovo consumer support website.

• Lenovo OneKey Recovery System

Where are the recovery discs?
Your computer did not come with any recovery discs. Use the Lenovo OneKey Recovery System if you need to restore the system to its original factory status.

What can I do if the back-up process fails?
If you can start the backup but it fails during the back-up process, try the following steps:

1. Close all open programs, and then restart the back-up process.
2. Check to see if the destination media is damaged. Select another path and then try again.

When do I need to restore the system to its factory status?
Use this feature when the operating system fails to start up. If there is critical data on the system partition, back it up before starting recovery.

• BIOS setup utility

What is the BIOS setup utility?
The BIOS setup utility is ROM-based software. It communicates basic computer information and provides options for setting boot devices, security, hardware mode, and other preferences.

How can I start the BIOS setup utility?
To start the BIOS setup utility:

1. Shut down the computer.
2. Press the Novo button and then select BIOS Setup.

How can I change the boot mode?
There are two boot modes: UEFI and Legacy Support. To change the boot mode, start the BIOS setup utility and set boot mode to UEFI or Legacy Support on the boot menu.

When do I need to change the boot mode?
The default boot mode for your computer is UEFI mode. If you need to install a legacy operating system, such as Windows, Linux or Dos, etc (that is, any operating system before Windows 8) on your computer, you must change the boot mode to Legacy Support. The legacy operating system, such as Windows, Linux or Dos, etc cannot be installed if you don't change the boot mode.

• Getting help

How can I contact the customer support center?
See "Getting help and service" in the Lenovo Safety and General Information Guide.

Troubleshooting
