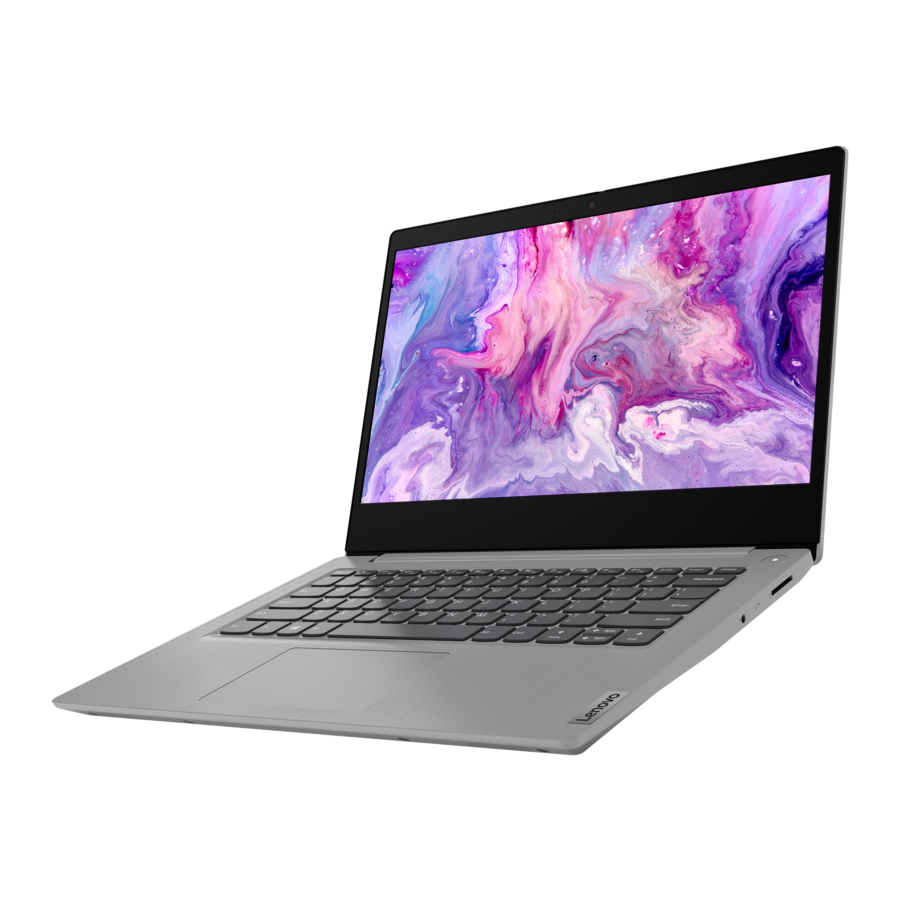

Model name | Machine type (MT) |
IdeaPad 3 14ADA05 | 81W0 |
IdeaPad 3 14ARE05 | 81W3 |
IdeaPad 3 14IGL05 | 81WH |
IdeaPad 3 14IIL05 | 81WD |
IdeaPad 3 14IML05 | 81WA |
IdeaPad 3 15ADA05 | 81W1 |
82BQ | |
IdeaPad 3 15ARE05 | 81W4 |
82BR | |
IdeaPad 3 15IGL05 | 81WQ |
IdeaPad 3 15IIL05 | 81WE |
IdeaPad 3 15IML05 | 81WB |
81WR | |
IdeaPad 3 17ADA05 | 81W2 |
IdeaPad 3 17ARE05 | 81W5 |
IdeaPad 3 17IML05 | 81WC |
IdeaPad 14sARE 2020 | 82CB |
IdeaPad 14sIIL 2020 | 81WD |
IdeaPad 14sIML 2020 | 81WA |
IdeaPad 15sARE 2020 | 82CC |
IdeaPad 15sIIL 2020 | 81WE |
IdeaPad 15sIML 2020 | 81WB |
Front
1. Microphones | Capture or record sound and voice. |
2. Camera | Capture still and moving images for taking photos, recording videos, and video chatting. |
3. Camera cover slider | Move the slider to cover or uncover the camera lens. Note: The camera cover helps you better protect your privacy. |
4. Camera light | If the light is on, the camera is in use. If there is a red light in the middle, the camera is covered. |
5. Wireless antennas | Send and receive radio waves for the built-in wireless LAN (local area network) and Bluetooth module. Note: The antennas are not visible from the outside of the computer. |
6. Screen | Display text, graphics, and videos. |
Top
14-inch models
1. Ventilation slots | Dissipate heat. |
2. Power button/Fingerprint reader* | Press the button to turn on the computer or put the computer in sleep mode. Fingerprint reader* is available on power button. Enroll and read your fingerprint for user authentication. |
3. Power button/Fingerprint reader* light | The light shows power status of the computer. Note: It is positioned in the center of the button for devices without fingerprint reader. |
4. Keyboard | Enter characters and interact with programs. Note: The keyboard also includes hotkeys and function keys for changing settings and performing tasks quickly. |
5. Touchpad | Perform finger touch and all the functions of a traditional mouse. Note: The touchpad also supports multi-touch function. |
Table 1. Indication of the Power/Fingerprint reader* light
Light status | Computer | Fingerprint reader |
Solid white | Turn on | / |
Blinking slowly in white | In sleep mode | / |
Off | Turn off or in hibernation mode | / |
Blinking amber | / | Launching |
* for selected models
15-inch models and 17-inch models
1. Ventilation slots | Dissipate heat. | ||
2. Power button/Fingerprint reader* | Press the button to turn on the computer or put the computer in sleep mode. Fingerprint reader* is available on power button. Enroll and read your fingerprint for user authentication. | ||
3. Power button/Fingerprint reader* light | The light shows power status of the computer. Note: It is positioned in the center of the button for devices without fingerprint reader. | ||
4. Keyboard | Enter characters and interact with programs. Note: The keyboard also includes hotkeys and function keys for changing settings and performing tasks quickly. | ||
5. Numeric keypad | To enable or disable the numeric keypad, press the Num Lock key. Note: If the Num Lock key light is on, the numeric keypad is in use. | ||
6. Touchpad | Perform finger touch and all the functions of a traditional mouse. Note: The touchpad also supports multi-touch function. |
Table 2. Indication of the Power/Fingerprint reader* light
Light status | Computer | Fingerprint reader | |
Solid white | Turn on | / | |
Blinking slowly in white | In sleep mode | / | |
Off | Turn off or in hibernation mode | / | |
Blinking amber | / | Launching |
* for selected models
Left
1. Power connector | Connect to power with the included power cord and ac power adapter. |
2. Charging light | Indicate whether the computer is connected to ac power.
|
3. HDMI™ connector | Connect to a compatible digital audio device or video monitor, such as an HDTV. |
4. USB 2.0 connector | Connect USB-compatible devices, such as a USB keyboard, USB mouse, USB storage device, or USB printer. |
5. USB (3.2 Gen 1) Type-A connectors (2) | Connect a USB-compatible device, such as a USB keyboard, a USB mouse, a USB storage device, or a USB printer. |
6. Power light |
|
Right
1. Combo audio jack | Connect headphones or headsets with a 3.5-mm (0.14-inch), 4-pole plug. Note: This jack does not support standalone external microphones. If you use headsets, choose one with a single plug. |
2. Novo button hole | Press the Novo button to open the Novo Button menu. From the menu, you can choose to open the UEFI/BIOS setup utility, the Boot menu, or the Windows startup options screen. |
3. SD card slot | Insert an SD card or a MultiMediaCard (MMC) into the slot for data transfer or storage. |
Bottom
14-inch models and 15-inch models
1. Speakers | Produce Sound |
17-inch models
1. Speakers | Produce Sound |
* for selected models
Note: The battery capacity is the typical or average capacity as measured in a specific test environment. Capacities measured in other environments may differ but are no lower than the rated capacity (see product label).
Depending on many factors such as the processing capability of the host and peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual transfer rate using the various USB connectors on this device will vary and will be slower than the data rate listed below for each corresponding device.
USB device | Data rate (Gbit/s) |
3.2 Gen 1 | 5 |
3.2 Gen 2 | 10 |
Maximum altitude (without pressurization)
3048 m (10000 ft)
Temperature
Relative humidity
Learn the basics of Windows 10 and start working with it right away. For more information about Windows 10, see the Windows help information.
You must create at least one account to use the Windows operating system. It can be either a local account or a Microsoft account.
Local accounts
A local account is created on a particular Windows-enabled device and it can only be used on that device. It is recommended that you set a password for each local account to prevent unauthorized access to the device.
Microsoft accounts
A Microsoft account is a user account that you use to sign in to Microsoft software and services. If you use Microsoft services like OneDrive, Outlook.com, Xbox Live, Office 365, and Skype, you might already have one. If you don't have it, you can create one for free.
There are two main benefits of using a Microsoft account:
Switch between a local and a Microsoft account
If you are using a local account to sign in to Windows 10, you can switch to use a Microsoft account instead.
If you want to switch back to use a local account, open the Start menu and select Settings ➙ Accounts ➙ Sign in with a local account instead.
Add additional user accounts
Your user account must be of the "Administrator" type to add additional user accounts to Windows.
Add additional user accounts if you need to share your computer with family members or other users.
Enroll your fingerprint
If your computer includes a fingerprint reader, you can enroll your fingerprint for Windows sign-in.
1. Account ![]() | Change account settings, lock the computer, or sign out of the current account. |
2. Documents ![]() | Open the Documents folder, a default folder to save your received files. |
3. Pictures ![]() | Open the Pictures folder, a default folder to save your received pictures. |
4. Settings ![]() | Open Settings. |
5. Power ![]() | Shut down, restart, or put the computer into sleep mode. |
6. Start button ![]() | Open the Start menu. |
7. Windows Search ![]() | Enter what you are looking for in the search box and get search results from your computer and the Web. |
8. Task View ![]() | Display all opened apps and switch between them. |
9. Windows notification area | Display notifications and status of some features. |
10. Battery status icon ![]() | Display power status and change battery or power settings. |
11. Network icon | Connect to an available wireless network and display the network status. |
12. Action center ![]() | Display the latest notifications from apps and provide quick access to some features. |
Open the Start menu
Open Control Panel
Open an app
Lenovo Vantage and Lenovo PC Manager is software developed by Lenovo. Using the software, you can:
Lenovo Vantage or PC Manager may be pre-installed on your computer. To open it, enter the software name in Windows Search and select the matched result.
Note: If Lenovo Vantage is not pre-installed, you can download it from Microsoft Store.
If your computer includes a wireless adapter, you can connect your computer to Wi-Fi networks.
Windows saves a list of Wi-Fi networks you have connected to, along with their passwords and other settings. By doing this, your computer is automatically connected when it is in the range of a previously connected network. However, if the network password has been changed, you need to forget the network in order to enter a new password.
Airplane mode is a convenient setting to turn all wireless communications of your computer on and off. You may need to turn it on when boarding an airplane.
The Novo Button menu can be displayed before the operating system starts. From the menu, you can choose to
For Lenovo computers with a Novo button, you can press the button to open the Novo Button menu.
Keyboard hotkeys
Some keys on the keyboard are printed with icons. These keys are called hotkeys and can be pressed alone or in combination with the Fn key to access certain Windows functions or settings quickly. The functions of hotkeys are symbolized by the icons printed on them.
Hotkey | Function |
![]() | Mute/Unmute sound. |
![]() | Decrease/Increase system volume. |
![]() | Mute/Unmute the microphone. |
![]() | Reload Web pages or refresh the screen. |
![]() | Enable/Disable the touchpad. |
![]() | Turn airplane mode on and off. |
![]() | Enable/Disable the integrated camera. |
![]() | Lock the screen. |
![]() | Switch display devices. |
![]() | Increase/Decrease screen brightness. |
Hotkey mode
Some hotkeys share keys with function keys (F1 to F12). The hotkey mode is a UEFI/BIOS setting that changes how hotkeys (or function keys) are used.
Hotkey mode setting | How to use hotkeys | How to use function keys |
Disabled | Hold down the Fn key and press one of the hotkeys. | Press the function keys directly. |
Enabled | Press the hotkeys directly. | Hold down the Fn key and press one of the function keys. |
Note: Hotkeys that do not share keys with function keys are not affected by the hotkey mode setting. They should always be used with the Fn key.
Some Lenovo computers includes a dedicated numeric keypad on the far right of the keyboard. The keypad is used for entering numbers and operators quickly.
Press the NumLock key to enable or disable the numeric keypad.
Use the information in this section to achieve the best balance between performance and power efficiency.
The battery status icon or
is in the Windows notification area. You can check the battery status, view the current power plan, and access battery settings quickly.
Click the battery status icon to display the percentage of battery power remaining and change the power mode. A warning message is displayed when the battery is low.
When the remaining battery power is low, charge your battery by connecting your computer to ac power.
The battery is fully charged in about two to four hours. The actual charging time depends on the battery capacity, the physical environment, and whether you are using the computer.
Battery charging is also affected by its temperature. The recommended temperature range for charging the battery is between 10°C (50°F) and 35°C (95°F).
Note: To maximize the life of the battery, the computer does not start recharging the battery if the remaining power is greater than 95%.
You can check the battery temperature in Lenovo Vantage or Lenovo PC manager.
By default, pressing the power button puts the computer to sleep mode. However, you can change the power button behavior in Windows Control Panel.
A power plan is a set of power saving settings. You can choose a pre-defined power plan or you can create your own plans.
This section introduces what is UEFI/BIOS and the operations you can perform in its setup utility.
UEFI/BIOS is the first program that runs when a computer starts. UEFI/BIOS initializes hardware components and loads the operating system and other programs. Your computer may include a setup program (setup utility) with which you can change certain UEFI/BIOS settings.
You may need to change the startup sequence to allow the computer to start from another device or a network location.
For some Lenovo computers with always-on connectors, the always-on function can be enabled or disabled in the UEFI/BIOS setup utility.
This section introduces the types of passwords that you can set in the UEFI (Unified Extensible Firmware Interface) or BIOS (Basic Input/Output System) setup utility.
You can set various types of passwords in the UEFI/BIOS setup utility.
Password type | Pre-requisite | Usage |
Administrator password | No | You must enter it to start the setup utility. |
User password | The administrator password must be set. | You can use the user password to start the setup utility. |
Master hard disk password | No | You must enter it to start the operating system. |
User hard disk password | The master hard disk password must be set. | You can use the user hard disk password to start the operating system. |
Notes:
You set the administrator password to prevent unauthorized access to the UEFI/BIOS setup utility.
Attention: If you forget the administrator password, a Lenovo authorized service personnel cannot reset your password. You must take your computer to a Lenovo authorized service personnel to have the system board replaced. Proof of purchase is required and a fee will be charged for parts and service.
Only the administrator can change or remove the administrator password.
You must set the administrator password before you can set the user password.
The administrator of the setup utility might need to set a user password for use by others.
If the administrator password has been set, you can enable power-on password to enforce greater security.
You can set a hard disk password in the setup utility to prevent unauthorized access to your data.
Attention: Be extremely careful when setting a hard disk password. If you forget the hard disk password, a Lenovo authorized service personnel cannot reset your password or recover data from the hard disk. You must take your computer to a Lenovo authorized service personnel to have the hard disk drive replaced. Proof of purchase is required and a fee will be charged for parts and service.
This section introduces the recovery options of Windows 10. Ensure that you read and follow the on-screen recovery instructions.
Attention: The data on your computer might be deleted during the recovery process. To avoid data loss, make a backup copy of all the data that you want to keep.
Windows 10 provides several options for you to restore or reset your computer. The following table helps you decide which option to choose if you are having problems with Windows.
Problem | Option |
Your computer is not working well after installing apps, drivers, or updates. | Restore to a system restore point. |
Your computer is not working well and you don't know what causes the problem. | Reset your computer. |
You want to recycle or donate your computer. | Reset your computer. |
Windows cannot start properly. | Use a recovery drive to restore or reset your computer. |
System Restore is a tool included in Windows 10. It monitors changes to Windows system files and saves system state as a restore point. If your computer does not work well after installing apps, drivers, or updates, you can revert your system to a previous restore point.
Note: If you revert your system to a previous restore point, personal data is not affected.
System Restore creates restore points:
Note: In order for System Restore to create restore points, system protection must be turned on for the system drive.
Create a system restore point manually
You can use Windows System Restore to create a restore point at any time.
Restore from a system restore point
If Windows is not running well as usual, you can choose to reset it.
Use a USB drive (not supplied) to create a Windows recovery drive. If Windows will not start, you can use the recovery drive to restore or reset Windows.
Notes: Most USB drives utilize the Type-A connector. If your computer does not include a USB Type-A connector, you have two options:
If Windows cannot start, you can use a recovery drive (created in advance) to restore or reset Windows.
How do I open the Control Panel? |
|
How should I turn off my computer? | Open the Start menu and select Power ➙ Shut down. |
How do I partition my storage drive? | Refer to https://support.lenovo.com/solutions/ht503851 |
What should I do if my computer stops responding | Press and hold the power button until the computer turns off. Then restart the computer. |
What should I do if I spill liquid on the computer? |
|
Where can I get the latest device drivers and UEFI/BIOS? |
|
Use the following self-help resources to learn more about the computer and troubleshoot problems.
Resources | How to access? |
Use Lenovo Vantage or Lenovo PC Manager to:
|
|
Lenovo Support Web site with the latest support information of the following:
| Visit https://support.lenovo.com |
Windows help information |
|
Call Lenovo
If you have tried to correct the problem yourself and still need help, you can call Lenovo Customer Support Center.
Before you contact Lenovo
Record product information and problem details before you contact Lenovo.
Product information | Problem symptoms and details |
|
|
Note: The product name and serial number can usually be found on the bottom of the computer, either printed on a label or etched on the cover.
Lenovo Customer Support Center
During the warranty period, you can call Lenovo Customer Support Center for help.
Telephone numbers
For a list of the Lenovo Support phone numbers for your country or region, go to https://pcsupport.lenovo.com/supportphonelist.
Note: Phone numbers are subject to change without notice. If the number for your country or region is not provided, contact your Lenovo reseller or Lenovo marketing representative.
Services available during the warranty period
Services not covered
For the terms and conditions of the Lenovo Limited Warranty that apply to your Lenovo hardware product, see "Warranty information" in the Safety and Warranty Guide that comes with your computer.
Purchase additional services
During and after the warranty period, you can purchase additional services from Lenovo at https://www.lenovo.com/services.
Service availability and service name might vary by country or region.
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Advertisement
Need help?
Do you have a question about the IdeaPad 3 14ADA05 and is the answer not in the manual?
Questions and answers
