Lenovo YOGA 530, YOGA 530-14IKB, YOGA 530-14ARR Manual

Getting to know your computer

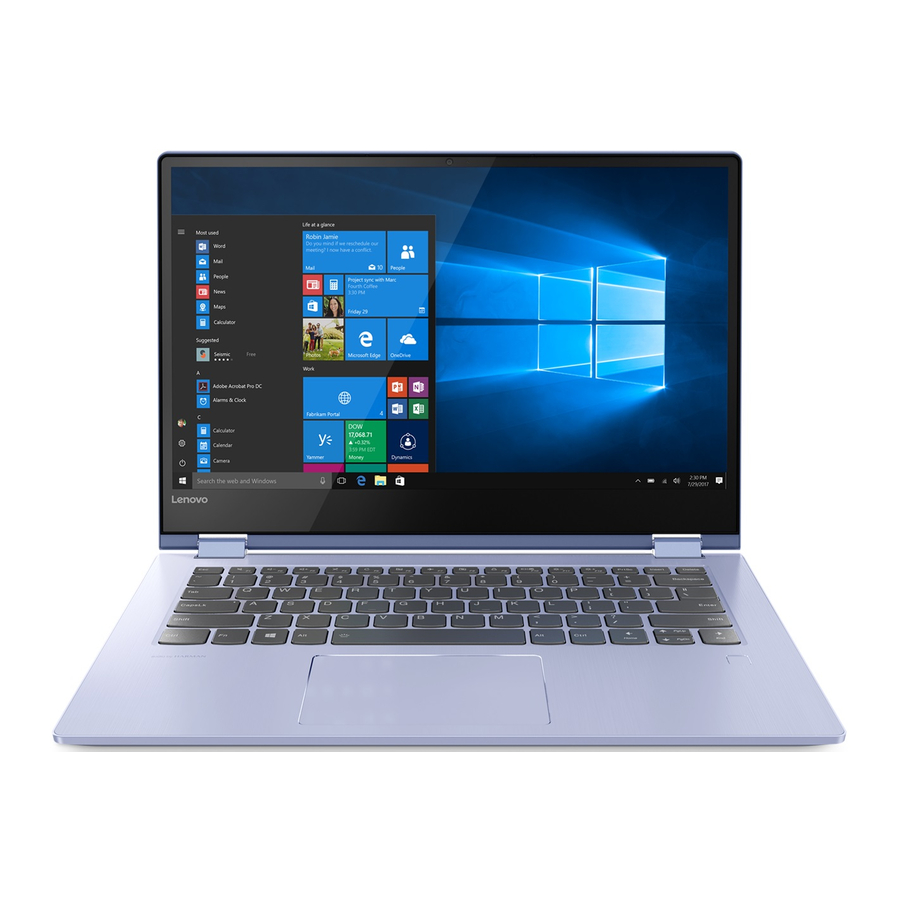

Top view

Note: The dashed areas indicate parts that are not visible externally.
Attention:

• When closing the display panel, be careful not to leave pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel may be damaged.

1. Integrated camera
   Use the camera for video communication.
2. Built-in microphone
   Capture sound which can be used for video conferencing, voice narration, or audio recording.
3. Multi-touch screen
   The LCD display with LED backlight provides brilliant visual output. Multi-touch function is available on this display.
4. Wireless LAN antennas
   Connect to a wireless LAN adapter to send and receive wireless radio signals.
5. Touch pad
   The touch pad functions as a conventional mouse.
   Touch pad: To move the pointer on the screen, slide your fingertip over the pad in the direction in which you want the pointer to move.
   Touch pad buttons: The functions of the left/right side correspond to those of the left/right mouse button on a conventional mouse.
   Note: You can enable/disable the touch pad by pressing F6 ()
6. Fingerprint reader
   (on select models)
   Register fingerprints that can be used as passwords to secure your computer.

Using the keyboard

Hotkeys
You can access certain system settings quickly by pressing the appropriate hotkeys.

	Mutes/unmutes the sound.
	Decreases the volume level.
	Increases the volume level.
	Enables/disables microphone.
	Refreshes page.
	Enables/disables the touch pad.
	Enables/disables airplane mode.
	Enables/disables camera.
	Locks the LCD screen.
	Enables the external projector or dangles the external display.
	Decreases display brightness.
	Increases display brightness.

Note: If you changed the Hotkey Mode from Enabled to Disabled in the BIOS setup utility, you will need to press the Fn key in combination with the appropriate hotkey.

Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this function, press and hold Fn , then press one of the function keys .

The following describes the features of each function key.

Positioning the display panel

The display panel can be opened to any angle up to 360 degrees.

Notebook Mode
Suitable for tasks that require a keyboard and mouse (such as creating documents, writing e-mails, and so on).

Stand Mode (Theater Mode)
Suitable for tasks that require little or no touch (such as viewing photos or playing videos).

Tablet Mode
Suitable for tasks that require touching the screen often (such as surfing the web, playing games, and so on).

Tent Mode (Presentation Mode)
Suitable for tasks that require limited interaction with the touch screen (such as displaying graphs or PowerPoint presentations).

ž Attention:

• Do not open the display with too much force, otherwise the panel or hinges may be damaged.

Note: The keyboard and touch pad are automatically locked when the screen is opened beyond 190 degrees (approximately).

Left-side view

1. AC power adapter jack
   Connects to the AC power adapter.
2. Battery/Charging status LED

   AC power adapter status	LED status	Meaning
   Disconnected	Off	The battery is not charging.
   Connected	Solid amber	The battery has between 1% and 80% charge and is still charging.
   	Solid white	The battery has more than 80% charge, charging will continue until the battery is fully charged.

3. HDMI port
   Connects to devices with HDMI input such as a TV or a display.
4. USB 3.0 port
   Connects to USB devices.
   Notes:
   • If the battery charge is more than 20%, the USB port with a () mark supports charging of an external USB device, even when the computer is turned off.
   • For details, see "Connecting USB devices".
5. Type-C port
   Type-C port supports:

   • USB 3.0 only
6. Combo audio jack
   Connects to headsets.
   Notes:

   • The combo audio jack does not support conventional microphones.
   • The recording function may not be supported if third-party headphones or headsets are connected, due to different industry standards.

Screen orientation

You can rotate the display panel to your preferred orientation.

• The orientation of the display automatically changes (alternating between portrait and landscape modes) depending upon how you hold the computer.


Connecting USB devices

You can connect a USB device to your computer by inserting its USB plug into the USB port on your computer.

The first time you plug a USB device into a particular USB port on your computer, Windows automatically installs a driver for that device. After the driver has been installed, you can disconnect and reconnect the device without performing any additional steps.
Note: Typically, Windows detects a new device after it has been connected, and then installs the driver automatically. However, some devices may require you to install the driver before connecting. Check the documentation provided by the device's manufacturer before connecting the device.
Before disconnecting a USB storage device, make sure your computer has finished transferring data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows notification area to remove the device before disconnecting.
Note: If your USB device uses a power cord, connect the device to a power source before connecting it. Otherwise, the device may not be recognized.

Right-side view

1. Novo button
   When the computer is off, press this button to start the System Recovery or to enter the boot menu.
2. Power button/ Power status indicator
   Press this button to turn on/off the computer.
   When the computer is on, if you press this button, the computer will enter sleep mode, if you press and hold it for about 4 seconds, the computer will be turned off, and if you press and hold it for about 8 seconds, the BIOS settings will return to its default status.

   Indicator	Indicator status	Meaning
   Power status indicator	On (solid white)	The computer is powered on and the battery has between 20% and 100% charge.
   	On (solid amber)	The computer is powered on and the battery has between 1% and 20% charge.
   	Slow blinking amber	The computer is in sleep mode and the battery has between 1% and 20% charge.
   	Slow blinking white	The computer is in sleep mode and the battery has between 20% and 100% charge.
   	Off	The computer is powered off.

3. Memory card slot
   Insert memory cards (not supplied) here.
   Note: For details, see "Using memory cards (not supplied)".
4. USB 3.0 port
   Connects to USB devices.
   Note: For details, see "Connecting USB devices".
5. Kensington Mini Security slot
   For attaching a Kensington MiniSaver™ Mobile (or compatible) lock.
   Attach a security lock (not supplied) here to help protect your computer from theft and unauthorized use. You can attach a security lock to your computer to help prevent it from being removed without your permission. For details on installing the security lock, please refer to the instructions shipped with the security lock that you have purchased.

Notes:

• Lock is not supplied. When purchasing a lock, choose one that utilizes the Cleat™ locking mechanism and verify its compatibility with the slot before purchase. A lock utilizing the T-Bar™ locking mechanism is not compatible with the Kensington Mini Security slot.
• Before purchasing any security product, verify that it is compatible with this type of security keyhole.
• You are responsible for evaluating, selecting, and implementing the locking devices and security features. Lenovo offers no comment, judgment, or warranty regarding the function, quality, or performance of locking devices and security features.

Using memory cards

(not supplied)
Your computer supports the following types of memory cards:

• Secure Digital (SD) card
• Secure Digital High Capacity (SDHC) card
• SD eXtended Capacity (SDXC) card
• MultiMediaCard (MMC)

Notes:

• Insert only one card in the slot at a time.
• This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).

Inserting a memory card
Insert the memory card until it touches the bottom of the slot.

Removing a memory card
Gently pull the memory card out of the memory card slot.
Note: Before removing the memory card, disable it by using the Windows safely remove hardware and eject media utility to avoid data corruption.

Bottom view

1. Speakers
   Provide audio output.
2. Ventilation slots
   Dissipate internal heat.

Note: Make sure that none of the ventilation slots are blocked, or else overheating of the computer may occur.

To use the Lenovo Active Pen

(on select models)
Select model is equipped with the Lenovo Active Pen, to use it, refer to the following illustrations.

Functions

Writing

Displaying the function menu
Press and hold the upper button of the active pen when it approaches the display screen and the cursor appears.

Right-clicking function
Press the upper button, then click on the touch screen.

Erasing
Press the lower button when writing.

Note: The functions depend on the app preinstalled.

To replace the battery

Note: Insert the battery by matching the + and – terminals on the battery to the + and – terminals in the battery compartment.

Starting to use Windows 10

Configuring the operating system for the first time

You may need to configure the operating system when it is first used. The configuration process may include the procedures below:

• Accepting the end user license agreement
• Configuring the internet connection
• Registering the operating system
• Creating a user account

Operating system interfaces

The return of the Start menu
Windows 10 comes with a powerful and useful start menu. To open the start menu, do one of the following:

• Select the Start button in the lower-left corner, the Start menu is displayed.
• Press the Windows key on the keyboard.

The power button is on the Start menu. Select it and you can choose to shut down or restart the computer, or put the computer into sleep mode.

Through the Start menu, you can locate all the installed apps or view the frequently used apps.

The ACTION CENTER
Select the ACTION CENTER icon on the taskbar and the ACTION CENTER is displayed.

From the ACTION CENTER, you can examine important notifications from Windows and your apps. Moreover, you can change common settings quickly.

Task View in taskbar
In Windows 10, you can add a new desktop and switch between different desktops.
To add a new desktop, do the following:

• Click the Task View icon in the taskbar area.

• Click New desktop.


To switch between desktops, click the Task View icon , then select your desired desktop.

Putting the computer to sleep or shutting it down

When you have finished working with your computer, you can put it to sleep or shut it down.

Putting your computer to sleep

If you will be away from your computer for only a short time, put the computer to sleep.
When the computer is in sleep mode, you can quickly wake it to resume use, bypassing the startup process.
To put the computer to sleep, do one of the following:

• Close the display lid.
• Press the Power button.
• Move the cursor to the lower-left corner, and then select the Start button. Select Power > Sleep.

Note: Put your computer to sleep before you move it. Moving your computer while the hard disk drive is spinning can damage the hard disk, causing loss of data.
To wake up the computer, do one of the following:

• Press any key on the keyboard.
• Press the Power button.

Shutting down the computer

If you are not going to use your computer for a long time, shut it down. To shut down your computer, do one of the following:

• Move the cursor to the lower-left corner, and then select the Start button. Select Power > Shut down.

• Right-click the Start button in the lower-left corner and select Shut down or sign out > Shut down.


Touch screen operation

The display panel can accept inputs like a tablet, using the multi-touch screen, or like a traditional notebook computer, using the keyboard and touch pad.

Multi-touch gestures

You can touch the screen with one or more fingertips to perform a variety of tasks.

Frequently used gestures	Tasks performed
Tap Tap once on an item.	Performs an action, such as starting an app, opening a link, or performing a command. Similar to left-clicking with a mouse.
Press and hold Press your finger down and leave it there for a moment.	Enables you to see detailed information before selecting an action. Can also open a menu with more options. Similar to rightclicking with a mouse.
Zoom Move two fingers together or apart while touching the screen.	Zooms in and out on visual apps, such as pictures and maps. Can also jump to the beginning or end of a list.
Rotate Place two or more fingers on an item and then turn your hand.	Rotates an object (Note: Not all items can be rotated, depending upon the app.).
Slide Drag your finger across the screen.	Pans or scrolls through lists and pages. Can also move an object or be used to draw or write, depending upon the app. Similar to pressing and holding to pan and to scrolling with a mouse.
Swipe Start from any edge of the screen, then swipe inwards toward the center.	Swiping in from the left edge can: Bring in and open an app currently running in the background.
	Swipe from the right edge can open the ACTION CENTER.

Connecting to a wireless network

Enabling wireless connection
To enable wireless functions, do one of the following:

• Click the ACTION CENTER icon in the notification area, and then deselect Airplane mode.
• Press to disable airplane mode.
• Click Settings > Network & Internet > Airplane mode to open the network configuration page. Then toggle the airplane mode switch to Off.

Connecting to a wireless network
After wireless has been enabled, the computer will automatically scan for available wireless networks and display them in the wireless network list. To connect to a wireless network, click the network name in the list, and then click Connect.
Note: Some networks require a network security key or passphrase for connection. To connect to one of those networks, ask the network administrator or the Internet Service Provider (ISP) for the security key or passphrase.

Get help from Windows

If you have a problem with the operating system, see the Windows Get Help app. To open it, do the following:

• Move the cursor to the lower-left corner, and then select the Start button. Select Get Help from All apps.

Recovery system

Push-button reset

Push-button reset is a built-in recovery tool that enables users to restore their operating system to its original state. This preserves their data and important customizations, without the need to back up their data in advance. The following Push-button reset features are available to users from multiple locations within Windows:

Refreshing the computer
Fixes software problems by reinstalling the factory default configuration. This preserves the user's data, important settings, and any Windows Store apps previously purchased from the Windows Store.

Resetting the computer
Prepares the computer for recycling or transfer of ownership. This reinstalls the factory default configuration and returns all user data and applications to the state of their original Out-of-Box Experience (OOBE).

Using Push-button reset

Push-button reset can be launched using one of the following methods:

• Novo button:
  • Shut down the computer and wait at least five seconds. Press the Novo button and then select System Recovery.
• Settings:
  • Settings > Update & security > Recovery > Advanced startup > select Restart now.

For more instructions, see the Windows Help and Support file on your computer.

When I purchased my computer, it included a copy of Windows. How can I determine whether the copy of Windows is preinstalled by Lenovo?
On the outside of the sales package of your computer, you should find a label containing configuration information for your computer. Check the printed string next to OS. If it contains Windows or WIN, the copy of Windows was preinstalled by Lenovo.

I uninstalled a preinstalled software, but there is no significant increase in the free drive space.
The copy of Windows running on your computer may be Compact technology enabled. For computers with Compact technology enabled Windows, the majority of files needed for preinstalled software are installed on the Recovery Partition and won't be deleted through normal uninstallation.

How can I determine whether the Windows running on my computer is Compact technology enabled?
Compact technology is normally enabled on copies of Windows 10 Update running on SSD (or eMMC) -only computer models. To check your computer,

1. Right-click the Start button in the lower-left corner and select Disk Management.
2. The Disk Management program starts.

If Wim Boot is labeled on the Windows partition (as illustrated), Compact technology is enabled on your copy of Windows.

Where can I find drivers for the various hardware devices of my computer?
If your computer is preinstalled with a Windows operating system, first check the installation program on the D partition of your hard disk (for select models, on the C partition). If you cannot find the drivers for all the hardware devices that you need there, download the drivers from the Lenovo consumer support website.
Note: The Lenovo support web site contains the latest drivers.

Frequently asked questions

This section lists frequently asked questions by category.

Finding information

What safety precautions should I follow when using my computer?
The Lenovo Safety and General Information Guide which came with your computer contains safety precautions for using your computer. Read and follow all the precautions when using your computer.

Where can I find the hardware specifications for my computer?
You can find hardware specifications for your computer from within the Companion (or Lenovo PC Manager) app.

Where can I find warranty information?
For the warranty applicable to your computer, including the warranty period and type of warranty service, see the Lenovo limited warranty.

Drivers and preinstalled software

Where are the installation discs for Lenovo preinstalled software (desktop software)?
Your computer does not come with installation discs for Lenovo preinstalled software. If you need to reinstall any preinstalled software, you can find the installation program on the D partition of your hard disk (for select models, on the C partition). If you cannot find the installation program there, you can also download it from the Lenovo consumer support website.

Where can I find drivers for the various hardware devices of my computer?
If your computer is preinstalled with a Windows operating system, Lenovo provides drivers for all the hardware devices that you need on the D partition of your hard disk (for select models, on the C partition). You can also download the latest device drivers from the Lenovo consumer support website.

BIOS setup utility

What is the BIOS setup utility?
The BIOS setup utility is ROM-based software. It displays basic computer information and provides options for setting boot devices, security, hardware mode, and other preferences.

How can I start the BIOS setup utility?
To start the BIOS setup utility:

1. Shut down the computer.
2. Press the Novo button and then select BIOS Setup.

How can I change the boot mode?
There are two boot modes: UEFI and Legacy Support. To change the boot mode, start the BIOS setup utility and set boot mode to UEFI or Legacy Support on the boot menu.

When do I need to change the boot mode?
The default boot mode for your computer is UEFI mode. If you need to install a legacy operating system, such as Windows, Linux or Dos, etc (that is, any operating system before Windows 8) on your computer, you must change the boot mode to Legacy Support. The legacy operating system, such as Windows, Linux or Dos, etc cannot be installed if you don't change the boot mode.

Getting help

How can I contact the customer support center?
See Chapter "Getting help and service" of Lenovo Safety and General Information Guide.

Troubleshooting
