Lynx TS Series, TS-2500, TS-5000, TS-10000 Manual

WELCOME

Just contact the new generation of digital amplifiers, designed and manufactured by Lynx Pro Audio S.L.
Before working with the amplifier we recommend that you read this manual, in its pages you will find instructions for use, programming examples and practical advice that will be of great help.
For the maximum optimization of any sound system a first class digital processor with different processing options is required. This TS amplifier become a working tool of great value, providing the user with the best solutions in the market with the highest level of accuracy and a host of features for the professional.
We hope thar as a user you will be completely satisfied. We are sure that the TS amplifier will meet your expectations and make it easier for you to get the most out of your system.

INTRODUCTION

The TS series comprises high-performance 4-channel amplifiers of medium/high power, specifically designed for the installation market. These amplifiers can connect to both high and low impedance loads via their Phoenix input and output connectors and allow output levels to be controlled through the rear panel potentiometers.
The design includes Lynx Pro Audio's advanced Power Control Management system, which allocates power across the channels according to the user's needs, even enabling maximum power to be delivered through a single channel.
These amplifiers offer extensive configuration options, including Bridge mode, subsonic filter, per-channel power limiter, and signal link, to meet the demands of any installation. They can also be equipped with a GPIO connection for integration with third-party control systems. Additionally, DanteTM Networking (AES67) inputs are available for the TS amplifiers.
With all these configurations, the TS amplifiers can meet the requirements of any installation ranging from 300 to 2500 W.

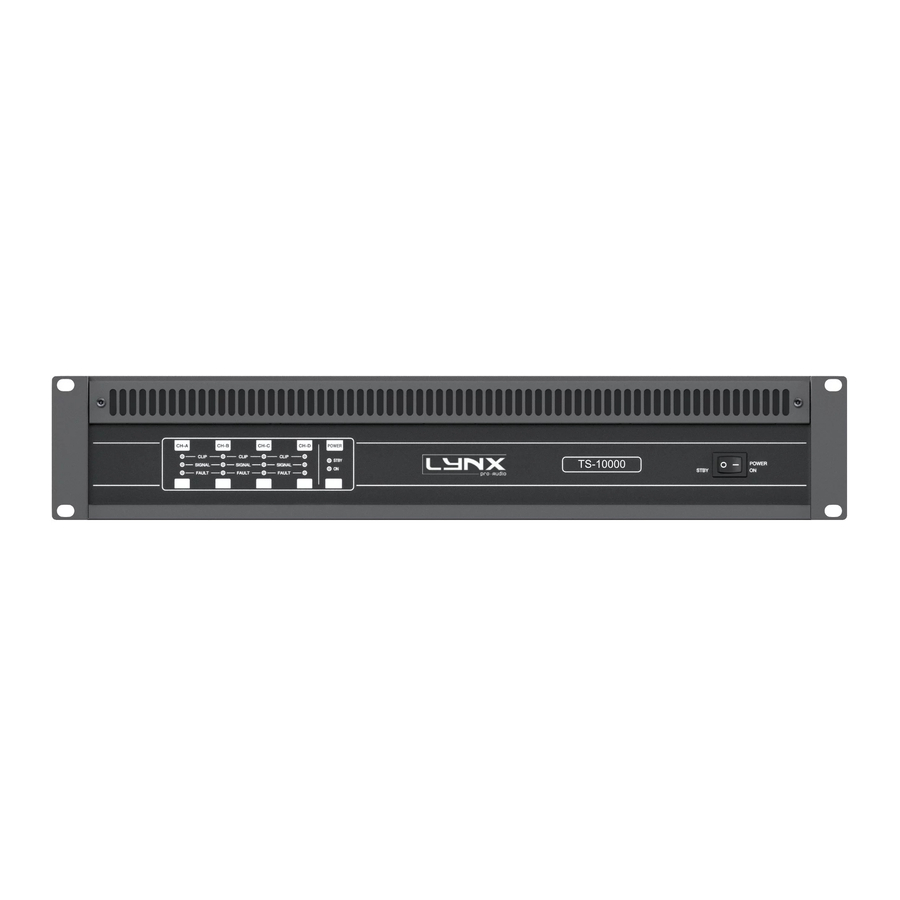

TS frontal panel description

1. CHANNEL
   These LEDs are used to provide visual information about the status of the clip, faults and signals.
2. POWER SUPPLY INDICATION
   The LED indicates that the amplifier is receiving power and is switched on.
3. POWER ON SWITCH

TS back panel description

4. GAIN SELECTION
   Gain configuration from 26 to 40 dB.
5. GPI CONTROL
   GPI Power: On/off by maintained contact or voltage.
   GPI Mute: Mute/unmute completelly amplifier by contact or voltage.
6. CHANNEL SETUP
   50Hz HP: 50Hz subsonic filter.
7. GPO MONITOR
   GPIO for third party interface. AES67 and Dante options.
8. GPO STATUS
   Monitor each individual channel, with switching contacts for fault/ OK status.
9. SPEAKER OUTPUTS
   Up to 10000 W in 4 channels.
10. OUTPUT MODE
    Output Mode: Hi impedance voltage selector. Low impedance power limitation.
    Bridge mode: Low impedance bridge mode. 200V/140V high impedance mode.
11. SIGNAL INPUTS
    • Input Link: Linking of input signals in consecutive channels.
    • Output Levels: Hidden potentiometers on the rear for adjusting output levels.

TS characteristics

• Low weight high efficiency class D topology.
• Universal power supply with PFC.
• Up to 10000 W in 4 channels.
• 8, 4 and 2 Ohm low impedance operation.
• 100, 70, 50 and 35 V high impedance modes.
• Power Control Management.
• Phoenix connectors for inputs and outputs.
• Up-side-down design to avoid fan dust accumulation.

• Temperature controlled, front to back cooling.
• Gain configuration from 26 to 40 dB.
• GPIO for third party interface. AES67 and Dante options.
• Subsonic filter.
• Signal link mini-dips configurable.
• Output level control in rear panel.
• Output mode configuration for high or low impedance with power limitation.

TS Output power

TS Dimensions (in mm)

TECHNICAL SPECIFICATIONS

TROUBLESHOOTING

We aim to resolve possible issues by providing solutions in this section:

The amplifier does not start up

Check the power supply cord. If it is correctly connected and the red led on the front panel does not light on, check the fuse situated in the input of the power cord.

The amplifier starts up but there is no sound

Check that the amplifier is being provided with a signal in the correct input, A, B, C or D. If the signal does reach the amplifier, the green signal LED will light.

The resulting sound is "strange"

Check that the outputs and their corresponding cabinets are correctly linked. Always be careful in increasing little by little the cabinets volume channel by channel in order to check the correct connection and not to damage the transducers.

One of the cabinets ( with the same signal ) sounds less than the others
Check that the joining cable from the amplifier to the cabinet is well balanced otherwise the output signal will fall 6 dB.

IMPORTANT SAFETY INSTRUCTIONS

The CE mark of the TS amplifier shows that it is verified and tested to accomplish the European Norms and International Norms about Electromagnetic Compatibility and Electrical Safety.

RISK OF ELECTRIC SHOCK
DO NOT OPEN
The symbols shown above are internationally accepted symbols that warn of potential hazards with electrical products. The lightning flash with arrowpoint in an equilateral triangle means that there are dangerous voltages present within the unit. The exclamation point in an equilateral triangle indicates that is necessary for the user to refer to the owner's manual.

Do not expose the processor to humidity and dust.
Do not take off the top cover.
Do not handle internal elements to avoid electrical shock.
Use only power cords in good condition.

Unpacking the TS
Before unpacking your new amplifier, verify that the box does not show any damage or deformation. If this happens, please claim the damage to your fordwarder. Once unpacked and verified its correct operation, keep the original box in case you need to ship it back to your provider.
