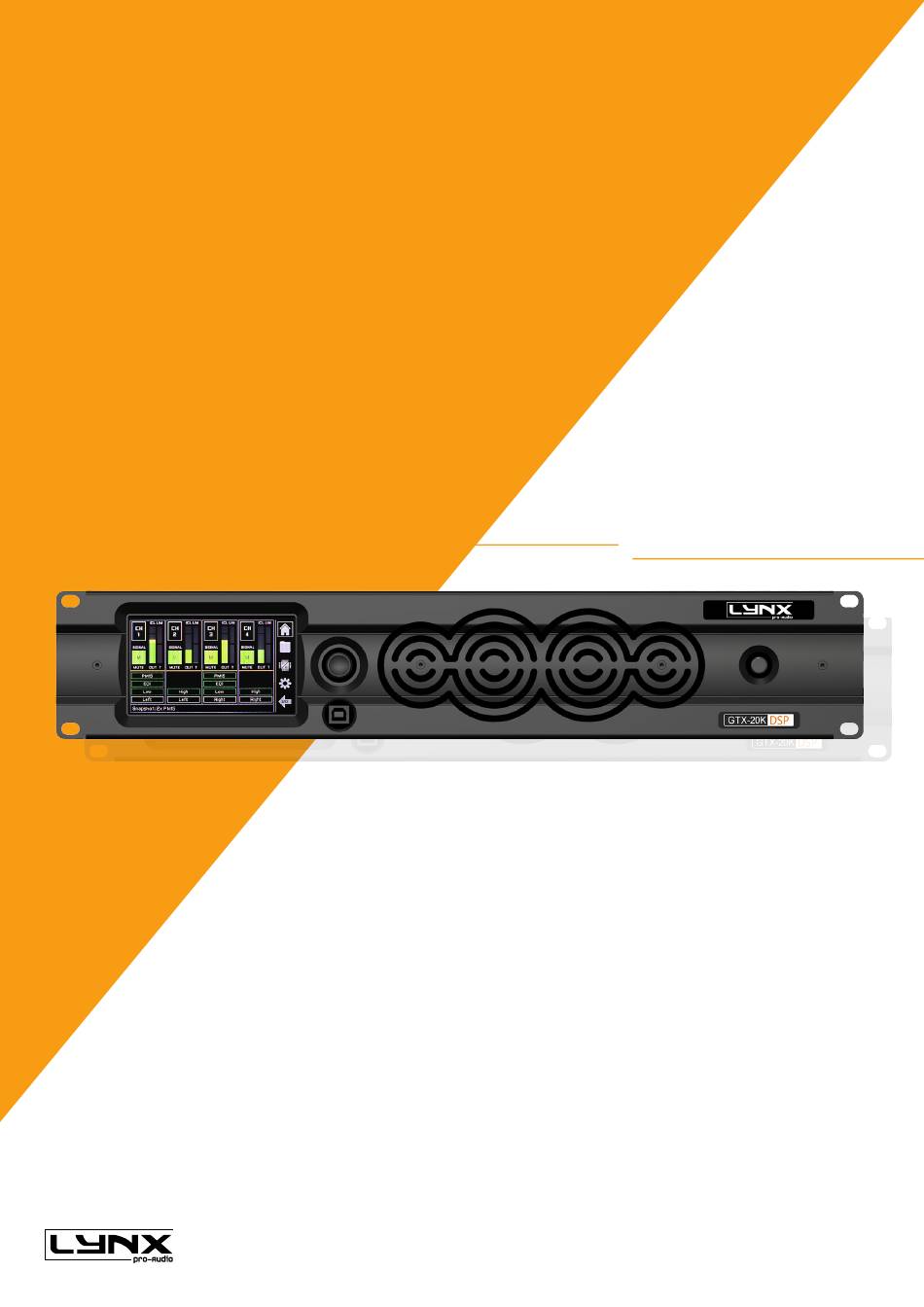

- Page 1 GTX series USER MANUAL V. 20.06...
- Page 2 Lynx Pro Audio S.L. shall not be liable to the purchaser of this product or to third parties for any damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of an accident, misuse, or abuse of this product, nor for any modifications, repairs, or alterations to it, or for failing to strictly adhere to the operating and maintenance instructions of Lynx Pro Audio S.L.
-
Page 3: Table Of Contents
1. INTRODUCTION Description of the GTX front panel ..............7 GTX Characteristics......................8 Output power........................8 2. OCS DSP CONTROL............................9 GTX_OCS DSP Control......................9 DSP management using OCS and amplifier display............9 DSP specifications.........................9 Online Control System......................10 3. TECHNICAL SPECIFICATIONS........................12 4. TROUBLESHOOTING............................13 LYNX PRO AUDIO GUARANTEE........................16... - Page 4 WELCOME Just contact the new generation of digital amplifiers, designed and manufactured by Lynx Pro Audio S.L. Before working with the amplifier we recommend that you read this manual, in its pages you will find instructions for use, programming examples and practical advice that will be of great help.
- Page 5 Before unpacking your new amplifier, verify that the box does not show any damage or deformation. If this happens, please claim the damage to your fordwarder. Once unpacked and verified its correct operation, keep the original box in case you need to ship it back to your provider. GTX Series | User Manual...
-
Page 6: Introduction
96kHz DSP processing and a large IPS display with a touch panel user interface. Advanced Audio Power Control Management has been implemented in the design of the GTX series. This enables the user to configure the division of power between the channels via the DSP enabling them to obtain maximum power through just one single channel if desired. -
Page 7: Description Of The Gtx Front Panel

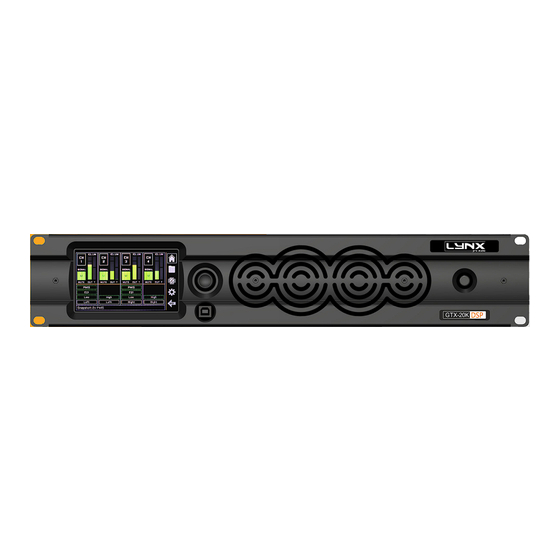

1. INTRODUCTION GTX frontal panel description 01. IPS Display Capacitive touch panel user interface. 02. ENCODER AND PUSH BUTTON This encoder allows you to control the interface and touch panel. 03. POWER ON SWITCH GTX Series | User Manual... -
Page 8: Gtx Characteristics
1 x W 4 x 1250 W 4 x 2500 W 4 x W 4 x W Hi -Z 70 V 1 x 8000 W 1 x 2500 W 1 x W 1 x W GTX Series | User Manual... -
Page 9: Ocs Dsp Control
2.- OCS DSP CONTROL GTX_OCS DSP Control GTX series DSP is a highly versatile amplifier suitable for any sound system and configurable for any possible application. This high-performance DSP features FIR filters at 96 kHz. The digital amplifier has Ethernet control and is managed via Lynx Pro Audio’s proprietary control software, GTX_OCS. -
Page 10: Online Control System
2. OCS DSP CONTROL ONLINE CONTROL SYSTEM • Who is it for? Users of Self powered DSP incorporated Lynx Pro Audio Cabinets where the user has requested the cabinets be supplied with the Ethernet Module kit. • What is it for? Obtain detailed information of cabinet behaviour and monitor the cabinet/s in real time. - Page 11 - Type: to assign the filter type to the selected equalisation - FREQ: to assign the frequency to the selected equalisation - GAIN: to assign the gain to the selected equalisation - Q: to assign the Q to the selected equalisation GTX Series | User Manual...
-
Page 12: Technical Specifications
Weight Net (kg - lbs) Soft-start, Turn-on Turn-off transients, Over-heating, DC, RF, Short-circuit, Open or mismatched Protections loads, Overloaded power supply, ICL™, PMS™ and SSP™ * IEC filtered pink noise signal (40Hz-5kHz, 12 dB crest factor). 230V AC mains. GTX Series | User Manual... -
Page 13: Troubleshooting
4 – One of the cabinets (with the same signal) sounds less than the others Check that the joining cable from the amplifier to the cabinet is well balanced otherwise the output signal will fall 6 dB. GTX Series | User Manual... - Page 14 DECLARATION OF CONFORMITY Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC RoHS Directive 2002/95/EC In accordance with Harmonized European Norms: EN 60065:2002 Audio, video and similar electronic apparatus. Safety requirements EN 55103-1:1996 Electromagnetic compatibility.
-
Page 15: Lynx Pro Audio Guarantee
When products are under guarantee, the repairing and the free supplying of the device parts in order to correct any kind of defect are guaranteed by Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts. - Page 16 LYNX Pro Audio S.L. Calle 1. Pol. Ind. Picassent, Picassent, Valencia 46220 España +34 961 109 601 www.lynxproaudio.com...
