Summary of Contents for Lynx D VD 5620

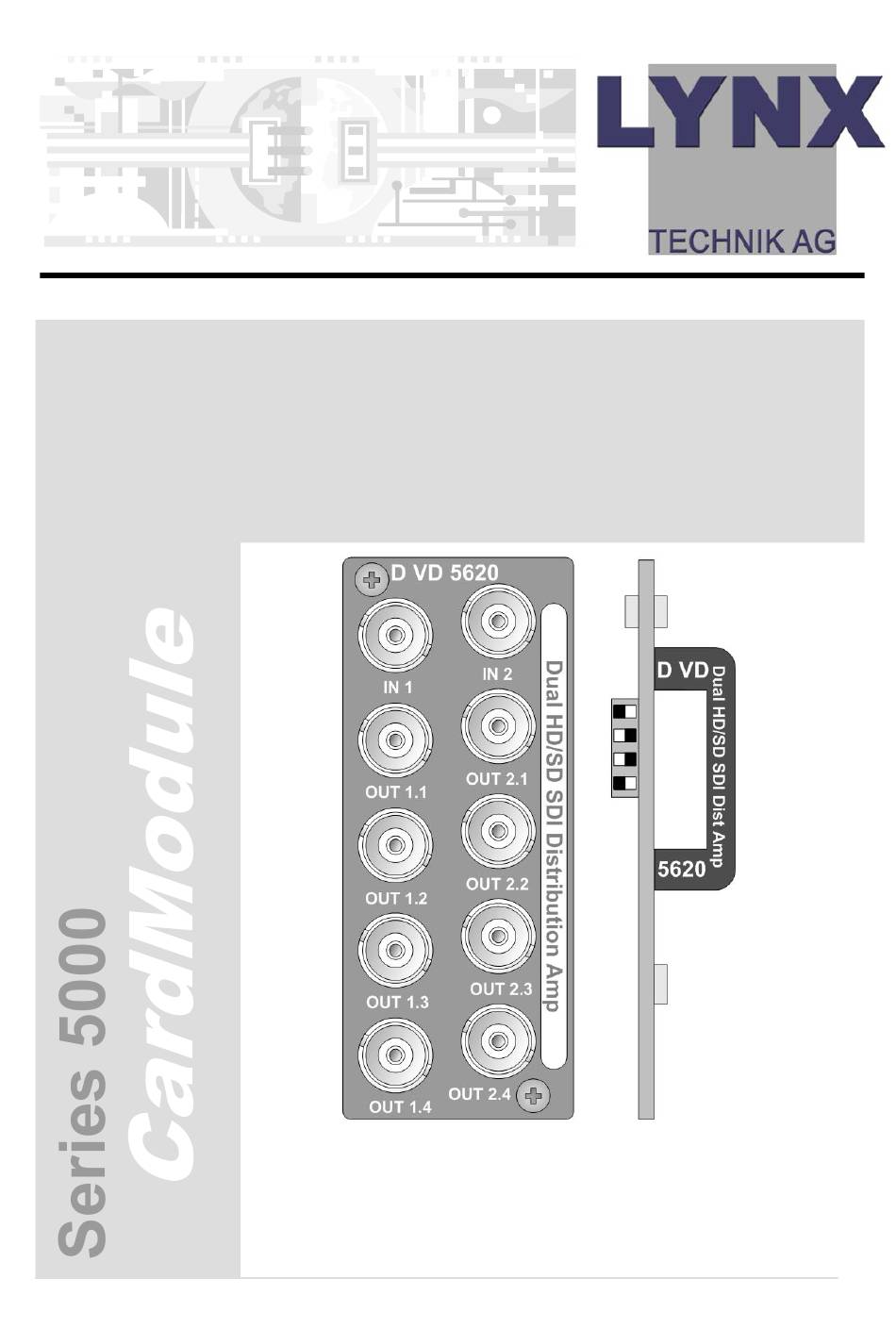

- Page 1 Version 1.0 Reference Manual D VD 5620 Dual HD/SD SDI Distribution Amplifier © LYNX Technik AG Brunnenweg 3 D-64331 Weiterstadt Germany www.lynx-technik.com...
- Page 2 Except as expressly written by LYNX Technik AG, the furnishing of this document does not give you any license to patents, trademarks, copyrights or other intellectual property of LYNX Technik AG or any of its affiliates.
-
Page 3: Warranty
LYNX Technik, with shipping charges prepaid. LYNX Technik shall pay for the return of the product to the customer if the shipment is within the country which the LYNX Technik service center is located. -
Page 4: Regulatory Information
Reference Manual D VD 5620 Version1.0 Regulatory information Europe Declaration of Conformity LYNX Technik AG Brunneweg 3 D-64331 Weiterstadt Germany Declare under our sole responsibility that the product TYPE: D VD 5620 To which this declaration relates is in conformity with the following... -
Page 5: Table Of Contents
Reference Manual D VD 5620 Version1.0 Contents Warranty ..............3 Regulatory information........... 4 Europe ................4 Declaration of Conformity.......... 4 USA................. 4 FCC 47 Part 15............4 Contents ..............5 Getting Started............7 Packaging................ 7 Product Description ............7 Functional Diagram ............8 Module Layout..............8... - Page 6 Reference Manual D VD 5620 Version1.0 This page is intentionally left blank Page 6...
-
Page 7: Getting Started
Product Description The D VD 5620 is a high quality HD / SD digital video distribution amplifier designed primarily for broadcast and professional applications. Flexible configurations allow the D VD 5620 to be used in dual 1 to 4 applications or 1 to 8 applications. -
Page 8: Functional Diagram
D VD 5620 CardModule. Figure 1- D VD 5620 Functional Diagram Module Layout Figure 2 shows the layout of the D VD 5620 CardModule and the rear connection panel. Please refer the connections section of this manual for wiring details for the connectors. - Page 9 Reference Manual D VD 5620 Version1.0 Figure 2 – Module Layout Caution Use static precautions when handling the PCB. Static discharge could result in serious damage to the module. Page 9...
-
Page 10: Connections
Reference Manual D VD 5620 Version1.0 Connections Video Connections The D VD 5620 CardModule is configured with standard 75 Ohm BNC connectors. Connection is self-explanatory. We recommend the use of high quality video cable for digital video connections to reduce the risk of interference or errors due to excessive cable attenuation. -
Page 11: Installation
Reference Manual D VD 5620 Version1.0 Installation Caution The CardModule is shipped in a protective anti-static bag. Please take suitable precautions to avoid static discharge onto any part of the PCB or components when handling module or serious damage could result. -
Page 12: Settings And Control
Reference Manual D VD 5620 Version1.0 Settings and Control The D VD 5620 has an integrated micro-controller, which enables the module to be configured and controlled locally via the dip-switch or from remote when using one of the optional controllers and control software. -
Page 13: Switch Settings
Reference Manual D VD 5620 Version1.0 Switch Settings Below the switch settings for the 4-position dip- switch are defined. Switch Setting Function Enable Local Adjustment Disable Local Adjustment Dual 1:4 mode Single 1:8 mode * Outputs 1 to 4 Reclocked... -
Page 14: Factory Preset Condition
This switch configures outputs 5 to 8 to be reclocked or non reclocked. ON sets reclocked OFF sets non-reclocked Factory Preset Condition The D VD 5620 is delivered programmed and preset for the following mode of operation: Switch 1 ON Local Adjustment Enabled Switch 2 ON Dual 1 >... -
Page 15: Alarm/Led Status Indicators
Reference Manual D VD 5620 Version1.0 Alarm/LED Status Indicators The D VD 5620 module has integral LED indicators, which serve as alarm and status indication for the module. Function is described below. Channel Condition Indicators 2 status LEDs are provided on the top edge of the... -
Page 16: Locate Function
Reference Manual D VD 5620 Version1.0 Locate Function For larger systems which may have multiple cards of the same type in a single rack, or multiple rack systems on a large central control system we have added a useful utility which will help to visually... -
Page 17: Specifications (D Vd 5620)
Reference Manual D VD 5620 Version1.0 Specifications (D VD 5620) Inputs Signal 1 or 2 Serial Digital Video. SMPTE 259M, 292M, 344 M with automatic standard detection Input Impedance 75 Ohms Input level 0.8V p-p (+-10%) Return loss 20dB (270MBit/s)), 15dB (1.485 GBit/s) -
Page 18: Available Options
Reference Manual D VD 5620 Version1.0 Available Options Below is a list of related products for the D VD 5620 CardModule. Please refer to product brochures or our web site for more detailed information. Model Description Series 5000 Rack Frame (empty) with single... -
Page 19: Service
Reference Manual D VD 5620 Version1.0 Service If you are experiencing problems, or have questions concerning your D VD 5620 CardModule please contact your local distributor for assistance. We offer a fixed cost service exchange program for defective Series 5000 CardModules out of Warranty. -
Page 20: Contact Information
Reference Manual D VD 5620 Version1.0 Contact Information Please contact your local distributor; this is your local and fastest method for obtaining support and sales information. LYNX Technik can be contacted directly using the information below. Address LYNX Technik AG Brunnenweg 3 D-64331 Weiterstadt Germany. - Page 21 Reference Manual D VD 5620 Version1.0 Notes Page 21...
