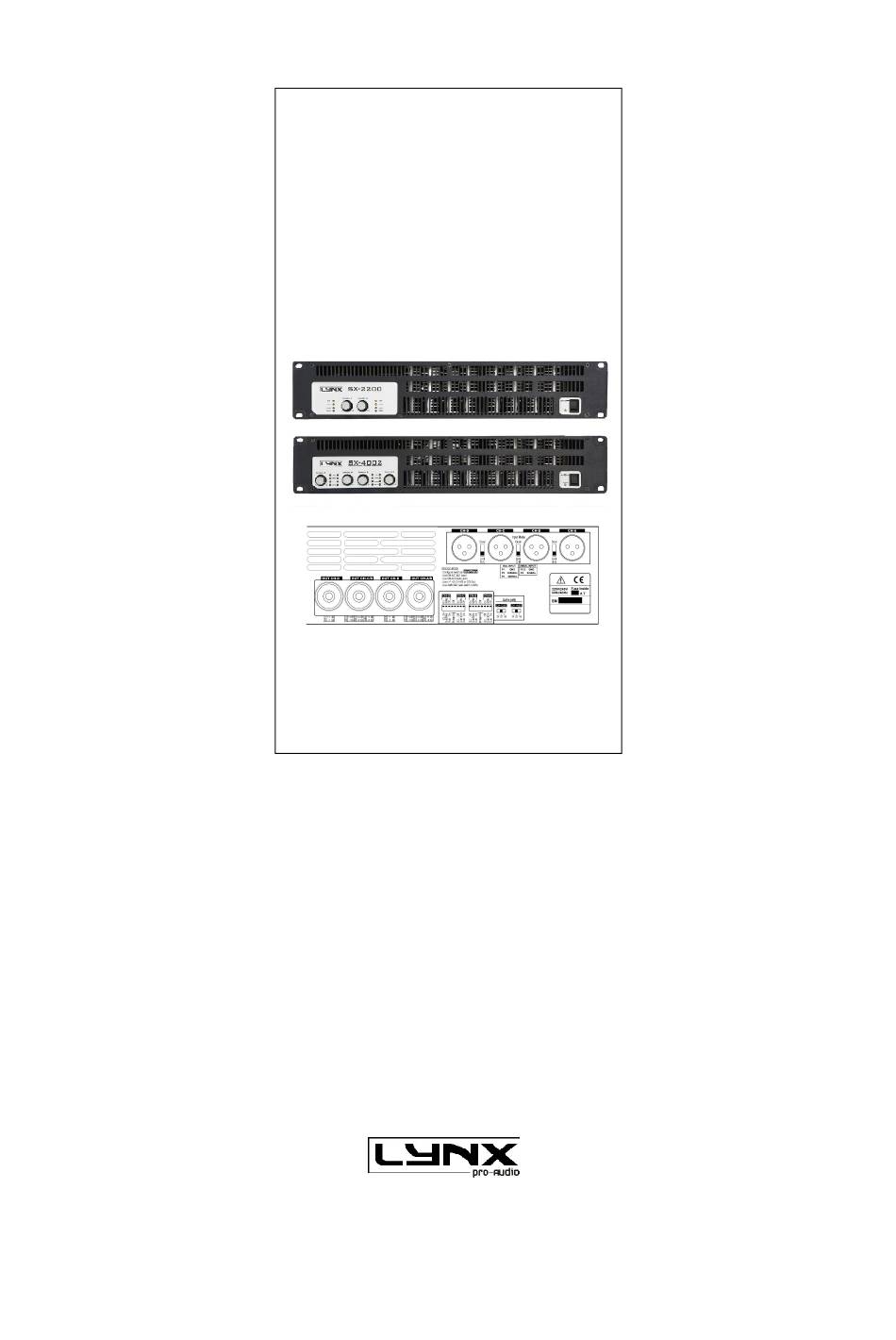

- Page 1 USER MANUAL V.11.08 Valencia, Spain www.lynxproaudio.com...
- Page 2 Calle 7 - Pol. Ind. Picassent E-46220 Picassent (Valencia) CE CERTIFICACTION, EUROPEAN PRODUCT RoHS Directive 2002/95/EC This user manual is property of Lynx Pro Audio S.L. Any reproduction of this manual, by any means is strictly prohibited. Copyright 2011. All rights reserved.
-
Page 3: Table Of Contents
1.- INTRODUCTION 1.1 Overview .....................5 1.2 Main Specifications..................5 2.- HARDWARE CONTROLS. 2.1 Front Panel ..................7 2.2 Rear Panel ..................8 3.- INSTALLATION AND OPERATION 3.1 Connections...................9 3.2 Configuration..................10 Protection systems..................11 3.4 Troubleshooting..................12 4.- DECLARATION OF CONFORMITY... - Page 4 INDEX - Electrical appliance. The exclamation mark within a triangle identifies the presence of electricity. Use the system carefully without wet hands or feet. Avoid installing the speaker in wet or excesivelly humid places. Regularly check the condition of the cables and make sure these are not being walked on or pinched. Connect the speaker to bipolar, earthed mains.
-
Page 5: Introduction

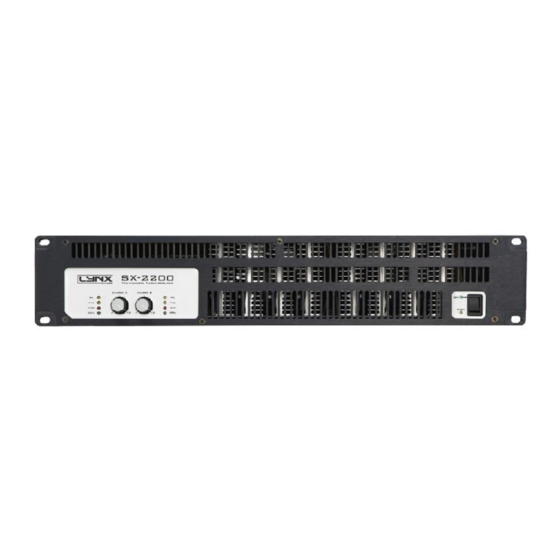

1.- Introduction 1.1 Overview The SX Series Power Amps is our response to clients’ needs for a series of powerful, compact, versatile and rugged amplifiers characterised by no-compromises electronic and mechanical specifications. The SX Series offers optional add-on modules that extend its operational capability to match any of today’s market requirements. - Page 6 1 - INTRODUCTION Technical Specifications SX-1004 SX-4002 SX-2800 SX-2200 RMS power (8): 4 x 690 W 4 x 430 W 2 x 810 W 2 x 630 W RMS power(4): 4 x 975 W 4 x 670 W 2 x 1380 W 2 x 1100 W RMS power (2): 4 x 980 W...
-
Page 7: Hardware Controls
2 - HARDWARE CONTROLS 2.- Hardware Controls 2.1 Front Panel See Figure A 1.- Signal attenuation level control knobs: Permit independent control of each channel.s attenuation (21steps). 2.- SIGNAL: This LED indicates presence of signal at the inputs. TEMP: This LED shows temperature protection is active. PMS: LED indicating PMS in operation. -
Page 8: Rear Panel
2 - HARDWARE CONTROLS 2.2 Rear Panel See Figure B 1.- Signal Input: Female Neutrik® XLR Connectors for the amplifier.s signal input. Signal Link: (2 channels models only) Male Neutrik® XLR Connectors for daisy chaining input signal to other amplifiers (parallel connected to female input connectors). 2.- Link / Dual Switch: in Link mode you can Link an Input to another adjacent input to use the same input signal. -
Page 9: Installation And Operation
3 - INSTALLATION 3. Installation and Operation 3.1 Connections The Power switch must always be on the .Off. position before plugging the amp to a properly earthed mains socket (220- 240V AC / 110V-120V AC). The input signal fed to the amplifier can be either balanced or un-balanced. The drawing below describes both ways to wire an XLR connector for the purpose. -
Page 10: Configuration
3 - INSTALLATION 3.2 Configuration The amplifier has an ensemble of minidips on the back panel, which allow for the following configurations: the highpass subsonic filter, the ICL deactivation and the bridge mode. All these configurations can be cross-set in any way, independently from the others. -
Page 11: Protection Systems
3 - INSTALLATION 3.3 Protection Systems ICL2™. - Intelligent Clip Limiter The ICL2 is an anticlip system to avoid speaker failure and provide more acceptable sound quality even when clipping occurs. With the ICL2 system you don’t lose the music .punch. but the speakers are kept under control. -
Page 12: Troubleshooting
3 - INSTALLATION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN To avoid fire or electrocution risk do not expose the unit to rain or moisture. To avoid electric shock, do not open the unit. No user serviciable parts inside. In the case of disfunction, have the unit checked by qualified agents. Class I device. -
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY LYNX Pro Audio S.L. Calle 7 - Pol. Ind. Picassent E-46220 Picassent (Valencia) Lynx Pro Audio S.L. declares that SX series (all models) are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC...
