OLIGHT Warrior X Pro Manual

Table of Contents

Contents

1 IN THE BOX
2 SPECIFICATIONS
3 USB MAGNETIC CHARGING CABLE -- MCC3
4 PRODUCT OVERVIEW
5 BATTERY INSTALLATION
6 CHARGING
7 HOW TO OPERATE
8 SAFETY
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

IN THE BOX

SPECIFICATIONS

All above specifications are test results based on ANSI/NEMA FL1-2009 Standard. The tests are performed using the battery included in the flashlight.
Note: The maximum output brightness will decrease as the battery voltage decreases.

USB MAGNETIC CHARGING CABLE -- MCC3

Parameter	Specification
Charging cable	USB type A - magnetic charge connector, length: 0.5m
Input	USB A - Type DC 5V 2A
Charging pattern	CC&CV
Maximum charging current	2A
Voltage of fully charged battery	4.2V±0.05V
Charge indication	Red charging Green: full (over 95%) or disconnect with flashlight
Time to fully charge	5.5 hours (For reference only. When the USB power supply is insufficient to provide 5V 2A power capacity, the charging time will be longer)

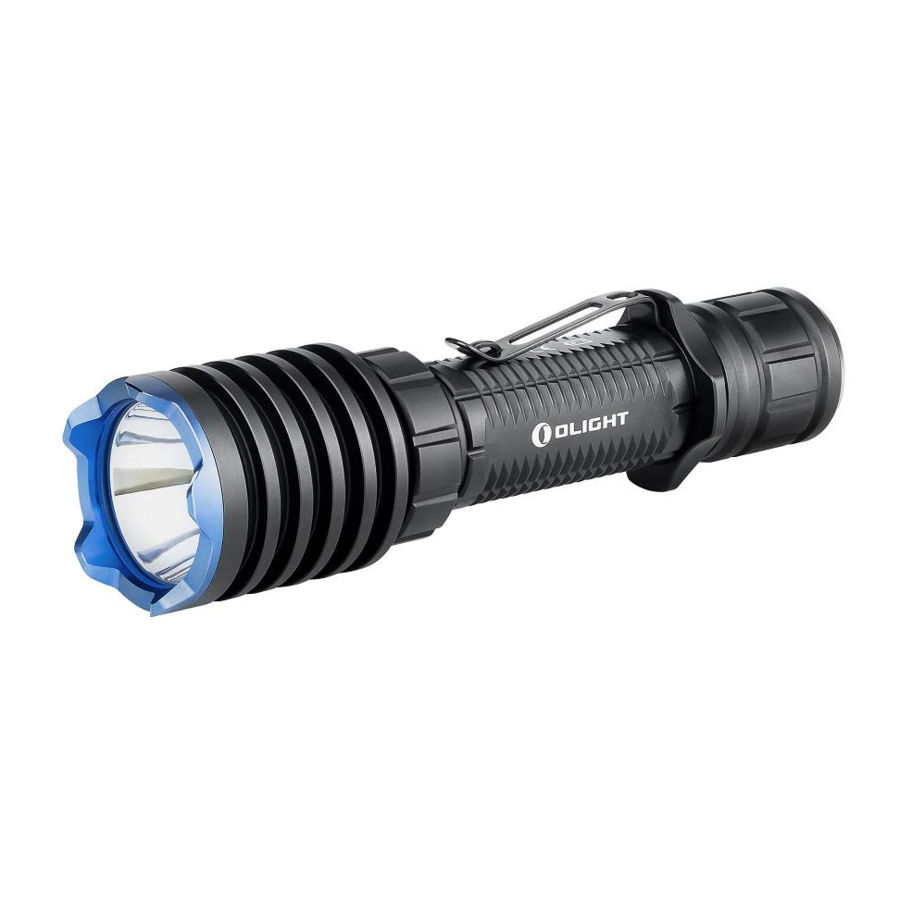

PRODUCT OVERVIEW

BATTERY INSTALLATION

Before first use, unscrew the tailcap and remove the insulating film within the battery compartment before screwing the tailcap back on tightly. If the battery needs to be changed, make sure that the positive polarity side of the battery faces toward the direction of the flashlight head (the side of the LED).
BATTERY INSTALLATION

CHARGING

Vibrating Power Indicator
It helps to alert if the battery is low (power≤30% vibrate once every 5 minutes; power≤10% vibrate once per minute; power≤ 5% vibrate once every 10 seconds).

Before first use please fully charge the product.
Connect the USB end of the magnetic charging cable to an external USB power source, then attach the other end of the cable to the charging port of the light (best charging efficiency with a 10W (5V 2A) USB power source). The red indicator means charging, while the green indicator means charging completed (battery level>95%).
Only charge with standard MCC3, not compatible with other MCC.

TGR (Tactical Grip Ring) Installation Guide

Unscrew the tailcap and remove the O-ring.
Then remove the tactical grip ring and pocket clip.
Install the TGR and O-ring as shown in the picture and tighten the tailcap.

HOW TO OPERATE

Click the tail switch lightly to produce a low light output or press the tail switch hard to produce a high light output.
Single click (click and release quickly) the tail switch to turn the flashlight on or off.
When you press and hold the switch, the flashlight will be in momentary mode; when you release the tail switch, it will turn off.

SAFETY

DO NOT throw the light directly into human eyes. This may cause temporary blindness, or permanent damage to the eyes.
DO NOT cover the light head when the flashlight is on, or place the flashlight head on the ground. The radiation energy of the flashlight may cause damage to the flashlight itself, or even result in burning to flammable objects.
DO NOT use Non-protected rechargeable batteries.

Keep out of reach of children.
DO NOT activate high mode repeatedly under high temperature to prevent the flashlight body from overheating and hurting the user's hand.
The tail switch may not work while immersed in sea water or other conductive media. Please try to keep it clean and dry.
If the product is left unused or carried and transported, please loosen the tailcap a half turn to avoid accidentally activating the flashlight.

NOTICE

DO NOT short circuit the switch cap with the ring outside it for a prolonged period. The short circuit in this case will result in a loss of current below 3mA, and may lead to a complete battery drain if it is in this state for too long.
