Fanvil V64 Manual

Overview

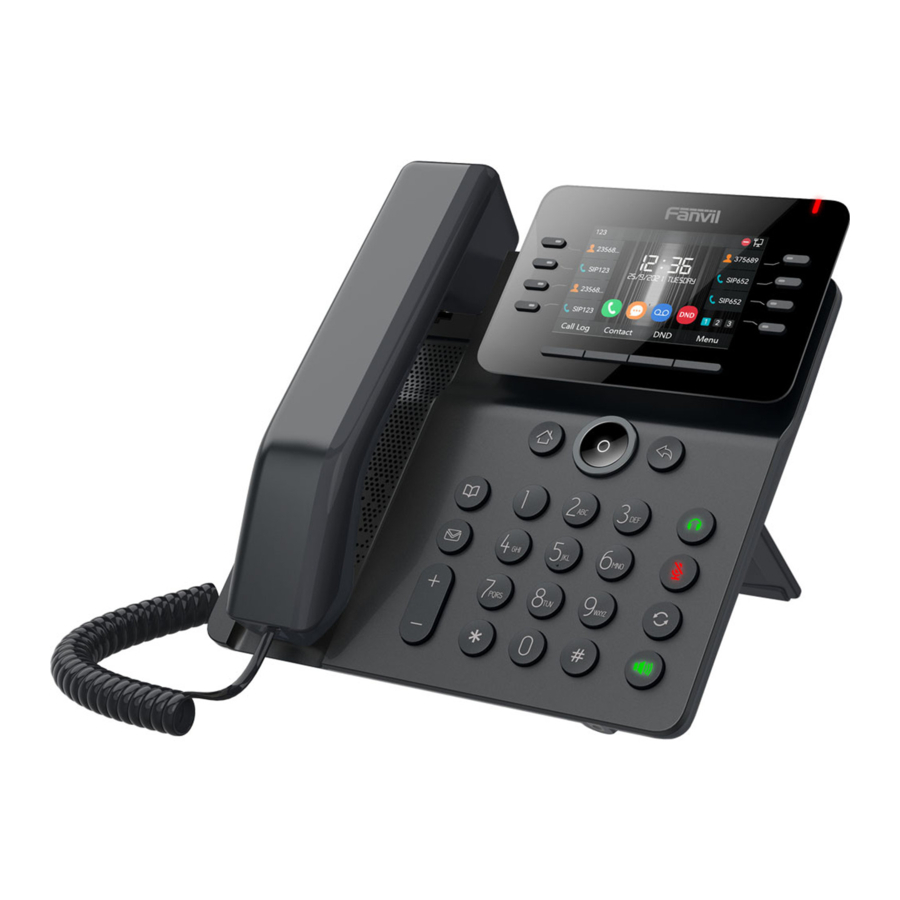

V64 is more than an efficient telephone but a delicate work of art, providing a smart and smooth business communication experience for enterprises. As the prime business phone featuring a color LCD screen and built-in Bluetooth 4.2 and 2.4G/5G Wi-Fi, V64 is a perfect combination of elegant outside and powerful inside.

Packaging list

Keys description

Device installation

Please follow the instructions in below picture to install the device.

• Connecting to the device
  Please connect power adapter, network, PC, handset, and headset to the corresponding ports as described in below picture.


1. USB port: connect USB device (USB flash disk).
2. Power port: connect the power adapter.
3. Network port: connecting local area network or Internet.
4. PC port: the network port connect to the computer.
5. Headset port: connect headset.
6. Handset port: connect IP Phone handset.

Network connect

Using Ethernet

1. The power on the device and connect the WAN port of the phone to the RJ45 socket of a hub/switch or a router (LAN side of the router) using the Ethernet cable.
2. The default is DHCP mode.

Using Wi-Fi

1. The power on the device and make sure the phone is idle.
2. Press Menu > Basic > WLAN, Enabled the Wi-Fi Feature.
3. Press scan to search for currently available wireless network.
4. Enter the available network and select the Wi-Fi you want to connect.
5. Press connect soft key and enter the appropriate password to connect to the Wi-Fi. The default is DHCP mode.

Phone configuration

Configuration via LCD menu of phone

1. Press Menu > Advanced (default password 123).
2. Select Network: To configure the Network Settings (IPv4/IPv6/IPv4&IPv6, DHCP/Static/PPPoE).
3. Select Accounts: To configure enable the account, fill the SIP server address, port, user name, password etc.
4. Save the configuration.

Configuration via web

1. Get the IP address from the phone: Press down key, or Menu > Status > IPv4 / IPv6.
2. Login: Input the IP address in the web browser. The PC and phone should be in the same IP address segment (The default username and password are both 'admin'.)
3. Configure: Select network/line etc, and fill the relevant content.
4. Save the configuration.

Language setting

1. Press Menu key > Basic > Language.
2. Select the desired language and press OK soft key.

Making a call

1. Pre-dialing: enter the phone number and pick up the handset.
2. Direct dialing: lift the handset and enter the phone number.
3. Handsfree: enter phone number and press or vice versa.
4. Headset: enter phone number and press or vice versa.
5. Designated line: press line key, enter phone number and press dial key.

Accepting a call

1. Using the handset: pick up the handset.
2. Using the headset: press .
3. Using the handsfree: press .

Redial

1. Press key, redial a call number.

Note: You can contact your service provider for additional settings that may be necessary to con-figure the phone, or download the user manual and FAQ for more detailed information.

Precautions

Please do not power cycle the device during system boot up or firmware upgrade. You may corrupt firmware images and cause the unit to malfunction.

Use only the power adapter included in the device package. Using an alternative non-qualified power adapter may possibly damage the unit.
