York G FA024S14 Series Installation Manual

INSTALLATION MANUAL INSTALLATION MANUAL INSTALLATION MANUAL INSTALLATION MANUAL

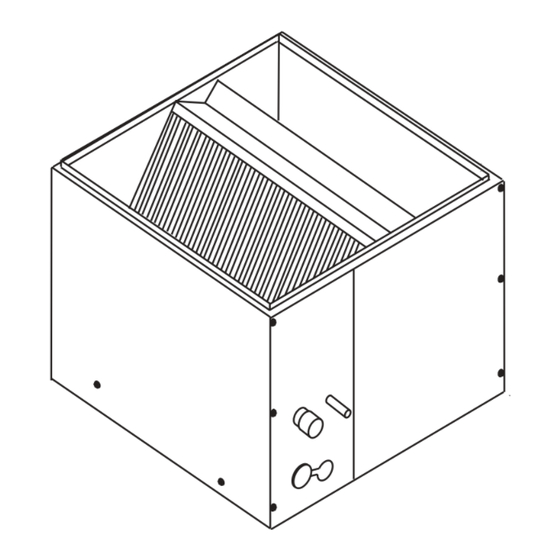

UPFLOW CASED COILS
MODELS:
ORIFICE METERING DEVICE - G*FA024S14 - G*FA060S24
FACTORY INSTALLED TXV - G*FA024S14T - G*FA060S24T
SECTION I SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SECTION II GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . 1
SECTION III INSPECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SECTION IV CLEARANCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SECTION V LIMITATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SECTION VI COIL METERING DEVICES . . . . . . . . . . . . . . . . . . . . . . 2
Coil Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
TXV Bulb Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Bulb Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Entering Air Temperature Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Coil Air Flow Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SECTION I SAFETY SECTION I SAFETY SECTION I SAFETY SECTION I SAFETY
This is a safety alert symbol. When you see this symbol on labels
or in manuals, be alert to the potential for personal injury.
Understand and pay particular attention to the signal words DANGER,
WARNING, or CAUTION.
DANGER indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION indicated a potentially hazardous situation, which, if not
avoided may result in minor or moderate injury. It is also used to alert
against unsafe practices and hazards involving only property damage.
Improper installation may create a condition where the operation of
the product could cause personal injury or property damage.
Improper installation, adjustment, alteration, service or maintenance
can cause injury or property damage. Refer to this manual for assis-
tance or additional information, consult a qualified installer or service
agency.
This product must be installed in strict compliance with the enclosed
installation instructions and any applicable local, state, and national
codes including, but not limited to building, electrical, and mechanical
codes.
TABLE OF CONTENTS
SECTION VII COIL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SECTION VIII DUCT CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SECTION IX CONDENSATE DRAIN CONNECTIONS . . . . . . . . . . . . . 4
SECTION X REFRIGERANT LINE CONNECTION . . . . . . . . . . . . . . . . 4
SECTION XI AIR SYSTEM ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . 4
SECTION XII COIL CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
LIST OF FIGURES
Orifice Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Upflow Coil Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
LIST OF TABLES
Air Flow Data - Static Pressure Drop . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
The furnace area must not be used as a broom closet or for any other
storage purposes, as a fire hazard may be created. Never store items
such as the following on, near or in contact with the furnace.
1. Spray or aerosol cans, rags, brooms, dust mops, vacuum clean-
ers or other cleaning tools.
2. Soap powders, bleaches, waxes or other Cleaning compounds;
plastic items or containers; gasoline, kerosene, cigarette lighter
fluid, dry cleaning fluids or other volatile fluid.
3. Paint thinners and other painting compounds.
4. Paper bags, boxes or other paper products
Never operate the furnace with the blower door removed. To do so
could result in serious personal injury and/or equipment damage.
SECTION II GENERAL INFORMATION SECTION II GENERAL INFORMATION
SECTION II GENERAL INFORMATION SECTION II GENERAL INFORMATION
This instruction covers the installation of the coils with an upflow furnace
or similar air moving system.
SECTION III INSPECTION SECTION III INSPECTION SECTION III INSPECTION SECTION III INSPECTION
As soon as a coil is received, it should be inspected for possible damage
during transit. If damage is evident, the extent of the damage should be
noted on the carrier's delivery receipt. A separate request for inspection
by the carrier's agent should be made in writing. See local distributor for
more information.
035-17493-002 Rev. A (0403)
