Emerson SolaHD S4K-D Quick Installation Manual

IMPORTANT: Before installing, connecting to supply, or operating your Emerson SolaHD S4K-D UPS, please review the Safety and Regulatory Statements sheet.
For detailed installation, operating, maintenance and troubleshooting information refer to the S4K-D User Guide for your model by scanning the QR code below, or
visiting www.Emerson.com.
Thank you for your recent purchase of an Emerson SolaHD S4K-D Online Double Conversion
Uninterruptible Power Supply! We appreciate your business and are confident that your new product will
provide many years of uninterrupted power for your connected equipment.
With this purchase, you may also want to consider the complete line of Emerson products or just the power
supplies, power conditioners, surge protectors and transformers needed for your connected equipment.
If you require assistance or support please email our 24/7 technical support team at
solahd.technicalservices@emerson.com
continue to select Emerson for all of your future Power Quality needs.
The Emerson SolaHD Team

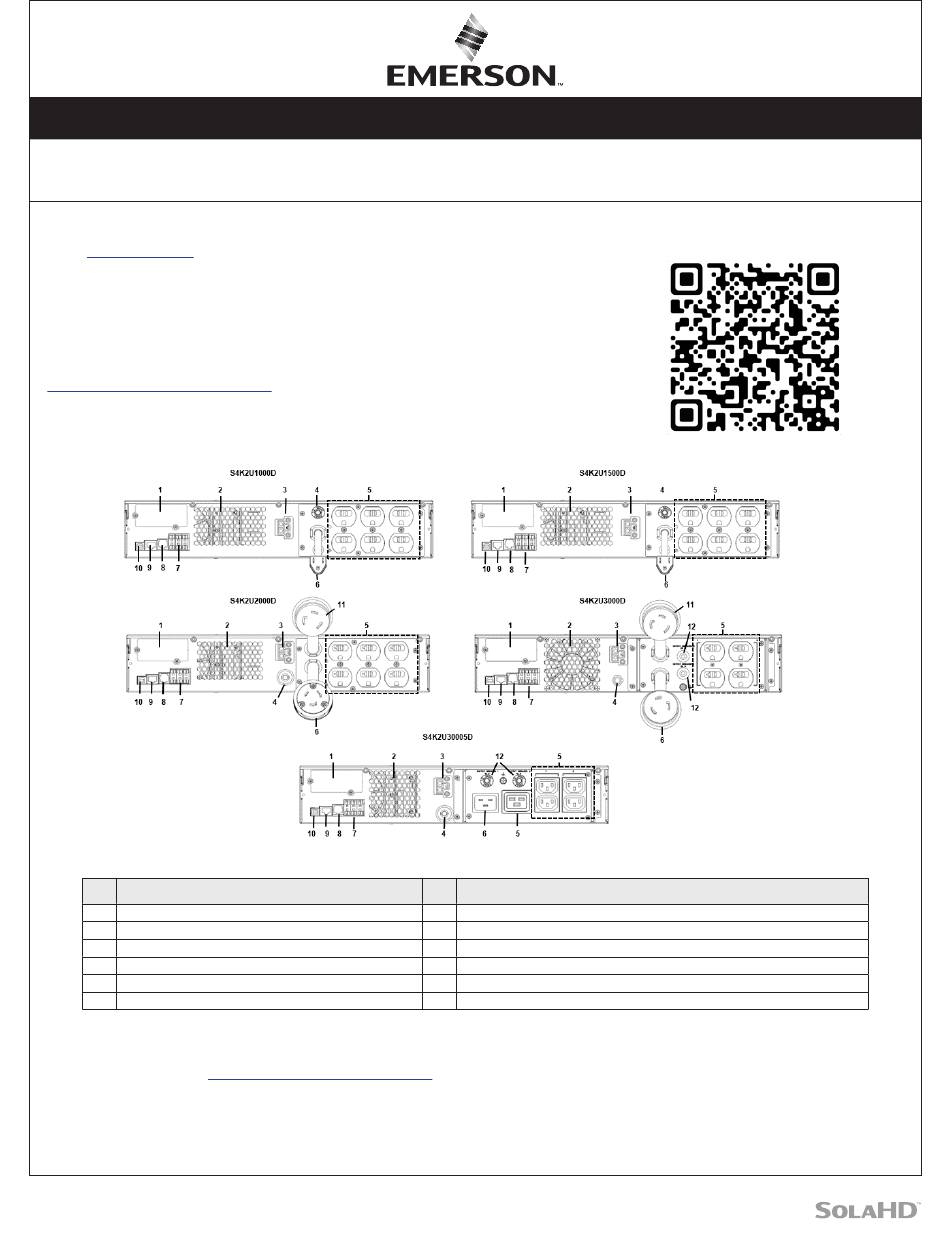

Figure 1: Model Design Configurations
Item Description
1
IntelliSlot™ Communication Port
2 Ventilation Exhaust Area
3 External Battery Connector
4
Input Circuit Breaker
5 Output Receptacles (Sockets on S4K2U30005D)
6 Input Cord & Plug (Sockets on S4K2U30005D)
Pre-Installation Checks
1. Inspecting the UPS Visually inspect the UPS for any damage. If damage is visible, do not install the unit and call our technical support line for assistance at
(800) 377-4384 or email at solahd.technicalservices@emerson.com.
2. Conditions for Installation Install the UPS in a temperature controlled environment that is free of corrosive and conductive contaminants. Avoid locations near
heat or water sources and exposed to direct sunlight. For proper ventilation, leave four inches clearance on all sides of the UPS. The input outlet should be
nearby and easily accessible.
Emerson SolaHD S4K-D UPS1000-3000VA LV • A272-383_12/2023
™ ®
QUICK INSTALLATION GUIDE
Emerson SolaHD
™ ®
or call them at (800) 377-4384. We sincerely hope that you will
Item Description
7
8
9
10
11
12
S4K-D UPS1000-3000VA LV
Dry Contact Input/Output Terminal Block
RS-232 Port - Used for CLI Monitoring
RS-485 Port - Used for External Battery Temperature Sensor
USB Port
Output Cord & Receptacle (S4K2U2000D & S4K2U3000D)
Output Circuit Breakers (S4K2U3000D & S4K2U30005D)
