TraﬃcJet™ Xpress LED Glass Replacement

Instructional Bulletin

: # 9.82

Revision

: # 01

Last Updated

: September 2023

Replace with new LED glass if the ink hardens and the existing LED glass becomes dirty.

1. On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER]

key. The Maintenance menu is displayed.

2. Select [Station] > [Carriage Out] > [Head Maint.], then press the [ENTER] key. The

carriage moves to the maintenance space.

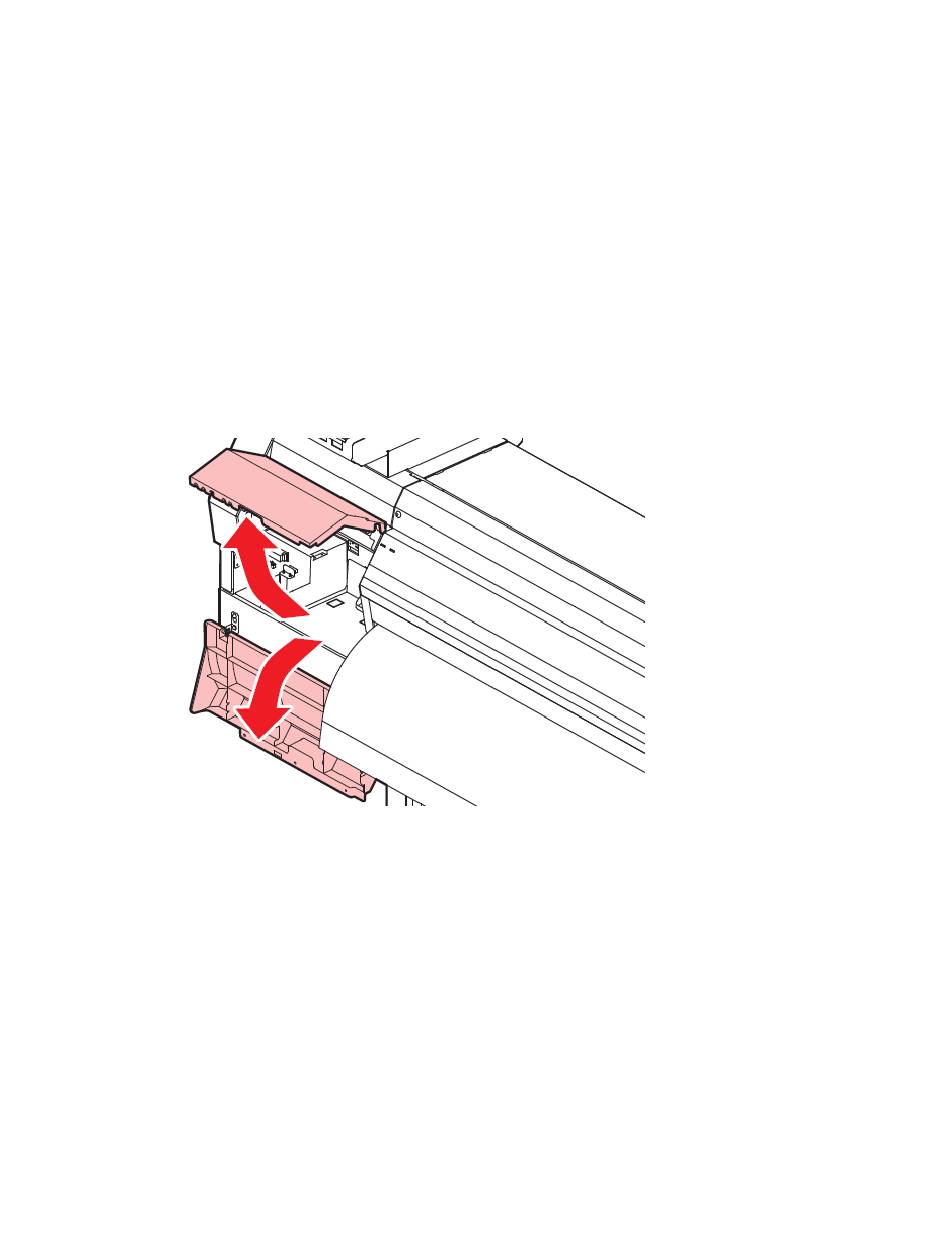

3. Open the maintenance covers.

4. Remove the LED glass. Unclip the tabs and slide in the direction indicated by the arrow

to remove. Be careful not to apply too much force when unclipping the tabs.

Disregarding this precaution may cause the tabs to break.

Instructional Bulletin IB# 9.82

TrafficJet™ Xpress LED Glass Replacement

reflectives.averydennison.com

Classification: Avery Dennison - Confidential

Ⓡ

Page 1

Need help?

Do you have a question about the TrafficJet Xpress and is the answer not in the manual?

Page 1 Be careful not to apply too much force when unclipping the tabs. Disregarding this precaution may cause the tabs to break. Instructional Bulletin IB# 9.82 TrafficJet™ Xpress LED Glass Replacement reflectives.averydennison.com Classification: Avery Dennison - Confidential Page 1...
Page 2 5. Mount a new LED glass. Insert until it clicks into place. Conﬁrm that the tabs are engaged. 6. Once replacement is complete, close the cover, then press the [ENTER] key. Instructional Bulletin IB# 9.82 TrafficJet™ Xpress LED Glass Replacement reflectives.averydennison.com Classification: Avery Dennison - Confidential Page 2...
Page 3 All statements, technical information, and recommendations about Avery Dennison products are based upon tests and information believed to be reliable but do not constitute a guarantee or warranty of any kind. All Avery Dennison products are sold with the understanding that Purchaser has independently determined the suitability of such products for its intended and other purposes.
