6.
If the issue persists, remove the 6 bolts connecting the console and handlebars to the uprights (reference 6). The
console and handlebars may be awkward to lift while checking the cable, you may want an additional person to help.
Lift the console and handlebars up and inspect the cables inside. Inspect the cable for damage and make sure that it i
firmly connected in the correct direction [13021.C]. If the cable coming from the upright is damaged,
Comm Cable [13021.D]. If the cable coming from the handlebars is damaged,
Cable [13021.E].

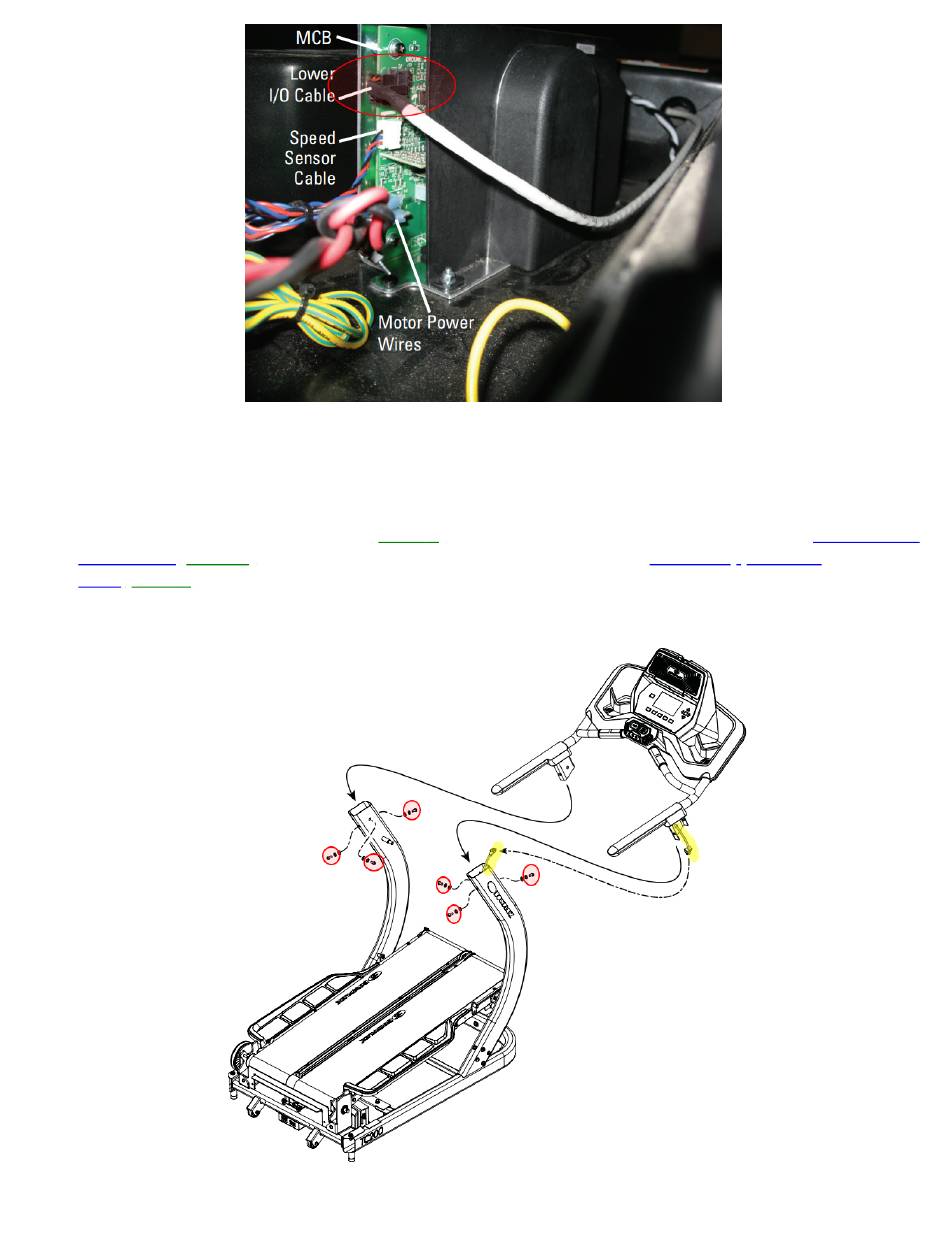

Remove the bolts circled in red, then lift the console and handlebar assembly up to inspect the cables (highlighted yellow).
about:blank
Treadclimber TC200:  Why are the buttons not responding on the console?
The input/output cable is circled in red.
(Reference 6)
order a Lower
order an Upper Comm
