Summary of Contents for Fortinet FortiDeceptor 1000G

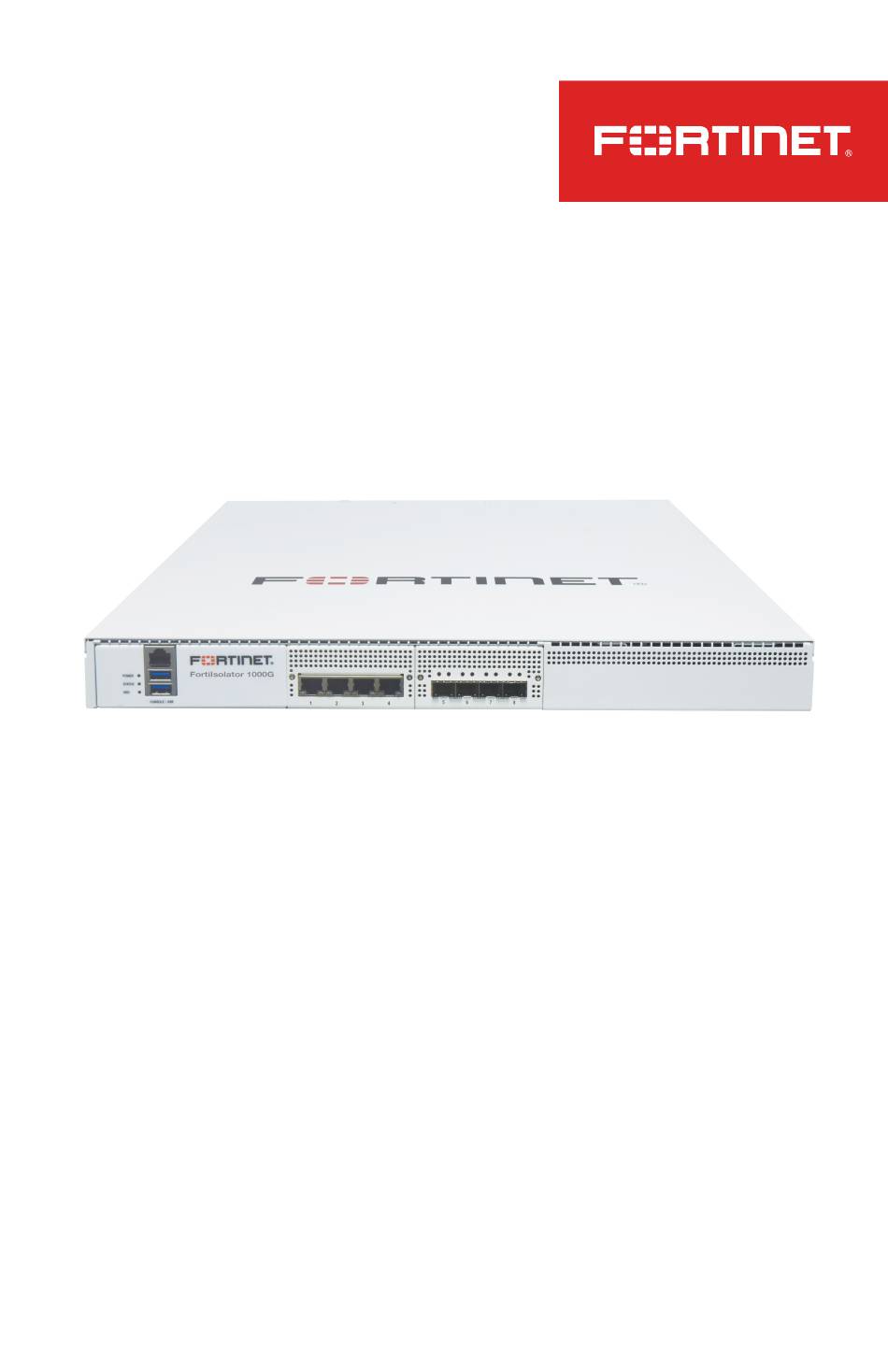

- Page 1 FortiDeceptor 1000G FDC-1000G QuickStart Guide...
-
Page 2: Register For Support
Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. Performance and other metrics contained herein were attained in internal Toll free: 1 866 648 4638 lab tests under ideal conditions, and actual performance and other results may vary. -
Page 3: Box Includes
Box Includes Box Includes FortiDeceptor 1000G 2x Sliding Rail Handles 2x Sliding Rails 1x Power Cable 6x M4 Flat Head Screws 10x M4 Waffle Head Screws QuickStart Guide 1x Console Cable 2x Rack Mount Screws 5x Rubber Feet 1x Ethernet Cable... -
Page 4: Installation
This prevents the device from sliding fully out of the rack when the Electrostatic discharge (ESD) can damage your Fortinet equipment. device is being worked on. To avoid personal injury damage to the unit, it is recommended that... - Page 5 Install the outer rails on a rack To install the unit on a flat surface 1. Ensure that the right and left rails are correctly identified. 1. Ensure that the surface onto which the FortiDeceptor unit to be installed is clean, level, and stable, and that there is at least 1.5in (3.8cm) of clearance on all sides to...
-
Page 6: Setup Options
Connections Setup Options Web Browser Terminal Emulator FortiClient Management Setup Wizard (p.11) CLI Console (p.12) Protected Computer Endpoints Firewall Switch Linux / Windows Deception VMs Web Browser FortiDeceptor To Connect to the GUI Connect your device as follows: Port Connection 1. - Page 7 Terminal Emulator Console Port USB Port To Connect to the CLI Useful CLI Commands 1. Connect the device’s console port to the management computer using the provided help Show a list of valid CLI commands. console cable. show Show the bootstrap configuration including 2.
- Page 8 Power Device Guide Green: The unit is on Off: The unit is off Status Red: System failure Off: System is running normally Hard Drive Activity Not in use SFP Ports Link/Activity (Left) SFP Ports (SFP) Flashing Amber: Transmitting & receiving data 1Gbps small form-factor pluggable Off: No link established transceiver ports...
-
Page 9: Sfp Installation
SFP Installation Cautions and Warnings Environmental Specifications Ambient operating temperature: 0°C to 40°C To install the SFP transceivers: Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions: Instructions de montage en rack - Les instructions de montage en rack suivantes ou similaires sont incluses avec les instructions d'installation: Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be Slide the SFP into the cage socket until it... - Page 10 Product Safety Electrical Appliance & Material (PSE) – Japan 日本では電気用品安全法(PSE)の規定により、同梱している電源コードは本製品の専用電源コードとして利用し、他の製品に使用しないでください。 Bureau of Standards Metrology and Inspection (BSMI) – Taiwan The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： https://www.fortinet.com/bsmi 警告： 為避免電磁干擾，本產品不應安裝或使用於住宅環境。 請仔細閱讀以下說明 本設備勿置於潮濕處。 連接至電源前，請先檢查電壓。...
