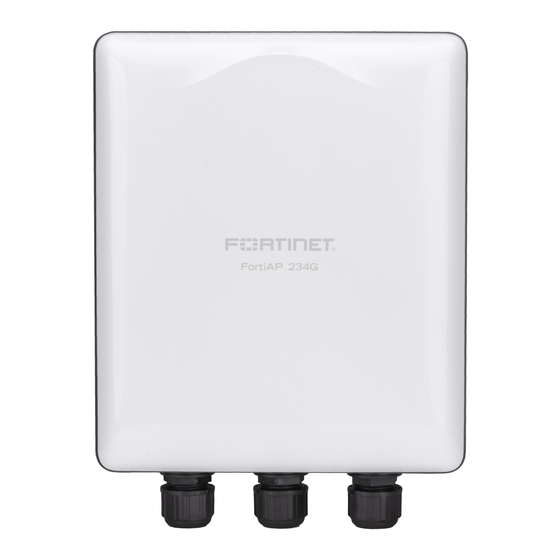

- Page 1 QuickStart Guide QuickStart Guide FortiAP 234G FAP-234G...
-
Page 2: Before You Begin
Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. -
Page 3: Package Contents
(2x pole straps, 4x mounting bolts, 8x screws, Self-service Resources 1x grounding cable and screw Access our knowledge base, forums, videos and technical experts at https://www.fortinet.com/support/support-services/forticare-support Thank you for choosing Fortinet Wall Mount Pole Mount Bracket Bracket PoE Injector and AC Cord... -
Page 4: Setup Options
Setup Options Power the device with the provided 802.3af/at PoE injector or FortiGate PoE port. PoE Installation Direct Connection Power Outlet Ethernet Cable or UPS ( not included ) FortiAP FortiGate LAN Port Ethernet Port LAN Port Note: To self-configure, preauthorize the FortiAP on your FortiGate Otherwise once connected, wait for the FortiAP to appear on the PoE Port PoE Connection... -
Page 5: Wall Installation
Wall Installation Pole Installation Your device mounts on a wall using the provided wallmount bracket and Your device comes with a pole mount bracket, straps and screws. You screws. can mount the device to a pole vertically. Mark the location of the mounting bolts using the wallmount bracket Attach the wallmount bracket, then pole mount bracket to the Drill holes and hammer the bolts into the drilled holes device using the provided mounting screws... - Page 6 Waterproof Cabling Interfaces Your device comes with IP67 rated Ethernet cable glands. Unscrew the sealing nut from the panel connector and remove the seal and claw Thread the RJ45 plug through the sealing nut, then the panel connector Wrap the seal and claw around the cable between the sealing nut and connector Insert the RJ45 plug into the port and screw the panel connector onto the threads...
- Page 7 Creating a FortiAP Profile Refer to the Configuration Guide in creating a FortiAP profile at https://docs.fortinet.com/product/fortiap This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. Innovation, Science and Economic Development (ISED) – Canada This Class B digital apparatus complies with Canadian ICES-003.
- Page 8 The product transmits within the frequency ranges and less than or equal to the power listed below: Any Fortinet products not obtained directly from Fortinet or Fortinet’s authorized partners may not comply with EU Directives and Fortinet makes no 2402-2480MHz less than 20dBm assurances for such products.
- Page 9 Fortinet.com...
