Summary of Contents for Rohnson R-9530

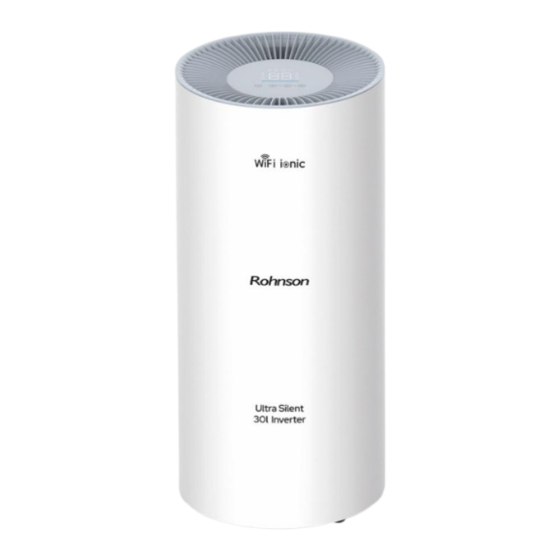

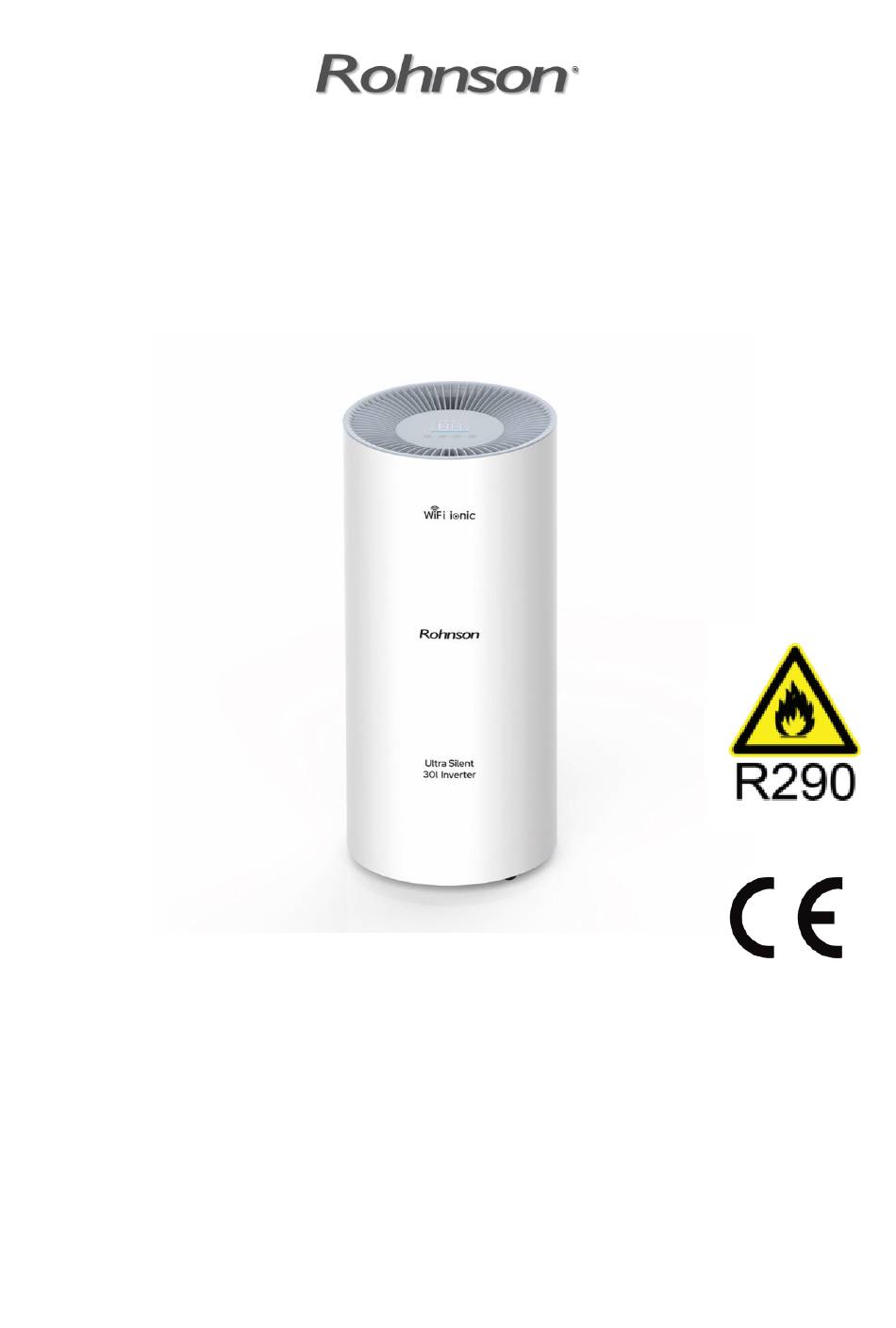

- Page 1 Dehumidifier R-9530 Inverter WiFi INSTRUCTION MANUAL Dehumidifier R-9530 Please keep this manual carefully for further reference! Thank you for selecting our dehumidifier. Be sure to read this manual carefully before using it. Any questions, please contact the professional service for help.
-
Page 2: Before You Begin
Dehumidifier R-9530 Inverter WiFi 1. BEFORE YOU BEGIN Please read the operating instructions carefully before using your dehumidifier for the first time. SYMBOLS FROM THE UNIT AND USER MANUAL his unit uses a flammable refrigerant. If refrigerant leaks and comes in contact with fire or heating part, it will create harmful gas and there is risk of fire. -
Page 3: For Your Safety
Dehumidifier R-9530 Inverter WiFi INTRODUCTION • Before using your new dehumidifier, please carefully read through the following instructions. Keep this booklet in a safe place for your reference. • After removing the packaging, make sure that the appliance is in good condition. -
Page 4: Service And Repair
Dehumidifier R-9530 Inverter WiFi WARNING Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater. Do not pierce or burn.Be aware that refrigerants may not contain an odor. -
Page 5: Front & Panel View
Dehumidifier R-9530 Inverter WiFi 3. PRODUCT OVERVIEW FRONT & PANEL VIEW... -
Page 6: Installation
Dehumidifier R-9530 Inverter WiFi 4. INSTALLATION LOCATION 1. Place the unit on a firm, level surface in an area with at least 30cm of free space around it to allow for proper air circulation. 2. Never install the unit where it could be subject to：... -
Page 7: Operation
Dehumidifier R-9530 Inverter WiFi 5. OPERATION CONTROL PANEL On/Off Button Press the button to turn the dehumidifier on or off. Note: The device, when switched off, may run for a short time to dry out the internal piping and compressor. -
Page 8: Auto-Defrost Function
Dehumidifier R-9530 Inverter WiFi seconds, the timer will automatically be set, and the icon will appear on the display. Anion Function Press and hold the buttons and simultaneously for 3 seconds to enable the Anion function. Once it is enabled, the display will show the icon. Press and hold the button 3 seconds again to disable the anion function. -
Page 9: Continuous Water Drainage
Dehumidifier R-9530 Inverter WiFi mode for 40 minutes to speed up the water evaporation inside the dehumidifier. Drying can help reduce the possibility of bacteria buildup in a humid environment. Since the humidity sensor may be affected by residual water vapor inside the dehumidifier and when the dehumidifier is turned off, drying can also ensure that the humidity value detected by the sensor is not higher... -
Page 10: Maintenance Precautions
Dehumidifier R-9530 Inverter WiFi Maintenance Precautions Before cleaning, make sure to disconnect the dehumidifier from power to avoid electric shocks. Do not rinse or submerge the dehumidifier in liquid. Do not drip water into dehumidifier. volatile liquids (e.g., thinner and gasoline) to wipe the dehumidifier, as this may damage its appearance. - Page 11 Dehumidifier R-9530 Inverter WiFi (below 45°C) with neutral detergent to clean it, and then dry it in a cool place. 4. Reinstall the fully dried filter, the air inlet grille, and the water tank. Cleaning the Water Tank 1. Pull the water tank out horizontally from the opening at the top of the water tank.
-
Page 12: Troubleshooting
Dehumidifier R-9530 Inverter WiFi 4. Clean the water tank and fully dry it. Then catch the cover and the handle to the water tank and reinstall the water tank. When Not Use for a Long Time Let the dehumidifier sit for two days after making it enter standby mode and unplugging it. - Page 13 Dehumidifier R-9530 Inverter WiFi ISSUE CAUSE & SOLUTION The dehumidifier suddenly This is caused by the start or stop of the compressor, which is shakes when it turns on, normal. enters standby mode, or operates. It is recommended to use the dehumidifier indoors at a temperature from 5°C to 35°C.
-
Page 14: Common Error Codes
Dehumidifier R-9530 Inverter WiFi Directly wipe them with a paper towel. The black stains will decrease with continued use. Common Error Codes CODE DISCRIPTION SOLUTION Fan error Turn the dehumidifier off for 5 minutes and then turn it on again. -
Page 15: Specifications
Dehumidifier R-9530 Inverter WiFi Fluoride deficiency protection Turn the dehumidifier off for 5 minutes and then turn it on again. If the error code appears multiple times, please contact the after- sales service team for help. Overheating protection Make sure the dehumidifier is working between 5°C and 40°C. - Page 16 Dehumidifier R-9530 Inverter WiFi 8. DECOMMISSIONING STORAGE Long-term storage - If you will not be using the unit for an extended period (more than a few weeks) it is best to clean the unit and dry it out completely. Please store the unit per the following steps: Press power button to switch off and unplug the unit.
- Page 17 Address: Unit 3-B-2, Building 4, Zhongdian high tech industrial park, 7 technology road, Tangjiawan town, Xiangzhou , Zhuhai, Guangdong, China Model No.: R-9530 (VD30A-VA5A) Description: Dehumidifier Radio-related Software Version: Wi-Fi modular: WBR-1 We, Zhuhai Samyou Environmental Technology Co., Ltd, declare under our sole responsibility...
- Page 18 The object of the declaration described above is in conformity with the following relevant Union harmonization legislation(s): Radio Equipment Directive 2014/53/EU (RED) Low Voltage Directive (LVD) 2014/35/EU Electromagnetic 2014/30/EU Compatibility (EMC) Restriction of the use of certain hazardous substances 2011/65/EU (Rohs) The recognized third-party organization (Name: SGS-CSTC Standards Technical Services Co., Ltd)
- Page 19 Radio equipment The frequency bands on which the radio is operating are 2.4 GHz and the maximum radio output power is 17dBm . Wi-Fi Specification Model: WBR1 Standard: IEEE 802.11 b/g/n Antenna Type: PCB antenna Frequency Wi-Fi: 2412-2472MHz Maximum Transmitted Power: 17 dBm Dimension: 18±0.35 mm (W)×23.5±0.35 mm (L) ×2.9±0.15 mm (H) (mm) Operation Temperature:-20°C~85ºC...
