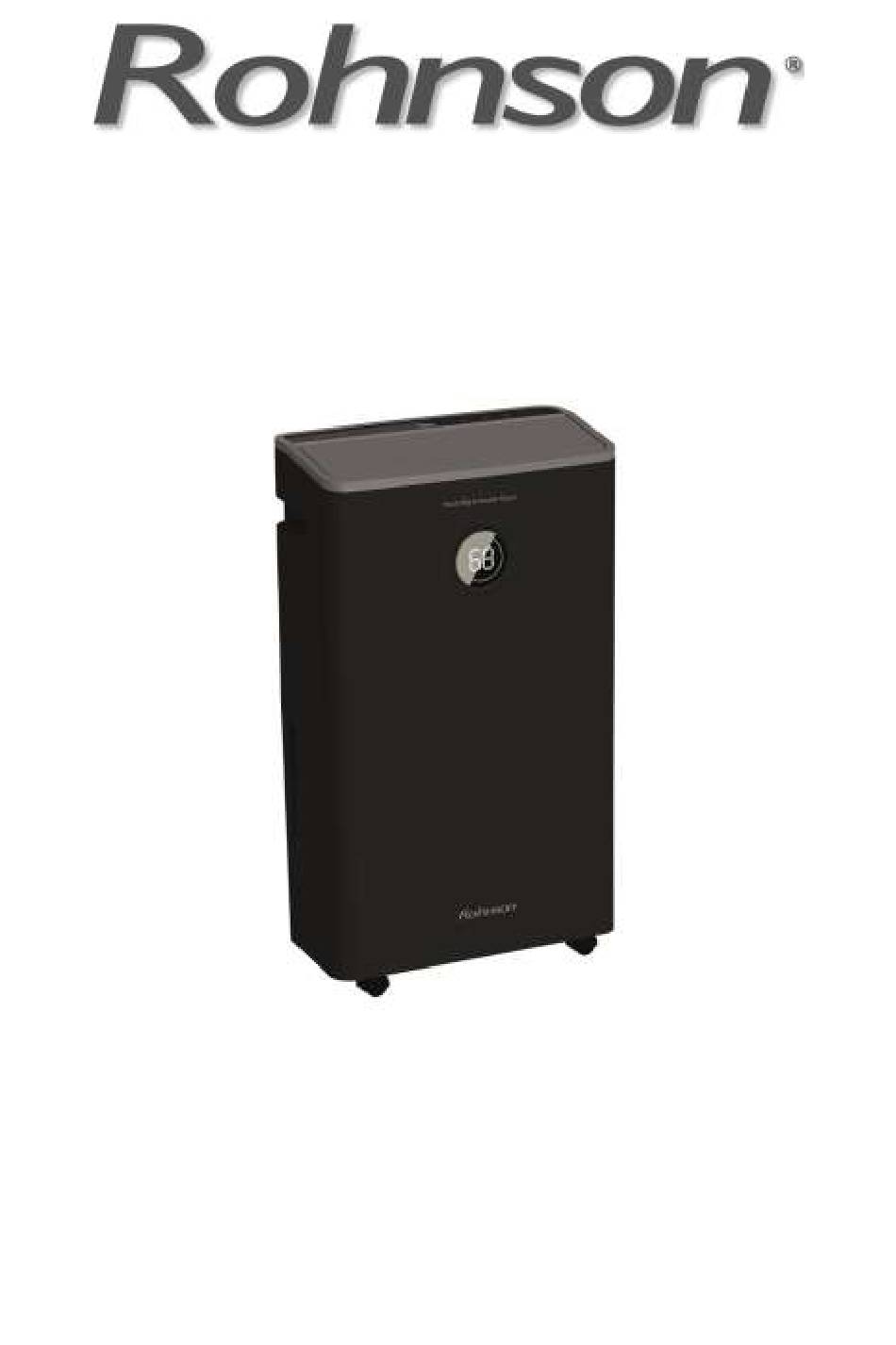

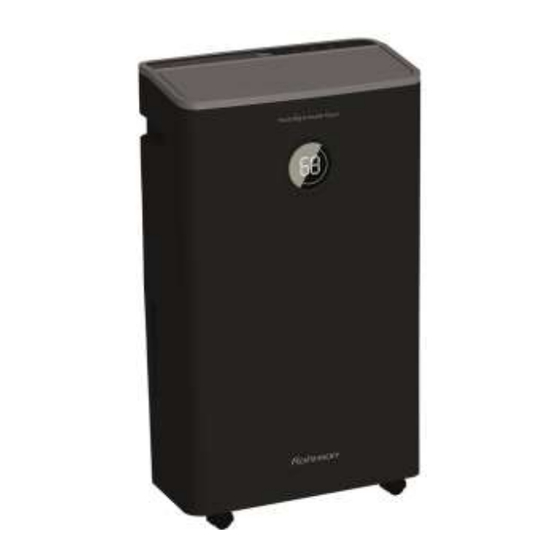

- Page 1 R-91325 DEHUMIDIFIER Instruction Manual Thank you for choosing our product. For proper operation, please read and keep this manual carefully.
-
Page 2: Operation Area
Operation Area not be used for commercial or industrial applications. enclosed area, such as a closet. temperature will not below 5°C or above 32°C. ● Allow at least 20-30 cm of air space on all sides of the unit. ● Close all doors, windows and other outside openings of the room to improve the working effect. -
Page 3: Safety Precautions
Safety Precautions ● This appliance can be used by children aged from 8 years and above and pe- rsons with reduced physical, sensory or mental capabilities or lack of experie- nce and knowledge if they have been given supervision or instruction concer- ning use of the appliance in a safe way and understand the hazards involved. -
Page 4: Parts Name
Parts Name Front Side CONTROL PANEL HANDLE HUMIDITY INDICATOR LIGHT ROLLERS Back Side CONTINUOUS DRAIN WATER TANK... -
Page 5: Check Before Operation
Check Before Operation aced. Below are the checking steps: 1. Hold the handles on both sides of the water bucket and pull it out following the arrow direction. moved a little after long-time transportation. If it's not placed properly, move it to the correct position by hand.Please remove the handle and check it. -
Page 6: Operation Method
Operation Method indicator light Notes: ● Do not remove the bucket while unit is in operation. ● If you want to use drain hose to drain water away, please install the hose acc- ording to section "Drainage method". ● Each time pressing the effective button on the control panel will give out a "beep"... - Page 7 Auto Swing button Press Auto Swing button and the corresponding indicator will light up. The louver will start to swing automatically. Clild Lock Long press Auto Swing button and Air clean button Again long press 5 second to unlock Fan Speed Button Pressing this button can set fan speed circularly as: High, Low.
- Page 8 • Normal You can set the target humidity 30% - 80 % and se the speed fan as you wish. • Automatic In this option the unit work without any set of humidity but the fan speed is in LOW speed automatically.
-
Page 9: Drainage Option
Drainage Option Option 1 Emptying Manually Notes: ● Do not remove the bucket when unit is in operation or has just stopped. ● Do not use the hose if using water bucket to collect water. When the hose is connected, water will be drained out through it instead of into the bucket. 1. - Page 10 Option 2 Gravity Drain Hose 1. Hose is provided, so user shall prepare it in advance. [Size: The hose thread should have an outer diameter of 10 mm and length 1 meter ] 2. Remove bucket from the unit as instructed. 3.
-
Page 11: Clean And Maintenance
Clean and Maintenance Warning: may lead to electric shock. Otherwise it will damage unit's appearance. 1. Grille and Case To clean the case: When there is dust on the case, use soft towel to dust it off; When the case is very dirty(greasy), use mild detergent to clean it. -
Page 12: Troubleshooting
Troubleshooting ● Not all the following problems are malfunctions. Problem Possible Causes ● Unit is operating in an area where temperature is higher than 32°C or lower than 5°C. Controls can not be set. ● Bucket is full. ● Power Noise will supplyrise problem.if compressor Noise suddenly rises during has just started. - Page 13 Problem Possible Causes Solution ● Empty the bucket and replace ● Bucket is not properly Bucket full indicator placed. is lit up. ● Water is full in the bucket. ● If you want the air drier, ● Bucket has been removed. Unit can function ●...
- Page 14 MPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
