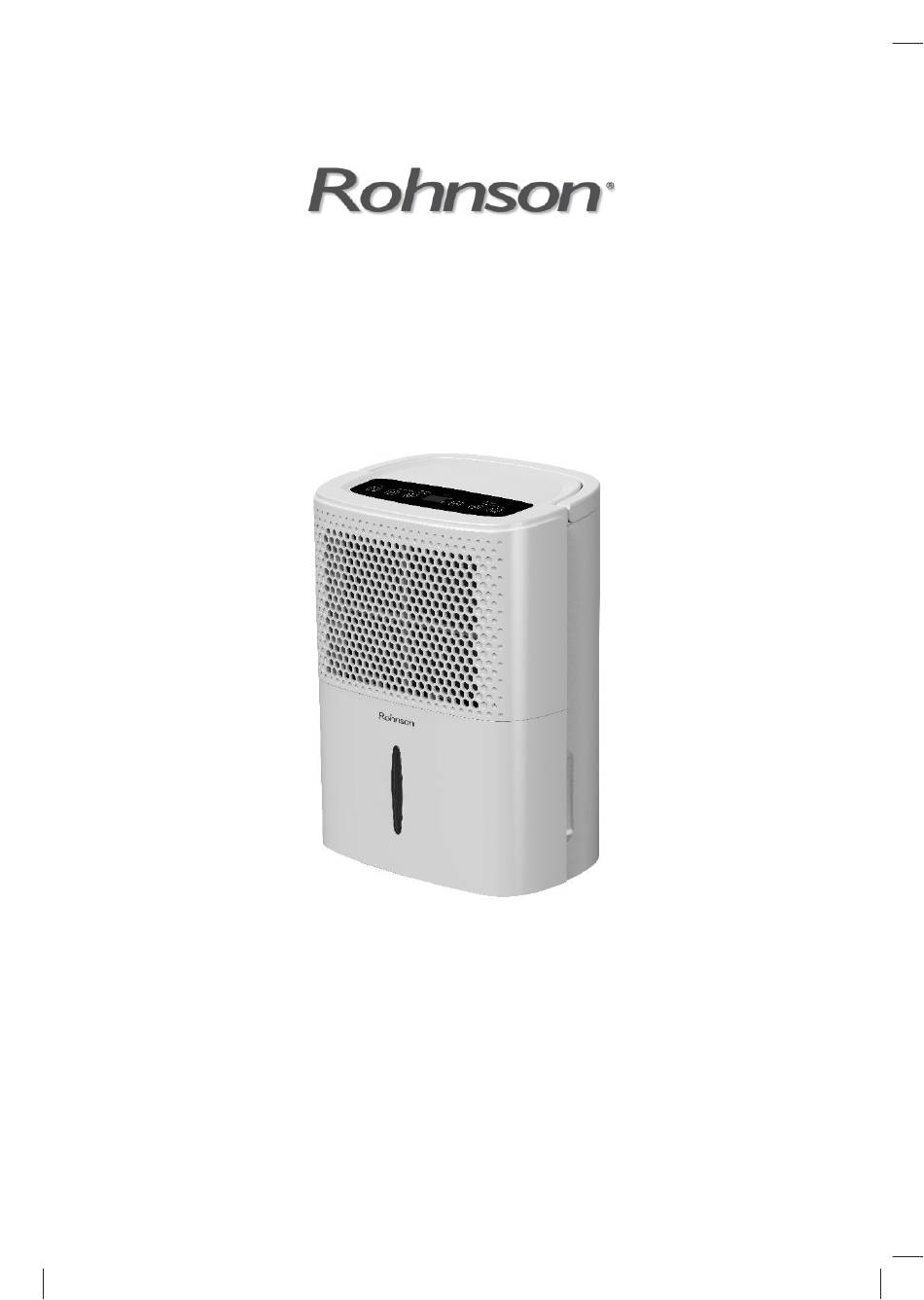

- Page 1 ENGLISH R-9610 Dehumidifier Instruction Manual Thank you for choosing our product. For proper operation, please read and keep this manual carefully.
-
Page 2: Safety Information
ENGLISH INTRODUCTION • Before using your new dehumidifier, please carefully read through the following instructions. Keep this booklet in a safe place for future refer- ence. • After removing the packaging, make sure that the appliance is in good condition. •... - Page 3 ENGLISH Please use the function of the internal drying, if the device is not used for a long time. This will prevent formation of mildew and unpleasant smell inside the unit. Do not place heavy objects on the appliance. Do not hang curtains or wet clothes in front of the air outlet, this will overload the device.
-
Page 4: Service And Repair
ENGLISH This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Installation
ENGLISH Q: Why the outlet air is a little warm? It is not a defect. When room air is condensed by the condensing system, the water comes out and falls to the tank, the dry air flows through the inner system but becomes warm. INSTALLATION •... - Page 6 ENGLISH COMPONENTS Continuous...
-
Page 7: Control Panel
ENGLISH CONTROL PANEL Timer: 24 hours timer. Press the key to set the timer off or on. Timer ranges from 1 to 24 hours; it will increase 1 hour by every press of the key. Press the key until”--” flash. There is a cancel function as well. To cancel the timer set-up, press the timer button twice continuously after confirming setup. -
Page 8: Operation
ENGLISH Humidity setting key: in auto dehumidifying mode, press the key to set humidity. The humidity range is from 30% to 80%. You can increase it 5% by every press. Mode key: after unit is on, press the key to choose auto dehumidifying &... - Page 9 ENGLISH AUTO DEHUMIDIFYING MODE During this mode, if the room’s humidity is higher than the set humidity or between ±5% of the set humidity, the compressor will start and the fan will work at the set speed. If the room’s humidity is lower than the set humidity by -5%, the compressor will stop but the fan will work at the set speed.
- Page 10 DRAINAGE Water tank When the water tank is full, the light on the control panel will flash. The device ENGLISH will stop working, the buzzer will sound 10 times and then it will stop but the light indicator will stay on. Take off the water tank to empty the water and install the water tank like the images below.
-
Page 11: Maintenance
MAINTENANCE Notice: Pull out the power plug before transporting it and/or before cleaning. ENGLISH Pull out the power plug if the unit will not be used for a long time. Do not use chemical solvent such as alcohol, gasoline, benzene to clean the device. - Page 12 DEHUMIDIFIER STORAGE If the dehumidifier will not be used for an extended period of time: ENGLISH 1. Drain the water tank completely and make sure there is no more water stocked inside. 2. Unplug the unit and fold up the power supply cord. 3.
- Page 13 Erro ENGLISH code Touble Shooting water full temp. sensor erro working temp. is low, it is normal phenomenon working temp. is high, it is normal phenomenon unit is in defrost mode Defrosting operation The evaporator in the dehumidifier may defrost automatically if it is operated in the room temperature less than 18°C.
- Page 14 ENGLISH IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
