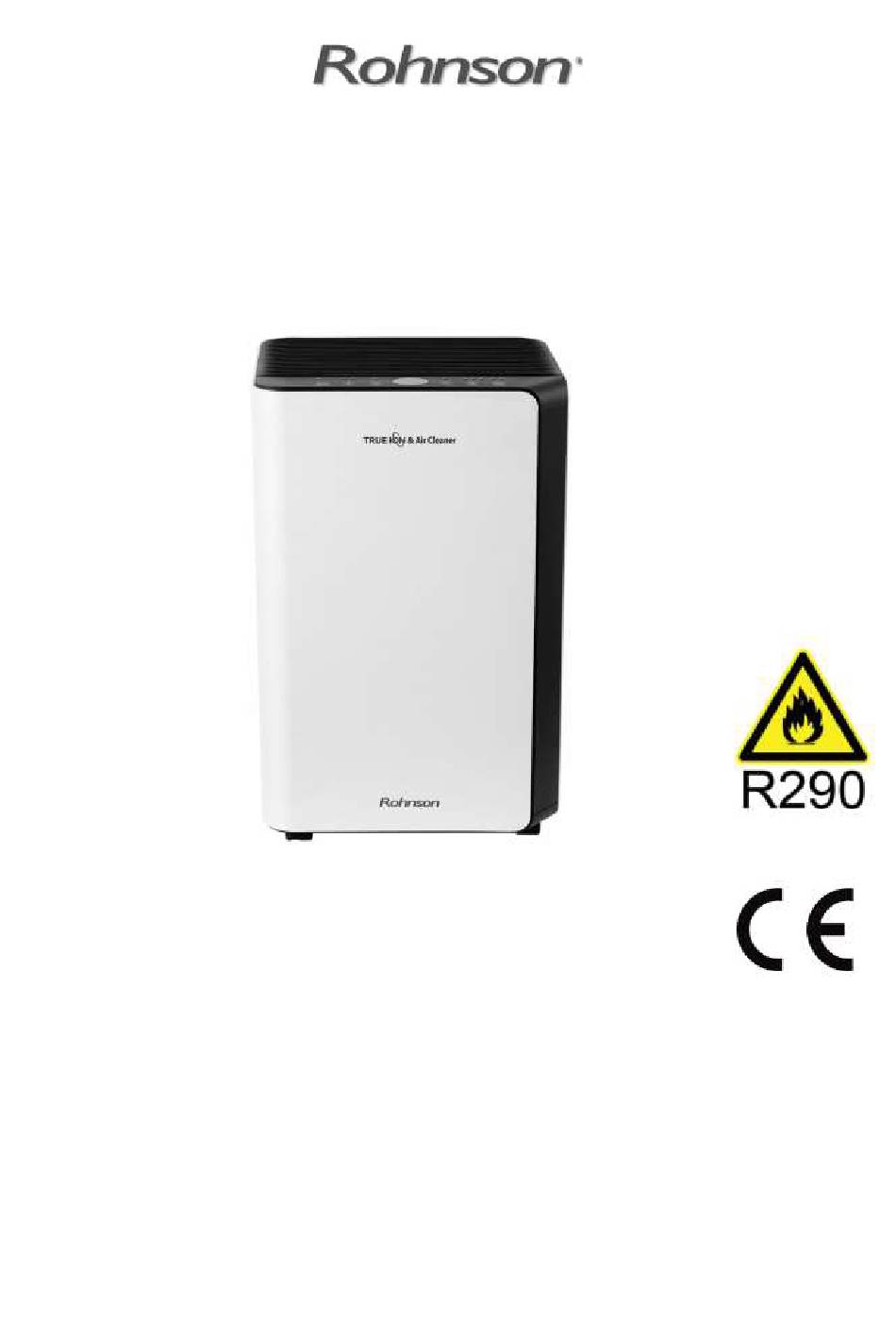

INSTRUCTION MANUAL
Dehumidifier R-92020
Please keep this manual carefully for further reference!
Thank you for selecting our dehumidifier. Be sure to read this manual carefully
before using it. Any questions, please contact the professional service for help.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-92020 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rohnson R-92020

  • Page 1 INSTRUCTION MANUAL Dehumidifier R-92020 Please keep this manual carefully for further reference! Thank you for selecting our dehumidifier. Be sure to read this manual carefully before using it. Any questions, please contact the professional service for help.
  • Page 2: Before You Begin

    1. BEFORE YOU BEGIN Please read the operating instructions carefully before using your dehumidifier for the first time. SYMBOLS FROM THE UNIT AND USER MANUAL his unit uses a flammable refrigerant. If refrigerant leaks and comes in contact with fire or heating part, it will create harmful gas and there is risk of fire.
  • Page 3: For Your Safety

    INTRODUCTION • Before using your new dehumidifier, please carefully read through the following instructions. Keep this booklet in a safe place for your reference. • After removing the packaging, make sure that the appliance is in good condition. • Do not allow children to play with the packaging materials as there is risk of suffocation. 2.
  • Page 4: Service And Repair

    organization or a professional trained maintenance personnel or a service organization recommended by the supplier for repair! This appliance can be used by children aged from 8 years and above and peopl e with reduced physical, sensory , and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 5: Product Overview

    3. PRODUCT OVERVIEW FRONT & BACK VIEW Air outlet Control panel Recessed handle Front shell Castors Air Filter Back shell Continuous drainage Water tank...
  • Page 6: Installation

    4. INSTALLATION 4.1 LOCATION 1. Place the unit on a firm, level surface in an area with at least 30cm of free space around it to allow for proper air circulation. 2. Never install the unit where it could be subject to: ⚫...
  • Page 7: Operating The Device Safely

    4.2 OPERATING THE DEVICE SAFELY ⚫ Check the device after unpacking for any damages or scratches on it. ⚫ Operate this unit in an ambient temperature from 5°C to 32°C. ⚫ Do not use in the outdoors. This dehumidifier is intended for indoor residential applications only. ⚫...
  • Page 8: Operation

    5. OPERATION 5.1 CONTROL PANEL FUNCTION KEYS AND INDICATORS POWER button Touch this button to switch the machine on or off. Mode Button Touch this button to choose Auto, Sleep and Continuous Dry mode. HUM Button Touch this button to adjust the humidity level and choose timer hour. Touch this button to s et a time for the unit to automatically start or stop.
  • Page 9 Power button In the standby state, touch this button to turn on, the operation indicator lights up and the default fan speed is high, and the default humidity is 50%. In the power-on state, touch this button to turn off, the running indicator light goes off and the compressor stops immediately, and then the fan shut down after 30 seconds delay.
  • Page 10 Set the time to "00" to cancel the timing function. Speed High wind - low wind cycle, Touch the button once to switch and then the corresponding indicator lights up. The wind speed cannot be changed, during defrosting period. In standby mode, hold this button to turn on or turn off the independent air purifier function.
  • Page 11: Emptying The Water Tank

    5.2.1 EMPTYING THE WATER TANK The water tank built in unit, will fill up and shut the unit down once it is full. It will run again once you empty the water tank and installed properly. ⚫ When the tank is full, the unit will make a buzzing sound, and the “Water Full”...
  • Page 12: Maintenance

    flow out of the unit. Do not submerge the end of hose into water; otherwise, it can cause "Air Lock" in the hose. drain-pipe o avoid water spillage: • As the negative pressure of condensate drain pan is large, tilt the drain hose downward toward the floor.
  • Page 13: Troubleshooting

    2. Soak the strainer in warm water at about 40 degrees Celsius. Rinse gently with a neutral detergent. Use the vacuum cleaners brush to gently remove dust from the screen. 3.Put the filter back. 7.TROUBLE SHOOTING FUNCTIONING TEMP. 5°C ≤ Ambient Temp. ≤ 32°C When the ambient temp is lower or higher than the functioning temp, the dehumidifier stops.
  • Page 14 Problem Possible Cause Solution Connect to a functioning outlet and switch No power supply Drain water tank and reset it, or re-position Not working Water Full Indication Flashes the water tank to right place Self-Protection designed to protect the Room temperature ˂ 5°C, or ˃ 32 °C unit.
  • Page 15 Preserving the machine in ventilating, dry, non- corrosive gas and safe place indoor. ATTENTION: The evaporator inside the machine has to be dried out before the unit is packed to avoid component damage and molds. Unplug the unit and place it in a dry open area for days to dry it out.
