Summary of Contents for Rohnson R-91212

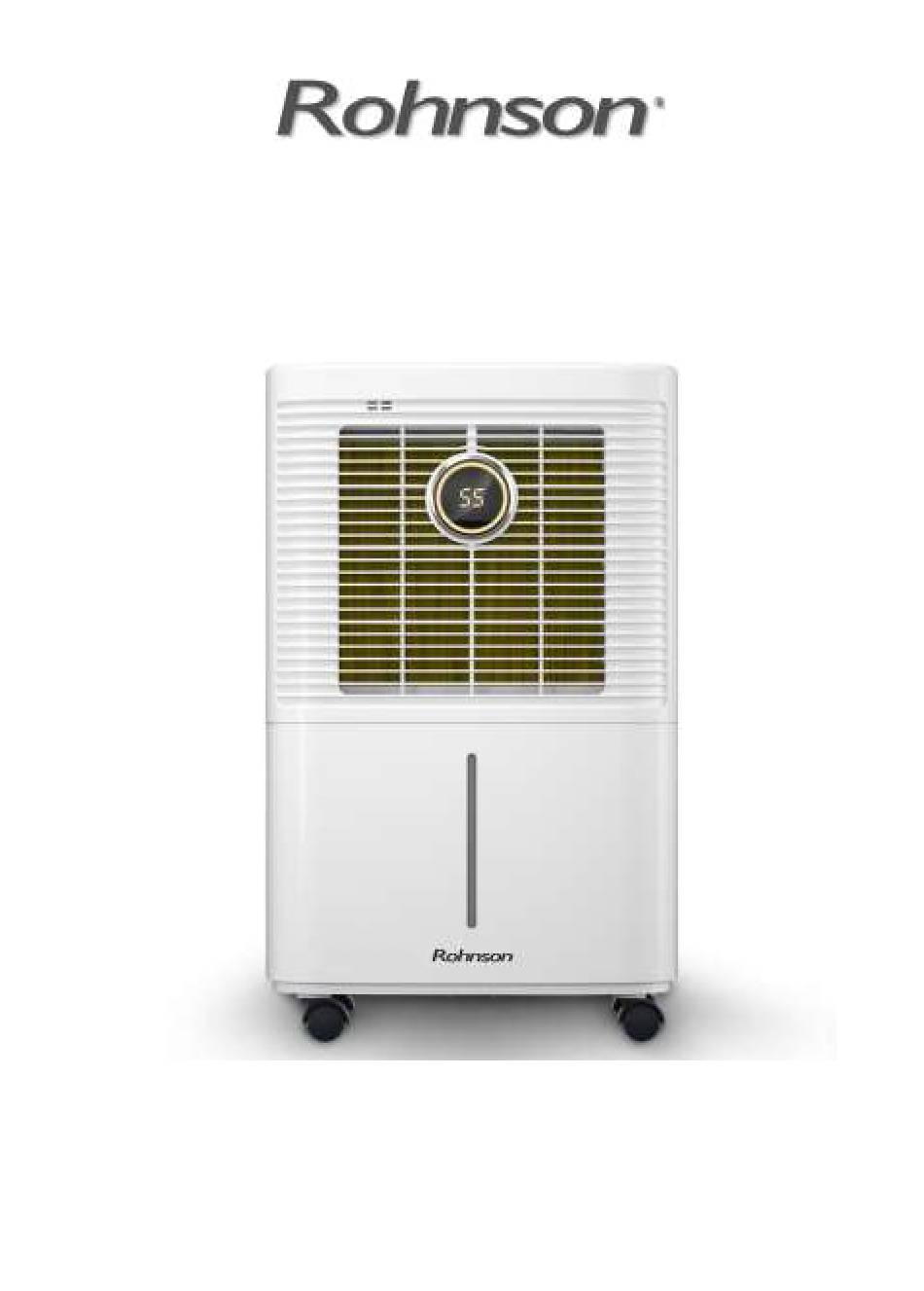

  • Page 1 R-91212 Dehumidifier...

  • Page 2: Safety Information

    INTRODUCTION • Before using your new dehumidifier, please carefully read through the following instructions. Keep this booklet in a safe place for future refer- ence. • After removing the packaging, make sure that the appliance is in good condition. • Do not allow children to play with the packaging materials as there is risk of suffocation.
  • Page 3 must be aired regularly and often. Please use the function of the internal drying, if the device is not used for a long time. This will prevent formation of mildew and unpleasant smell inside the unit. Do not place heavy objects on the appliance. Do not hang curtains or wet clothes in front of the air outlet, this will overload the device.

  • Page 4: Service And Repair

    WARNING Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.

  • Page 5: Installation

    instruction manual will automatically release of any type of respon- sibility in case of malfunction of the machine or injuries to persons or ani- mals. In case of manipulation, repairing or any modification of the machine made by unqualified persons or in case of improper use, the guarantee will be automatically cancelled.

  • Page 6: Machine Construction

    MACHINE CONSTRUCTION Handle Control panel Display window Front Water tank Air outlet Continuous drain Rear Winding bracket Power cord storage socket NOTE: Do not cover or block the air inlet or outlet. NOTE: Do not cover or block the air inlet or outlet.
  • Page 7 Operation Instruction Key Description Mode key Anion Sterilize button Choice of working mode. For the switch of anion sterilize button. Humidity key Wind speed key For setting the humidity threshold. To switch between wind speeds Timing key Power button Used to set the time on the device, the setting range is 1~24h.

  • Page 8: Function Set

    Function Set Power button: This button is used to turn the machine ON/OFF with the indicator light showing "ON" or "OFF" when the corresponding mode is chosen (when the indoor humidity reaches the set value, the compressor will stop running, and the running indicator will flash at this time).
  • Page 9 Timing settings: If the timer is set when the device is off, the timer will be set to turn on; if it is set when the device is on, the timer will be set to turn off the device. Press the "timing key" to set the timer. Each time you press it, the timer increases by 1h.
  • Page 10 Precautions The dehumidifier should not operate at a humidity setting higher than the ambient humidity. When the water full indicator is on, pour out the water in the water tank. Then put the emptied water tank back to its original position, and the machine can continue to be used. When the machine stops, wait at least 3 minutes before restarting to avoid damage to the compressor.
  • Page 11 Continuous drainage When you want to use this function, please unplug the power supply, pull out the rubber stopper, insert the water pipe into the continuous drain outlet, connect the power supply and start the machine. The water outlet of the water pipe should be more than 10cm lower than the continuous drainage outlet, and the water pipe should not be bent to ensure smooth drainage.
  • Page 12 Filter cleaning Take out the water tank. Hold the filter screen as shown in the image and pull down the filter screen. Clean the filter: Use a vacuum cleaner to gently absorb the dust on the surface of the filter. If the filter is very dirty, wipe it with warm water and a mild detergent and dry it completely.
  • Page 13 Fault Phenomenon Cause Analysis Approach Fault Phenomenon Is the power cord connected properly? Connect the plug into the socket. Is the power cord connected properly? Drain the water from the tank and put it back in the correct position on the body. Because this product is not suitable for Machine not running Is the room temperature above 32°C or...
  • Page 14 3. When using, please keep 1. During usage, Do not place 2. Do not use thin rods or the machine on soft and the machine away from hard objects to insert into uneven ground to avoid heat sources such the fuselage to avoid vibration or movement.
  • Page 15 IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
