Installation Guidelines
Mounting the Process Monitor
The Process Monitor must be mounted on a flat surface in a convenient location on the machinery or
fixture that will be monitored. Do the following:
1.
Perform the Equipment Lockout Procedure shown on
page 4, so that the components of the surrounding
equipment cannot move.
2.
Using two M6 screws, mount the Process Monitor on
a flat surface on the machinery or fixture being
monitored. Ensure that the mounting location allows
access to connect cables to the ports of the Process
Monitor.
VeriFast™ MicroView 4.0 – User Manual – Ver. 2.1
CenterLine recommends that qualified electrical personnel be involved with the
setup and operation of the VeriFast™ MicroView 4.0. Also, a qualified weld
engineer or quality control personnel should be available for tolerances
adjustments and scaling, when required.

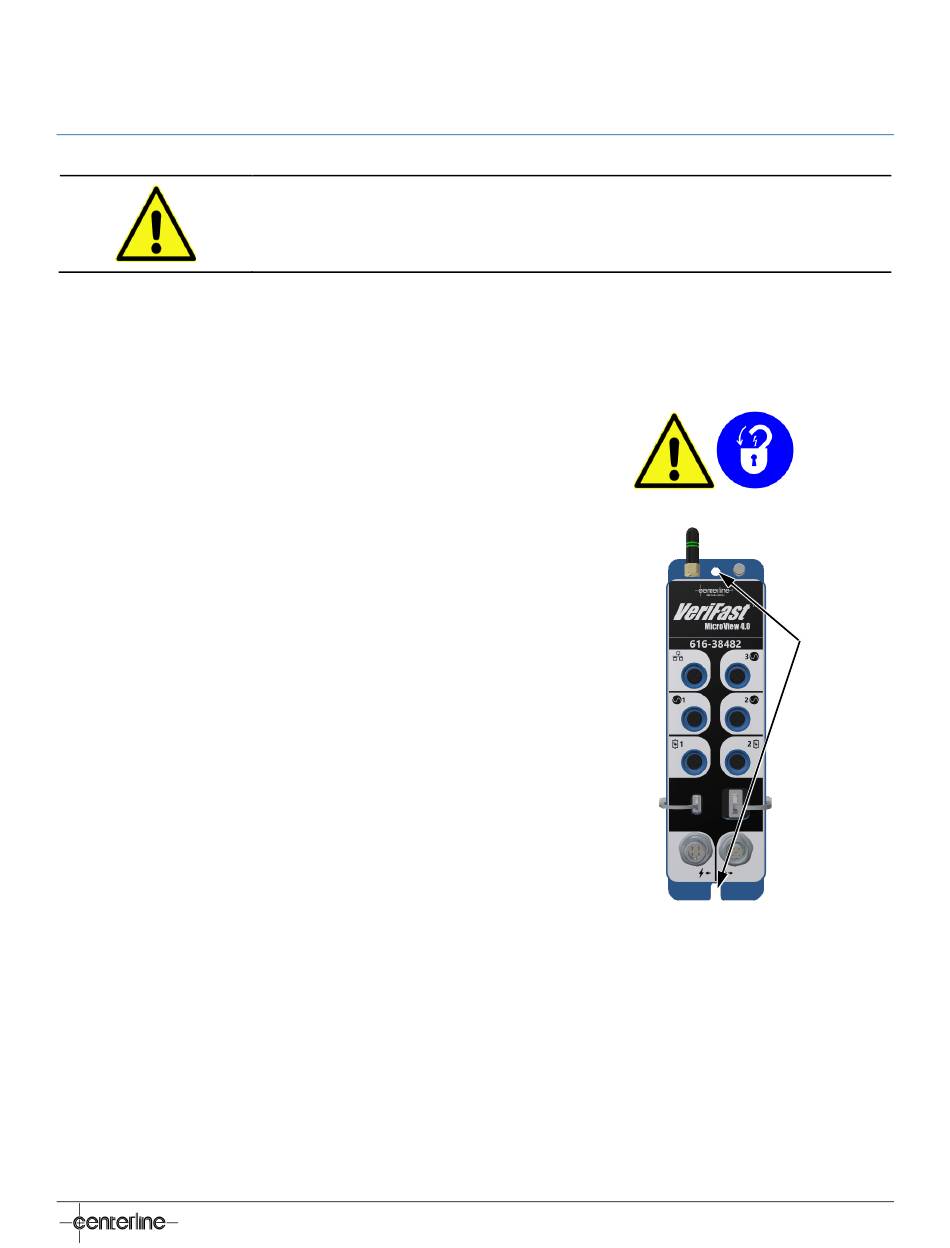

Location
of M6
Screws
9
