Ethernet/IP Communication
The MicroView 4.0 process monitor is a self-contained fastener detection system, with integrated
Ethernet IP communication, which allows the monitoring process to be sent directly to the machine/PLC
and not depend on direct output selection. This characteristic expands the capability of the integrating
system to monitor and process parameters from the PLC control unit. The data package is as follows:

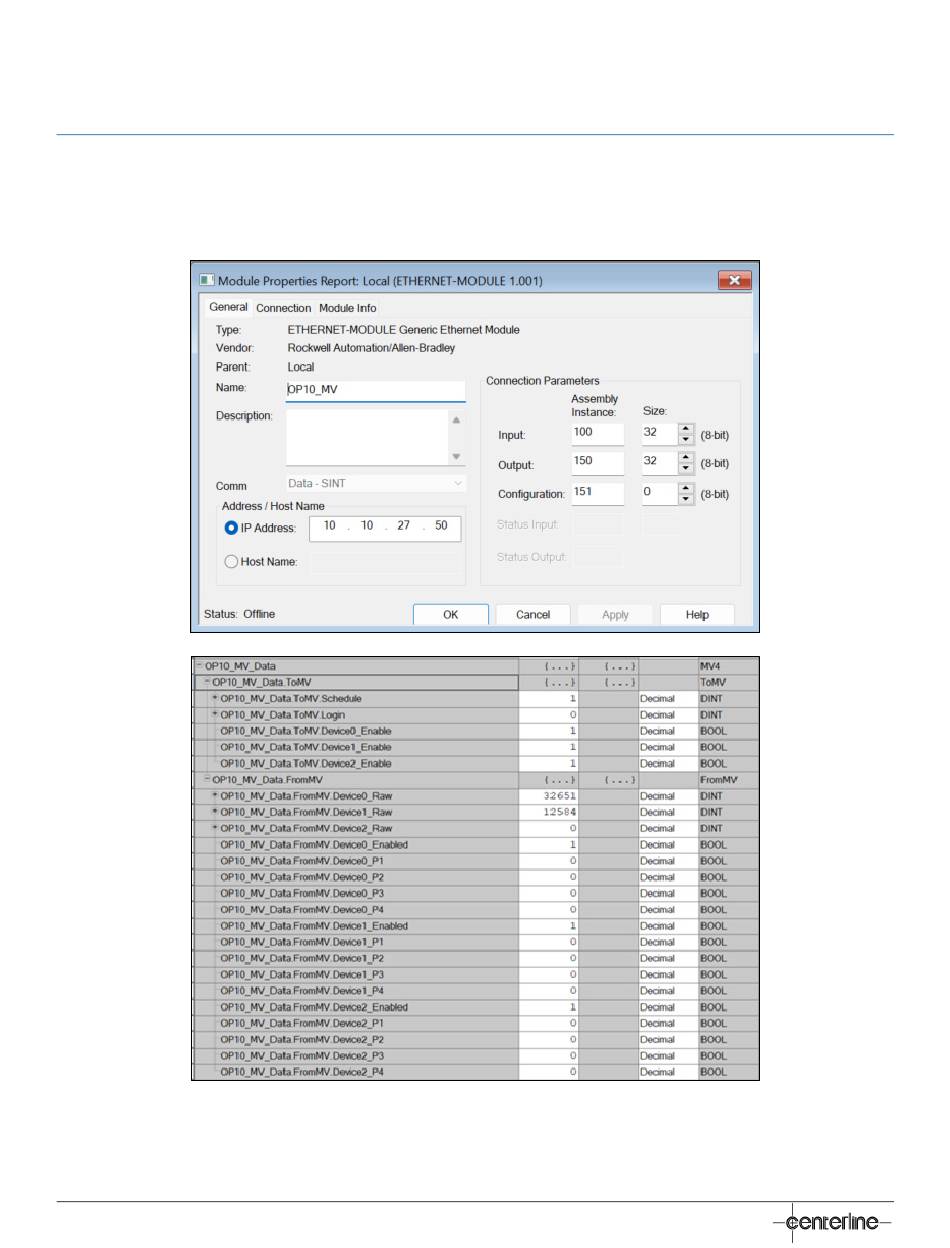

Figure 6 – Data Package for VeriFast™ MicroView 4.0
