CenterLine VeriFast MicroView 4.0 User Manual page 11

Establishing the Connections for the MicroView 4.0
Establish the connections indicated in Figure 5.
Ethernet/IP Communication
Connection
Monitored Devices
OR OR
VeriFast™ IA,
Generic
LPT
CLCS HMI
Installation Precaution for Field Block Applications:
Prior to connecting a VeriFast™ MicroView 4.0 to a Field Block, it is recommended to
disconnect power on the Field Block. After the VeriFast™ MicroView 4.0 connections
to the Field Block have been made, it is safe to reconnect power to the Field Block.
Notes:
•
For connection cable types, see the Pinout Diagram of the Process Monitor section on page 7.
•
Some ports of the Process Monitor are equipped with an LED (
 The Ethernet LED blinks to indicate communication.
 The rest of the LED-s light up steady to indicate correct connections.
VeriFast™ MicroView 4.0 – User Manual – Ver. 2.1
Process Monitor
LVDT
Power
(IN)

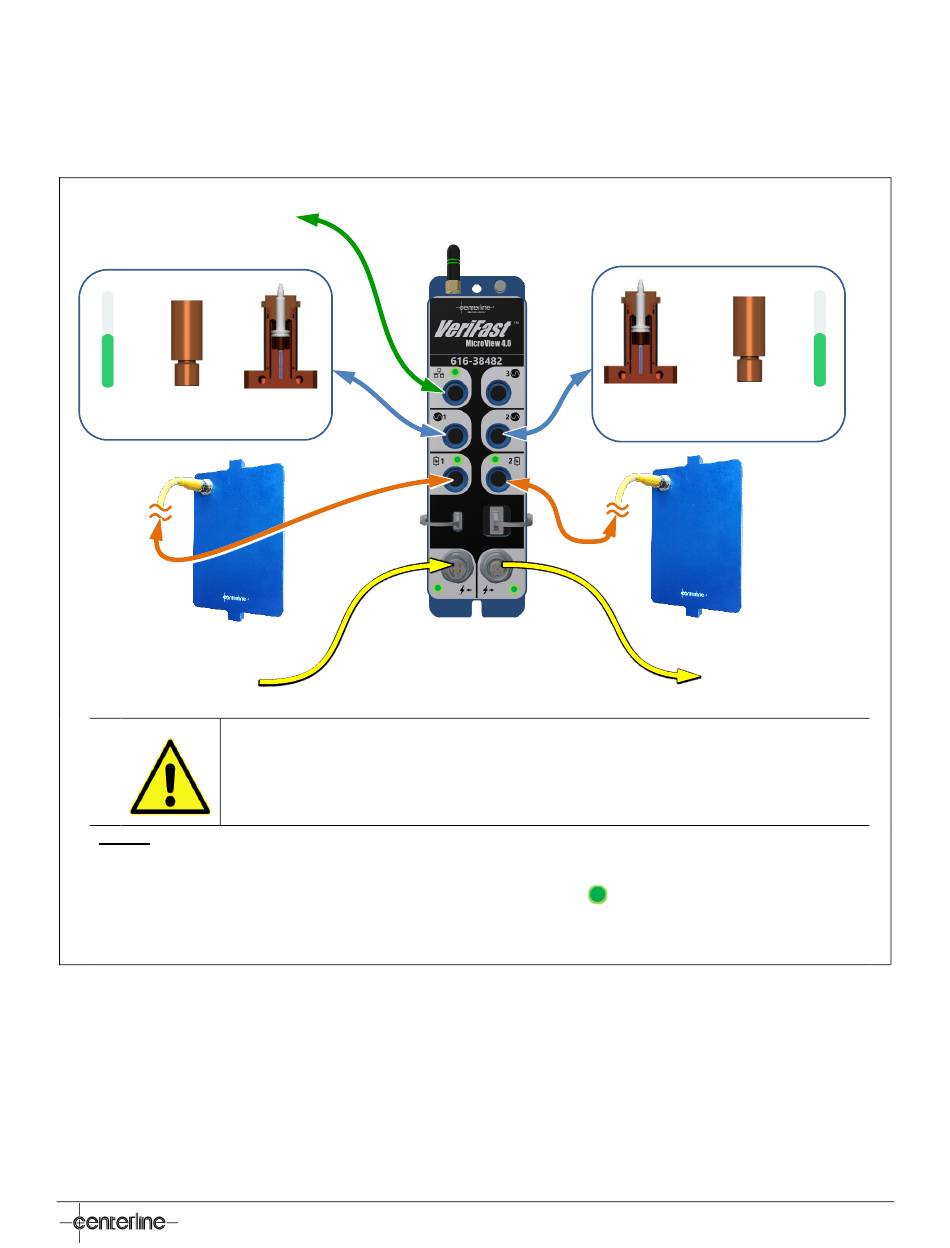

Figure 5 – MicroView 4.0 Connections
Monitored Devices
OR
VeriFast™ IA,
LVDT
Power
(OUT)
):
OR
LPT Generic
CLCS HMI
(If equipped)
