3.

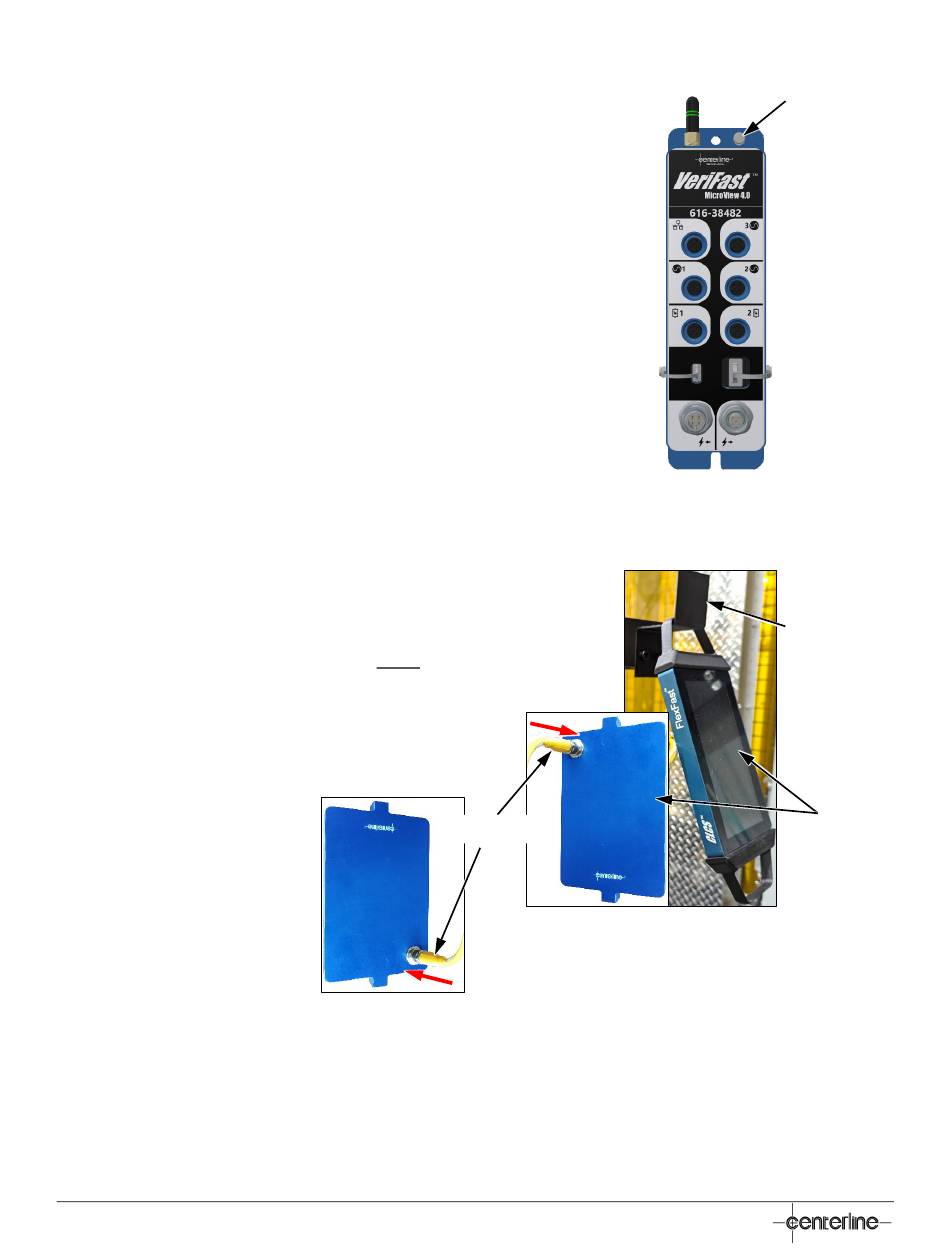

Ground the Process Monitor by attaching a Grounding
Braid (not provided) to the location indicated in the
image on the right. The other end of the Grounding
Braid must be attached to the grounding terminal on
the main equipment.
Mounting the CLCS HMI(s)
The CLCS HMI(s) can be mounted in any convenient
location, attached to the main equipment, hanged, or
placed in custom holding brackets. Ensure that you
account for the position of the electrical cable that
attaches at the back of the CLCS HMI. Note: If needed,
the CLCS HMI can be hanged upside down, in which
case the display on the CLCS HMI can also be flipped. To
enable this feature, refer to the Configuration Screen
section in the VeriFast™ MicroView 4.0 – Screen Guide
document.
10
Electrical Cable
VeriFast™ MicroView 4.0 – User Manual – Ver. 2.1
Grounding
Braid
attaches here
Bracket
CLCS HMI
