Repair manual

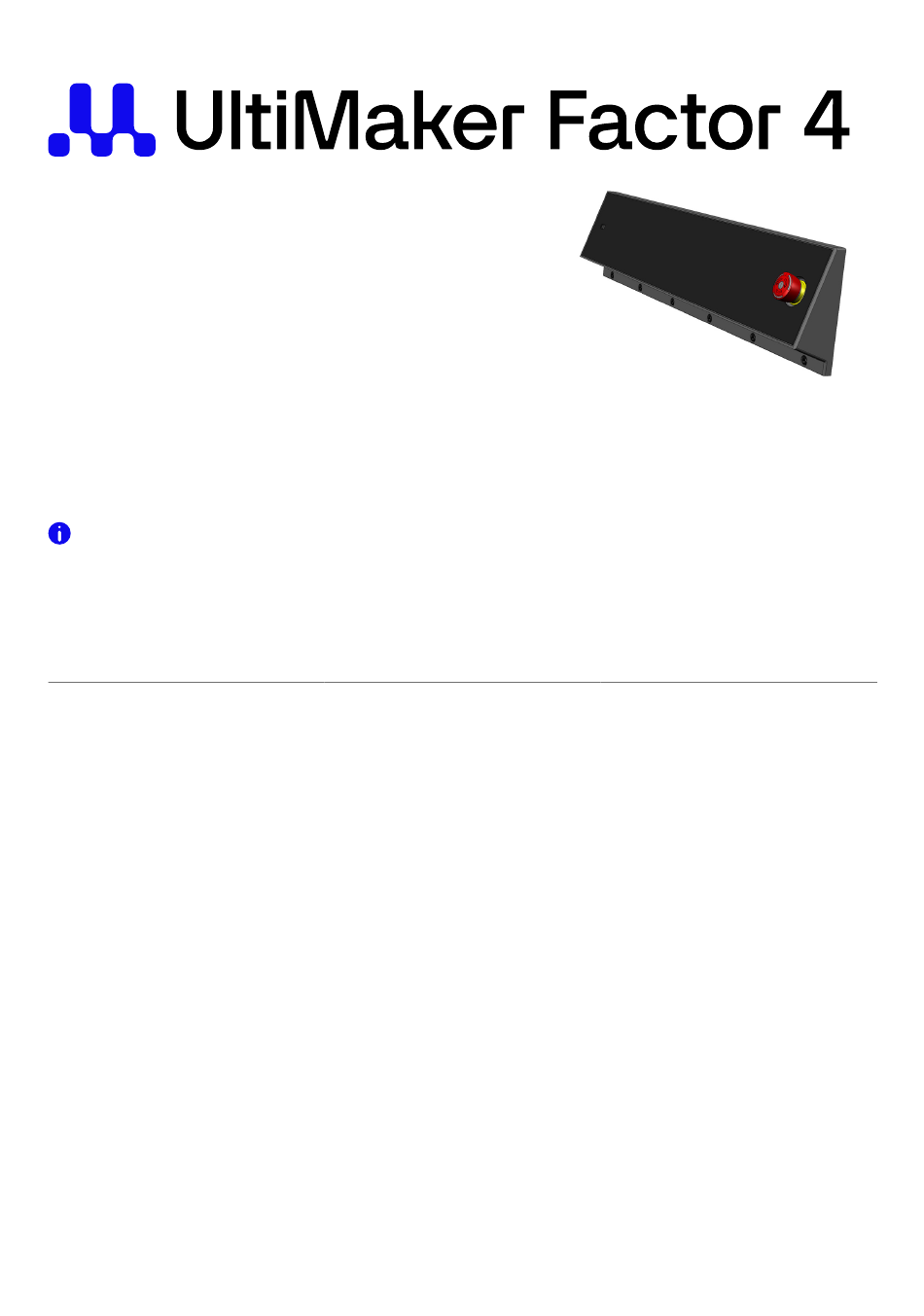

UI module
The large display is mounted in a complete UI module that spans the width of the printer. This is placed between
the printer's build volume and the Material Station. The UI module also contains the USB port, red stop button,
and the air intake grille.
You can remove the display module from the front of the printer when you disconnect all the wires from the back
of the module. This document describes replacing only the UI module, not the cables.
Note: If the HDMI, USB, or stop button cable must be replaced, this also requires access to the back of the
machine. Follow the instructions in the relevant repair manual.
Requirements
Level
Operator level:
ordinary, instructed, or skilled
Service level: 1
Notes
This repair process requires disconnecting components. Turn off the printer and disconnect the power cable
before starting.
This process requires handling sensitive electronic components. Take ESD measures before starting this
assembly to prevent damaging the PCBA at the back of the UI module.
UltiMaker Factor 4
Tools
4 mm hex screwdriver
Small, pointy tool (such as 2
mm hex screwdriver)
ESD supplies
Repair manual – UI module
Parts
70-227531
UI module
EN-V1.1-240628

Advertisement

loading
Need help?

Need help?

Do you have a question about the Factor 4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ultimaker Factor 4

  • Page 1 This repair process requires disconnecting components. Turn off the printer and disconnect the power cable before starting. • This process requires handling sensitive electronic components. Take ESD measures before starting this assembly to prevent damaging the PCBA at the back of the UI module. UltiMaker Factor 4 Repair manual – UI module EN-V1.1-240628...
  • Page 2 HDMI from the PCBA. Use a screwdriver or other small tool to push in the tabs of the USB cable connector, to free it from the bracket on the module housing. UltiMaker Factor 4 Repair manual – UI module EN-V1.1-240628...
  • Page 3 UI module housing. Tip: The orientation of the wires is not important. Note: Correctly guiding the wires prevents them from getting stuck between the housing and printer frame when reinstalling the UI module. UltiMaker Factor 4 Repair manual – UI module EN-V1.1-240628...
  • Page 4 10. Close the Material Station door Use the 4 mm hex screwdriver to fully tighten each of You can now close the Material Station door again. the bolts. Note: 1 Nm is recommended. Finished! UltiMaker Factor 4 Repair manual – UI module EN-V1.1-240628...
  • Page 5: Quality Checks

    USB drive Place one or more Factor 4 compatible print files on a USB. Insert the USB into the port at the left side of the UI module. In the main menu, check if Select from USB is available. If so, the USB is recognized.
