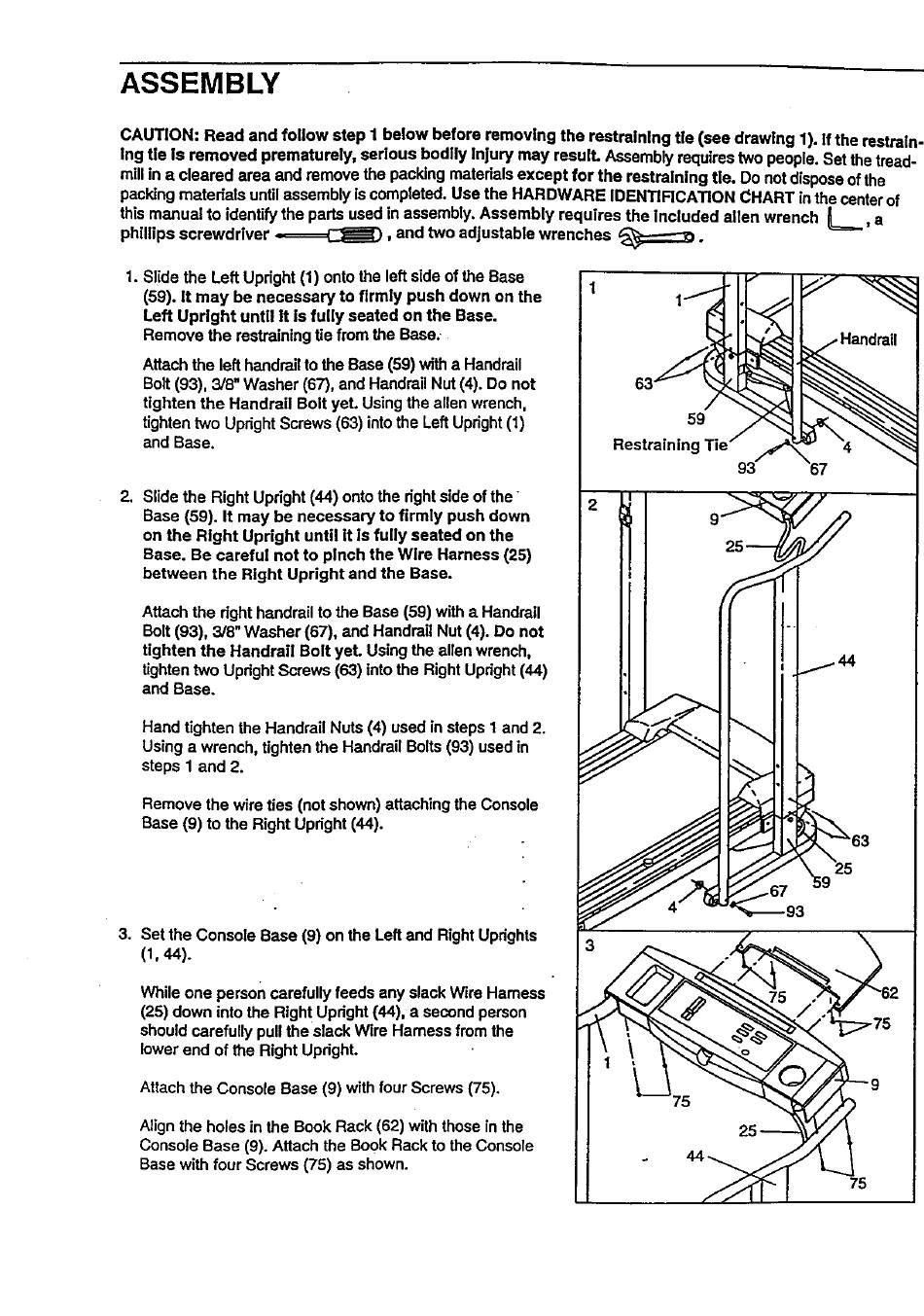

ASSEMBLY
CAUTION: Read and follow step I below before removing the restraining tie (see drawing 1). If the restrain-
Ing tie is removed prematurely, sedous bodlly Injury may resulL Assembly requires two people. Set the tread-
mill in a cleared area and remove the packing materials except for the restraining tie. Do not dispose of the
packing materials until assembly is completed. Usa the HARDWARE IDENTIRCATION CHART in the center of
this manual to identify the pads used in assembly. Assembly requires the Included allen wrench L, a
phillips screwdriver _===_, and two adjustable wrenches _==::::_.
1. Slide the Left Updght (1) onto the left side of the Base
(59). It may be necessary to firmly push down on the
Left Upright until It is fully seated on the Base.
Remove the restraining tie from the Base.
Attach the left handrail to the Base (59) with a Handrail
Bolt (93), 3/8" Washer (67), and Handrail Nut (4). Do not
tighten the Handrail Bolt yeL Using the allen wrench,
tighten two Upright Screws (63) into the Left Updght (1)
and Base.
2. Slide the Right Updght (44) onto the dght side of the
Base (59). It may be necessary to firmly push down
on the Right Upright until It is fully seated on the
Base. Be careful not to pinch the Wire Harness (25)
between the Right Upright and the Base.
Attach the dght handrail to the Base (59) with a Handrail
Bolt (93), 3/8" Washer (67), and Handrail Nut (4). Do not
tighten the Handrail Bolt yeL Using the allen wrench,
tighten two Updght Screws (63) into the Right Updght (44)
and Base.
Hand tighten the Handrail Nuts (4) used in steps 1 and 2.
Using a wrench, tighten the Handrail Bolts (93) used in
steps I and 2.
Remove the wire ties (not shown) attaching the Console
Base (9) to the Right Updght (44).
*
3. Set the Console Base (9) on the Left and Right Uprights
(1,44).
While one person carefully feeds any slack Wire Harness
(25) down into the Righ t Updght (44), a second person
should carefully pull the slack Wire Harness from the
lower end of the Right Updght.
Attach the Console Base (9) with four Screws (75).
Align the holes in the Book Rack (62) with those in the
Console Base (9). Attach the Book Rack to the Console
Base with four Screws (75) as shown.
59
Restraining
9
75
