Section C - Wiring
CT wiring scenarios

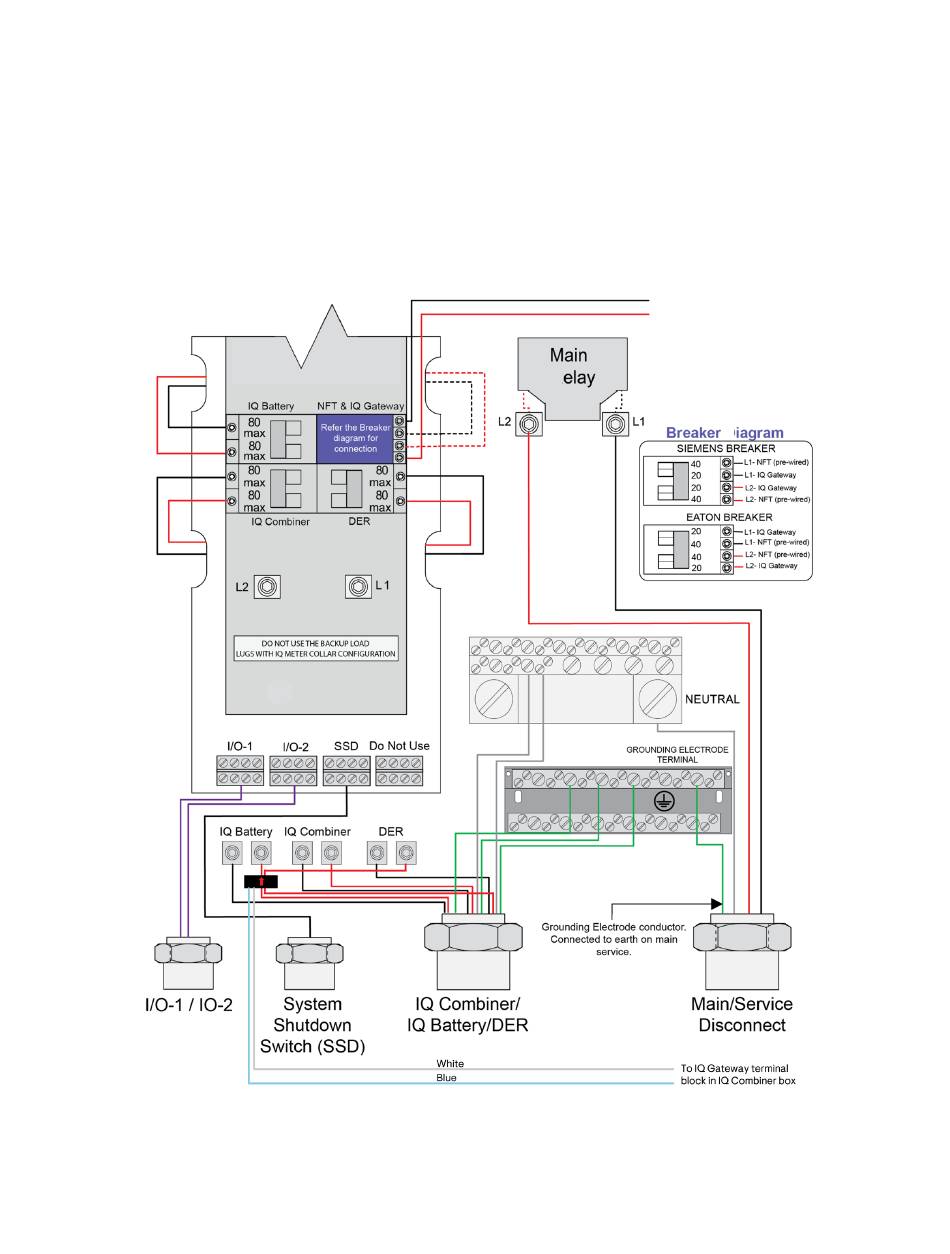

Scenario 1: CT wiring for IQ Battery on both IQ Battery and DER ports
IQ System Controller 3M quick install guide
Power IQ Gateway position from 20 A
Terminals of the Quad
breaker at NFT & IQ Gate-
way position. (NFT
pre-wired to 4 A terminals of
the Quad breaker).
r
d
27
