enphase IQ Portable Panel Quick Start Manual
Hide thumbs
Also See for IQ Portable Panel:
- Installation manual ,
- Quick install manual (40 pages) ,
- Technical brief (9 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for enphase IQ Portable Panel
Summary of Contents for enphase IQ Portable Panel
- Page 1 IQ Portable Panel Quick Start Guide MODEL PES-PSP- 2 00 IQ Portable Panel quick start guide...

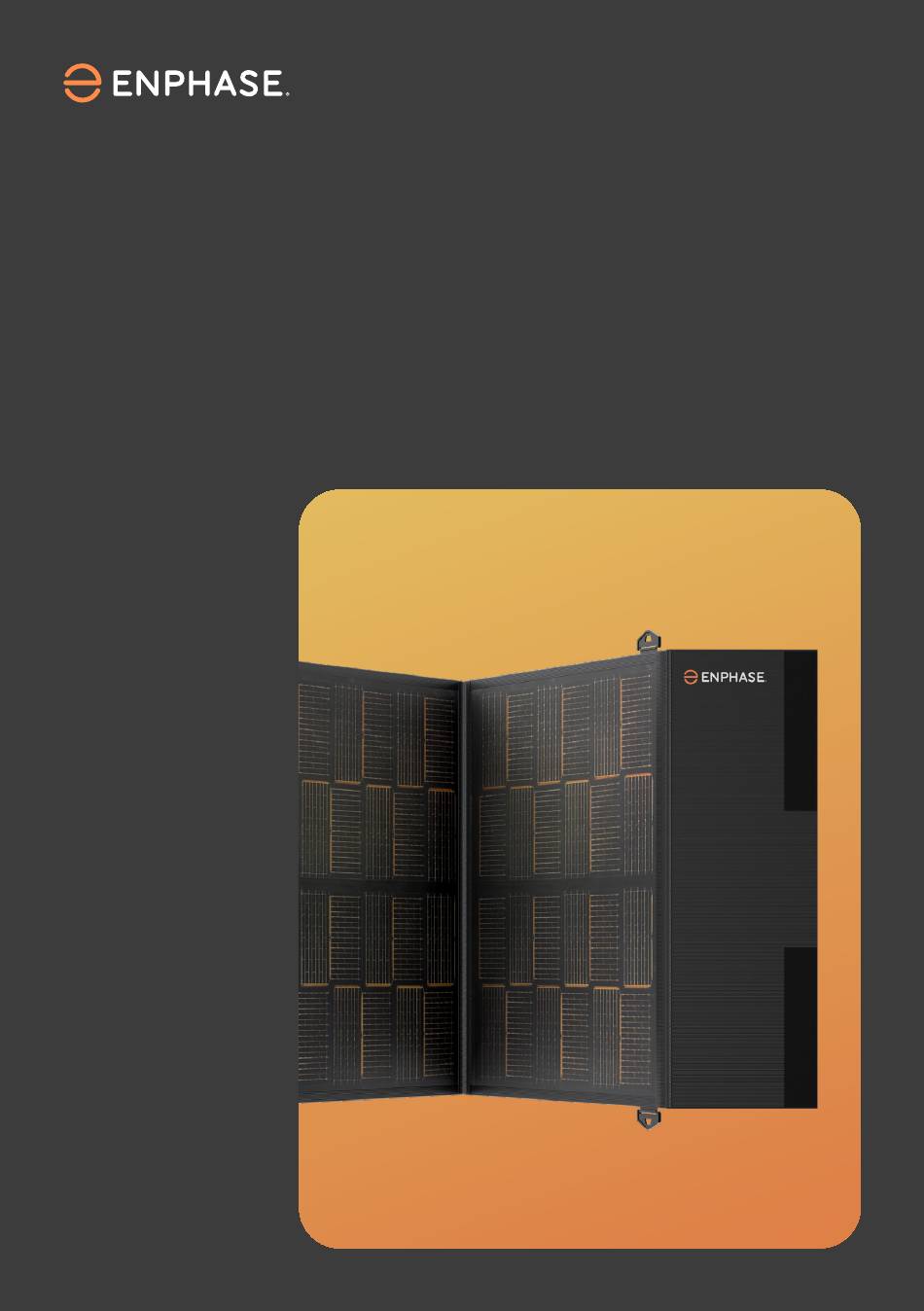

- Page 2 Carefully unpack your new solar panel. In the box, you’ll find: • IQ Portable Panel • Solar Charging Cable • Solar Cable Disconnect Tool • Stakes (6) IQ PORTABLE PANEL SOL AR CHARGING CABLE SOL AR CABLE DISCONNECT TOOL STAKES IQ Portable Panel quick start guide...
- Page 3 Unfold the solar panel and extend the three support legs. Place the solar panel in a safe location directly facing the sun. If possible, secure the base of the support legs to the ground using the six stakes included with the solar panel. IQ Portable Panel quick start guide...
- Page 4 Once the solar panel has been successfully connected to the device, the solar icon on the device’s LCD touchscreen and in your Enphase App (Enphase Enlighten App) will indicate that power is being produced. IQ Portable Panel quick start guide...
- Page 5 200 W DC Solar input port limits, applicable to either one-panel or two-panel configuration: • Operating voltage: 12—50 V • Maximum current: 10 A • Maximum voltage: 60 V • Maximum power: 440 W IQ Portable Panel quick start guide...
- Page 6 Slide the two prongs of the Solar Cable on the Solar Charging Cable from the Disconnect Tool over the interlocking DC Solar input port on the back of the clips that hold the male and female MC4 device. connectors together. IQ Portable Panel quick start guide...
- Page 7 Disconnect Tool in place, pull with Disconnect Tool, and Stakes can be medium force to disengage the male easily stored in the cable pouch on the and female MC4 connectors. back of the solar panel jacket. IQ Portable Panel quick start guide...
- Page 8 Revision history REVISIO N D ATE DES CRIP T ION 140-00367-03 November 2024 Initial release. IQ Portable Panel quick start guide...
- Page 9 Scan the QR code to get the full user manual © 2024 Enphase Energy. All rights reserved. Enphase, the e and CC logos, IQ, and certain other marks listed at https:/ /enphase.com/trademark-usage-guidelines are trademarks of Enphase Energy, Inc. in the US and other countries. Data subject to change.
