1.3 Test System Hardware
28000-5-TEST System
The Precision 28000-5-TEST test system consists of a high-performance digital multimeter,
a waveform generator, a cable set, and rack mount adapters for the devices. The 28000 GUI
software controls the function of both the digital multimeter and the waveform generator via
an Ethernet interface.
A Keysight 33509B waveform generator is used as the source of test signals in the 28000-5-
TEST test system. See Figure 2.

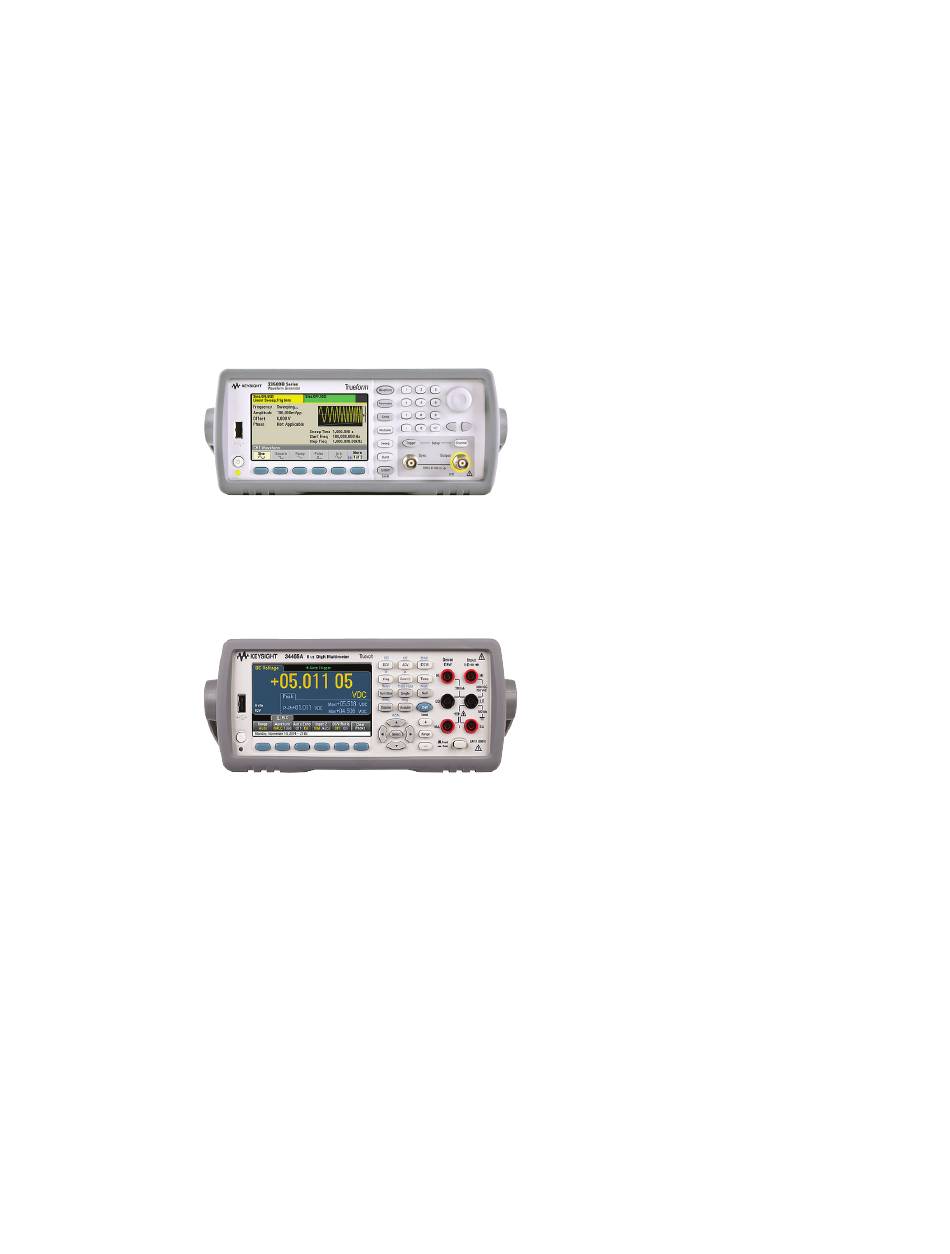

Figure 2 Keysight 33509B Waveform Generator
A Keysight 34465A digital multimeter, shown in Figure 3, provides the measuring device in
the 28000 test system.
Figure 3 Keysight 34465A Digital Multimeter
The 28000 test system cable set connects the test devices to the test and monitor busses on the
28000 system.
• Test Signal Cable CB-BNC-24
The test signal cable is a coaxial BNC cable, 24 inches long, that connects the Keysight
33509B waveform generator and the 28000 system front-panel Test Bus connector.
• Monitor Cable CB-DE9P/BAN-MONBUS-4
The monitor cable is a 9-pin D-shell to banana plug cable (with a twisted shielded pair
cable), 48 inches long, that connects the Keysight 34465A multimeter and one of the 28000
system System Monitor connectors.
