Inseego FX2000 Manual

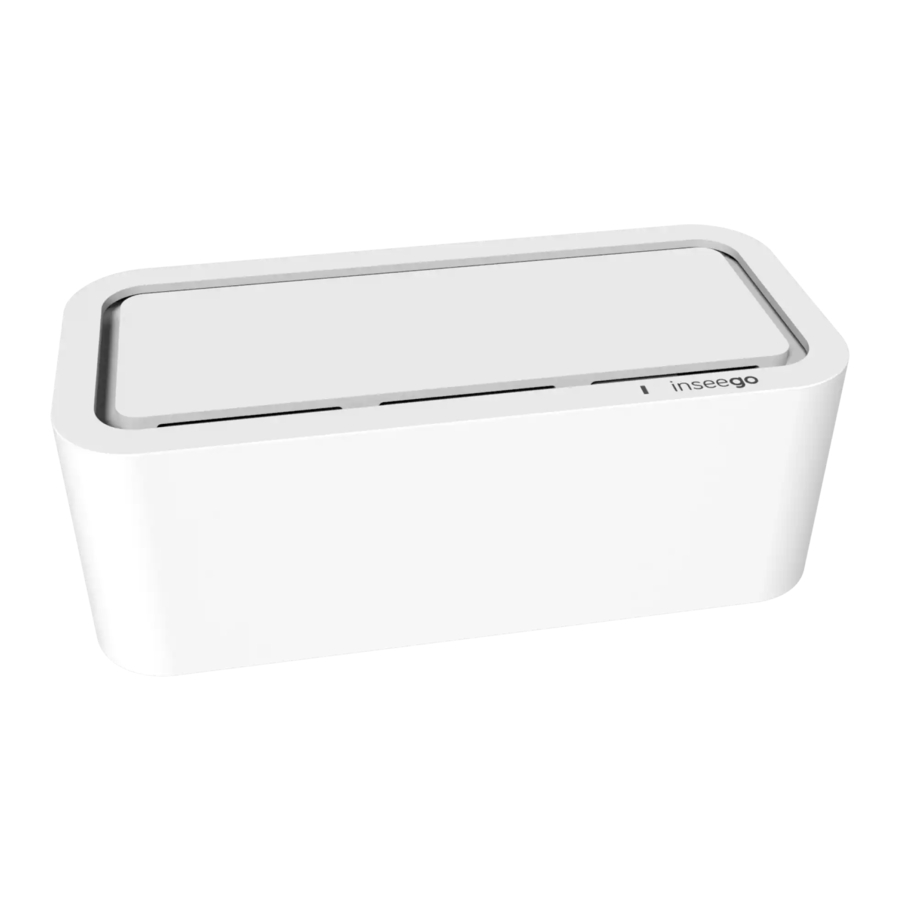

Top View

LED Color	Operation	Meaning
Blue	Solid Blinking	Strong 5G connection (3 – 5 bars) Weak 5G connection (1 – 2 bars)
Green	Solid Blinking	Strong 4G connection (3 – 5 bars) Weak 4G connection (1 – 2 bars)
Yellow	Solid	Software update is in progress
Red	Solid Blinking	Router is booting up No service, SIM error, or locked SIM card
White	Blinking	Factory reset

Back View

Back View
*For external 3.4-5 GHz antennas supporting high sub-6 bands

Setting Up Your FX2000

Step One: Install the SIM Card

If you received the FX2000 from your service provider, the device manufacturer may have pre-installed the SIM card. Please inspect the SIM slot on the back of the device to confirm.
Setting Up - Install the SIM Card - Step 1

Use the included SIM tool to insert a Nano 4FF SIM card into the appropriate SIM slot on the back of the device.

warning NOTE: If necessary, remove the SIM from its protective sleeve, being careful not to touch the gold-colored contact points. Insert the SIM card notch first, with the contact points facing down.

This device supports only Nano SIM cards.

Step Two: Power on the FX2000

Plug the power cord into the router power port and plug the power adapter into an AC wall outlet.

Be sure to use the power adapter that came with your device to avoid damage that may void the warranty.

Step Three: Identify a Location for your FX2000

Scan the QR code to download the Inseego Mobile App

from AppStore

or Google Play

or visit https://inseego.com/inseego-connect-get-app to download the App.
Follow instructions within the Inseego Mobile App to connect to the FX2000 and perform a location survey to identify the ideal location for your FX2000.
NOTE: Make sure to place your FX2000 on a sturdy surface.

Connecting to a Wireless Device

To wirelessly connect a Wi-Fi-capable device (such as a PC, laptop, tablet, or phone) to your 5G Indoor Router for the first time:

Make sure the 5G Indoor Router is powered on and the indicator LED is blue or green.
On the device you want to connect to the Internet, open the Wi-Fi settings or application and in the displayed list of available networks, find the Primary Wi-Fi network name printed on the bottom of your 5G Indoor Router.
Click Connect or otherwise select the network name.
When prompted, enter the Primary Wi-Fi password printed on the bottom of the router.

You can change the default name or password to something easier to remember (see "Monitoring and Managing Your 5G Indoor Router").

Your Wi-Fi–capable device is now connected to the Internet.

Monitoring and Managing Your 5G Indoor Router

You can use multiple options to monitor and manage your 5G Indoor Router:

Inseego Mobile App - Use the same mobile app you used to install your FX2000 to perform basic device monitoring and management.

FX2000 Admin Web UI - Access the Web UI at http://192.168.1.1 for a full set of device management features.

Inseego Connect - Go to connect.inseego.com to sign up for a free Inseego Connect account, which provides the fullest experience for monitoring and managing FX2000 devices from virtually anywhere in the world with access to a web browser.

warning NOTE: The initial Admin Web UI and Wi-Fi passwords are printed on the label of your device. It is strongly recommended to change your passwords before using your 5G Indoor Router.

Restoring Factory Settings

To restore factory settings, follow these steps:

Verify that your 5G Indoor Router is powered on.
Locate the RESET opening on the back of your router.
Place the RESET end of the provided SIM tool (or one end of an unfolded paper clip) into the RESET opening and press down for approximately five seconds until the device resets.

warning NOTE: When performing the factory reset, any changes made to settings will be lost.

Inseego Mobile App Requirements

Smartphone or device on iOS 13 or above, or Android 9.0 or above.

System Requirements

Any device with Wi-Fi capability and an Internet browser. The FX2000 is compatible with all major operating systems and the latest versions of browsers.

Approved Firmware Versions

This device will only operate with firmware versions that have been approved for use by your service provider and the device manufacturer. If unauthorized firmware is placed on the device it will not function.

5G

Not all devices, signals, or uses are compatible; check device specifications. See your service provider's website for 5G coverage, access, and network management details.
