KODAK PIXPRO FZ55 / FZ55-BL / FZ55-RD Manual

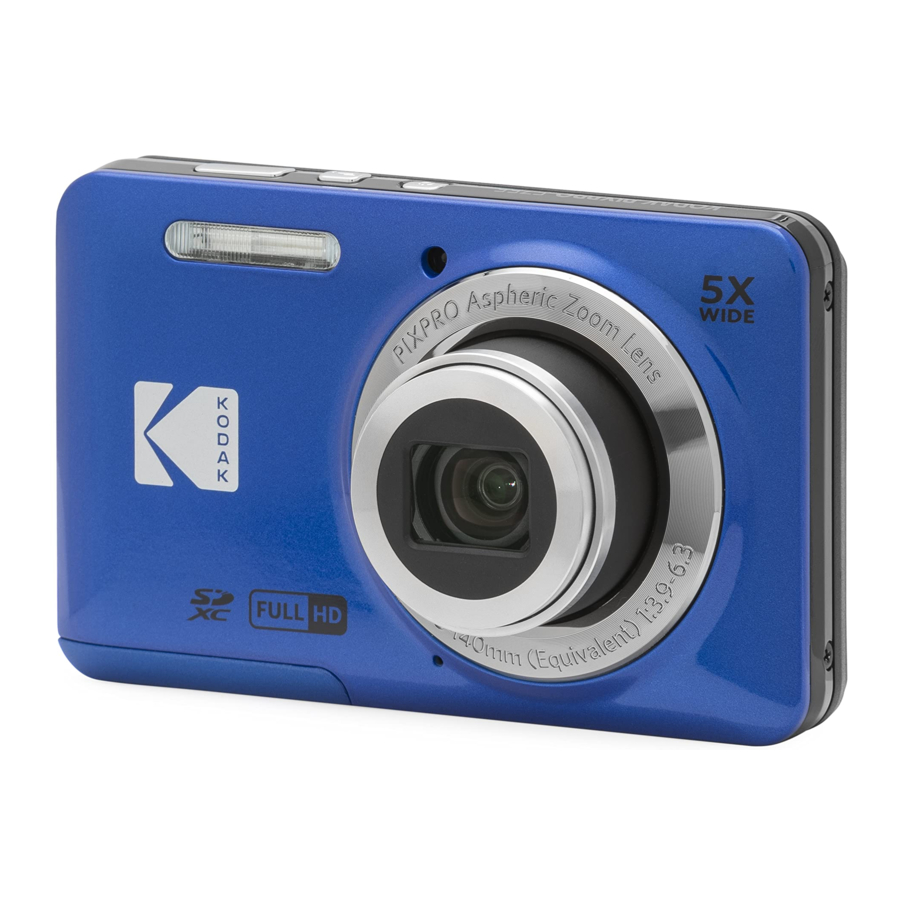

Camera Views

Camera Views

  1. Flash Lamp
  2. AF Assist Beam/Self-Timer Lamp
  3. Lens
  4. Tripod Socket
  5. Speaker
  6. Microphone
  7. Battery Cover
  8. LCD
  9. Power Button
  10. Fast Video Recording Button
  11. Shutter Button
  12. Zoom Button
  1. Indicator Lamp
  2. Micro USB Port
  3. Playback Button
  4. Strap Eyelet
  5. [ ] Display Button/Arrow Button (Up)
  6. [ ] Flash Button/Arrow Button (Right)
  7. [ ] Delete Button/Self-Timer Button/ Arrow Button (Down)
  8. [ ] Macro Button/Arrow Button (Left)
  9. SET Button
  10. Mode Button
  11. Menu Button

Inserting the Battery and the Memory Card

Inserting the Battery and the Memory Card

  1. Open the battery cover door as shown in step ① and ②.
  2. Insert the battery into the battery compartment.
  3. Insert the memory card into the memory slot.
  4. Close the battery cover door as shown in step ⑤ and ⑥.

Setting the Language/Date/Time

Setting the Language/Date/Time

  1. Press the power button to turn the camera on and the language menu will appear. Use the [ ]/[ ]/[ ]/[ ] buttons to select a language, and press the button to confirm the language.
  2. Use the [ ]/[ ]/[ ]/[ ] buttons again to set the date and time, and press the button to confirm.

Taking a Picture

Taking a Picture

  1. Hold the camera securely.
  2. Use the zoom button to select Tele or Wide position to zoom in or out on your subject.
  3. Press the shutter button half way to focus on the subject. When the focus frame turns green, press the shutter button completely down to take your photo.

Using the Fast Video Recording Button

In shooting mode, press the button to begin recording a video. After recording, press the button again to stop recording. The camera will store the video and return to the shooting screen.

Using the Mode Button

This camera provides a convenient mode button that allows you to manually switch among different camera settings with ease. Available modes are listed below:

Auto Mode Program AE
Manual Mode Movie Mode
Scene Mode Panorama Mode
Face Beautifier

Using the Menu Button

In each mode, press the button to access the "Easy Menu". Press the [ ]/[] buttons to move among options, then press the button to make a selection. Choosing the within this list will provide access to the "Full Menu":

Shooting Mode Playback Mode
Shoot Settings Playback Settings
General Settings General Settings
Connection Settings Connection Settings
File Settings File Settings
