Kodak Pixpro AZ421 Digital Camera Quick Start Guide

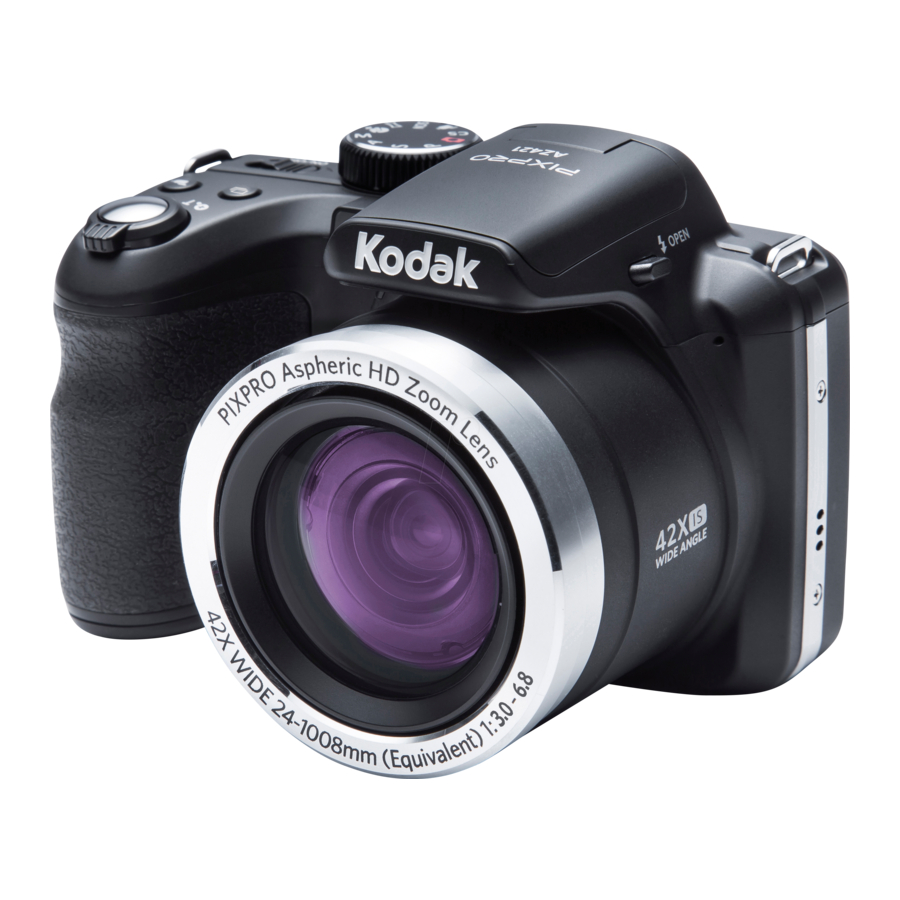

Camera Views

1	Zoom lever	16	Fast video recording button
2	Shutter button	17	Menu button
3	Strap eyelet	18	Micro USB port
4	Exposure compensation button	19	Micro HDMI port
5	Continuous shot button	20	AF button/Arrow button (Up)
6	Power switch	21	Flash button/Arrow button (Right)
7	AF assist beam/Self-timer lamp	22	Delete button/Self-timer button/ Arrow button (Down)
8	Mode dial	23	Display button
9	Flash lamp	24	Battery cover
10	Flash button	25	Playback button
11	Microphone	26	Tripod socket
12	Speaker	27	Macro button/Arrow button (Left)
13	Lens	28	SET button
14	i button	29	LCD
15	Indicator lamp

Inserting the Battery

Open the battery cover.
Correctly insert the battery into the slot as the diagram shows.
Close the battery cover.

Setting the Language/Date/Time

Push the power switch to turn on the camera and the language menu will appear. Use the Up/Down/Left/Right Button to select a language, and press the button to confirm the language.
Use the Up/Down/Left/Right Button again to set the date and time, and press the button to confirm.

Taking a Picture

Hold the camera securely.
Use the Zoom Lever to select Tele or Wide positions to zoom in or out on your subject.
Press the Shutter Button half way to focus on the subject. When the focus frame turns green, press the Shutter Button completely down to take the picture.

Using the Mode Dial

This camera provides a convenient mode dial that allows you to manually switch among different camera settings with ease. Available modes are listed below:

	Auto Mode		Face Beautifier
	Program AE		Panorama Mode
	Shutter Priority		Scene Mode
	Aperture Priority		Movie Mode
	Manual Mode		Custom Settings

Using the Fast Video Recording Button

In shooting mode, press the button to begin recording a video. After recording, press the button again to stop recording. The camera will store the video and return to the shooting screen.

In each mode, press the button to access the "Easy Menu". Press the buttons to move among options, then press the button to make a selection. Choosing the within this list will provide access to the "Full Menu":
