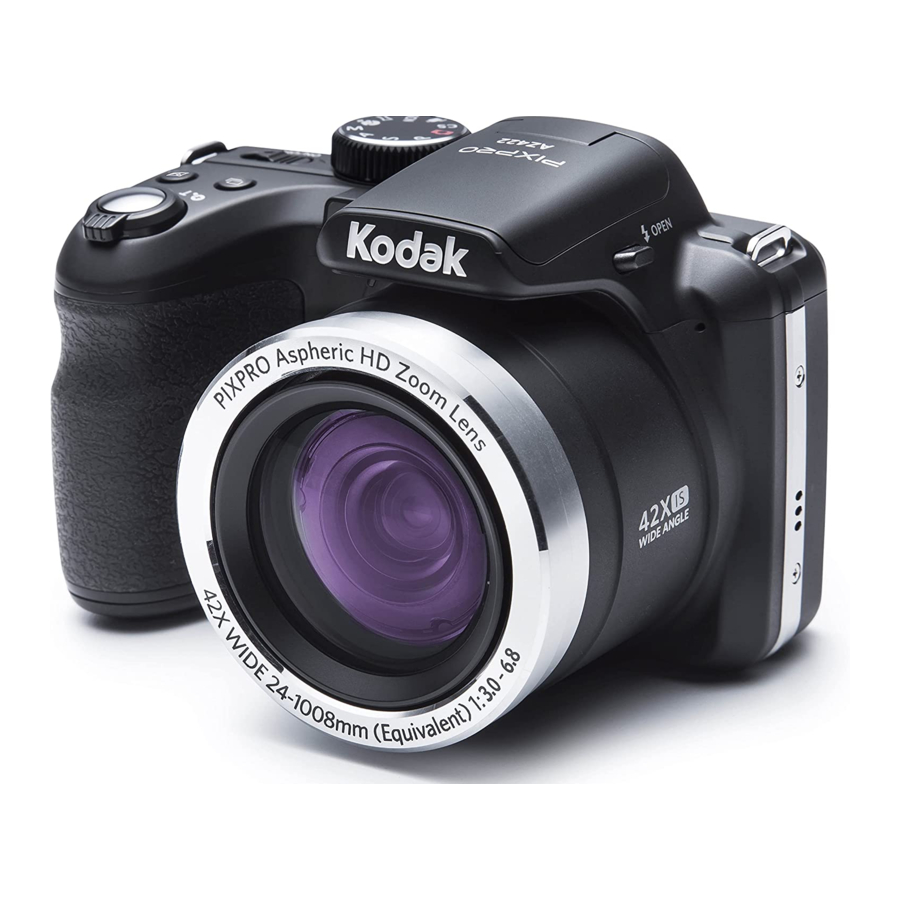

Kodak PIXPRO AZ422 - Digital Camera Quick Start Guide

Camera Views

1. Zoom Lever
2. Shutter Button
3. Strap Eyelet
4. Exposure Compensation Button
5. Continuous Shot Button
6. Power Switch
7. AF Assist Beam/Self- Timer Lamp
8. Mode Dial
9. Flash Lamp
10. Flash Button
11. Microphone
12. Speaker
13. Lens
14. "i" Button
15. Indicator Lamp
16. Fast video Recording Button
17. Menu Button
18. Micro USB Port
19. Micro HDMI Port
20. AF Button/Arrow Button (Up)
21. Flash Button/Arrow Button (Right)
22. Delete Button/Self-Timer Button/Arrow Button (Down)
23. Display Button
24. Battery Cover
25. Playback Button
26. Tripod Socket
27. MacroButton/Arrow Button (Left)
28. SET Button
29. LCD

Insert the Battery and the Memory Card

1. Open the battery cover door as show in step and .

2. Insert the battery into the battery compartment.

3. Insert the memory card into the slot.

4. Close the battery cover door as shown in step and .


Setting the Language/Date/Time

1. Push the power switch to turn on the camera and the language menu will appear. use the up/down/left/right buttons to select a language, and press the button to confirm the language.

2. Use the up/down/left/right buttons again to set the date and time, and press the button to confirm.


Taking a Picture

1. Hold the camera securely.
2. Use the zoom lever to select tele or wide positions to zoom in or out on your subject.
3. Press the shutter button half way to focus on the subject. when the focus frame turns green, press the shutter button completely down to take the picture.

Using the Mode Dial

This camera provides a convenient mode dial that allows you to manually switch among different camera settings with ease. Available modes are listed below:

	Auto Mode		Face Beautifier
	Program AE		Panorama Mode
	Shutter Priority		Scene Mode
	Aperture Priority		Movie Mode
	Manual Mode		Custom Settings

Using the Fast Video Recording Button

In shooting mode, press the button to begin recording a video. After recording, press the button again to stop recording. The camera will store the video and return to the shooting screen.

Using the Menu Button

In each mode, press the button to access the "Easy Menu". Press the [ ]/[ ] buttons to move among options, then press the button to make a selection. Choosing the within this list will provide access to the "Full Menu":

Shooting Mode
	Shoot Settings
	General Settings
	Connection Settings
	File Settings
Playback Mode
	Playback Settings
	General Settings
	Connection Settings
	File Settings

Videos
