Silverline 261362 Manual

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

	Wear hearing protection Wear eye protection Wear breathing protection Wear head protection
	Wear hand protection
	To reduce the risk of injury, user must read instruction manual
	Caution!
	Toxic fumes or gases!
	Class II construction (double insulated for additional protection)
	Conforms to relevant legislation and safety standards.
	Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Technical Abbreviations Key

Specification

Voltage:		230V~50Hz
Power:		110W
No load speed:		3100min-1
Pad diameter:		240mm
Ingress protection:		IP20
Electrical class:
Dimensions (L x W x H):		270 x 260 x 215mm
Weight:		2.1Kg
Power cord length:		2m
As part of our ongoing product development, specifications of Silverline products may alter without notice.
Sound and vibration information
Sound pressure L:		60dB(A) PA
Sound power L:		71dB(A) WA
Uncertainty K:		3dB(A)
Weighted vibration:		11.5m/s2
Uncertainty K:		1.5m/s2

The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.

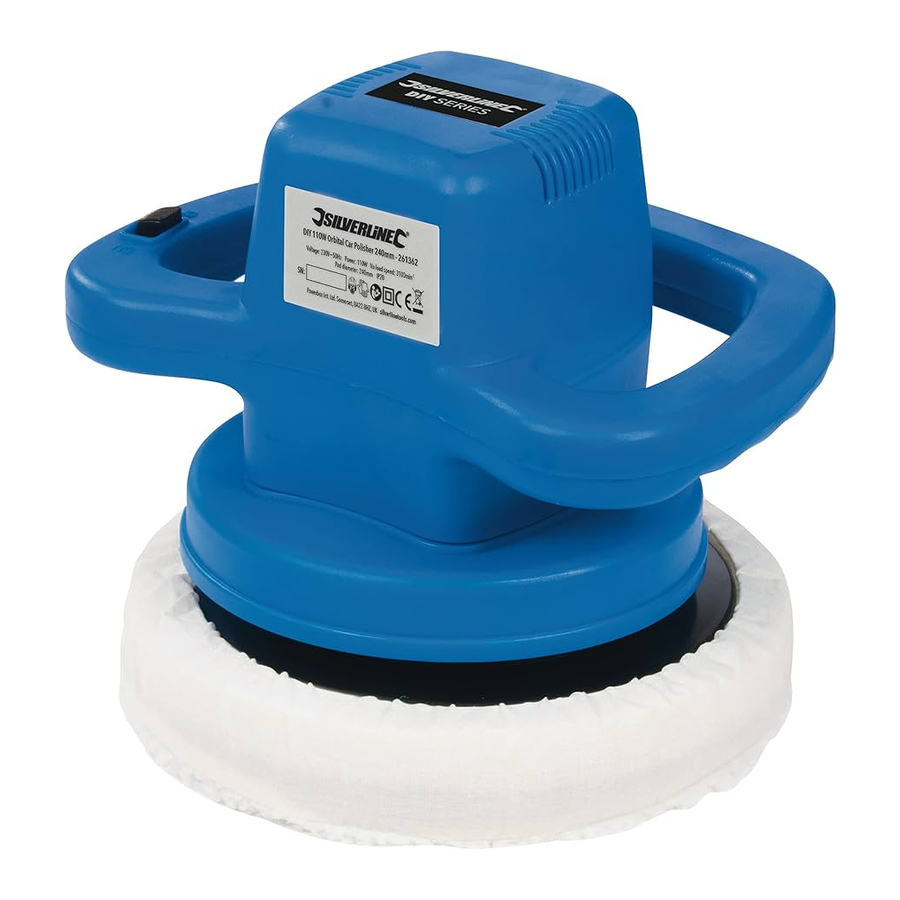

Product Familiarisation

1. ON/OFF Switch
2. Handles
3. Polishing Pad

Intended Use

Electrical orbital polishing tool for light to medium duty polishing tasks on vehicles of all kinds and other similar surfaces.
Not intended for commercial use.
The tool must ONLY be used for its intended purpose. Any use other than those mentioned in this manual will be considered a case of misuse. The operator, and not the manufacturer, shall be liable for any damage or injury resulting from such cases of misuse. The manufacturer shall not be liable for any modifications made to the tool, nor for any damage resulting from such modifications.

Unpacking Your Tool

• Carefully unpack and inspect your tool. Familiarise yourself with all its features and functions.
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool.

Before Use

Ensure the polisher is disconnected from the power supply before attaching or changing any accessories or making any adjustments.

Fitting a polishing bonnet

• Polishing bonnets can be fitted over the Polishing Pad (3).
• If using tie string type bonnets, ensure that tie strings are secure and will not snag on any part of the machine.

Operation

ALWAYS wear eye protection, adequate respiratory and hearing protection, as well as suitable gloves, when working with this tool.

Switching ON

1. Put on all safety equipment required to use this tool and connect the tool to the power source.
2. Grip the polisher by both hands, using both of the Handles (2).
3. Slide the ON/OFF Switch (1) into the 'ON' position.
4. To switch OFF the polisher, slide the switch to the 'OFF' position.

Polishing tips

• ALWAYS ensure that the area to be polished is clean and dry.
• Read and understand all information supplied with your polishing compound or paste before use.
• Apply polishing compound or paste to the polishing bonnet (follow manufacturers guidance), and place polishing bonnet against work surface.
• Hold the machine securely, using both hands, by the handles provided. The polishing bonnet should lightly contact the work surface.
• Start the machine, and work across the surface using a wide 'sweeping' motion. Apply extra compound or paste as required.
• When entire work surface is coated, stop the machine and allow compound or paste to dry (follow manufacturers guidance).
• Attach a clean polishing bonnet to the machine, and work across the surface as before until all polishing compound or paste is removed.

Accessories

• A wide range of accessories for this tool, including spare polishing bonnets and various polishing compounds, are available from your Silverline stockist.
  • • Spare parts are available from your Silverline stockist or www.toolsparesonline.com.

Maintenance

ALWAYS disconnect from the power supply before carrying out any inspection, maintenance or cleaning.

General inspection

• Regularly check that all the fixing screws are tight. They may vibrate loose over time.
• Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool.

Cleaning

• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the tools service life. Clean the body of your tool with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes.
• Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents.
• Never use caustic agents to clean plastic parts.

Brushes

• Over time the carbon brushes inside the motor may become worn.
• Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking.
• If you suspect that the brushes may be worn, have them replaced at an authorised Silverline service centre.

Storage

• Store this tool in a secure, dry location out of the reach of children.

Troubleshooting

General Power Tool Safety Warnings

Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.

The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used. There is the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure.
Sound levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa. eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.

When using electric power tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury including the following safety information. Read all these instructions before attempting to operate this product and save these instructions for future use.

This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery operated (cordless) power tool.

1. Work area safety
   1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
   2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
   3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
   1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
   2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
   3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
   4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
   5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
   6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
   7. When used in Australia or New Zealand, it is recommended that this tool is ALWAYS supplied via Residual Current Device (RCD) with a rated residual current of 30mA or less.
   8. Use proper extension cord. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Table A shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.

      Table A
      Ampere rating		Volts	Total length of cord in metres
      		120	7.5	15	30.5	46
      		240	15	30.5	61	92
      More than	Not more than	Minimum gauge for cord
      0	6		18	16	16	14
      6	10		18	16	14	12
      10	12		16	16	14	12
      12	16		14	12	Not recommended

3. Personal safety
   1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
   2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
   3. Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch ON invites accidents.
   4. Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
   5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
   6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
   7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
   8. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
   1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
   2. Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
   3. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
   4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
   5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
   6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
   7. Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
   8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
   1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Polisher Safety

• Do not use this polisher as an angle grinder.
• Always read and understand all information supplied with polishing pastes before use.
• Do not smoke, eat, or drink when using this polisher.
• Never attach any accessory with a maximum speed lower than the no load speed of the machine.
