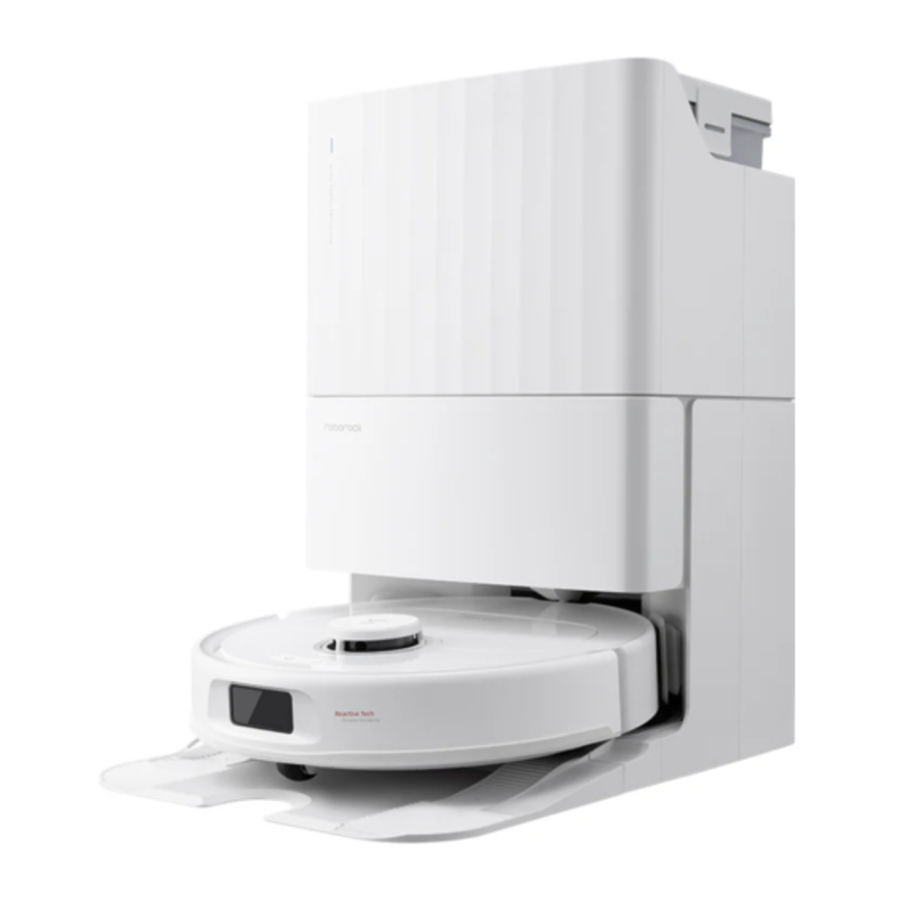

Roborock Qrevo Plus (QR2PSL) - Vacuum Cleaner Manual

Product Overview

1. Robot (Top View) (A1)

   - Power/Clean
   • Press and hold to turn the robot on or off
   • Press to start cleaning

- Power Indicator Light

• White: Battery level ≥ 15%
• Red: Battery level < 15%
• Breathing: Charging or starting up
• Flashing red: Error

- Dock

• Press to return to dock/start emptying
• Press and hold to start spot cleaning/ mop washing

Note: Press any button to stop the robot during cleaning or docking.

1. Dock Locator
2. Reactive Tech Obstacle Avoidance Sensor

2. Robot (Bottom View) (A2)

   1. Wall Sensor
   2. Omnidirectional Wheel
   3. Carpet Sensor
   4. Side Brush
   5. Main Wheel
   6. Main Brush
   7. Main Brush Cover Latches
   8. Mop Cloths
   9. Cliff Sensors
3. Robot (Top Cover Open) (A3)

   1. Vertical Bumper
   2. LiDAR Sensor
   3. WiFi Indicator Light
      • Off: WiFi disabled/Charging
      • Flashing slowly: Waiting for connection
      • Flashing quickly: Connecting
      • Steady: WiFi connected
   4. Reset Button
   5. Dustbin
   6. Charging Contacts
   7. Communication Sensor
   8. Air Outlets
   9. Positioning Button
   10. Self-Filling Port
   11. Automatic Lift and Rotate Mop Modules
   12. Suction Inlet
   13. Bumper
4. Mop Cloth Mount (A4)

   Note: Secure the mop cloths flat in place.
   1. Hook and Loop Pads
   2. Mop Axle
5. Mop Cloth (A5)

6. Dustbin (A6)

   1. Dustbin Latch
   2. Air Inlet
   3. Washable Filter
   4. Suction Inlet
7. Dock Base (A7)

8. Power Cord (A8)

9. Disposable Dust Bag (A9)

10. Empty Wash Fill Dock (A10)

    1. Water Tank Handle
    2. Water Tank Latch
    3. Dirty Water Tank
    4. Dust Container Cover
    5. Charging Contacts
    6. Robot Refill Port
    7. Suction Inlet
    8. Clean Water Tank
    9. Status Indicator Light
       • Breathing: Emptying/Mop washing
       • Red: Dock error
       • Off: Powered off/Charging
    10. Drain Port
    11. Drying Air Outlets
    12. Dock Base
    13. Filter
    14. Dust Bag Slot
    15. Dock Location Beacon
    16. Clean Water Dispensers
    17. Water Level Float
    18. Cleaning Tank Filter
    19. Cleaning Tank
11. Power Cord Storage (A11)

    1. Cord Outlets
    2. Power Port
    3. Cord Storage Slot

Installation

Important Information

See B1

1. Tidy cords, hard or sharp objects (such as nails and glass), and loose items from the ground and move any unstable, fragile, precious, or dangerous items to prevent personal injury or property damage due to items becoming tangled in, struck by, or knocked over by the robot.
2. When using the robot in a raised area, always use a physical security barrier to prevent accidental falls that may result in personal injury or property damage.

Note: When using the robot for the first time, follow it throughout its whole cleaning route and watch for potential problems. The robot will be able to clean by itself in future uses.

Assembly

See B2

1. Place the dock on a hard, flat floor (wood/tile/concrete etc.), flat against a wall. Attach the base by pressing down both sides of the base firmly, and then pressing the connecting part in the middle until you hear a click.
2. Click
   Note: When moving the dock, secure the water tanks to prevent it from falling off.
3. Connect the power cord to the back of the dock, and keep the excess cord inside the storage slot.
   Note: Power cord can exit at either side.
4. Align and install the mop axles into the robot in place until you hear a click.
5. Click

Positioning the Dock

See B3

Reserve a space of about 0.9 m (2.9 ft) in height, 0.4 m (1.3 ft) in length and 1.2 m (3.9 ft) in width. Make sure that the location has good WiFi access for a better experience with the mobile app. Plug in and make sure that the status indicator light is on.

1. About 0.9 m (2.9 ft)
2. About 0.4 m (1.3 ft)
3. About 1.2 m (3.9 ft)

Notes:

• If the power cord hangs vertically to the ground, it may be caught by the robot, causing the dock to be moved or disconnected.
• The dock status indicator light is on when the dock is powered on, and off when the robot is charging.
• The dock status indicator light turns red if an error occurs.
• Place the dock on a flat floor away from fire, heat, and water. Avoid narrow spaces or locations where the robot may be suspended in the air.
• Placing the dock on a soft surface (carpet/mat) may cause the dock to tilt and cause docking and departing problems.
• Keep the dock away from direct sunlight or anything that may block the dock location beacon, otherwise the robot may fail to return to the dock.
• Do not use the dock without clean water tank, dirty water tank, dust container cover, disposable dust bag, or cleaning tank.
• Maintain the dock according to the Routine Maintenance. Do not clean the dock power cord and charging contacts with a wet cloth or tissue.
• All docks are subject to water-based tests before leaving the factory. It is normal that a small amount of water remains in the waterway of the dock.

Powering On & Charging

See B4

Press and hold the button to power on the robot. Wait until the power light is steady, and then place the robot in front of the dock. Make sure the dock is plugged in. Then, press the button on the robot and the robot will automatically return to the dock for charging. The robot is equipped with a built-in highperformance lithium-ion rechargeable battery pack. To maintain battery performance, keep the robot charged.

1. Dock status indicator light off, robot power indicator light breathing: Charging

Note: The robot may not be turned on when the battery is low. In this case, place the robot to the dock for charging.

Connecting to the App

Download the App

Search for "Roborock" in the App Store or Google Play or scan the QR code to download and install the app.

Reset WiFi

1. Open the top cover and find the WiFi indicator light.
2. Press and hold the and buttons until you hear the "Resetting WiFi" voice message. Wait for the WiFi indicator light to flash slowly. The robot will then wait for a connection.

Note: If you cannot connect to the robot due to your router configuration, a forgotten password, or any other reason, reset the WiFi and add your robot as a new device.

Add Device

Open the Roborock app, tap the "Scan to Connect" or "Search for Device" button and add your device following the in-app guide.

Notes:

• The actual process may vary due to ongoing app updates.
  Follow the guide provided in the app.
• Only 2.4 GHz WiFi is supported.
• If the robot waits more than 30 minutes for a connection, WiFi will be automatically disabled. If you want to reconnect, reset the WiFi before proceeding.

Instructions for Use

Turning On/Off

Press and hold the button to turn on the robot. The power indicator light will come on, and the robot will be on standby. Press and hold the button to turn off the robot and complete the cleaning cycle.

Note: The robot cannot be turned off when it is being charged.

Filling the Water Tank

See C1

Lift the clean water tank, open its lid, and then fill it with tap water to MAX. After filling, close the lid, lock the latch, and then fit the tank back in place.

Notes:

• To prevent corrosion or damage, do not use any disinfectant and only use cleaning solution recommended by Roborock.
• Do not add too much cleaning solution to prevent the robot from working improperly due to slipping.
• To avoid water tank deformation, only use cold water.
• If any water stains remain on the outside of the water tank, wipe them with a soft, dry cloth before reinstalling the tank.

Starting Cleaning

See C2

Press the button to start cleaning. The robot will plan its cleaning route and in each room, it firstly draws out zone edges and then fills the room in a zigzag pattern. In so doing, the robot cleans all rooms one by one, thoroughly and efficiently.

1. Zone 1 – Cleaned.
2. Zone 2 – Cleaned.
3. Zone 3 – In Progress.
4. Zone 4 – Next Zone.

Notes:

• To make sure the robot returns to the dock automatically, start the robot from the dock and do not move the dock during cleaning.
• Cleaning cannot start if the battery level is too low.
  Allow the robot to charge before starting a cleanup.
• Before cleaning, tidy cords (including the power cord of the dock) and valuables from the floor. Loose items may be dragged by the robot, resulting in the disconnection of electrical appliances or damage of cords and property.
• If cleaning is completed in less than 10 minutes, the area will be cleaned twice.
• If the battery runs low during a cleaning cycle, the robot will automatically return to the dock. After charging, the robot will resume where it left off.
• The robot will retract mop cloth mounts to clean the carpet. You can also set the carpet as a no-go zone in the app to avoid it.
• Before starting each cleaning task, make sure that the mop cloths have been properly installed.

Spot Cleaning

Press and hold the button to start spot cleaning.
Cleaning range: The robot cleans a 1.5 m (4.9 ft) × 1.5 m (4.9 ft) square area centered on itself.

Note: After spot cleaning, the robot will automatically return to the starting point and be on standby.

Pause

When the robot is running, press any button to pause it, press the button to resume cleaning, and press the button to send it back to the dock for charging.

Note: Placing a paused robot on the dock manually will end the current cleanup.

Sleep

If the robot is paused for over 10 minutes, it will go to sleep, and the power indicator light will flash every few seconds. Press any button to wake the robot up.

Notes:

• The robot will not go to sleep when it is charging.
• The robot will automatically shut down if left sleep for more than 12 hours.

DND Mode

The default Do Not Disturb (DND) period is from 22:00 to 08:00. You can use the app to disable the DND mode or modify the DND period. When DND is on, the robot will not automatically resume cleaning, the power indicator light will dim, and the volume of voice messages will lower.

Mop Washing

During cleaning, the robot automatically determines when it should return to the dock for mop washing and water tank refilling to maximize its mopping performance. To manually start washing, tap the corresponding button in the app. Press any button to stop washing.

Notes:

• To make sure the robot to wash the mop cloths automatically, start the robot from the dock and do not move the dock during cleaning.
• Mop wash frequency and mode can be modified in the app.

Emptying

After cleaning, the robot will return to the dock and auto-emptying will begin as needed. To manually start emptying, press the button on the docked robot or tap the corresponding button in the app. Press any button to stop emptying.

Notes:

• When emptying has been left unused for a long period, empty the dustbin manually and make sure the air inlet is clear for optimal emptying performance.
• Auto-emptying can be disabled in the app.
• Avoid frequent manual emptying.

Drying

Drying starts automatically after mop washing or after cleaning is completed. To manually start or stop drying, tap the corresponding button in the app.

Notes:

• Drying duration can be modified in the app.
• Auto-drying can be disabled in the app.

Charging

After cleaning, the robot will automatically return to the dock to charge. Press to send the paused robot back to the dock.
The power indicator light will breathe during robot charging.

Note: If the robot fails to find the dock, it will automatically return to its starting position. Place the robot on the dock manually to recharge.

Error

If an error occurs, the power indicator light on the robot will flash red or status indicator light on the dock will be steady red. A popup notification will appear in the app and a voice alert may sound.

Notes:

• The robot will go to sleep automatically if left in a malfunctioning state for over 10 minutes.
• Placing a malfunctioning robot on the dock manually will end the current cleanup.

Resetting the System

If the robot does not respond when a button is pressed or cannot be turned off, reset the system by pressing the Reset button.

Note: After resetting the system, existing settings such as scheduled cleaning and WiFi will be restored to factory settings.

Restoring Factory Settings

If the robot does not function properly after a system reset, switch it on. Press and hold the button and at the same time, press the Reset button until you hear the "Restoring factory settings. This will take about 5 minutes" voice message. The robot will then be restored to factory settings.

Routine Maintenance

Note: The frequency of replacement may vary with the actual situation. If abnormal wear occurs, replace the parts immediately.

Main Brush

See D1
* Clean every 2 weeks and replace every 6-12 months.

1. Main Brush Cover
2. Main Brush Cover Latches
3. Main Brush
4. Main Brush Caps
5. Main Brush Bearing
6. Turn over the robot and press the main brush cover latches to remove the main brush cover.
7. Remove the main brush and pull out the main brush bearing. Rotate the main brush caps in the direction of the arrow as shown to remove the caps, and remove any entangled hair or dirt at both ends of the main brush.
8. Reinstall the main brush.
9. Reinstall the main brush cover. Make sure its four teeth are fully seated in the slots, and press the main brush cover latches until you hear it lock with a click.

Notes:

• Main brush should be wiped down with a wet cloth. If the main brush is wet, air-dry it away from direct sunlight.
• Do not use corrosive cleaning fluids or disinfectants to clean the main brush.

Side Brush

See D2

* Clean monthly and replace every 3-6 months.
Unscrew the side brush screw. Remove and clean the side brush. Reinstall the brush and tighten the screw.

Omnidirectional Wheel

See D3

* Clean as required.

1. Use a tool, such as a small screwdriver, to pry out the axle and take out the wheel.
   Note: The omnidirectional wheel bracket cannot be removed.
2. Rinse the wheel and the axle with water to remove any hair and dirt. Air-dry, reinstall, and press the wheel and axle back in place.

Main Wheels

See D4

* Clean as required.
Clean the main wheels with a soft, dry cloth.

Dustbin

See D5

* Clean as required.

1. Open the top cover of the robot and press the dustbin latch to take out the dustbin.
2. Remove the washable filter and empty the dustbin.
3. Fill the dustbin with clean water and reinstall the washable filter. Gently shake the dustbin, and then pour out the dirty water.
   Note: To prevent blockage, only use clean water without any cleaning liquid.
4. Leave the dustbin and washable filter to dry.

Washable Filter

See D6

* Clean every 2 weeks and replace every 6-12 months.

1. Remove the filter.
2. Rinse the filter repeatedly and tap it to remove as much dirt as possible.
   Note:Do not touch the surface of the filter with hands, brushes, or hard objects to avoid potential damage.
3. Allow at least 24 hours for the filter to dry thoroughly and reinstall it.

Mop Cloths

See D7

* Clean as required and replace every 1-3 months.

1. Remove the mop cloths from the mop cloth mounts. Clean the mop cloths and air-dry them.
   Note: A dirty mop cloth will affect the mopping performance. Clean it before use.
2. Stick the mop cloths on the mounts flat in place.

Unit Sensors

See D8
* Clean as required.
Use a soft, dry cloth to wipe and clean all sensors, including:

1. Dock Locator
2. Reactive Tech Obstacle Avoidance Sensor
3. Wall Sensor
4. Communication Sensor
5. Carpet Sensor
6. Four Cliff Sensors

Moving Dock

See D9

To move the dock, grip the cord storage slot on the back with one hand and the inner side of the front board with the other hand. Do not move the dock by lifting the dock base, water tank handles or dust container cover directly to prevent the dock from falling off.

Dirty Water Tank

See D10

* Clean as required.
Open the dirty water tank lid and pour out the dirty water. Fill the tank with clean water, close the lid, and shake. Pour out the dirty water. Lock the lid and reinstall the tank.

Notes:

• To avoid deformation, only use cold water.
• If any water stains remain on the outside of the water tank, wipe them with a soft, dry cloth before reinstalling the tank.

Charging Contacts

See D11

* Clean as required.
Use a soft, dry cloth to wipe the charging contacts on the robot and the dock.

Replacing Disposable Dust Bag

See D12

* Replace as required.

1. Remove the dust container cover.
2. Remove the disposable dust bag in the direction of the arrow as shown and discard it.

Notes:

• The dust bag handle seals the bag on removal to prevent leakage.
• Always install a dust bag before reinstalling the dust container cover to avoid auto-emptying without the bag. You can also disable auto-emptying in the app.

3. Clean around the filter with a dry cloth. Install a new disposable dust bag in place along the slot and unfold the dust bag to maximize emptying performance.
   Note: Make sure the disposable dust bag is properly installed to avoid waste escaping and damaging the dock.
4. Reinstall the dust container cover in place and make sure the dust container is securely sealed.

Cleaning Tank

See D13

* Clean as required.

1. Remove the cleaning tank.
2. Remove the filter from the cleaning tank and then rinse them with water.
3. Reinstall the filter and the cleaning tank.

Basic Parameters

Robot
Model	QR2PSL
Battery	14.4 V/5200 mAh (TYP) lithium-ion battery
Rated Input	20 VDC 1.5 A
Charging Time	Approx. 4 hours
Note: The serial number is on a sticker on the underside of the robot.
Empty Wash Fill Dock
Model	EWFD24HRR
Rated Input Voltage	220-240 VAC
Rated Frequency	50-60 Hz
Rated Input (Dust collection)	3 A
Rated Input (Non-dust collection)	0.6 A
Rated Output	20 VDC 1.5 A

Common Issues

Issue	Solution
Unable to power on.	Battery low. Put the robot on the charging dock and charge it before use. Battery temperature too low or too high. Only use the robot within the range of 4-40°C (39-104°F).
Unable to charge.	Dock not connected to power. Check whether both ends of the power cord are properly connected. Poor contact. Clean the charging contacts of the dock and the robot. Confirm that the dock indicator light is on.
Slow charging.	When used at high or low temperatures, the robot will automatically reduce its charging speed to extend battery life. Charging contacts dirty. Wipe them with a dry cloth.
Unable to return to dock.	Too many obstacles near the dock. Move it to an open area. Robot too far from the dock. Place the robot closer and retry. The dock locator may be dirty. Wipe it with a dry cloth.
Noise during cleaning.	The main brush, side brush, or main wheels may be jammed. Turn off the robot and clean them. The omnidirectional wheel may be jammed. Use a screwdriver to remove it for cleaning.
Unable to connect to WiFi.	WiFi disabled. Reset the WiFi and try again. Poor WiFi signal. Move the robot to an area with good WiFi reception. Abnormal WiFi connection. Reset the WiFi, download the latest mobile app and retry. Unable to connect to WiFi abruptly. There may be an error with your router settings. Contact Roborock Customer Service for help with troubleshooting.
Is power always being drawn when the robot is on the dock?	The robot will draw power while it is docked to maintain battery performance, but the power consumption is extremely low.
Does the robot need to be charged for at least 16 hours for the first three uses?	No. Lithium-ion batteries have no memory effect. The robot can be used once fully charged.
The robot does not resume cleaning after recharging	Make sure that the robot is not in DND mode. DND mode will prevent auto top-up. If the robot is placed manually on the dock or sent to dock by pressing buttons, it will not be able to resume cleaning.
The robot suddenly misses a certain spot.	The wall sensor, cliff sensors, or carpet sensor may be dirty. Clean them with a soft, dry cloth.
Scheduled cleaning is not working.	Keep the robot charged. Scheduled cleaning begins only when the battery level is above 15%.
The status indicator light is steady red.	Voltage error. Check that the local voltage meets the requirements listed on the dock. Check clean water tank placement or refill the tank as required. Check dirty water tank placement or empty the tank as required. Check that the cleaning tank and cleaning tank filter are correctly installed.
Reduced emptying performance or unusual noise when emptying.	The main brush or main brush cover is not properly installed. Check and install in place. The filter, air duct, suction inlet, air inlet, dustbin or dust bag is blocked. Clean to remove blockages.
Reduced mop washing performance.	The mop cloths are not attached properly. Stick them on the mounts flat in place. The floor is dirty. Change the mop washing mode in the app for better cleaning.
Unable to start auto-drying.	Auto-drying is disabled. Check in-app settings. Auto-drying starts only after mopping or mop washing.
Unable to auto-empty.	Auto-emptying is disabled. Check in-app settings. Dock dust container cover is not installed. Check and install. Auto-emptying will not be triggered if the robot returns to the dock without cleaning. The robot will not auto-empty after returning to the dock in DND mode. Adjust cleaning time or DND period, or start emptying manually.
Unable to wash the mop cloths.	The mop cloths will not be washed if not used. If the robot does not start from the dock or no dock is found on the app map, it will not return to the dock for mop washing. Check clean water tank placement or refill the tank as required. Check dirty water tank placement or empty the tank as required. Check that the cleaning tank and cleaning tank filter are correctly installed.
Unable to extend the mop cloth.	Check that the FlexiArm Design Extend Mopping feature is enabled in the app. The mop cloth will only extend along walls and certain obstacles. Check if the mop extension structure is stuck.

Safety Information

Restrictions

• For the purposes of recharging the battery, only use the detachable docking station roborock EWFD24HRR or EWFD25HRR provided with this product.
• The product must be switched off and the plug must be removed from socket outlet before cleaning or maintaining the product.
• In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• The docking station can only be used to charge the robotic vacuum cleaner equipped with a 14.4 V/5200 mAh (TYP) lithium-ion battery.

• Do not rinse the robot and the dock.
• Only use the product in accordance with the User Manual. Any loss or damage caused by improper use will be borne by the user.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Make sure dustbin, washable filter, dust bag, side brush, mop cloths, main brush and main brush cover are installed in place before cleaning.
• Do not use the product to clean hard or sharp objects (such as decoration wastes, glass, and nails) to avoid scratching the robot, the dock or the floor.
• Do not sit or stand on the robot or dock.
• To prevent corrosion or damage, do not use any disinfectant and only use cleaning solution recommended by Roborock.
• Do not put any low objects (such as shoes, mats) near raised areas like stairs. Otherwise, the robot may fall down caused by malfunctional sensors.
• To prevent water damage, make sure that the floor where the robot operates is free of water.
• Do not use this product on elevated surfaces without barriers such as the floor of a loft, an open-ended terrace, a slide, or top of furniture.
• Keep hair, loose clothing, fingers, and all body parts of people and pets away from seams, openings and moving parts of the product to avoid possible injury.
• Do not operate the product in a room where an infant or child is sleeping.
• Do not carry the robot using vertical bumper, top cover, side brush or bumper. Do not move the dock by lifting the dock base, water tank handles or dust container cover.
• Do not use the dock to pick up stones, paper scraps, or other objects that may block the air duct.
• Do not use the robot or dock to vacuum any burning or smoking items such as cigarettes, matches, hot ashes, or any flammable or explosive items such as lighters, gasoline, or toner used in printers or copiers.
• Place the dock on a hard, flat floor. Keep the dock, robot, and power cord away from fire and heat sources like a heating radiator. Avoid humid and narrow spaces or locations where the robot may be suspended in the air.
• Do not place any object on top of the robot or dock, near the suction inlet of the dock, or cover them with any item (including dust-proof cover).
• Do not use without dust bag.
• Do not operate the product if it has been damaged in any way. Contact customer service for help.
• Always operate the device in well-ventilated areas to prevent overheating.
• Roborock disclaims all liability for indirect, incidental, or consequential damages resulting from the use, misuse, or inability to use this product. This disclaimer does not affect any statutory rights that may not be disclaimed under applicable law.

Battery and Charging

• Be sure that the supply voltage meets the requirements listed on the dock.
• To prevent potential smoke, heat, or fire, only use the battery, charger, power cord, dock, and other accessories provided with the product.
• Do not use the product with any type of power adapter, as this may cause danger and void the warranty.
• Do not discard waste batteries. Leave them with a professional recycling organization.
• If the dock is placed in an area susceptible to thunderstorms or with unstable voltage, take protection measures.
• If the product is left unused for a long period, store it in a cool, dry place after having it fully charged, unplugged, and switched off. Recharge it at least every three months to avoid battery overdischarge.
• To transport the product, be sure to unplug the dock, switch off the robot, and drain the dock / empty water tanks. Use of the original packaging is advised.

Documents / Resources

References

• App Store - Apple
• Google Play

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Roborock Qrevo Plus (QR2PSL) - Vacuum Cleaner Manual
