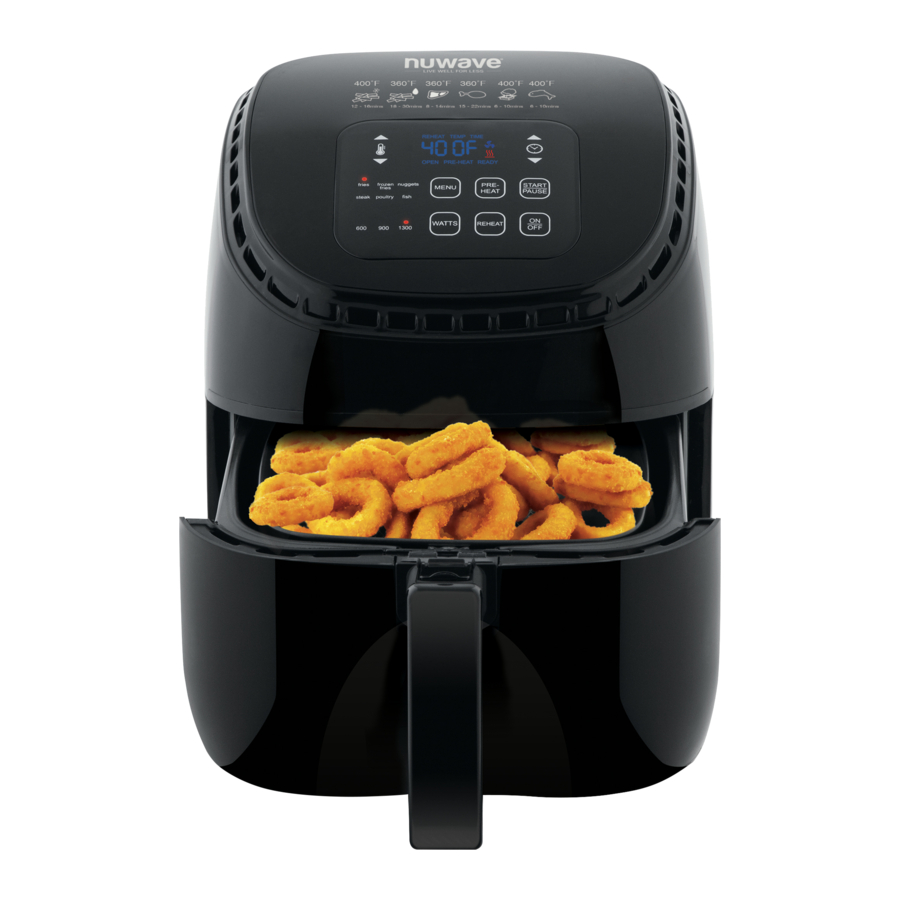

NuWave Brio 3Q, Brio 3-Qt Manual

GUIDE

The following guide indicates the amount of time, temperature, and weight for the various food types that are listed below.

Note: Actual cooking times may vary depending on the size and shape of the ingredients used. Listed cooking times should be used as a guide. Adjust the settings as necessary to suit your needs. According to the FDA, the safe internal temperature is 165°F for poultry and 160°F for pork.

PARTS DESCRIPTION

1. Air Fryer Power Base Part #: 36231
2. Base Tray Part #: 36232
3. Fry Pan Basket Part #: 36233
4. Fry Pan Basket Net Part #: 36204

5. Baking Pan* Part #: 36207
6. Silicone Mat* Part #: 36208
7. Silicone Cup Cake Liners* Part #: 36209 (10 Pack)
8. Reversible Rack* Part #: 36206

OPERATING INSTRUCTIONS

Before Use:

1. Remove all the packaging materials.
2. Remove the glue and labels on the appliance.
3. Clean the Fry Pan Basket, Base Tray, thoroughly with hot water, a nonabrasive sponge and a mild dish detergent, or in the dishwasher, top rack only.
4. Wipe the inside and outside of the appliance with a wet cloth. Do not immerse the appliance in water.
5. The NuWave Brio 3Q Digital Air Fryer comes with a special housing underneath for easy and convenient chord storage. You will see a portion sticking out and the rest of chord neatly wound in the housing.
   Note: This appliance cooks using hot air. DO NOT fill the basket with oil.

Operation Preparation:

1. Place the appliance on a level, even, and stable heat-resistant surface.
2. Place the Base Tray and Fry Pan Basket in the NuWave Brio 3Q Digital Air Fryer
3. Plug the appliance into a standard wall socket.
   Note: Do not cover or block the vent located on the back of the NuWave Brio 3Q Digital Air Fryer. Doing so can prevent proper ventilation and will adversely affect the cooking results.

Operation Functions - On/Off Function:
Press "On/Off" button once to turn the unit on. The control panel should display "0" indicating that no cooking time or temperature has been selected and the unit is powered on. Press "On/Off" button again to turn the unit off.

Start Function:
Press "Start" button once to begin cooking, ":15" will be displayed as well as a fan icon, and the NuWave Brio 3Q Digital Air Fryer will start to countdown. The default is 360˚F for 15 minutes.

Pause/Clear Function:

• To interrupt the cooking or preheating process, press the "Pause/Clear" button once. "5" will be flashing on the display indicating a 5-minute countdown. If no other actions are taken during this countdown, "0" will be shown on the display. To resume after the unit has been paused, press the "Start" button once.
• To clear the programmed cooking time and temperature, press the "Pause/Clear" button a second time. This will erase the current cooking functions. "0" will be shown on the display.

Menu Selection:
Press "Menu", the red light above fries will illuminate and "25" will be displayed. Press "Start" to begin cooking, the countdown will begin. To choose a different food from below, before you press "Start", simply press "Menu" to select the food. See chart below for pre-programmed "Menu" selections. To get out of the menu selection, press menu again until the red light above the food type is no longer lit. If using the Pre-Heat function, press "Pre-Heat" before "Menu" to ensure proper temperature. All menu selections default to 1300 watts.

Food Type	Time (minutes)	Temp	Food Amount (ounces)
Fries (Homemade Thick cut)	25	360˚F	12
Frozen Fries (Medium cut)	15	400˚F	16
Chicken Nuggets	8	400˚F	8
Steak (½" ribeye)	12	360˚F	8 oz each
Poultry (Chicken breast)	12	360˚F	8 oz each
Fish (Frozen Fish Sticks)	8	400˚F	8

Pre-Heat Function:
The "Pre-Heat" function ensures that the NuWave 3Q Brio Digital Air Fryer reaches the desired temperature before you begin cooking your food. The "PreHeat" function is the perfect choice for foods that require a crispier finish, such as frozen appetizers, French fries, or chicken wings.
Press the "Pre-Heat" button. The control panel will display "Pre-Heat". Press the arrows above the temperature and time icons before pressing "Start". The default temperature is set to 360ºF. If needed, you can manually adjust the cooking temperature and time by pressing the arrows above and below the temperature and time icon.
Once the NuWave 3Q Brio Digital Air Fryer reaches the set temperature, the control panel will display "Ready" and the NuWave 3Q Brio Digital Air Fryer will beep once. The NuWave 3Q Brio Digital Air Fryer will start a countdown of 5 minutes and the number "5" will start flashing. It will remain at this temperature for up to 5 minutes, or until you remove the Fry Pan Basket, whichever comes first. Once the food has been added to the Fry Pan Basket, insert the Fry Pan Basket back in place. This will start the countdown on the set cooking time.
Note: If you remove the Fry Pan Basket at any point during the preheating stage, the NuWave 3Q Brio Digital Air Fryer will automatically pause, start a countdown of 5 minutes until you replace the Fry Pan Basket. If you cook another batch of food shortly after cooking in the NuWave Brio 3Q Digital Air Fryer, you do not need to use the "Pre-Heat" Function as the NuWave 3Q Brio Digital Air Fryer will already be hot. If you wish to cook your food longer, simply place the Base Tray and Fry Pan Basket back into the appliance and continue cooking in 2-3 minute increments until desired consistency has been reached.

Adjusting Temperature:
The NuWave 3Q Brio Digital Air Fryer is set to cook at 360°F by default. To set a different cooking temperature, press the arrows above and below Temp icon. The display will show "360F". "Temp" will be flashing. To adjust the temperature, continue to press the "Up" and "Down" arrows. You can adjust your temperature in 5-degree increments between 100˚F and 400˚F.
To quickly adjust the temperature in large increments, simply hold down the "Up" or "Down" arrow to adjust the temperature by 50-degree increments. You can change the cooking temperature at any point during the cooking process. Press the arrows above and below the Temp icon. Programed temperature will be displayed. "Temp" will be flashing. Press the "Up" or "Down" arrow until you reach your desired temperature.
Once your temperature has been selected, the NuWave 3Q Brio Digital Air Fryer will automatically adjust to the new temperature and the display will show the remaining cooking time. If no new temperature has been selected within 3 seconds, the NuWave Brio Digital Air Fryer display will once again show the remaining cooking time.

Adjusting Time:
The NuWave 3Q Brio Digital Air Fryer is set to cook for 15 minutes by default. To set a different cooking time, press the up and down arrows above and below the Time icon. The display will show "15". "Time" will be flashing. To adjust the time, continue to press the "Up" and "Down" arrows. You can adjust your cooking time in 1 minute increments.
To quickly adjust the time in large increments, simply hold down the "Up" or "Down" arrow to adjust the time by 10-minute increments, followed by 20-minute increments, followed by 30-minute increments. The minimum selectable cooking time is 1 minute. The maximum selectable cooking time differs depending on the selected cooking temperature.

• 100˚F – 345˚F maximum cooking time is 99:59 hours
• 350˚F – 400˚F maximum cooking time is 1 hour

You can change the cooking time at any point during the cooking process. Press the up and down arrows above and below the Time icon. The remaining cooking time will be displayed. Press the "Up" or "Down" arrow until you reach your desired cooking time. Once your cooking time has been selected, the display will show the new remaining cooking time.
Note: After timer reaches 1 minute, the display will begin showing the remaining time in seconds (59, 58, etc.).

Reheat Function:
The default setting is programmed at 360F for 4 minutes. This function is perfect for reheating single portion-sized foods. Press the "Reheat" button, then press "Start". If needed, you can manually adjust the cooking temperature and time by pressing the arrows above and below the temperature and time icon. When using reheat, you can place the food directly in the basket, any oven safe dish or even foil.

For Best Results
After you have selected your cooking time and temperature and you are ready to add your ingredients to the NuWave Brio Digital Air Fryer: Pull out the Base Tray and Fry Pan Basket from the NuWave Brio Digital Air Fryer. (Fig. 1)

Note: Do not fill more than 4/5 full. Slip the Fry Pan Basket in place in the NuWave Brio Digital Air Fryer. Do not use the Base Tray without the Fry Pan Basket in it. (Fig. 2)

Note: Do not touch the inside of the Base Tray immediately after cooking as the pan can become very hot. Only hold the pan by the handle.

Shaking Food:
Some foods require shaking halfway through cooking.
To properly shake the food, hold the handle, remove the Base Tray from the appliance and shake. Once the food has been adequately shaken, slide the Base Tray and Fry Pan Basket back into the NuWave Brio Digital Air Fryer. (Fig. 3)

DO NOT PRESS THE DEMOUNTING BUTTON WHILE SHAKING.

How To Use Grill Pan:

1. Pull out the Fry Pan Basket from the Base Tray and place it on a flat surface.
2. Lift up the safety cover and press the demounting button.
3. Lift the Fry Pan Basket, and replace this with the Grill Pan.
4. To remove Grill Pan or Fry Pan Basket from the Base Tray lift open the safety cover, press the demounting button.

This will reduce the extra weight of the Base Tray and makes it easier to pour smaller foods, such as French fries.

CARE & MAINTENANCE

Cleaning:
Clean the appliance after every use or in between a large amount of batches.
The Fry Pan Basket and the Base Tray have a non-stick coating with removable stainless steel basket net. Do not use metal utensils or harsh abrasives when cleaning as this can damage the coating.

• Unplug the appliance and make sure it cools completely.
  Note: Remove the Base Tray and Fry Pan Basket, place on a heat resistant surface to help cool the appliance quicker.
• Use a damp cloth to wipe the outside of the appliance.
• Clean the Fry Pan Basket and inside components with a nonabrasive sponge, hot water and mild detergent.
  Note: If you place the Base Tray and Fry Pan Basket into the dishwasher, use the top rack only.
  Tip: If there is residual food in the Base Tray and Fry Pan Basket, add some hot water and let it soak separately for easier cleaning.
• Clean the inside of the appliance with a nonabrasive sponge and hot water.
• Clean the heating components with a cleaning brush to remove any lingering food.

Storage:

• Unplug the appliance and let it cool down completely.
• Make sure that all the parts are cleaned and dry.
• The NuWave Brio 3Q Digital Air Fryer comes with a special housing underneath for easy and convenient chord storage. You will see a portion sticking out and the rest of chord neatly wound in the housing.

Do not immerse unit in water or attempt to cycle through dishwasher. The outer surface may be cleaned by wiping carefully with a damp dishcloth or sponge. Make sure unit has cooled completely prior to cleaning.
Any other servicing should be performed by an authorized service representative.

CARE & USE FOR ACCESSORIES

Care & Use:
Before use, wash with mild soap and water or in a dishwasher, top rack only.
This should never be cleaned with harsh abrasives nor cut with any sharp objects.

• Do not use steel wool or any sharp objects that may scratch or damage the silicone.
• Do not place silicone products on the top rack of a nor cook on broil in a conventional oven.
• Do not attempt to cut foods while they are in the accessories. Any misuse of the accessories will void the warranty.
  Our silicone material can withstand temperatures up to 500°F, but keep in mind that these temperatures are above and beyond the recommended use for this product. Damages caused by this type of usage will not be covered under warranty.
• Clean the Grill Pan, Baking Pan and Reversible Rack with hot soapy water and a non-abrasive sponge or in the dishwasher before first use and after each use. Dry thoroughly. Do not soak the accessories for long periods of time.
• Do not scrub the accessories with steel wool, oven cleaning solutions or use any harsh abrasive cleansers or materials as scratching may occur. Minor scratches or discolor will not impact the pans performance.
• Store in a cool dry place.
  Note: Accessories are all optional.

TROUBLESHOOTING GUIDE

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS
When using electrical units, basic safety precautions should always be followed including the following:

1. Do not touch hot surfaces Use handles or knobs.
2. To protect against electrical shock, do not immerse cord, plugs, or the Brio in water or other liquids.
3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
4. If the power cord is damaged, do not attempt to operate the Brio.
5. Close supervision is necessary when any appliance is used near children. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
6. The use of other accessories that are not intended to be used with the Brio is not recommended. Doing so may damage the Brio and can cause accidents.
7. NOT INTENDED FOR OUTDOOR USE. INTENDED FOR HOUSEHOLD USE ONLY.
8. Do not use appliance for other than intended use.
9. Do not let cord hang over edge of table or counter or touch hot surfaces.
10. Do not place on or near a hot gas, electric burner, and/or in a heated oven.
11. Extreme caution must be used when moving the Brio containing hot oil or other hot liquids.
12. To disconnect, turn the Brio "OFF", then remove plug from the wall outlet.
13. During air-frying, hot steam is released from the air outlet vent. Keep hands and face at a distance from the steam and from the air outlet vent. Also, be careful of hot steam and air when removing Fry Pan Basket.
14. Make sure the ingredients prepared in the Brio come out golden brown instead of dark brown and not burnt. Remove any burnt remnants from Fry Pan Basket during cleaning and before each use.
15. Never put the Brio against the wall or other appliances. There should be at least 3 inches of free space for the back side, left/right sides, and the upper side of the Brio. Do not place anything on top of the Brio.
16. Unplug the Brio from outlet when not in use and before cleaning. Allow the Brio to cool before cleaning, putting on or taking off parts.
17. The Brio is not intended to be operated by means of an external timer or separate remote-control system.
18. Keep manual handy for future reference.

SEE OPERATING INSTRUCTIONS BEFORE USE

Electrical Information
A short power-supply cord (or detachable power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If a longer detachable power-supply cord or extension cord is used:

1. The marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.
2. The longer cord should be arranged so that it will not drape over the countertop or tabletop where it could be pulled on or tripped over unintetionally. The Brio should be operated on a separate electrical outlet from other operating appliances due to wattage limitations. The appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
3. If the appliance is of the grounded type, the cord set or extension cord should be a grounding-type 3-wire cord.

SAVE THESE INSTRUCTIONS

Read and understand the entire manual before using the Brio.
DO NOT USE THE UNIT FOR OTHER THAN INTENDED USE.
Note: Put the Brio on a surface that is horizontal, even, and stable.
This appliance is intended for normal household use. It is not intended to be used in environments such as a kitchen staff of shops, offices, farms, or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts, and non-residential environments.
NOTICE: THE FAILURE TO FOLLOW ANY OF THE IMPORTANT SAFEGUARDS, ADDITIONAL SAFEGUARDS, OR THE INSTRUCTIONS FOR SAFE USE IS A MISUSE OF YOUR BRIO THAT CAN VOID YOUR WARRANTY AND CREATE THE RISK OF SERIOUS INJURY.

In case of other problems, immediately unplug and contact Customer Service Department.
1-877-689-2838 • help@nuwavenow.com

ADDITIONAL SAFEGUARDS

1. Do not place the Brio close to flammable materials, heating units, or wet environments.
2. Height of ingredients placed in the Fry Pan Basket should comply with the directions listed under "Operating Instructions".
3. Do not put any other cooking pans in the Fry Pan Basket. Do not replace any parts with other containers.
4. It is normal for some smoke to escape the Brio when heating for the first time.
5. If a lot of smoke is escaping from the air vent during operation, unplug the Brio immediately and contact Customer Service.*
6. Do not move the Brio while in operation. Only after the Brio has completely cooled should moving be attempted. Always wait for the Air Fryer to cool down prior to handling it.
7. Children should be supervised to ensure that they do not play with the appliance.
8. Never use a towel or other material or object to block the air vents.
9. If any trouble arises during operation, any service MUST be done by NuWave, LLC or authorized by the manufacturer for repairs.
10. The appliance is not intended to be operated by means of an external timer or separate remote-control system.
11. Do not disassemble the Brio or replace any parts without prior written consent from the manufacturer.
12. Do not use metal utensils with the coated Fry Pan Basket or Fry Pan Basket Net as this can damage the surface.
13. Make sure the Brio is always clean prior to cooking.

*Customer Service Department: 1-877-689-2838 • help@nuwavenow.com

• Always put the ingredients to be fried in the Fry Pan Basket to prevent direct contact with the heating components.
• Do not cover the air inlet and outlet openings while theappliance is operating.
• Do not pour oil into the Base Tray or Fry Pan Basket, as this maycreate a fire hazard.
• Never touch the insides of the appliance while it is operating.
