cecotec ENERGYSILENCE 610 MAX FLOW - Pedestal Fan Manual

PARTS AND COMPONENTS

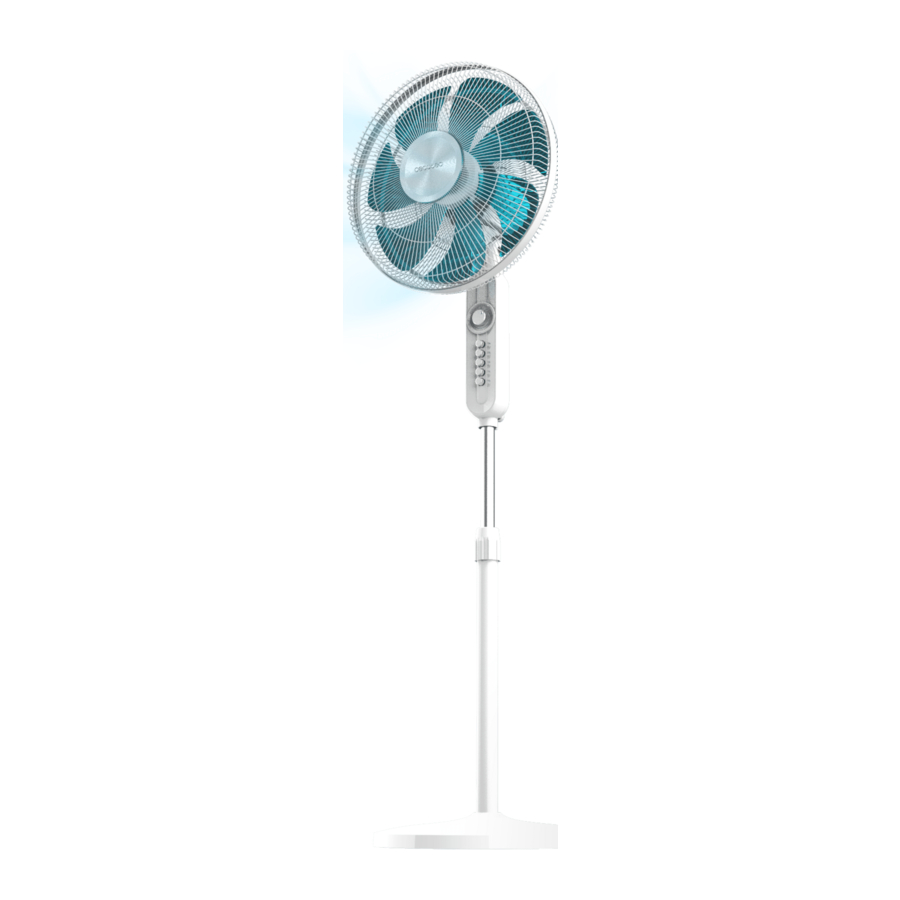

Fig. 1

Fig. 1 key:

1. Grille
2. Blades
3. Control panel
4. Tube
5. Height-adjustment knob
6. Bracket
7. Base
8. Oscillation knob
9. Timer knob
10. Speed buttons

NOTE:
The graphics in this manual are schematic representations and may not exactly match the device.

BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Fan
• Instruction manual

ASSEMBLY

1. Place the bracket on the base and fix it using the screw at the bottom of the base, as shown in Figure 2.

   Fig. 2
2. Loosen the height-adjustment knob and adjust the tube height. Fig. 3

   Fig. 3
3. Then, place the control panel on the tube and fix it as shown in Figure 4.

   Fig. 4
4. Install the back grille in the motor shaft and fix it with the adjustment nut. Place the blade assembly on the motor shaft and fix it using the fan-blade fixing cap. To do so, turn it until it is tight, as shown in figure 5.

   Fig. 5
5. Use a screw to join the rear grille to the front grille, as shown in figure 6.

   Fig. 6

OPERATION

Oscillation function
Press the knob down to activate the oscillation function and back up to deactivate it.

Timer
Turn the timer knob to set the timer up to a maximum of 60 minutes.

Speeds
Press the speed buttons to set speed as desired. The fan has 4 speeds.

CLEANING AND MAINTENANCE

• Always unplug the product from the power supply before cleaning or repairing it.
• It is suggested to clean the product with a mild cleaning agent and a soft and wet cloth. Do not use abrasive products such as solvents, acids, or alcohol to clean the plastic components, as these could be deformed or damaged.
• Do not allow water to enter the motor or touch the cord during cleaning.

TECHNICAL SPECIFICATIONS

Product reference: 08300
Product: EnergySilence 610 Max Flow

Rated voltage: 220 - 240 V
Frequency: 50 - 60 Hz
Power: 70 W

Technical specifications may change without prior notification to improve product quality.

TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.
It is recommended that repairs be carried out by qualified personnel.
If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at +34 963 210 728.
