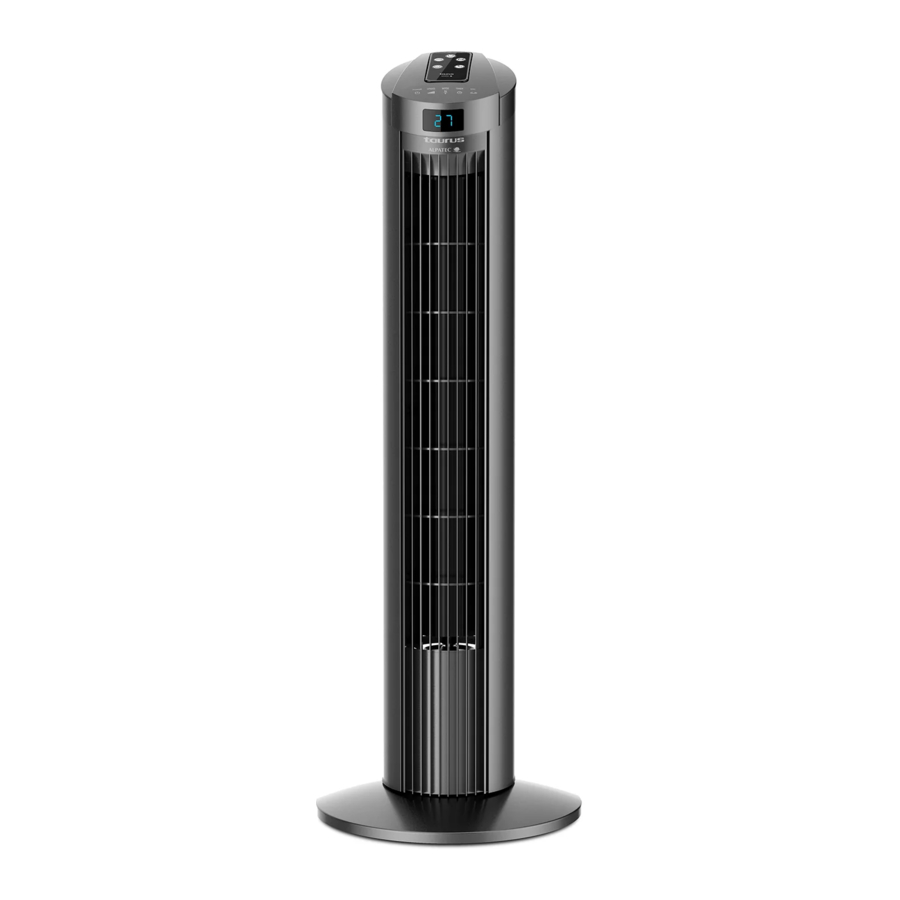

Taurus ALPATEC BABEL RC, ALPATEC BABEL RCH - Tower Fan Manual

DESCRIPTION

1. ON/OFF
2. Oscillation
3. Speed selector
4. Airflow mode selector
5. Timer
6. Air outlet
7. Horizontal base
8. Remote control
9. Digital display
10. Vertical base*

(*) Only available in the model BABEL RCH.

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE

• Fully extend the appliance's power cable before each use.
• Do not use the appliance if the on/off switch does not work.
• Do not turn the appliance over while it is in use or connected to the mains.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

INSTALLATION

• Be sure to remove all packaging material from inside the appliance.
• Ensure that the fan is switched off from the supply mains before start any installation or assembly operation.
• Ensure that the appliance is level with respect to the floor.
• The plug must be easily accessible so it can be disconnected in an emergency.

ASSEMBLING THE BATTERY/S

•
  During the handling of batteries, do not touch both poles at the same time, as this will provoke the partial discharge of the stocked energy therefore affecting longevity.
• Remove the cover of the battery compartment.
• Check that the plastic covering that protects the battery has been removed (some batteries are sold with a protective covering)
• Put the battery in its compartment, respecting the polarity (Fig.3).

  Fig.3
• Replace the cover of the battery compartment.
• It is essential that the batteries should always be the same kind and the same charge. Never mix alkaline batteries with normal one (Carbon-Zinc) and/or rechargeable ones.

ASSEMBLING THE BASE FOR BABEL RC

• Join the horizontal base parts (Fig.1).

  Fig.1

• Fit the base with the body and secure it with the screws provided.
• Stand the appliance up again so as to check that the base works properly.

ASSEMBLING THE BASE FOR BABEL RCH

• Join the horizontal base parts (Fig.1).
• Join the vertical base parts and fix them using the screws provided (Fig.2).

• Fit the horizontal base with the vertical base and secure it with the screws provided.
• Stand the appliance up again so as to check that the base works properly.

INSTRUCTIONS FOR USE

BEFORE USE

• Make sure that all products' packaging has been removed.
• Prepare the appliance according to the function you wish to use:

USE

• Extend the cable completely before plugging it in.
• Connect the appliance to the mains.
• Turn the appliance on, by using the on/off button (A).
• Select the desired speed.
• Select the airflow mode desired:
  • NA: Breeze: The fan alternates periods of more and less power, simulating the feeling of a soft breeze. The amplitude of these shifts depends on the speed selected.
  • SL: Night: At speed 3, the fan operates at this speed for approximately 30 minutes, then it switches to speed 2 for another 30 minutes and finally it switches to speed 1 until it is turned off or the timer runs out. At speed 2, the fan operates at speed 2 for 30 minutes, then it switches to speed 1 until it is turned off or the timer runs out. At speed one, the fan operates at this speed until it is turned off or the timer runs out.
• If speed appears: Normal

TIMER FUNCTION

• The appliance's operating time can be controlled.
• To program the operating (1h-12h) time simply select it using the (E) button.
• The programmed time will appear on the display (I) for 30 seconds.
• After the selected time the appliance will switch off automatically.

OSCILLATION FUNCTION

• The oscillation function makes it possible to direct the flow from the apparatus so that it automatically alternates over a range of 75º.
• To activate this function, press the (B) button.
• To deactivate this function, follow the procedure for switching it on in reverse.

ONCE YOU HAVE FINISHED USING THE APPLIANCE

• Stop the appliance using the on/off button.
• Unplug the appliance from the mains.
• Clean the appliance.

CARRY HANDLE/S

• This appliance has a handle on the back to make it easy and convenient to transport (Fig.4).

  Fig.4

SAFETY THERMAL PROTECTOR

• The appliance has a safety device, which protects the appliance from overheating.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
