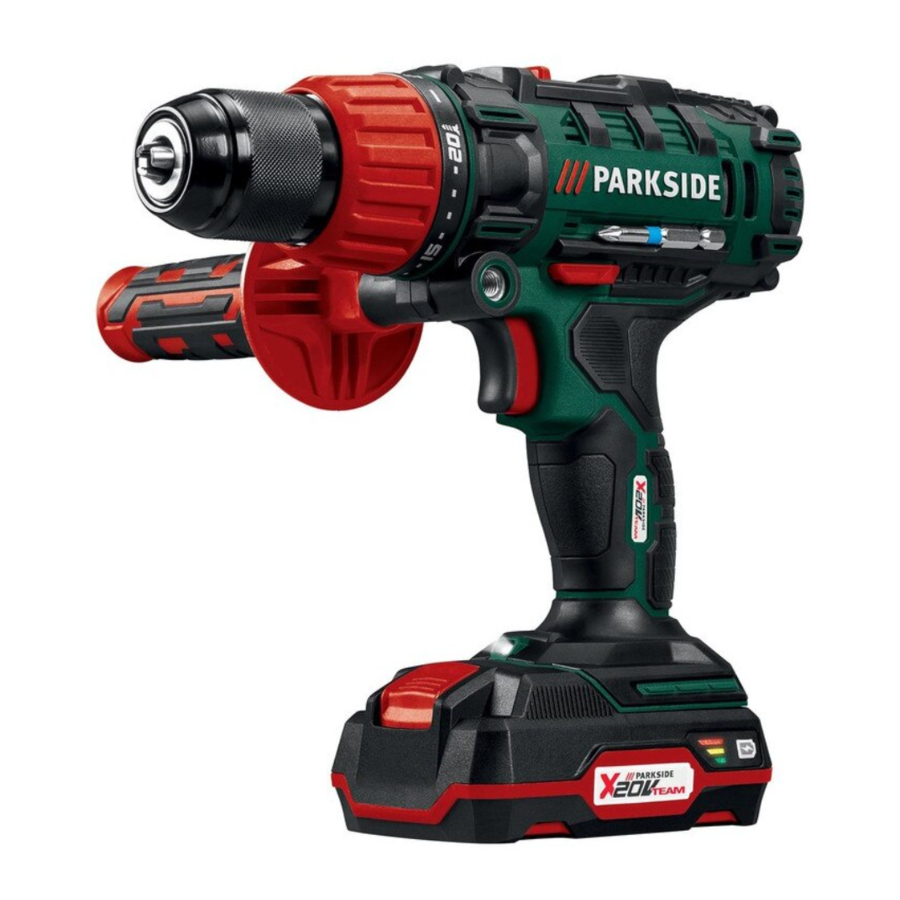

Parkside PSBSA 20-Li B2 (302117) - IMPACT DRILL Manual

Introduction

Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is intended for screwing in and removing screws as well as drilling in wood, metal, ceramic and plastic and impact drilling in bricks and masonry. It is not suitable for impact drilling in natural stone such as granite. The light on this appliance is intended to illuminate the immediate work area of the appliance.

Use this product only as described and for the areas of applications specified. The appliance is not intended for commercial use. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse.

Features

1. Speed selector
2. Rotation direction switch/lock
3. ON/OFF switch / Speed control
4. Bit
5. Battery charge level button
6. Battery display LED
7. Battery pack
8. Release button for the battery pack
9. LED work light
10. Additional handle
11. Chuck
12. Torque preselection ring
13. High-speed charger
14. Red charge control LED
15. Green charge control LED

Package contents

1 2 speed cordless impact drill PSBSA 20-Li B2

1 high-speed battery charger PLG 20 A1

1 battery pack

1 additional handle

2 bits PZ1 & PZ2 (50mm)

1 carrying case

1 set of operating instructions

Technical data

2 speed cordless impact drill: PSBSA 20-Li B2
Rated voltage:	20 V (DC)
Gearbox:	2 speed gearbox
Rated idle speed:	1st gear: n o 0–440 rpm 2nd gear: n o 0–1650 rpm
Hammer frequency:	0–26400 bpm
Max. torque:	45 Nm
Torque levels:	1–20 + 1 drill level / + 1 hammer level
Chuck capacity:
:	Ø max. 13 mm
Max. drill diameter:	30 mm for wood 15 mm for tiles 13 mm for steel
Battery: PAP 20 A1
Type:	LITHIUM ION
Rated voltage:	20 V (DC)
Capacity:	2 Ah
Cells:	5
High-speed battery charger: PLG 20 A1
INPUT:
Rated voltage:	230–240 V ~, 50 Hz (AC)
Rated power consumption:	65 W
Fuse (internal):	3.15 A
OUTPUT:
Rated voltage:	21.5 V (DC)
Rated current:	2.4 A
Charging time:	approx. 60 min
Protection class:	II / (double insulation)

Noise emission value:
Noise measurement value determined in accordance with EN 60745. The A-rated noise level of the power tool is typically as follows:

Vibration emission value:
Total vibration values (vector total of three directions) determined in accordance with EN 60745:

Hammer drilling in concrete:
a_H,ID = 9.875 m/s²

Drilling in metal:
a_{h, D} = 3.475 m/s² Uncertainty K = 1.5 m/s²

Screws:
<2.5 m/s²
Uncertainty K = 1.5 m/s²

Wear hearing protection!

NOTE

► The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure and can be used for equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

► The vibration level will vary according to the use of the power tool and may sometimes be higher than the value specified in these instructions. Regular use of the power tool in this way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General Power Tool Safety Warnings

► Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery operated (cordless) power tool.

1. Work area safety
   1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
   2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
   3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
   1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
   2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
   3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
   4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
   5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
   6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
   1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
   2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
   3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
   4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
   5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
   6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
   7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
   1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
   2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
   3. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
   4. Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
   5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
   6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
   7. Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. Use and handling of the cordless electrical power tool
   1. Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
   2. Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
   3. When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
   4. Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

      RISK OF EXPLOSION! Never charge non-rechargeable batteries!
      Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

6. Service
   1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions for hammer drills

• Wear hearing protection. Exposure to loud noise can lead to hearing loss.
• Use the additional handle supplied with the appliance. Loss of control of the machine can lead to injuries.
• Hold the power tool by the insulated gripping surfaces when performing an operation in which the screw or attached tool could come into contact with hidden wiring. Contact between the screw or attached tool and a live wire may cause exposed metal parts of the power tool to become live and give the operator an electric shock.

Safety guidelines for battery chargers

• This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
• To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.

The charger is suitable for indoor use only.

To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.

Before use

Charging the battery pack

(see fig. A)

► Always unplug the appliance before you remove the battery pack from or connect the battery pack to the charger.

• Never charge the battery pack if the ambient temperature is below 10°C or above 40°C.
• Connect the battery pack to the high-speed battery charger (see fig. A).
• Insert the power plug into the socket. The control LED lights up red.
• The green LED indicates that the charging process is complete and the battery pack is ready.

• If the red control LED flashes, this means that the battery pack has overheated and cannot be charged.
• If the red and green control LEDs both flash, this means that the battery pack is broken.
• Push the battery pack back into the appliance.
• Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket.

Attaching/disconnecting the battery pack to/from the appliance

Inserting the battery pack:

• Push the rotation direction switch into the middle position (lock). Allow the battery pack to click into the handle.

Removing the battery pack:

• Press the release button and remove the battery pack.

Checking the battery charge level

• Press the battery charge level button to check the status of the battery (see also main diagram).
  The status/remaining charge will be shown on the battery display LED as follows:
  RED/ORANGE/GREEN = maximum charge
  RED/ORANGE = medium charge
  RED = low charge – charge the battery

Fitting the additional handle

• Screw the additional handle onto the left or right of the appliance depending on how you work.

Changing tools

Your cordless screwdriver has a fully automatic spindle lock .

When the motor is stopped, the power train locks so that the chuck can be opened by turning it . Once you have attached the desired tool and tightened it by turning the chuck , you can continue working. The spindle lock is automatically released when the motor starts (ON/OFF switch pressed).

Torque preselection/selecting the operating mode

You can adjust the torque on the torque preselector and select between the drill setting and the hammer drill setting .

• Select a low level for small screws or soft materials.
• Select a high level for large screws, hard materials or removing screws.
• Select the drill setting for drilling work by adjusting the torque selection ring to the position .
• Select the hammer drill setting for hammer drilling work by adjusting the torque selection ring to the position .

2-speed gearbox

► Operate the speed selection switch only when the appliance is at a standstill. Otherwise the appliance can be damaged.

In first gear (speed selector switch in position: 1)
you can reach a speed of approx. 440 rpm and a high torque. This setting is suitable for all screwing work but also for the use of accessories.

In second gear (speed selector switch in position: 2)
you can reach a speed of approx. 1650 rpm for carrying out drilling work.

Use

Switching on and off

Switching on:

• To start the appliance, press the ON/OFF switch and keep it pressed in.
  The LED work light lights up when the ON/ OFF switch is depressed lightly or fully. This allows for illumination of the work area in low lighting.

Switching off:

• Release the ON/OFF switch to switch off the appliance.

Adjusting the rotational speed

Press the ON/OFF switch lightly for a low speed. Increasing the pressure increases the speed.

NOTE

► The integrated motor brake ensures rapid stoppage.

Changing the direction of rotation

• Change the direction of rotation by pressing the rotational direction switch towards the left or right.

Tips and tricks

Tip! This symbol indicates proper behaviour.

• Before operating the appliance, check whether the screw or drill bit is correctly positioned, i.e. centred in the drill chuck.
• Screw bits are labelled according to their dimensions and their shape. If you are uncertain, always check whether the bit fits tightly in the screw head without any free play.

Torque:

• Smaller screws/bits can be damaged if you set the torque or rotational speed too high.

Hard screw joints (in metal):

• Particularly high torques occur, for example, in metal screw joints made using drive sockets.

Select a low rotational speed.

Soft screw joints (e.g. in soft wood):

• Again, use a low rotational speed, for example to avoid damaging the surface of the wood on contact with the screw head. Use a countersink.

When drilling in wood, metal and other materials, observe the following:

• Use a high speed for drill bits with small diameter and a low speed for drill bits with large diameter.
• Select a low speed for hard materials and a high speed for soft materials.
• Mark the spot where you want to drill using a centre punch or nail. Select a low rotational speed when starting.
• Pull the rotating drill bit from the hole repeatedly to remove dust and chips and clear the hole.

Drilling in metal:

• Use a metal drill (HSS). For optimum results, you should cool the drill bit with oil.
  Metal drill bits can also be used to drill into plastics. Start with a 3 mm diameter drill bit and then increase the size until the desired hole diameter is achieved.

Drilling in brick:

• Use a carbide-tipped masonry drill. (max. recommended hole diameter: Ø 15 mm)

Drilling in wood:

• Use a wood drill with a lathe centre; for deep holes, use an auger bit; for large-diameter holes, use a Forstner bit. Small screws can be screwed directly into soft wood.

Maintenance and cleaning

RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.

The cordless combi drill is maintenance-free.

• The appliance must always be kept clean, dry and free from oil or grease.
• Never allow liquids to get into the appliance.
• Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
• If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry.

NOTE

► Replacement parts not listed (such as carbon brushes, switch) can be ordered via our service hotline.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

• Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
• You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
• If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
• You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

► Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained. ► Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.

Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk

Service Malta
Tel.: 80062230
E-Mail: kompernass@lidl.com.mt

Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE - 44867 BOCHUM GERMANY

www.kompernass.com

Ordering a replacement battery

If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone.

Due to limited stocks, this item may sell out in a relatively short time.

NOTE

► Online ordering of replacement parts is not possible in all countries. In this case, please contact the Service hotline.

• The promotion is limited to one battery per customer/appliance and also to a timeline of two months after the promotion period. Thereafter, the replacement battery can be ordered as a replacement part under other conditions.

Telephone ordering

Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk

Service Malta
Tel.: 80062230
E-Mail: kompernass@lidl.com.mt

To ensure a fast processing of your order, have the article number of you appliance to hand (e.g. IAN 302117) in case of questions. The article number can be found on the type plate or the title page of these instructions.
