Nuna MIXX next - Baby Stroller Manual

WARNING

Failure to follow these warnings and instructions could result in serious injury or death.
Always use the restraint system.
Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
Do not let the child play with this product.
Ensure that all the locking devices are engaged before use.
Never leave the child unattended.
This product is not suitable for running or skating. To avoid injury ensure that the child is kept away when unfolding and folding this product.
Accessories which are not approved by the manufacturer shall not be used. Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
Adult assembly required.
ALWAYS set the parking brake when you stop.
Any damage caused by the use of accessories not supplied by Nuna will not be covered in terms of warranty.
Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
Be certain the stroller is fully erected and latched before allowing your child near the stroller.
DO NOT carry additional children, goods, accessories in or on the stroller except as permitted in this manual. They may cause the stroller to become unstable.
DO NOT leave the stroller exposed in the vicinity of a strong source of heat i.e. a radiator or open fire.
DO NOT place any item on the canopy.
DO NOT store the stroller in a damp place. Always allow the fabric to dry naturally away from direct heat.
DO NOT use storage basket as a child carrier.
DO NOT use the stroller if any parts are damaged or missing.
For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
Keep small parts away from children as they pose a choking hazard.
Negotiate curbs and rough ground carefully. Repeated impact could cause damage to the stroller.
NEVER allow children to stand on the stroller.
NEVER carry more than one child at a time in the stroller.
NEVER use the stroller on stairs or escalators. You may suddenly lose control of the stroller or your child may fall out.
The harness must always be correctly fitted and adjusted. The harness is not a substitute for proper adult supervision.
The parking brake shall be engaged when placing and removing children.
Overloading, incorrect folding, and the use of accessories e.g. child seats, bag hooks, rain covers, buggy boards, etc... other than those approved by Nuna may damage or make the stroller unsafe.
Rubber tires may leave black scuff marks on smooth surfaces such as parquet, laminate and linoleum.
STRANGULATION HAZARD
Do not place items with a string around your child's neck, suspend strings from this product, or attach strings to toys. To avoid any danger of suffocation, remove all plastic covers before using this item and destroy or keep away from babies and children!
To prevent a hazardous, unstable condition, do not place more than 4.5 kg in the storage basket and more than 0.45 kg in the storage pocket.
USE the most reclined position for new born babies.
Use the pushchair with a child weighing no more than 22 kg. It will cause damage to the pushchair with an unfitted child.

Product Information

Product Registration

Please fill in the above information. The model number and the manufactured date are located on a label on the bottom of the stroller frame.

To register your product please visit:
www.nunababy.com
Click the "Register Gear" link on the homepage.

Contact

For replacement parts, service, or additional warranty questions, please contact our customer service department.
info@nunababy.com
www.nunababy.com

In the United Kingdom:
infouk@nunababy.com
www.nunababy.com

NUNA International B.V.
Van der Valk Boumanweg 178 C
2352JD Leiderdorp
The Netherlands

Child Usage Requirements

This Stroller is suitable for use with children who meet the following requirements:
Birth to 22 kg or 4 years whichever comes first.
When using the stroller frame with MIXX carry cot or Nuna infant carriers, refer to the child usage requirements listed in those instruction manuals.

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact local retailer. No tools are required for assembly.

CHOKING HAZARD: Remove and immediately discard protective end caps from each wheel and wheel hub axle.

1. Front Wheel (x2)
2. Rear Wheel (x2)
3. Car Seat Adaptor
4. Rain Cover
5. Apron
6. Canopy
7. Canopy Visor
8. Seat Pad
9. Armbar
10. Calf Support
11. Handle Adjustment Button
12. Shoulder Harness Pads
13. Canopy Clips
14. Stroller Frame
15. Buckle and Crotch Cover
16. Seat Release Button
17. Top Canopy Window
18. Back Canopy Window
19. Stroller Handle
20. Recline Adjustment Button
21. Folding Button
22. Seat Ventilation
23. Storage Pocket
24. Storage Basket
25. Brake Lever
26. Insert

Product Set Up

Open Stroller

1. Open the storage latch as shown (1). Lift up on the handle from the sides and rotate to the rear of the stroller. A "click" sound means the stroller frame is open completely. (2)

2. Squeeze the recline adjustment button on the back of the seat and rotate the backrest to the upright position. (3)


Check that the stroller is open completely before continuing.

Canopy

1. Zip the canopy visor to the inside of the canopy. (4)

2. Insert the canopy clips into the canopy mounts on the sides of the stroller. A "click" sound means the canopy is assembled completely. (5)


Front Wheels

1. Insert the front wheel into the front leg. A "click" sound means the wheel is assembled completely. (6) Repeat on opposite side.


Check the wheel is securely attached by pulling out.

2. To remove the front wheel, press the release button (7)-1 and detach the front wheel from the front leg. (7)-2


Rear Wheels

1. Insert the rear wheel into the rear leg. A "click" sound means the rear wheel is assembled completely. Repeat on opposite side. (8)


Check that the wheels are securely attached by pulling them out.

2. To remove the rear wheel, press the release button (9)-1 and detach the rear wheel from the rear leg. (9)-2


Armbar

Always secure the child with the harness. The armbar is not a restraint device.

1. Align the armbar ends with the armbar mounts, and insert until it clicks into place. A "click" sound means the armbar is assembled completely. (10)

2. To remove the armbar, press the armbar release buttons (11)-1 and lift the armbar up. (11)-2

3. For a more compact fold when the seat is rear facing, press the armbar adjustment buttons (12)-1 and rotate the armbar down (12)-2 until it clicks into place.


NEVER use the armbar in lowered/folded position when child is in stroller.

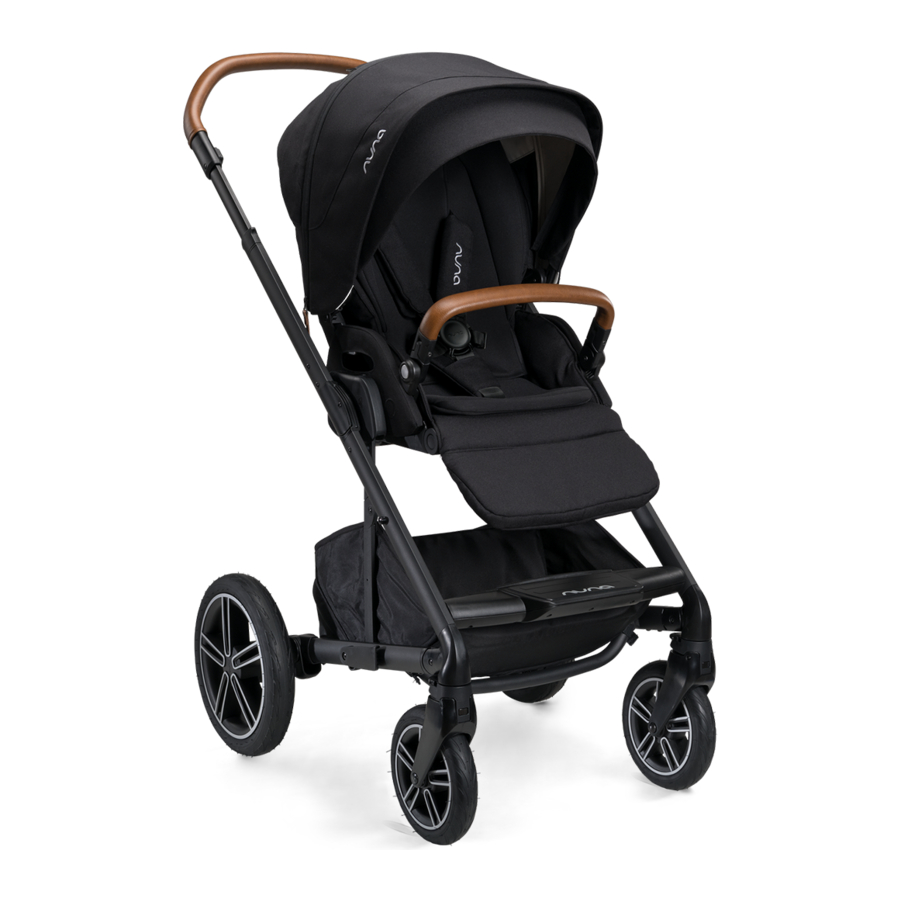

The completely assembled stroller is shown as (13).

Check Set Up

• Stroller frame is latched open
• Front wheels, rear wheels securely attached
• Canopy mount attached to stroller frame and canopy attached to seat pad
• Armbar is securely attached

Product Use

The parking brake MUST be engaged when the stroller is stopped and when placing and removing child.

Securing Your Child

1. Press the button, the buckle will release automatically. Remove the clips and place your child in the stroller. (14)

2. Match the waist belt buckle with the shoulder buckle. (15)

3. Then align them with the center buckle, the buckle can lock automatically. Repeat on the opposite side. (16) A "click" sound means the buckle is locked completely.

4. Fit the harness snugly to your child by pulling the adjustment straps to tighten (17)-1. Then pull the waist adjustment straps out (17)-2.


Shoulder Harness Position

1. The upper shoulder harness buckles can be moved up and down for added adjustment. (18)


Crotch Belt

Identify crotch belt slot that will achieve a snug fit. Change crotch belt slot if necessary.

1. Smaller babies use this position. (19)-1

2. Larger babies use this position. (19)-2

Canopy

1. To open the canopy, pull the canopy toward the front of the seat. To close the canopy, push it back. (20)

2. Position the canopy visor forward or backward as needed. When not in use, fold the canopy visor under the canopy. (21)

3. Open the zipper on the canopy for extra shade and ventilation. (22)

4. For ventilation, flip up the top canopy window cover. (23)

5. For additional ventilation, flip up the back canopy window cover. (24)


Front Swivel Locks

It is recommended to use the front swivel locks on uneven surfaces.

1. Squeeze (25)-1 and pull out the front swivel lock (25)-2 to lock the front wheel forward facing. You may need to move the wheel to get it to lock.

2. Push in the front swivel lock to unlock. (26)


Brake

1. To lock the rear wheels, step down on the red area on the brake lever. (27)

2. To unlock the rear wheels, step down on the green area on the brake lever. (28)


Always apply the brake when the stroller is stopped.
Push the stroller slightly to ensure the brake is engaged.

Handle

The handle has 3 positions.

1. To adjust the height of the handle, press the handle adjustment buttons (29)-1 and pull the handle up or down. (29)-2


Recline Adjustment

There are 5 recline positions for the backrest.

1. To raise or lower the backrest, squeeze the recline adjustment button, and pull the seat up or down. (30)


Calf Support

The calf support has 2 use positions.

1. To raise the calf support, lift up. (31)

2. To lower the calf support, press the adjustment buttons on the sides (32)-1, and push down. (32)-2


Insert

The insert can be removed to provide a mesh seating area for better ventilation during hot weather.

1. To remove the insert, release the velcro on insert from the back of the seat, unbuckle the harness, thread the harness through the harness slots and remove the seat pad. (33)


Reverse Seat

The seat can be used rear or forward facing.

1. Squeeze the seat release buttons and lift the seat up. (34)

2. Turn the seat in the opposite direction and place on the seat mounts until it clicks into place. A "click" sound means the seat is attached. (35)


Check to make sure seat is securely attached by pulling up on it.

Fold

Before folding, push the canopy to the rear of the stroller.

1. Squeeze the recline adjustment button on the back of the seat (36)-1 and rotate the backrest to the stored position. (36)-2

2. Pull up on the folding buttons (37)-1 and push the stroller forward to fold. (37)-2

3. Lock the stroller by tucking the storage latch onto the storage mount. (38)


Accessories

Car Seat Adaptors

When using the stroller with Nuna infant carriers, please refer to the following instructions.

1. To attach the adaptors, place the adaptors onto the seat mounts as shown. A "click" sound means the adaptors are locked. (39)

2. To attach the infant carrier, place the infant carrier onto the adaptors as shown (40), A "click" sound means the infant carrier is locked. (41)

3. The infant carrier angle can be adjusted with our adjustable adaptors. (42)

4. To remove the infant child carrier, lift the infant carrier up (43)-2 while pressing the stroller release buttons. (43)-1

5. To remove the adaptors, lift the adaptors up (44)-2 while pulling the release buttons. (44)-1


Apron

The soft apron can provide your child with a warm and comfortable environment.

1. Place the apron over the seat, fasten the snaps on the apron (45)-1, repeat on the opposite side.

2. The assembled apron is shown as (45).

Rain Cover

Check that the canopy is completely open before attaching the rain cover.

1. To assemble the rain cover, place it over the stroller. (46)


ALWAYS check ventilation when the rain cover is on the product.
ALWAYS check that the rain cover has been cleaned and dried before folding.
DO NOT fold the stroller when the rain cover is attached.
DO NOT place your child in the stroller in hot weather with the rain cover attached.

Cleaning and Maintenance

Clean the frame, plastic parts, and fabric with a damp cloth, but do not use abrasives or bleach. Do not use silicon lubricants as they will attract dirt and grime. Do not store your stroller in a damp place.
Clean the stroller wheels regularly with water and remove any dirt.
To ensure long-lasting use, wipe off this product with a soft, absorbent cloth after using it in rainy weather.
Refer to the care label attached to the fabric for washing and drying instructions.
It is normal for fabric to color from sunlight and to show wear and tear after a long period of use, even when used normally.
For reasons of safety, only use original Nuna parts.
Check regularly if everything functions properly. If any parts are torn, broken, or missing, stop using this product.
