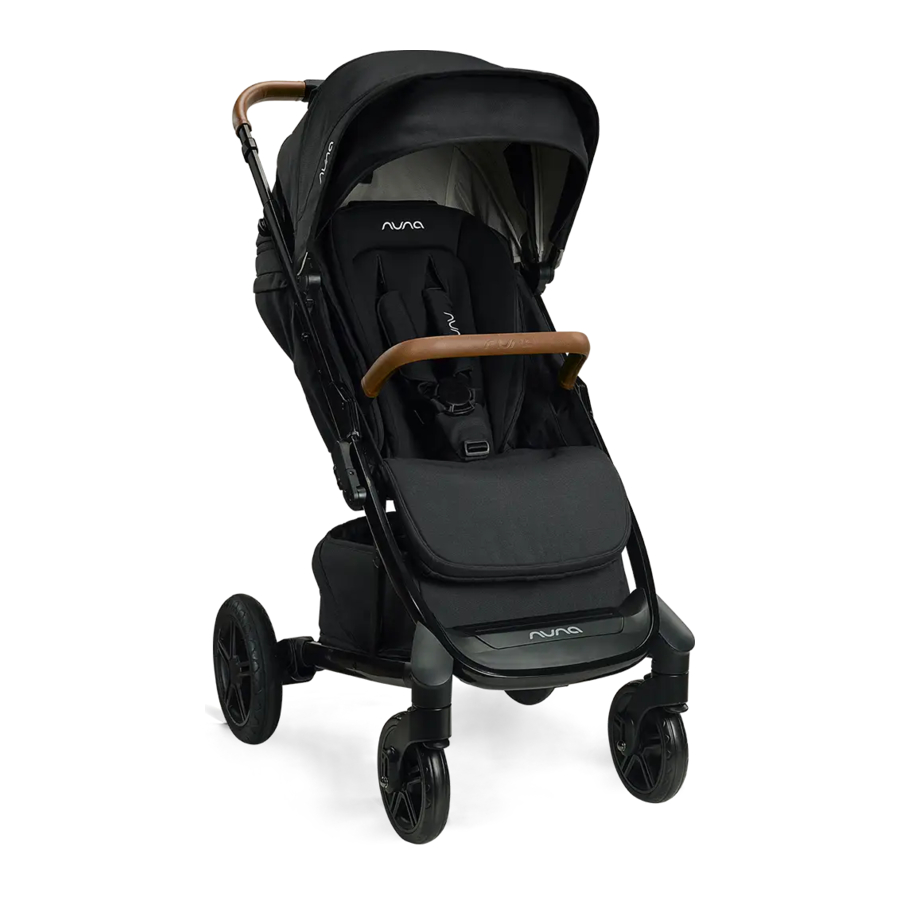

Nuna Tavo Next Manual

Product Information

Please record the model number and the manufactured in date. They are located on a label on the bottom of the stroller frame.

Child Usage Requirements

This stroller is suitable for use with children who meet the following requirements:
Weight: up to 50 lb (22.7 kg) maximum
Height: up to 45 inches (114.3 cm)

WARNING

Failure to follow these warnings and instructions could result in serious injury or death.
A child's safety is your responsibility. NEVER leave your child unattended.
To avoid any danger of suffocation, remove all plastic covers before using the stroller and destroy or keep away from babies and children!
Keep small parts away from children as they pose a choking hazard.
Discontinue using this stroller if it becomes damaged or broken.
Use original Nuna parts and accessories only.
Use of this stroller with a child weighing more than 50 lb (22.7 kg) or 45 inches (114.3 cm) in height will cause excessive wear, and stress on the stroller, and could create an unstable condition. Use the stroller with only one child at a time.
This stroller has been designed to use from birth. We recommend using the lowest reclined position for newborn babies.
Child may slip into leg openings and strangle. NEVER use in reclined carriage position unless the calf support is raised to cover the front opening and the fabric flaps are snapped to the side of the stroller seat.
To prevent a hazardous, unstable condition, do not place more than 10 lb (4.5 kg) in the storage basket before use.
Negotiate curbs and rough ground carefully. Repeated impact could cause damage to this stroller.
This stroller is to be used only at walking speed and is not intended for use while jogging, skating, etc.
The parking brake MUST be engaged when the stroller is stopped and when placing and removing child.
Overloading, incorrect folding, and using accessories other than those approved by Nuna, e.g. child seats, bag hooks, rain covers, buggy boards, etc., may damage or make this stroller unsafe.
Adding accessories such as purses, shopping bags, or parcels to the handle or canopy can cause the stroller to be unstable.
This stroller does not replace a crib or a bed. Should your child need to sleep, they should be placed in a crib or approved sleeping area based on your child's requirements.
Avoid serious injury from falling or sliding out. ALWAYS use seat belt. After fastening buckles, adjust belts to get a snug fit around your child.
AVOID FINGER ENTRAPMENT Use care when folding and unfolding the stroller. Be certain the stroller is fully erected and latched before allowing your child near the stroller.
STRANGULATION HAZARD Do not place items with a string around your child's neck, suspend strings from the stroller, or attach strings to toys.
ALWAYS keep your child in view while in this stroller.
ALWAYS check that the car seat attachment devices are correctly engaged before use. DO NOT let your child play with this stroller.
DO NOT place any item on the canopy of this stroller.
DO NOT leave this stroller exposed in the vicinity of a strong source of heat i.e. a radiator or open fire or store this stroller in a damp place.
DO NOT make any changes or modifications to this stroller, that are not specified in this manual.
DO NOT use storage basket as a child carrier.
NEVER use the stroller on stairs or escalators. You may suddenly lose control of the stroller or your child may fall out.
NEVER allow your child to stand on the footrest.

Magnetic Harness Buckle
The buckle and buckle clips contain magnets. If your child has a medical condition that prohibits the use of magnets near the child, do not use the stroller. Call Nuna to arrange an alternative product or different restraint solution.
Be mindful of the possible interaction of magnets in buckles and certain electronic devices.

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact Nuna (see "Contact" for information). No tools are required for assembly.

CHOKING HAZARD: Remove and immediately discard protective end caps from each wheel and wheel hub axle.

1. Front Wheel (x2)
2. Rear Wheel (x2)
3. Arm Bar
4. Insert
5. Canopy
6. Canopy Visor
7. Seat Pad
8. Calf Support
9. Buckle
10. Shoulder Pads
11. Handle Adjustment Button
12. Handle
13. Folding Button
14. Infant Carrier Lock
15. Recline Adjustment Button
16. Storage Basket
17. Brake Lever

Product Set Up

Keep hands and fingers away from the rear wheel area when unfolding and folding the stroller.

Rear Wheels

1. Insert the rear wheel into the rear leg. A "click" sound means the rear wheel is assembled completely. Repeat on opposite side.
   Check that the wheels are securely attached by pulling on them.

2. To remove the rear wheel, press the release button (1) and detach the rear wheel from the rear leg (2).


Front Wheels

3. Insert the front wheel into the front leg. A "click" sound means the wheel is assembled completely.
   Check the wheel is securely attached by pulling out.
   Repeat on opposite side.

4. To remove the front wheel, slide the release button out (1) and then detach the front wheel from the front leg (2).


Open the chassis

5. Open the storage latch as shown (1). Hold the bar on the seat back (2) and rotate the handle to the rear of the stroller (3). A "click" sound means the stroller frame is open completely.
   Check that the stroller is completely latched open before continuing.


Arm Bar

It is always recommended that the arm bar be used, but it is not a restraint device. Always secure the child with the harness.

1. Align the arm bar ends with the arm bar mounts, and insert until it clicks into place. A "click" sound means the arm bar is assembled completely.

2. To remove the arm bar, press the arm bar release buttons (1), and lift the arm bar up. (2)


Canopy

3. Slide the canopy mounts onto the stroller.

4. Then zip the canopy fabric to the back of the stroller seat.


Check Setup

• Stroller frame is latched open
• Rear and front wheels securely attached
• Canopy mount attached to stroller frame and canopy zipped to seat pad
• Basket securely attached
• Arm bar securely attached
• Canopy securely attached

Product Use

Securing Your Child

1. Push the top button on the buckle (1) to release the buckle latch and remove the magnetic clips (2).
   Place your child in the stroller.

2. Insert the magnetic clips into the buckle.

3. Fit the harness snugly to your child by sliding the lower adjustment straps (located under the shoulder pads) up (1). Then pull the waist adjustment straps out (2).


Shoulder Harness Position

4. The upper shoulder harness buckles can be moved up and down for added adjustment.


To avoid serious injury from falling or sliding out, always secure your child with harness.
Make sure your child is snugly secured. The space between the child and the shoulder harness should be about the thickness of one finger.
DO NOT cross the shoulder belts. This will cause pressure on child's neck.

Canopy

1. To open the canopy, pull the canopy toward the front of the seat, and to close the canopy, push it back.

2. Open the zipper on the canopy for extra shade.

3. For added ventilation, flip the canopy window cover up.

4. For added air flow, unzip the top zipper to expose the mesh. Roll the fabric flap up and secure using the webbing.

5. To access the child from the back of the stroller, unzip the bottom zipper. Roll the fabric flap up and secure using the webbing.

6. To remove the canopy, unzip zipper and then slide the canopy mounts up.


Insert

1. Before assembling the insert, release the buckle (1) and remove the magnetic clips (2).

2. Slide the shoulder harness strap off the upper portion of each magnetic clip to separate the shoulder harness from the waist harness.

3. To assemble the insert, place the insert over the seat and thread the shoulder and waist harness straps through their respective slots.

4. Attach the hook and loop fastener at the top of the insert.


Recline

There are 4 recline positions.

1. To recline the backrest, squeeze the backrest adjustment handle and pull the backrest down. To raise the recline, push up.


Make sure the recline is adjusted properly for use.

Calf Support

The calf support has 3 positions.

2. To raise the calf support, lift up. To lower the calf support, press the adjustment button in the middle of the calf support (1), and push down (2).

3. When the recline is flat, the calf support must be in the vertical position. Pull the fabric out from under the calf support and attach it to the stroller using the 4 snaps.


Child may slip into leg openings and strangle. Never use in the reclined position unless the extra flap is pulled out from under the calf support, snapped into place and is secure.
DO NOT use enclosure with an older child that can lift up on hands and knees or crawl out.
Remove the arm bar when the calf support is in the vertical position and the extra flap is snapped into place.

Front Swivel Locks

It is recommended to use the front swivel locks on uneven surfaces.

1. Pull the front swivel lock up to lock the front wheel forward facing.

2. Push the front swivel lock down to unlock.


Brake

3. To lock the rear wheels, step down on the red area on the brake lever.

4. To unlock the rear wheels, step down on the green area on the brake lever.


Always apply the brake when the stroller is stopped.
Push the stroller slightly to ensure the brake is engaged.

Handle

The handle has 4 positions.

5. To adjust the height of the handle, pull the handle adjustment buttons up(1) and then pull the handle up or down (2).


Fold

Before folding, push the canopy to the rear of the stroller.

1. To engage the folding buttons, slide the top folding button(1) and then squeeze the bottom folding button (2).

2. While the folding buttons are engaged, rotate the handle forward.

3. Rotate and attach the fold lock.


Accessory

Not all accessories are included on some models.

Nuna PIPA series
For infant carrier assembly and usage, please refer to the infant carrier instruction manual.

Recline the stroller seat to the lowest position, push the canopy to the rear of the stroller and attach the arm bar.

4. To open the infant carrier lock, slide the latch out (1).
   To close the infant carrier lock, slide the latch in (2).

5. Open the infant carrier lock and place the infant carrier on the stroller so it sits over the arm bar. Then close the infant carrier lock.


Pull up on the infant carrier to check that it is fully locked to the stroller.
Remove the infant carrier before folding.

6. To remove the infant carrier, open the infant carrier lock, squeeze the stroller release handle (1) and lift the infant carrier up (2).


Cleaning and Maintenance

Clean the frame, plastic parts, and fabric with a damp cloth, but do not use abrasives or bleach. Do not use silicon lubricants as they will attract dirt and grime. Do not store your stroller in a damp place.
Clean the stroller wheels regularly with water and remove any dirt.
To ensure long-lasting use, wipe off this product with a soft, absorbent cloth after using it in rainy weather. Refer to the care label attached to the
fabric for washing and drying instructions.
It is normal for fabric to color from sunlight and to show wear and tear after a long period of use, even when used normally.
For reasons of safety, only use original Nuna parts.
Check regularly if everything functions properly. If any parts are torn, broken, or missing, stop using this product.

Contact

For replacement parts, service, or additional warranty questions, please contact our customer service department.

In Canada:
Nuna Canada
2520 AV Marie-Curie
St-Laurent, QC, H4S 1N1
1-800-667-4111
www.nunababy.ca

Find out more at nunababy.ca
