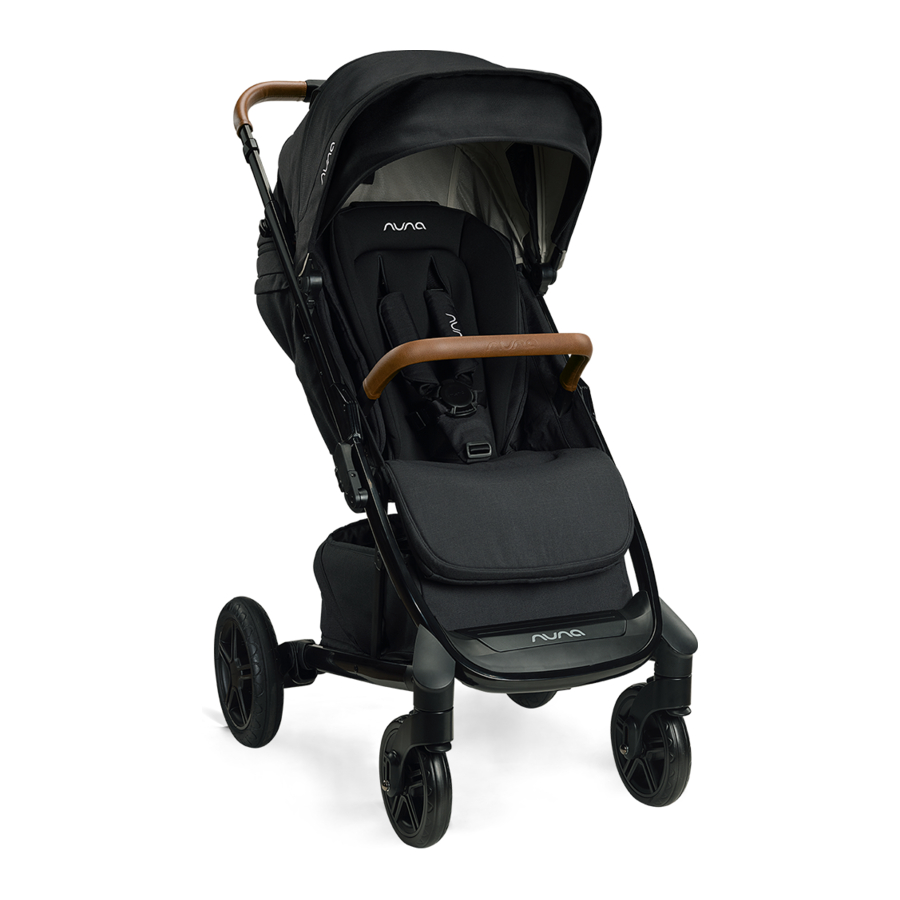

Nuna TAVO Next Manual

Product Information

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Product Registration

Please record this information:
Model Number
Manufactured in (date)

The model number and the manufactured date are located on a label on the stroller frame.

To register your product please visit: www.nunababy.com/register-gear

Click the "Register Gear" link on the homepage.

Warranty

For warranty information please visit: www.nunababy.com
Click the "Warranty" link on the homepage.

Contact

For replacement parts, service, or additional warranty questions, please contact our customer service department.
info@nunababy.com
www.nunababy.com

In the United Kingdom:
infouk@nunababy.com
www.nunababy.com

Child Usage Requirements

This stroller is suitable for use with children who meet the following requirements:
Birth to 22 kg or 4 years whichever comes first.
When using the stroller frame with NUNA infant carrier, refer to the child usage requirements listed in those instruction manuals.

Failure to follow these warnings and instructions could result in serious injury or death.

Always use the restraint system.

Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

Do not let the child play with this product.

Ensure that all the locking devices are engaged before use.

Never leave the child unattended.

This product is not suitable for running or skating. To avoid injury ensure that the child is kept away when unfolding and folding this product.

Accessories which are not approved by the manufacturer shall not be used. Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.

Adult assembly required.

ALWAYS set the parking brake when you stop.

Any damage caused by the use of accessories not supplied by Nuna will not be covered in terms of warranty.

Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.

Be certain the stroller is fully erected and latched before allowing your child near the stroller.

DO NOT carry additional children, goods, accessories in or on the stroller except as permitted in this manual. They may cause the stroller to become unstable.

DO NOT leave the stroller exposed in the vicinity of a strong source of heat i.e. a radiator or open fire.

DO NOT place any item on the canopy.

DO NOT store the stroller in a damp place. Always allow the fabric to dry naturally away from direct heat.

DO NOT use storage basket as a child carrier.

DO NOT use the stroller if any parts are damaged or missing.

For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

Keep small parts away from children as they pose a choking hazard.

Negotiate curbs and rough ground carefully. Repeated impact could cause damage to the stroller.

NEVER allow children to stand on the stroller.

NEVER carry more than one child at a time in the stroller.

NEVER use the stroller on stairs or escalators. You may suddenly lose control of the stroller or your child may fall out.

The harness must always be correctly fitted and adjusted. The harness is not a substitute for proper adult supervision.

The parking break shall be engaged when placing and removing children.

Overloading, incorrect folding, and the use of accessories e.g. child seats, bag hooks, rain covers, buggy boards, etc... other than those approved by Nuna may damage or make the stroller unsafe.

Rubber tires may leave black scuff marks on smooth surfaces such as parquet, laminate and linoleum.

STRANGULATION HAZARD Do not place items with a string around your child's neck, suspend strings from this product, or attach strings to toys.

To avoid any danger of suffocation, remove all plastic covers before using this item and destroy or keep away from babies and children!

To prevent a hazardous, unstable condition, do not place more than 4.5 kg in the storage basket. USE the most reclined position for new born babies.
Use the stroller with a child weighing no more than 22 kg. It will cause damage to the stroller with an unfitted child.

Parts List

Make sure all parts are available before assembly. If any part is missing, please contact Nuna. No tools are required for assembly.

Choking Hazard: Remove and immediately discard protective end caps from each wheel and wheel hub axle.

1. Front Wheel (x2)
2. Rear Wheel (x2)
3. Armbar
4. Canopy
5. Canopy Visor
6. Seat Pad
7. Armbar
8. Calf Support
9. Front Wheel
10. Rear Wheel
11. Buckle
12. Shoulder Harness Pads
13. Handle Adjustment Button
14. Insert
15. Handle
16. Secondary Lock
17. Folding Button
18. Infant Carrier Lock
19. Recline Adjustment Handle
20. Storage Basket
21. Brake Lever
22. Rain Cover

Product Set Up

Open Stroller

1. Open the storage latch as shown. (1)

2. Rotate the handle to the rear of the stroller. A "click" sound means the stroller frame is open completely.
   Check that the stroller is completely latched open before continuing. (2)


Front Wheels

1. Insert the front wheel into the front leg. A "click" sound means the wheel is assembled completely. (3)

   Check the wheel is securely attached by pulling out. Repeat on opposite side.
2. To remove the front wheel, slide the release button out (4)-1 and then detach the front wheel from the front leg (4)-2.


Rear Wheels

1. Insert the rear wheel into the rear leg. A "click" sound means the rear wheel is assembled completely. Repeat on opposite side. (5)

   Check that the wheels are securely attached by pulling on them.
2. To remove the rear wheel, press the release button (6)-1 and detach the rear wheel from the rear leg (6)-2.


Canopy

1. Slide the canopy mounts onto the stroller. (7)

2. Zip the canopy fabric to the back of the stroller seat. (8)


Arm Bar

Always secure the child with the harness. The arm bar is not a restraint device.

1. Align the arm bar ends with the arm bar mounts, and insert until it clicks into place. A "click" sound means the arm bar is assembled completely. (9)

2. To remove the arm bar, press the arm bar release buttons (10)-1, and lift the arm bar up. (10)-2


Check Set Up

• Stroller frame is latched open
• Rear and front wheels securely attached
• Canopy mount attached to stroller frame and canopy zipped to seat pad
• Basket securely attached
• Arm bar securely attached

Product Use

Securing Your Child

1. Press the button, the buckle will release automatically.
   Remove the clips and place your child in the stroller. (11)

2. Match the waist belt buckle with the shoulder buckle. (12)

3. Then align them with the center buckle, the buckle can lock automatically. Repeat on the opposite side. (13) A "click" sound means the buckle is locked completely.

4. Fit the harness snugly to your child by pulling the adjustment straps to tighten (14)-1. Then pull the waist adjustment straps out (14)-2.


Shoulder Harness Position

1. The upper shoulder harness buckles can be moved up and down for added adjustment. (15)

   To avoid serious injury from falling or sliding out, always secure your child with harness.

Make sure your child is snugly secured. The space between the child and the shoulder harness should be about the thickness of one hand.

DO NOT cross the shoulder belts. This will cause pressure on child's neck.

Canopy

1. To open the canopy, pull the canopy toward the front of the seat, and to close the canopy, push it back. (16)

2. For extra shade, open the zipper on the canopy. (17)

3. For added ventilation, flip the canopy window cover up. (18)

4. For added air flow, unzip the top zipper to expose the mesh (19)-1. Roll the fabric flap up and secure using the webbing (19)-2.

5. To access the child from the back of the stroller, unzip the bottom zipper (20)-1. Roll the fabric flap up and secure using the webbing (20)-2.


Recline

There are 4 recline positions.

1. To recline the backrest, squeeze the backrest adjustment handle (21)-1 and pull the backrest down (21)-2. To raise the recline, push up.

   Make sure the recline is adjusted properly for use.

Calf Support

The calf support has 2 positions.

1. To raise the calf support, lift up. To lower the calf support, press the adjustment button in the middle of the calf support (22)-1, and push down (22)-2.


Front Swivel Locks

It is recommended to use the front swivel locks on uneven surfaces.

1. Pull the front swivel lock up to lock the front wheel forward facing. (23)

2. Push the front swivel lock down to unlock. (24)


Brake

1. To lock the rear wheels, step down on the red area on the brake lever. (25)

2. To unlock the rear wheels, step down on the green area on the brake lever. (26)

   Always apply the brake when the stroller is stopped.
   Push the stroller slightly to ensure the brake is engaged.

Handle

The handle has 4 positions.

1. To adjust the height of the handle, pull the handle adjustment buttons up (27)-1 and then pull the handle up or down (27)-2.


Storage Basket

1. To divide storage basket into two parts, pull the storage basket separator up. (28)

2. To integrate storage basket into a part, press the storage basket separator down. (28)

Fold

Before folding, push the canopy to the rear of the stroller.

1. Slide the secondary lock (29)-1 and then squeeze the folding button (29)-2.

2. While the secondary lock and folding button are engaged, rotate the handle forward. (30)

3. Then close the storage latch as shown (31).


Accessory

NOT all accessories are included on some models.

NUNA Infant Child Restraint

For infant carrier assembly and usage, please refer to the infant carrier instruction manual.

Recline the stroller seat to the lowest position, push the canopy to the rear of the stroller and attach the arm bar.

1. To open the infant carrier lock, slide the latch out (32)-1. To close the infant carrier lock, slide the latch in (32)-2.

2. Open the infant carrier lock and place the infant carrier on the stroller so it sits over the arm bar. Then close the infant carrier lock. (33)

   Pull up on the infant carrier to check that it is fully locked to the stroller.
   Remove the infant carrier before folding.
3. To remove the infant carrier, open the infant carrier lock, squeeze the stroller release handle (34)-1 and lift the infant carrier up (34)-2.


Rain Cover

To assemble the stroller rain cover, place it over the stroller seat. (35)

Always check ventilation, especially in hot weather when the rain cover is on the product.
Always check that the rain cover has been cleaned and dried before folding.
DO NOT fold the stroller after assembling the rain cover.
DO NOT place your child into the stroller assembled with rain cover during hot weather.

Detach & Assemble Insert

1. Open the buckle. (36)

2. Detach the shoulder harness pads as shown (37).

3. Detach the crotch harness pad as shown (38).

4. To detach the insert, pull the hook out of loop fastener. (39)

5. Then thread the shoulder and waist harnesses through their respective slots of insert and then take the insert out. (40).


To re-assemble Insert, follow the steps above in reverse.

Cleaning and Maintenance

Clean the frame, plastic parts, and fabric with a damp cloth, but do not use abrasives or bleach. Do not use silicon lubricants as they will attract dirt and grime. Do not store your stroller in a damp place.

Clean the stroller wheels regularly with water and remove any dirt.

To ensure long-lasting use, wipe off this product with a soft, absorbent cloth after using it in rainy weather.

Refer to the care label attached to the fabric for washing and drying instructions.

It is normal for fabric to color from sunlight and to show wear and tear after a long period of use, even when used normally.

For reasons of safety, only use original Nuna parts.

Check regularly if everything functions properly. If any parts are torn, broken, or missing, stop using this product.
