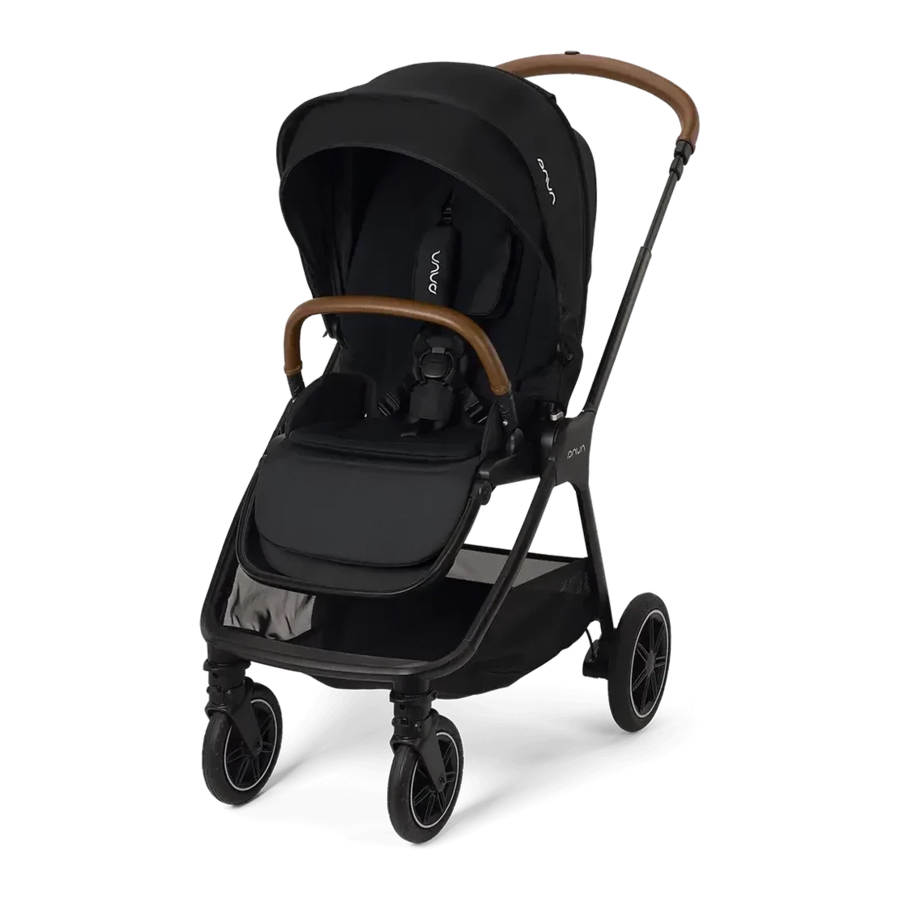

Nuna triv - Baby Stroller Manual

Also See for triv:

Manual (128 pages)

Instruction manual (21 pages)

User manual (17 pages)

Table of Contents

Contents

1 Product Information
- 1.1 Product Registration
- 1.2 Contact
2 Child Usage Requirements
3 WARNING
4 Parts List
5 Product Set Up
6 Product Use
7 Accessories
8 Detach & Assemble Soft Goods
9 Cleaning and Maintenance
10 Documents / Resources
- 10.1 References
- 10.2 Download manual

Nuna triv - Baby Stroller Manual

Product Information

Product Registration

The model number and the manufactured date are located on a label on the stroller frame. Record this information.

To register your product please visit:
www.nunababy.com
Click the "Register Gear" link on the homepage.

Contact

For replacement parts, service, or additional warranty questions, please contact our customer service department.
info@nunababy.com
www.nunababy.com

In the United Kingdom:
infouk@nunababy.com
www.nunababy.com
NUNA International B.V.
Van der Valk Boumanweg 178 C
2352JD Leiderdorp
The Netherlands

Child Usage Requirements

This stroller seat is suitable for use with children who meet the following requirements:
Birth to 22 kg or 4 years whichever comes first
When using the stroller frame with TRIV carry cot or Nuna infant carriers, refer to the child usage requirements listed in those instruction manuals.

WARNING

Failure to follow these warnings and instructions could result in serious injury or death.

Always use the restraint system.
Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.
Do not let the child play with this product.
Ensure that all the locking devices are engaged before use.
Never leave the child unattended.
This product is not suitable for running or skating.
To avoid injury ensure that the child is kept away when unfolding and folding this product.
Accessories which are not approved by the manufacturer shall not be used. Only replacement parts supplied or recommended by the manufacturer/distributor shall be used.
Adult assembly required.
ALWAYS set the parking brake when you stop.
Any damage caused by the use of accessories not supplied by Nuna will not be covered in terms of warranty.
Any load attached to the handle and/or on the back of the backrest and/or on the sides of the vehicle will affect the stability of the vehicle.
Be certain the stroller is fully erected and latched before allowing your child near the stroller.
DO NOT carry additional children, goods, accessories in or on the stroller except as permitted in this manual. They may cause the stroller to become unstable.
DO NOT leave the stroller exposed in the vicinity of a strong source of heat i.e. a radiator or open fire.
DO NOT place any item on the canopy.
DO NOT store the stroller in a damp place. Always allow the fabric to dry naturally away from direct heat.
DO NOT use storage basket as a child carrier.
DO NOT use the stroller if any parts are damaged or missing.
For car seats used in conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.
It is not suggested to use insert B alone.
Keep small parts away from children as they pose a choking hazard.
Negotiate curbs and rough ground carefully. Repeated impact could cause damage to the stroller.
NEVER allow children to stand on the stroller.
NEVER carry more than one child at a time in the stroller.
NEVER use the stroller on stairs or escalators. You may suddenly lose control of the stroller or your child may fall out.
The harness must always be correctly fitted and adjusted. The harness is not a substitute for proper adult supervision.
The parking break shall be engaged when placing and removing children.
Overloading, incorrect folding, and the use of accessories e.g. child seats, bag hooks, rain covers, buggy boards, etc... other than those approved by Nuna may damage or make the stroller unsafe.
Rubber tires may leave black scuff marks on smooth surfaces such as parquet, laminate and linoleum.
STRANGULATION HAZARD Do not place items with a string around your child's neck, suspend strings from this product, or attach strings to toys. To avoid any danger of suffocation, remove all plastic covers before using this item and destroy or keep away from babies and children!
To prevent a hazardous, unstable condition, do not place more than 4.5 kg in the storage basket and more than 0.45 kg in the storage pocket.
USE the most reclined position for new born babies.
Use the pushchair with a child weighing no more than 22 kg. It will cause damage to the pushchair with an unfitted child.

Parts List

Make sure all parts are available before assembly.
If any part is missing, please contact local retailer. No tools are required for assembly.
Parts List

Stroller Frame
Canopy
Front Wheel (x2)
Rear Wheel (x2)
Seat Pad
Insert A
Insert B (not suggested to use alone)
Arm Bar
Calf Support
Swivel Lock
Storage Basket
Calf Support Adjustment Button
Buckle
Seat Release Button
Shoulder Harness Pad
Handle
Handle Adjustment Button
Brake Lever
Folding Webbing
Storage Pocket (maximum load = 0.45 kg)
Recline Adjustment Button/Folding Release Button
Canopy Window
Post Adapters
Car Seat Ring Adapter
Rain Cover

Product Set Up

Open the product

Take the stroller frame out. (1)
Rotate the handle up to open the stroller frame. (2)
Pull the seat to open it. (3)
A "click" sound means the seat is open.
Check that the stroller is completely latched open before continuing.

Switch Seat

Please switch seat if you needed.

Press the seat release button (4)-1 and lift the seat up (4)-2.
Reverse the seat, and then attach it to the frame. (5) A "click" sound means the seat is attached completely.

Front Wheels

Insert the front wheel into the front leg. (6)
A "click" sound means the front wheel is assembled completely.
Check the wheel is securely attached by pulling out. Repeat on opposite side.
To remove the front wheel, press the release button (7)-1 and detach the front wheel from the front leg (7)-2.

Rear Wheels

Insert the rear wheel into the rear leg. (8)
A "click" sound means the rear wheel is assembled completely.
Check the wheel is securely attached by pulling out. Repeat on opposite side.
To remove the rear wheel, press the release button (9)-1 and detach the rear wheel from the rear leg (9)-2.

Arm Bar

! Always secure the child with the harness. The arm bar is not a restraint device.

Align the arm bar ends with the arm bar mounts, and insert until it clicks into place. (10)
A "click" sound means the arm bar is assembled completely.
To remove the arm bar, press the arm bar release buttons (11)-1 and remove the arm bar (11)-2.

Check Set Up

Stroller frame is latched open
Stroller seat securely attached
Rear and front wheels securely attached
Arm bar securely attached

Product Use

Securing Your Child

Push the top button on the buckle (12)-1 to release the buckle latch and remove the magnetic clips (12)-2. Place your child in the stroller.
Insert the magnetic clips into the buckle. (13)
Fit the harness snugly to your child by pulling the adjustment straps to tighten (14)-1. Then pull the waist adjustment straps out (14)-2.

Shoulder Harness Position

The upper shoulder harness buckles can be moved up and down for added adjustment. (15)

! To avoid serious injury from falling or sliding out, always secure your child with the harness.

Make sure the harness is adjusted properly and your child is snugly secured. The space between the child and the shoulder harness should be about the thickness of one finger.
DO NOT cross the shoulder belts. This will cause pressure on child's neck.

Canopy

To open the canopy, pull the canopy toward the front of the seat, and to fold, push it back. (16)
Open the zipper on the canopy for extra shade. (17)
For added ventilation, flip the canopy window cover up. (18)

Recline

There are 4 recline positions for the backrest.

To raise or lower the backrest, squeeze the recline adjustment button (19)-1, and pull the backrest up or down (19)-2.

! Please do not press the button (19)-3 on the middle of the recline adjustment button when adjusting the angle for the recline.
Make sure the recline is adjusted properly for use.

Calf Support

The calf support has 2 use positions.

To raise the calf support, lift up.
To lower the calf support, press the adjustment button (20)-1, and push down (20)-2.

Handle

The handle has 5 positions.

To adjust the height of the handle, pull the handle adjustment button (21)-1 and pull the handle up or down (21)-2.

Brake

To lock the rear wheels, step down on the brake lever. (22)
To unlock the rear wheels, lift up on the brake lever. (23)

! Always apply the brake when the stroller is stopped.
Push the stroller slightly to ensure the brake is engaged.

Front Swivel Locks

It is recommended to use the front swivel locks on uneven surfaces.

Pull the front swivel lock up to lock the front wheel. (24)
Push the front swivel lock down to unlock. (25)

Fold

The stroller can be folded with forward facing seat or rear facing seat or without the seat. Before folding the stroller, adjust the handle to the lowest position and make sure the front swivel locks are unlocked.

Fold the canopy. (26)
Press the folding release button (27)-1 on the middle of the recline adjustment button and then squeeze the recline adjustment button (27)-2.
Fold the seat. (28)
Pull the folding webbing of the seat to fold the stroller. (29)
The stroller with forward facing seat can stand by wheels, and with rear facing seat can stand by handle and the rear wheels. (30)
Press the folding buttons of the seat mounts. (31)
Fold the stroller. (32)

! The stroller without seat can stand by handle and the rear wheels.

Insert

To assemble the insert, place the insert over the seat and thread the shoulder, waist and crotch harnesses through their respective slots. (33)
Attach the hook and loop fasteners. (34)

Accessories

! Not all accessories are included on some models.

Post Adaptors

For Nuna infant carrier and TRIV carry cot assembly and usage, please refer to the infant carrier and carry cot instruction manual.

To attach the post adapters, place the post adapters on the seat mounts. A "click" sound means the post adapters are attached. (35)(36)
To attach infant carrier, place the infant carrier on the post adapters. A "click" sound means the infant carrier is attached. (37)
To attach carry cot, place the carry cot on the post adapters. A "click" sound means the carry cot is attached. (38)
The infant carrier can be attached rear or forward facing on the post adapter. (39)
The carry cot can be attached rear or forward facing on the post adapters. (40)
To remove the infant carrier, push the release buttons on the infant carrier (41)-1 and lift up (41)-2.
To remove carry cot, press the release buttons on the side of the carry cot (42)-1 and lift up (42)-2.
To remove the post adapters, pull the adapter release buttons (43)-1 and lift up (43)-2.

! Remove the infant carrier and carry cot before folding.

Fold the product with Post Adapters

Before folding the stroller with post adapters, adjust the handle to the lowest position and make sure the front swivel locks are unlocked.

Pull the folding webbing of the post adapters to fold the stroller. (44)

! The stroller with the post adapters can stand by handle and the rear wheels.

Car Seat Ring Adapter

For Nuna infant carrier assembly and usage, please refer to the infant carrier instruction manual.

To attach the car seat ring adapter, place the car seat ring adapter on the seat mount. (45) A "click" sound means the car seat ring adapter is locked.
To attach the infant carrier, place the infant carrier on the car seat ring adapter. A "click" sound means the infant carrier is attached. (46)
The infant carrier and the car seat ring adapter can be attached rear or forward facing. (47)
To remove the infant carrier, release the second safety lock for adapter (48)-1, then push the release button located on the back of the infant carrier(48)-2 and lift up (48)-3.
To remove the car seat ring adapter, push the adapter release buttons (49)-1 and lift up (49)-2.

! Remove the infant carrier before folding.

Fold the product with Car Seat ring adapter

Before folding the stroller with car seat ring adapter, adjust the handle to the lowest position and make sure the front swivel locks are unlocked.

Pull the folding webbing of the car seat ring adapter to fold the stroller. (50)

! The stroller with the car seat ring adapter can stand by handle and the rear wheels.

TRIV Rain Cover

Check that the canopy is completely open before attaching the rain cover.

To assemble the rain cover, place it over the pushchair. (51)

! ALWAYS check ventilation when the rain cover is on the product.
ALWAYS check that the rain cover has been cleaned and dried before folding.
DO NOT fold the pushchair when the rain cover is attached.
DO NOT place your child in the pushchair in hot weather with the rain cover attached.

Detach & Assemble Soft Goods

To detach seat soft goods, follow the steps (52) - (65) as shown, and to re-assemble seat soft goods, follow the steps above in reverse.

Detaching & Assembling Soft Goods

Cleaning and Maintenance

Clean the frame, plastic parts, and fabric with a damp cloth, but do not use abrasives or bleach. Do not use silicon lubricants as they will attract dirt and grime. Do not store your stroller in a damp place.
Clean the stroller wheels regularly with water and remove any dirt.
To ensure long-lasting use, wipe the stroller off with a soft, absorbent cloth after using it in rainy weather.
Refer to the care label attached to the soft goods for washing and drying instructions.
It is normal for fabric to color from sunlight and to show wear and tear after a long period of use, even when used normally.
For reasons of safety, only use original Nuna parts.
Check regularly if everything functions properly. If any parts are torn, broken, or missing, stop using this product.
