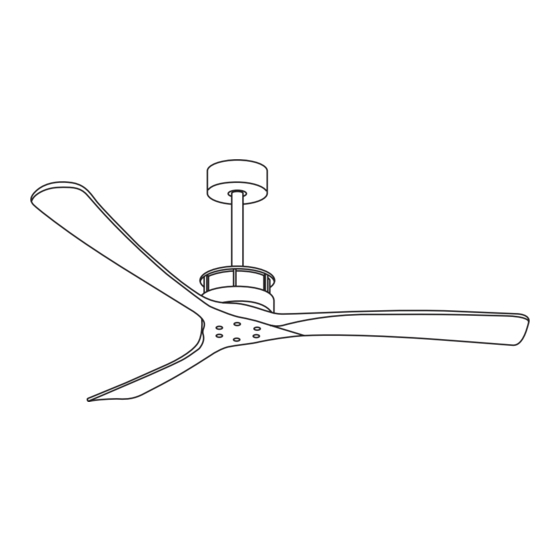

Wind Large
Assembly manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wind Large and is the answer not in the manual?

Questions and answers

Related Manuals for Create Wind Large

Summary of Contents for Create Wind Large

  • Page 1 Wind Large Assembly manual...
  • Page 3 To download this user guide in your language, visit our website: www.create-store.com/uk/ Para descargar el manual en su idioma, visite nuestra web: www.create-store.com/es/ Para baixar o manual no seu idiomas, visite nosso site: www.create-store.com/pt/ Pour télécharger le manuel dans votre langue, visitez notre site Web: www.create-store.com/fr/...

  • Page 4: Table Of Contents

    INDE X Box c o n te n t s Step 1. Woo d cei li ng Step 1. Fals e ce il ing Step 1. C on c re te ce il ing C h oi c e o f he ig ht Step 2.

  • Page 5: B Ox C Ont En T S

    B OX C ONT EN T S CANOPY DRIVER REMOTE CONTROL (1) EXPANSION SCREWS (2) WOOD SCREWS BLADES MOTOR SMALL DOWNROD EXTENSION MOUNTING BRACKET SCREWS FOR BLADES WIRE CONNECTORS BALANCING KIT ATTENTION! Before starting the as- sembly, remember to disconnect the light from the electrical panel so as not to suffer an electric shock.

  • Page 6: Step 1. Woo D Cei Li Ng

    STEP 1. WO O D C EI LI NG PARTS AND TOOLS NOT INCLUDED (2) WOOD SCREWS OPTIONAL ACCORDING TO CEILING TYPE Mark with a pencil the 4 holes of piece I on If necessary, depending on the type of the ceiling.

  • Page 7: Step 1. Fals E Ce Il Ing

    STEP 1. FALS E C EI L I NG PARTS AND TOOLS NOT INCLUDED FIXING SCREWS WITH SPRING LEVER Mark on the ceiling with a pencil the 2 cen- With the help of a drill, make the two cor- tral holes using piece I as a guide. responding holes.

  • Page 8: Step 1. C On C Re Te Ce Il Ing

    STEP 1. C ONC RE T E C EI L I NG PARTS AND TOOLS NOT INCLUDED (1) EXPANSION SCREWS Disassemble part F separating it into pieces. Ø8 mm Mark on the ceiling with a pencil the 2 cen- With the help of a drill, make the two cor- tral holes of piece I, using the same piece responding holes with an Ø8 mm drill bit.
  • Page 9 Place part I matching its holes with the Insert pieces F2, F3 and subsequently the screws F1. Make sure the ceiling wires are nut F4. placed on one side of piece I. Tighten piece F4 with a # 10 wrench, until Make sure that piece I is perfectly hooked you feel that it is well fixed.

  • Page 10: C H Oice O F H Ei G Ht

    C H OICE O F H EI G HT Before you start, choose the desired height. (25cm +/-) You will have to choose between the height of piece G or piece H. · If you choose the height of piece H, you should fol- low the instructions below.

  • Page 11: Step 2. Main B Ody As Sem Bly

    Fit the tilt support onto the Tighten the two screws on Put the pin back into part H. pin. the tilt support with the screwdriver. Secure the pin with the Piece H will be ready to be locking piece so that it does used.
  • Page 12 Once the piece A are inserted, you must insert the wires With the help of a screwdriv- of part E inside the bar. If you want, you can tape the wires er, remove the 2 screws at down to make it easier to run them inside the bar. the top of piece E.

  • Page 13: Step 3. Dr Iver C Onn Ecti On

    STEP 3. DR IVER C ONN ECTI ON DRIVER WIRE CONNECTORS Remember to put the notch Place the tilt support in the Before continuing, check of the black top of the tilt su- slot of piece I. that the center frame is se- pport backwards so that the curely positioned so that it piece fits properly.
  • Page 14 Select and connect all the Once connected, place Then, you have to join the grounding wires, including pieces K screwing it until remaining wires of piece B the one from your own hou- they are well tighten. and the line and neutral wi- se wiring.

  • Page 15: Step 4. As Semb Li Ng Th E B L A De S

    Finally, with the help of a screwdriver, tighten the screws so that the piece is well fixed. STEP 4. AS SEMB LI NG TH E B L A DE S A replacement BLADES screw is included Place the first blade D securing it with the washers and screws Follow the same step with J with the help of the screwdriver, without tightening them too the second blade D.
  • Page 16 Repeat the same step with the third blade. Once all the blades D are in place, screw all the screws J tightly so that the blades are well attached. E NGL I SH...

  • Page 17: B L Ade Bal A Nc Ing Ki T

    B L ADE BAL A NC ING KI T Your ceiling fan may have blade swing problems when in operation due to irregularities in the blades or brackets. Also, incorrect system mounting or crooked bearings could cause additional problems. The following procedure is recommended to remedy these problems: 1.
